Blue Diamond

108095

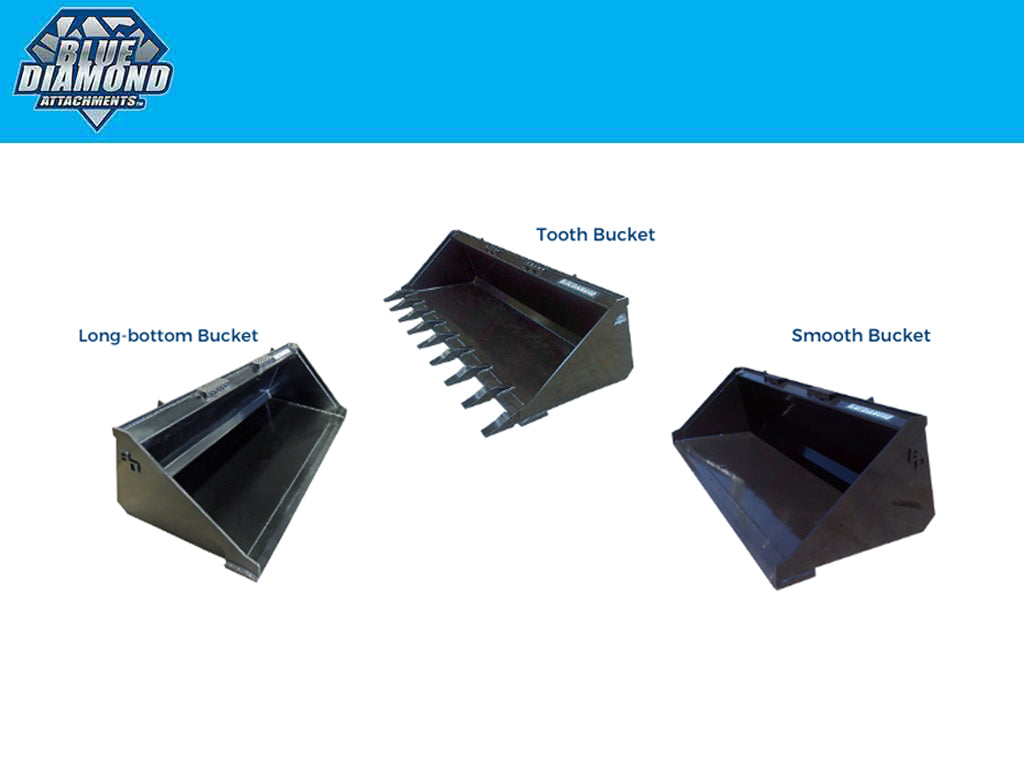

BLUE DIAMOND general purpose buckets

STYLE
WIDTH
EDGE

BUCKET – GENERAL PURPOSE

Our low-profile skid steer buckets are available in a variety of configurations. We offer bolt-on cutting edge, teeth, tooth bar, or long bottom. These well-engineered buckets offer a powerful breakout force and great visibility. Buckets up to 72” wide use 3/16” back and bottom and 78” and larger use 1/4”. All standard buckets are 20” tall and use a 3/4” by 6” cutting edge. The standard bottom is 30” front to back and the long bottom is 36”.

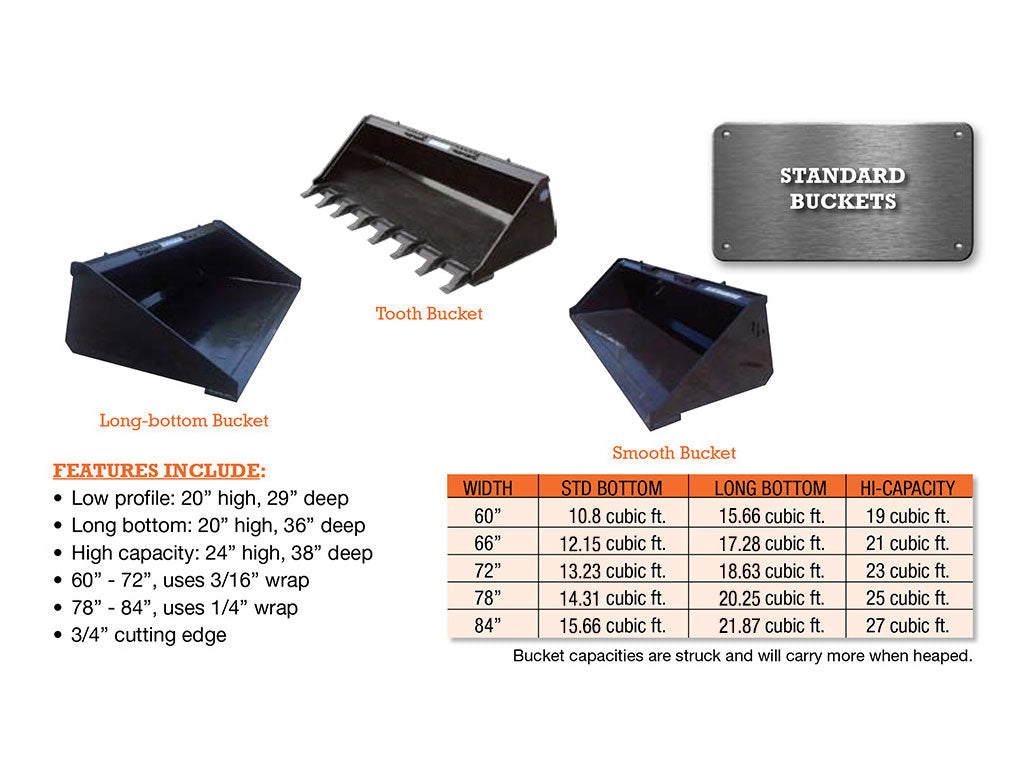

FEATURES INCLUDE:

  • Low profile: 20″ high, 29″ deep

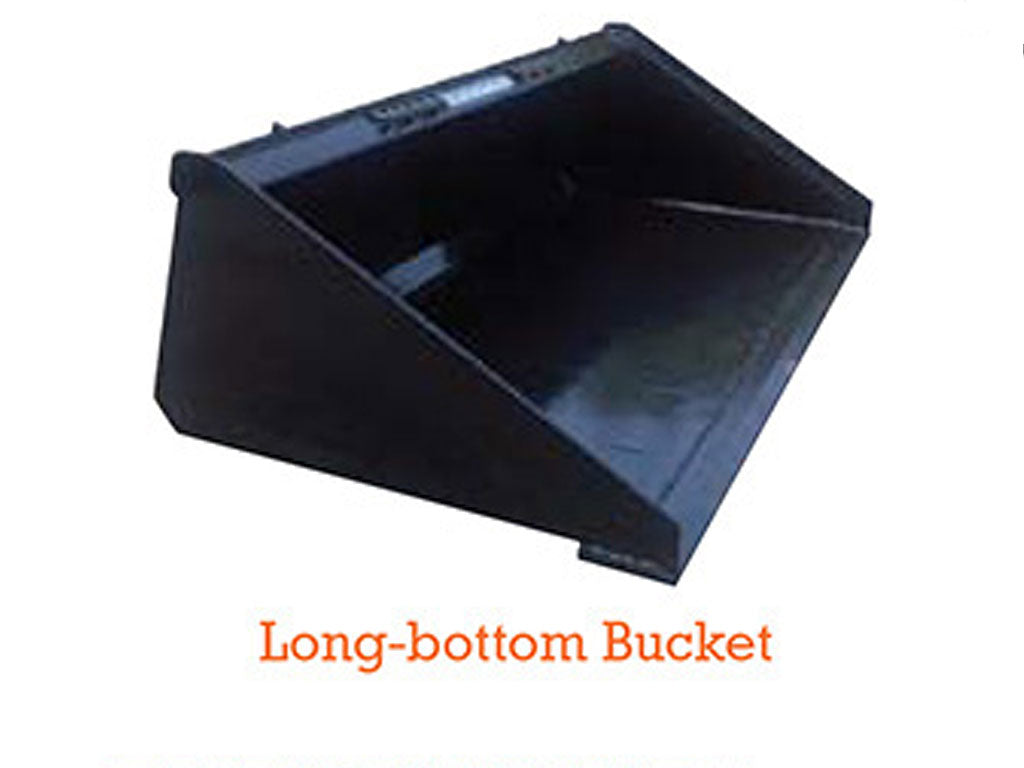

  • Long  bottom: 20″ high, 36″ deep
  • High Capacity: 24″ high, 38″ deep
  • 60″ – 72″, uses 3/16″ wrap
  • 78″ – 84″, uses 1/4″ wrap
  • 3/4″ cutting edge



Bucket capacities are struck and will carry more when heaped.
