BLUE DIAMOND grapple rake for mini loader

Size
MOUNTING

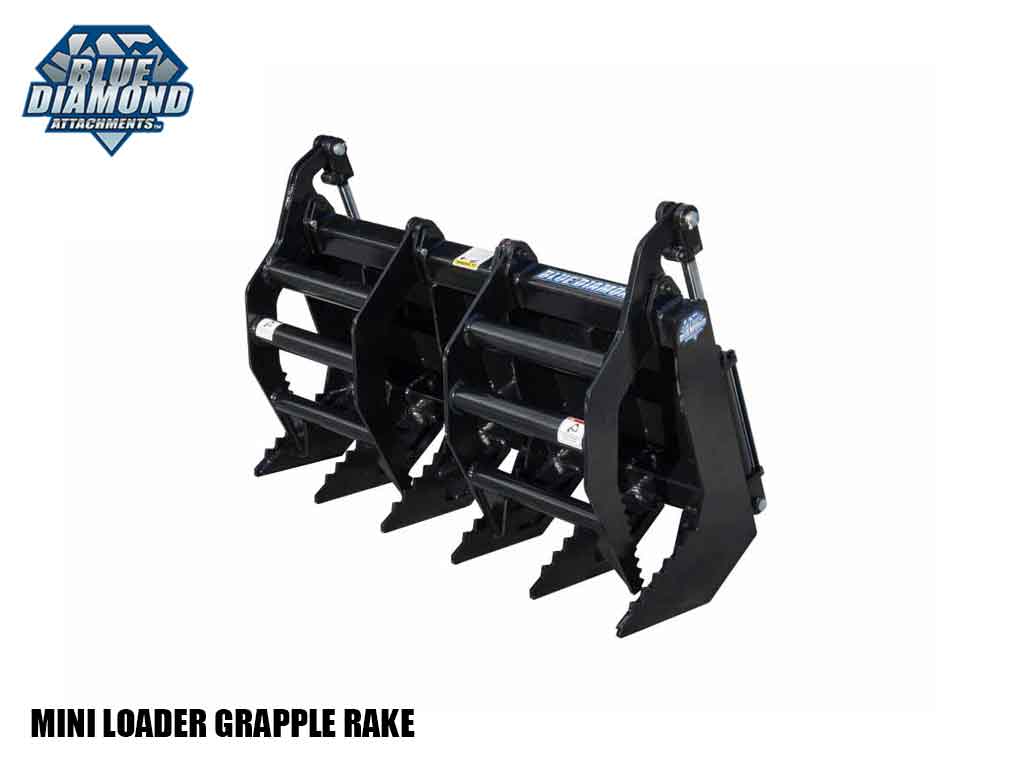

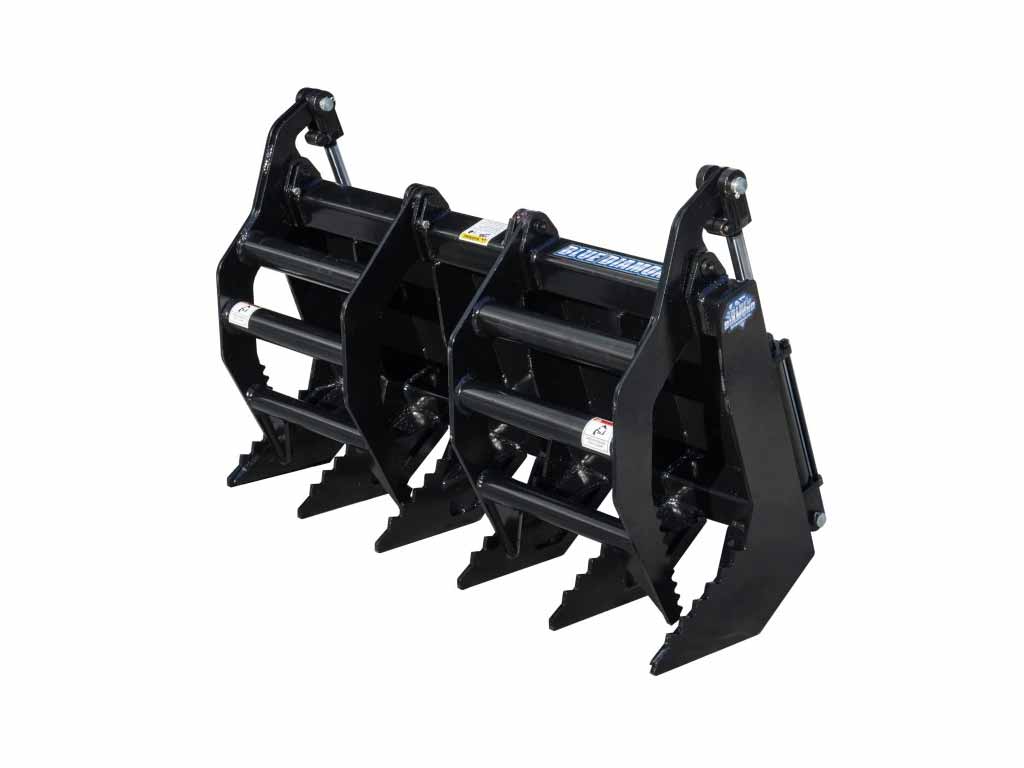

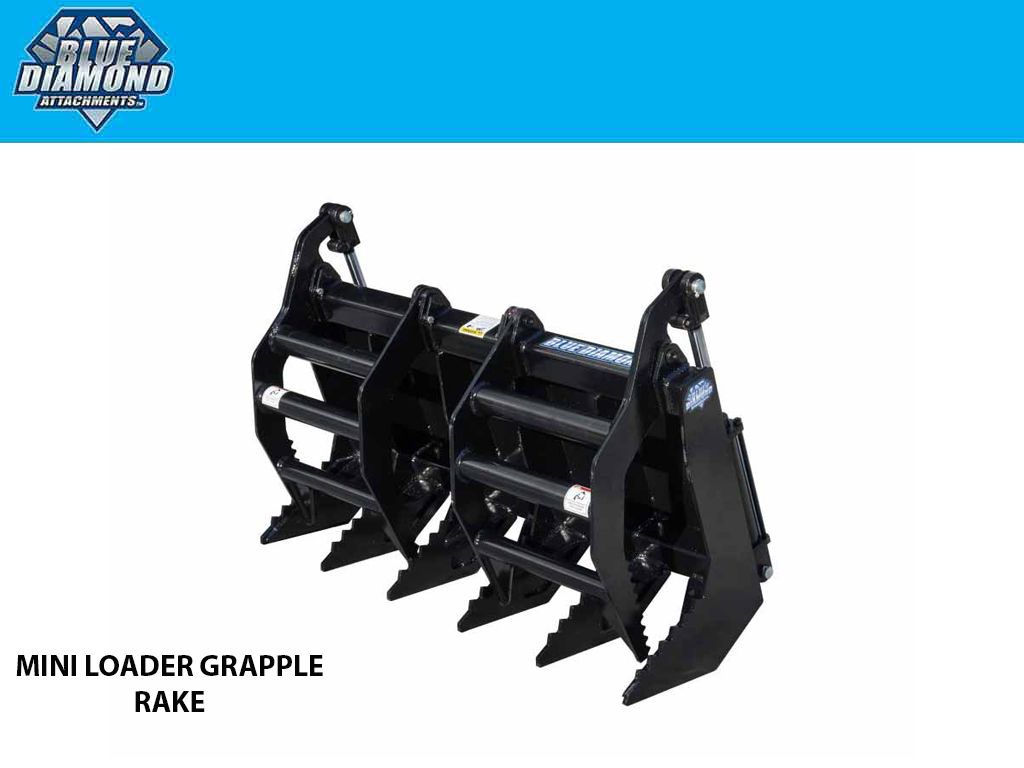

MINI GRAPPLE RAKE

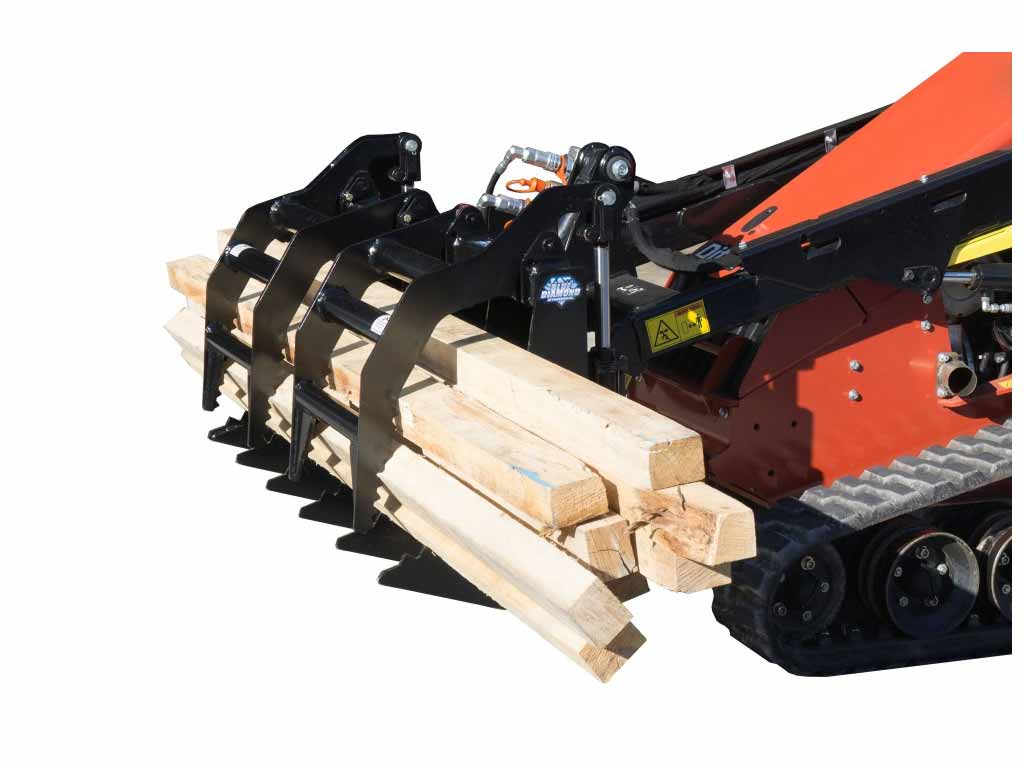

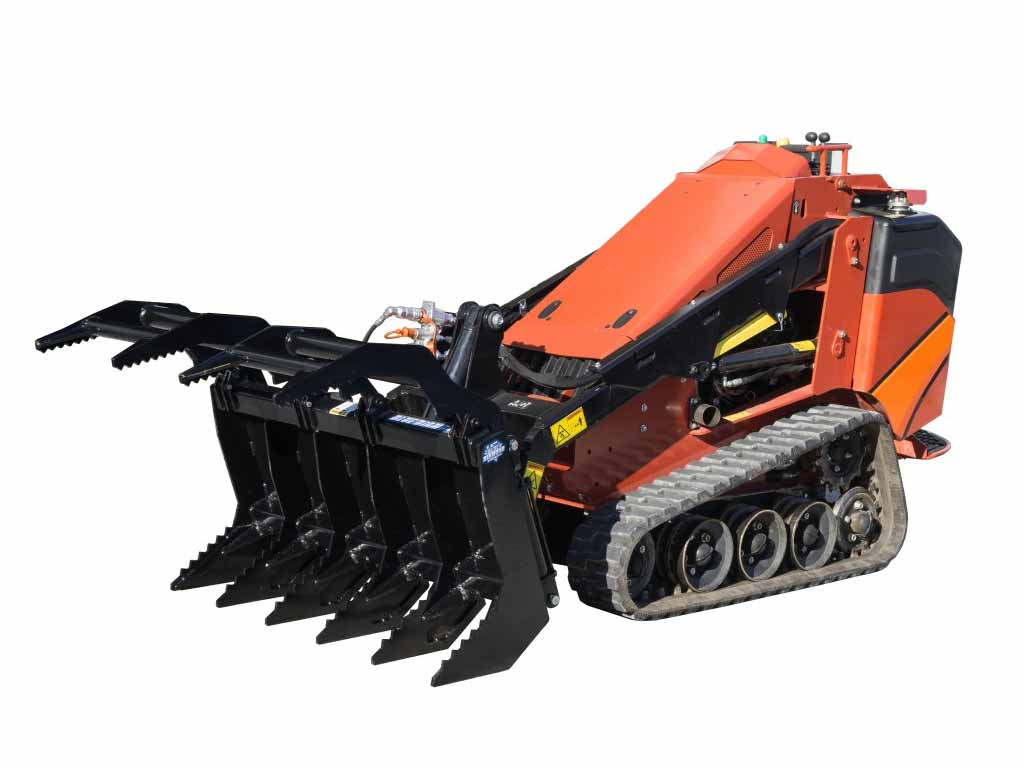

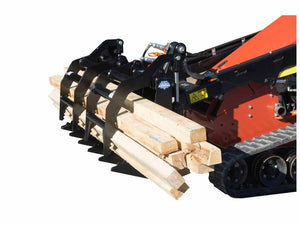

The Blue Diamond® Mini Grapple Rake is a great tool for ripping up roots, pushing them into a pile, and then being able to grab that pile of roots. It also can be used in other applications for brush or small logs. The independently acting top clamps allow you to grab loads that are not even on both sides. The bottom tines have serrated teeth to easily rip and tear out roots when raking through the dirt.

FEATURES INCLUDE:

  • Greaseable pivot points
  • Independent dual top clamps
  • 9″ tine spacing
  • Mounts available to fit most machines
  • Opens to 32.5″, closes to 5.75″

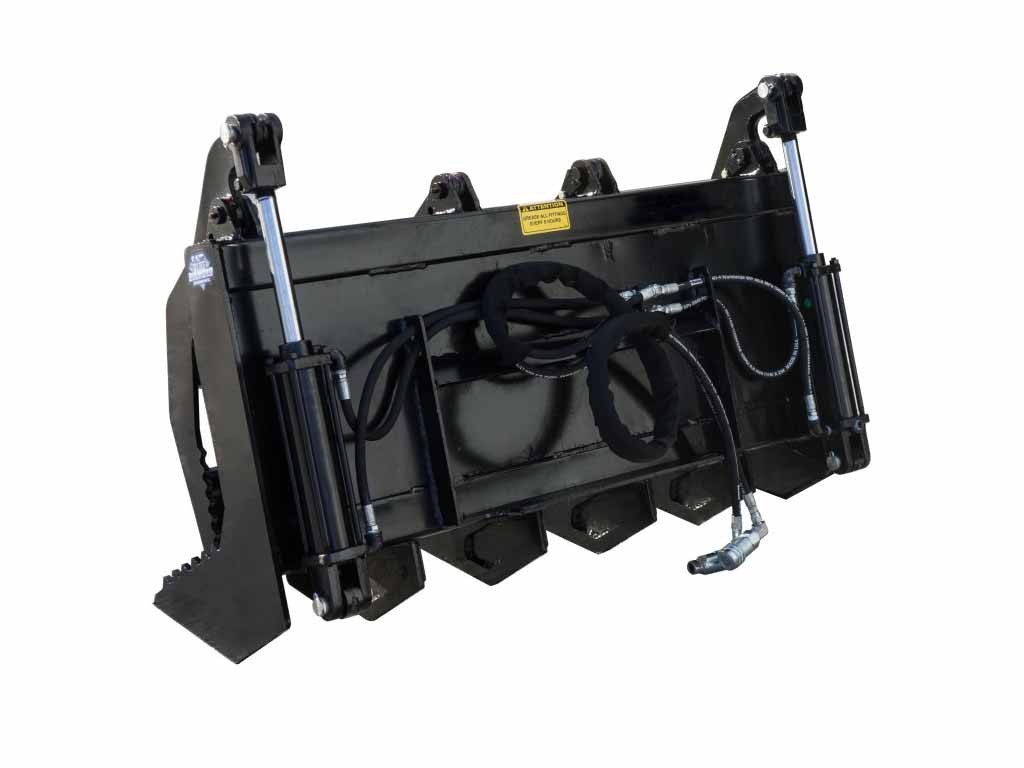

  • Hoses and couplers included
 MODEL LBS WIDTH
DIMS
107105 350 42" 31.5" x 20" x 42"
107110 360 48" 31.5” x 20” x 48”
107120 450 60" 31.5” x 20” x 60”
