106022-25

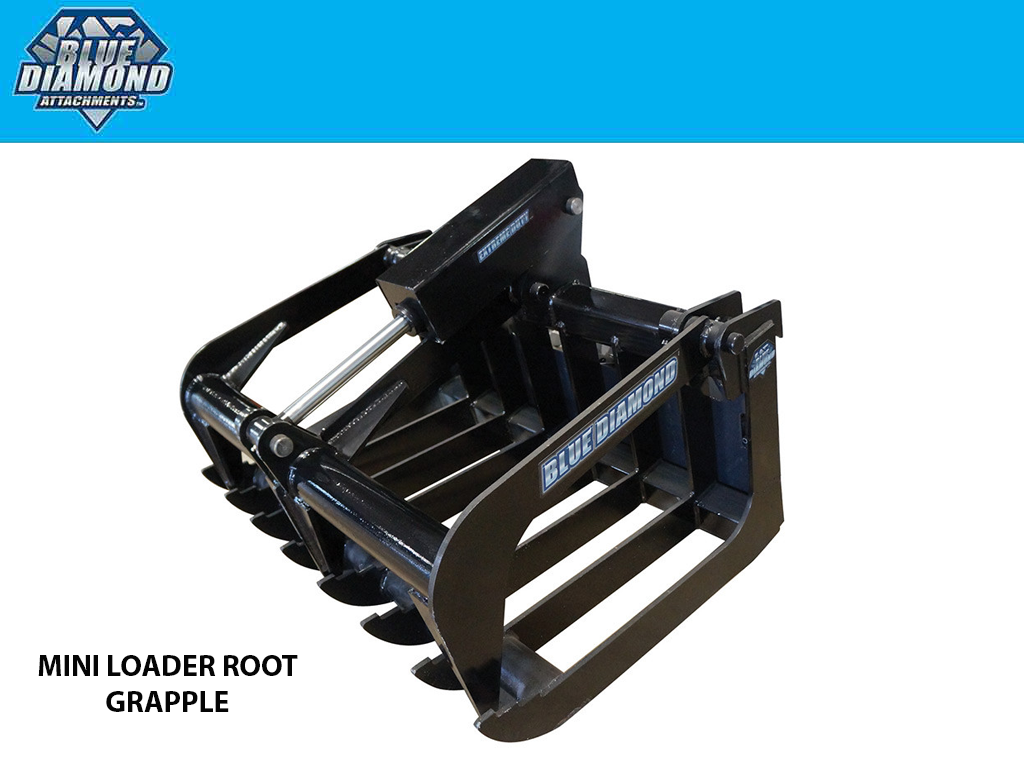

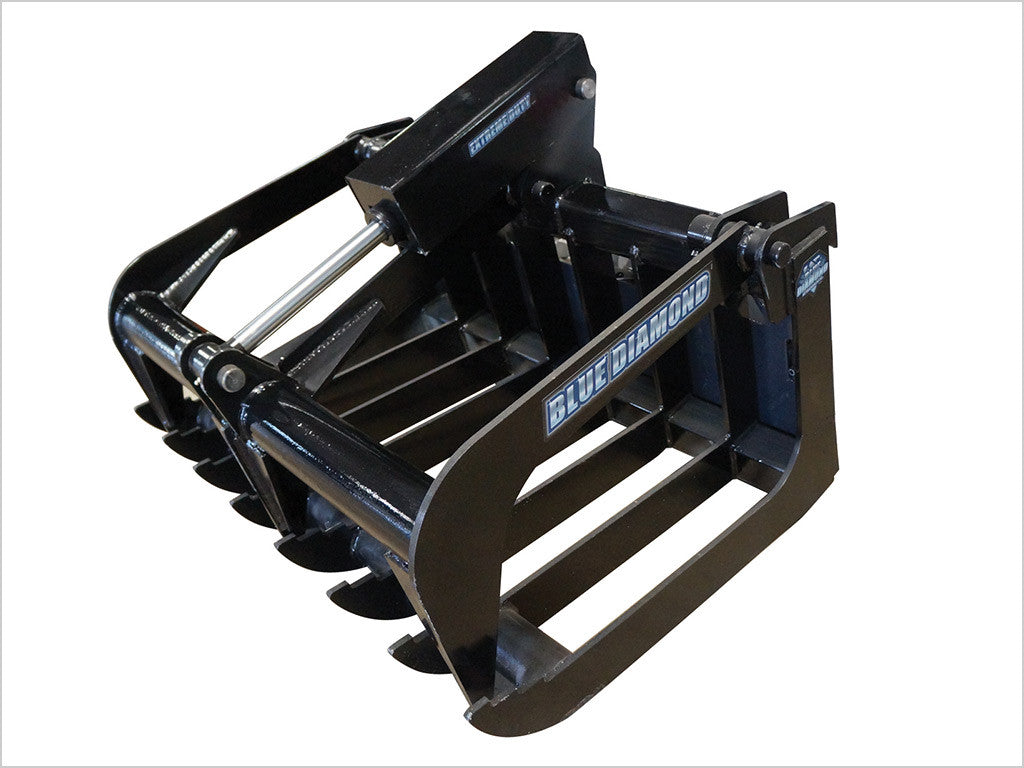

BLUE DIAMOND root grapple for mini loader

Size
Mounting

Blue Diamond offers a the mini-series root grapple in 36", 38", 42",44", 50", 54", and 60" sizes. These exceptionally tough grapples originated through a need for a tough yet light grapple for interior demolition. This very demanding application gave this grapple an opportunity to make a name for itself as the top in its class. Industrial grade components from the pivot pins to the cylinders make this attachment ready for the most demanding conditions. These grapples can be ordered with a Toro Dingo Or Bobcat MT mounting.

  • GRAPPLE FOR MINI SKID STEERS
  • 1 1/4" PIVOT PINS FOR BUSHINGS
  • 10" STROKE 2" BORE WELDED CYLINDER
  • OPEN TINES, TURNED UP AT END
 PART# MODEL WEIGHT GRAPPLE DUTY
106022 36" Grapple, Root 350 SINGLE STD
106025 38" Grapple, Root 360 SINGLE STD
106031 42" Grapple, Root 450 SINGLE STD
106033 48" Grapple, Root 475 SINGLE STD
106040 50" Grapple, Root 500 SINGLE STD
106043 50" Grapple, Root 500 DUAL STD
106425 54" Grapple, Root 520 SINGLE SD
106435 60" Grapple, Root 550 SINGLE SD


This is a very nice root grapple. We have had great success with this product.

QUALITY:

PERFORMANCE:
