132407/132404/132406

BLUE DIAMOND HEAVY DUTY POWER RAKE SERIES 2

Size
TEETH
MOUNT

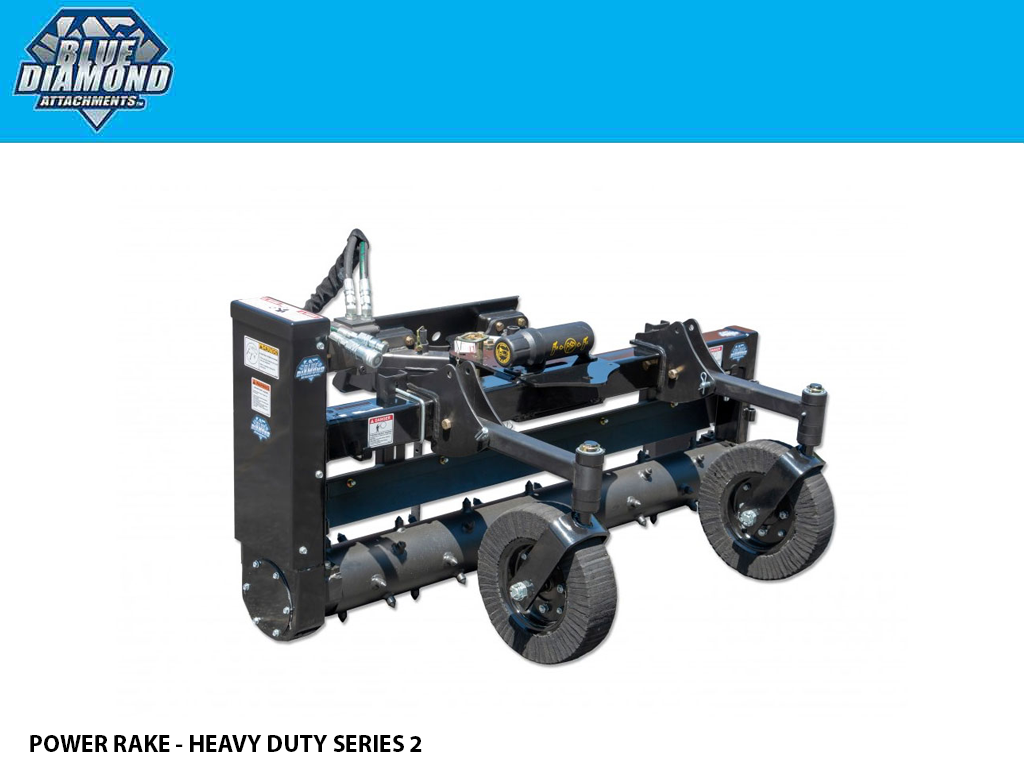

POWER RAKE – HEAVY DUTY SERIES 2

This Heavy Duty Series 2 Power Rake follows close on the heels of our previously released Severe Duty model. This lighter unit is suited to smaller frame skid steers and walk behind machines. The bolt-on mount allows greater flexibility for rental companies and dealers to have the correct model for the right machine, with mounts offered for mini and full size skid steer machines. The working width of the machines in the 10 degree angle is 3″ less than the rotor width, and the 20 degree angle is 6″ less. For example, the 72″ rake has a working width of 69″ in the 10 degree setting, and 66″ in the 20 degree setting. This is true for all of our rakes, no matter the size family.*Over 3,000 PSI requires a case drain

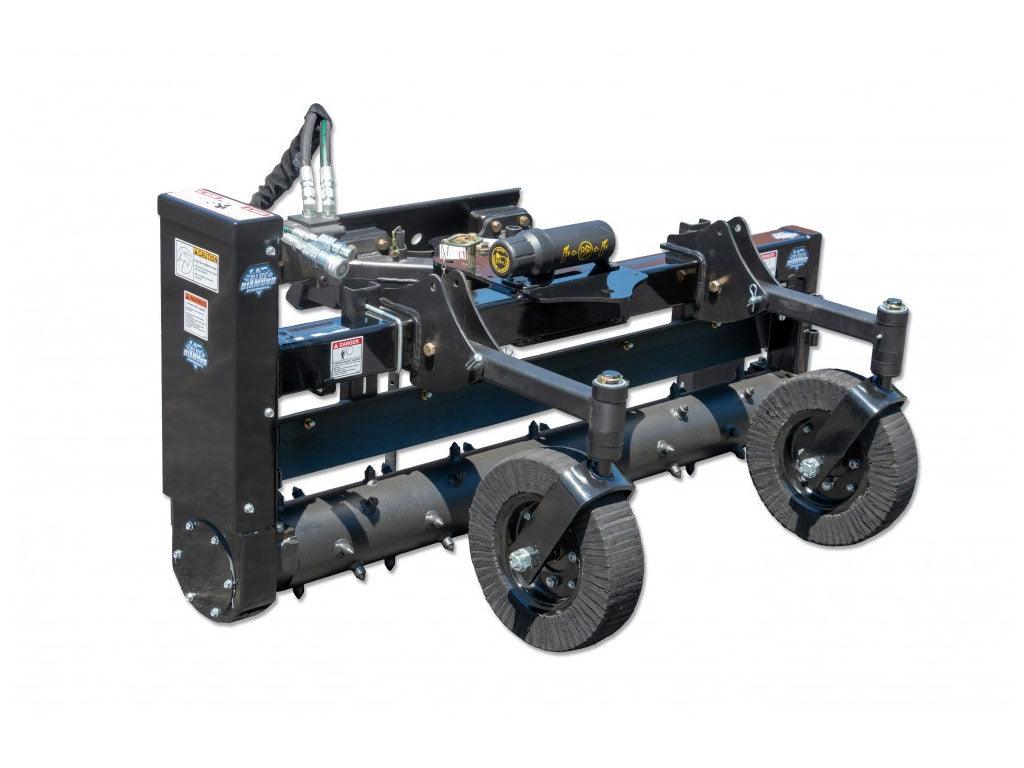

NOTE: These are shown with OPTIONAL Skid shoes and replaceable teeth.

FEATURES:

  • 7” diameter drum with 1.5” teeth
  • Chain drive unit for increased torque
  • Pre-lubricated chain for easy service
  • Spindles on drum are 1 3/8” diameter in greaseable bearings
  • Drum widths: 48”, 60” and 72”
  • Overall width 9” more than drum width
  • 7/8” greaseable axles on wheels
  • Airless tires
  • Flip up wheels
  • 1.25” spindles with adjustable height
  • Bolt-on mount

INCLUDES:

  • UNIVERSAL / BOBCAT MOUNTING
  • HYDRAULIC ANGLE UNITS GET ANGLE KIT AND UNIVERSAL CONTROL HARNESS
  • 15 TO 23 GPM FLOW RANGE
  • MANUAL ANGLE

    OPTIONS

    • $530.00 BOLT ON SKID SHOES
    • $115.00 CASE DRAIN LINE (UNITS OVER 22 GPM)
    • $220.71 UNIVERSAL CONTROL HARNESS
    • $91.68 14 PIN HARNESS
    • $246.51 8 PIN HARNESS
    • $570.00 7 PIN BOBCAT HARNESS

    USUALLY SHIPS IN (3) TO (5) DAYS
