BLUE DIAMOND hydraulic breaker for compact excavators
$4,764.00 - $13,699.00
6/25
* PLEASE CALL FOR COMPLETE PRICING INCLUDING THE MOUNT

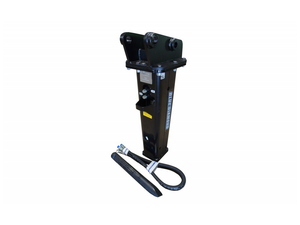

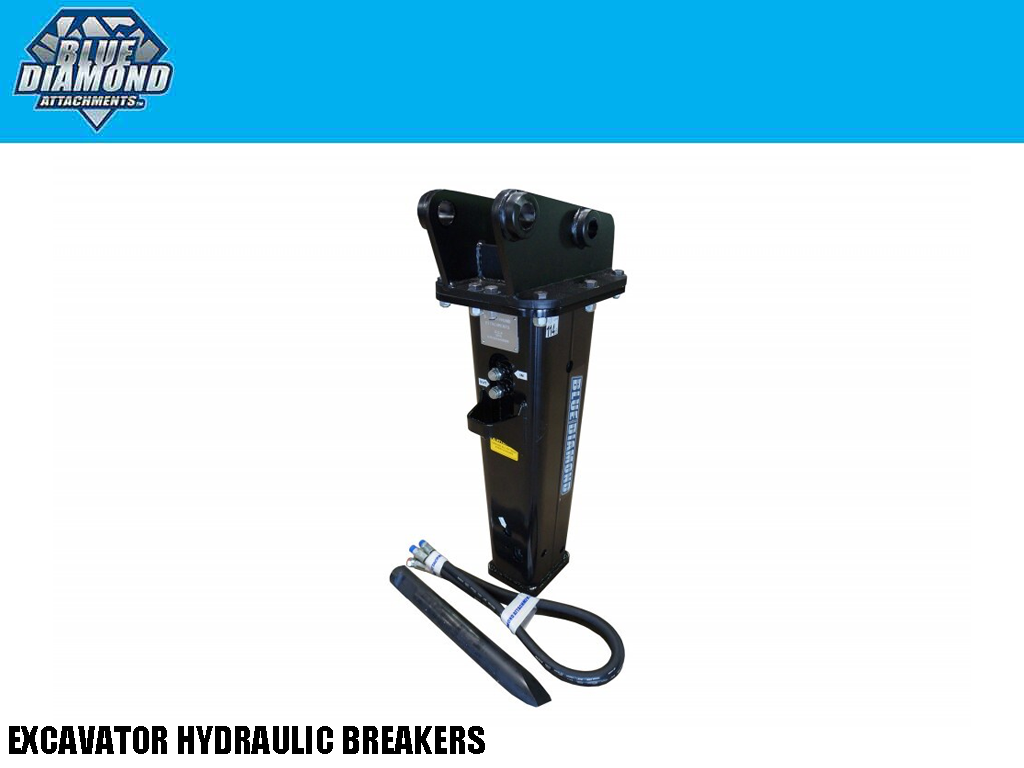

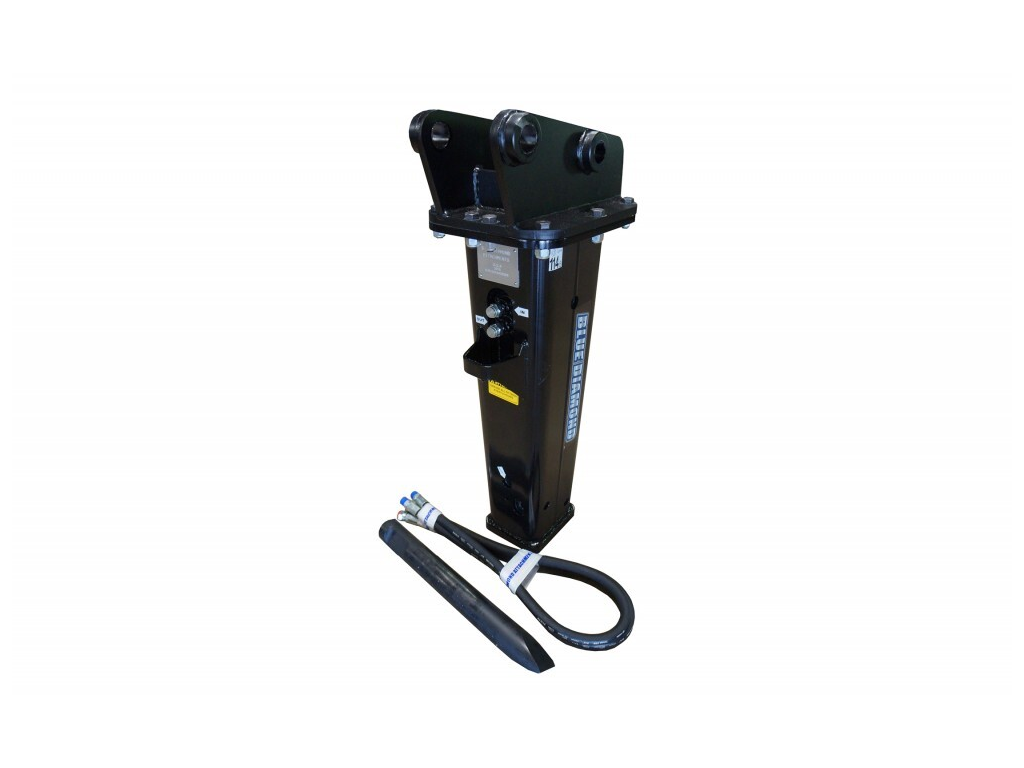

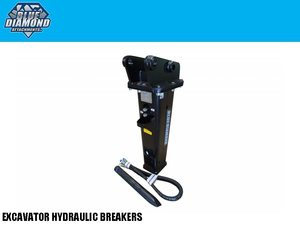

EXCAVATOR MOUNT HYDRAULIC BREAKER
Absolute superiority is the only way to describe this breaker!
We here at Blue Diamond® have completed our 5 year quest to develop our superior Hydraulic Breaker for excavators. This “hammer” design offers technology, simplicity, reliability, ease of setup, and service support. Our hydraulic breaker has little to no downtime. Get started on your demolition, construction, and quarry jobs today!
- 3-year warranty
- Mono-block design / no tie rods
- Anti-blank firing system hydraulic brake
- No re-gassing needed
- Only 2 internal moving parts
- 2 speed control / variable stroke
- Quiet operation
- Self-regulating
- Body bushings around piston
* PRICE DOES NOT INCLUDE THE EXCAVATOR MOUNTING
| Part Number | Model | Working Pressure | Max Oil Flow | Frequency (BPM) | Operating Weight | Tool Diameter | Energy Class | Carrier Weight | (PSI) Back Pressure |
|---|---|---|---|---|---|---|---|---|---|
| 335005-EX | HB50 | 1,750 | 7 | 1,200 | 132 LBS | 1.5 | 100 | 1,500-2,650 LBS | 290-360 |
| 335009-EX | HB95 | 1,750 | 11 | 1,200 | 220 LBS | 1.8 | 200 | 2,650-4,000 LBS | 290-360 |
| 335016-EX | HB165 | 1,750 | 13 | 1,200 | 370 LBS | 2.2 | 400 | 4,000-6,600 LBS | 290-360 |
| 335021-EX | HB210 | 1,750 | 16 | 1,100 | 463 LBS | 2.5 | 500 | 6,100-9,900 LBS | 290-360 |
| 335030-EX | HB300 | 1,750 | 21.2 | 1,100 | 661 LBS | 2.9 | 700 | 8,800-15,500 LBS | 290-360 |
| 335040-EX | HB400 | 1,750 | 29.2 | 900 | 882 LBS | 3.1 | 1,000 | 13,500-20,900 LBS | 363 |
| 335053-EX | HB530 | 1,750 | 32 | 900 | 1,169 LBS | 3.3 | 1,200 | 17,650-25,350 LBS | 363 |
| 335095-EX | HB950 | 1,950 | 34 | 900 | 2,161 LBS | 4 | 2,000 | 22,000-33,000 LBS | 363 |
| 335098-EX | HB1400 | 2,050 | 37 | 600-800 | 2,976 LBS | 4.6 | 3,000 | 30,000-50,000 LBS | 145 |
| 335100-EX | HB1800 | 2,050 | 53 | 490-630 | 3,968 LBS | 5.4 | 4,000 | 48,000-70,000 LBS | 145 |
| 335105-EX | HB2500 | 2,200 | 61 | 460-630 | 5,291 LBS | 6 | 5,000 | 60,000-80,000 LBS | 145 |
| 335110-EX | HB3000 | 2,350 | 75 | 380-500 | 6,614 LBS | 6.5 | 7,000 | 70,000-110,000 LBS | 145 |
