Blue Diamond

135005/135209/135425

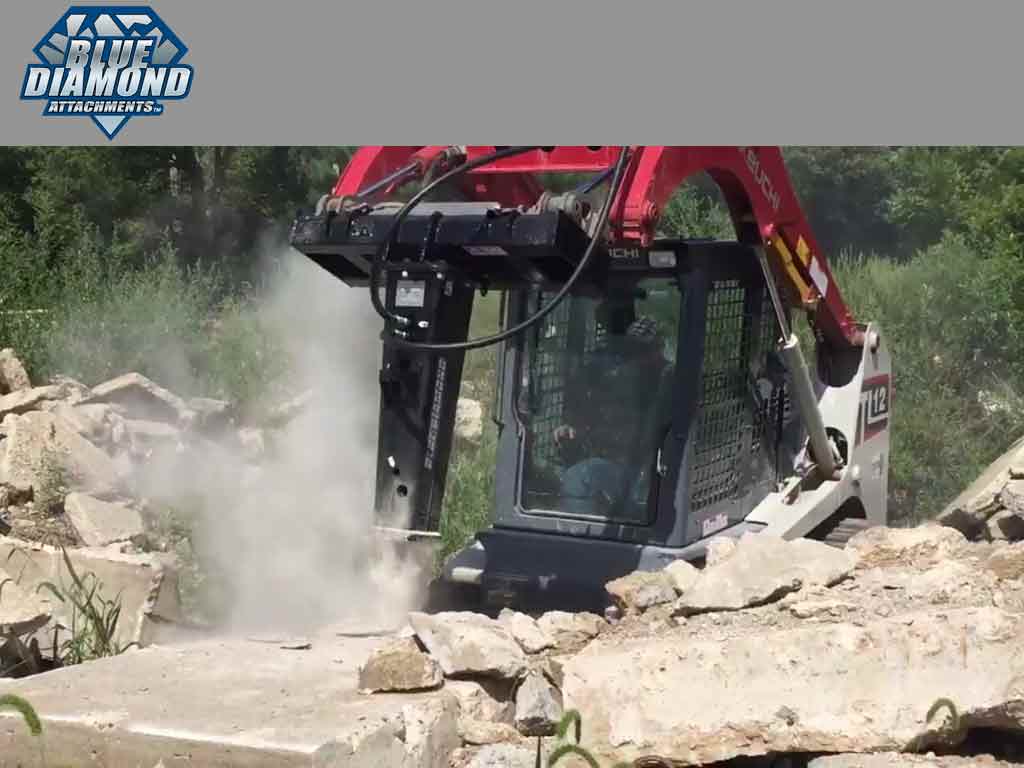

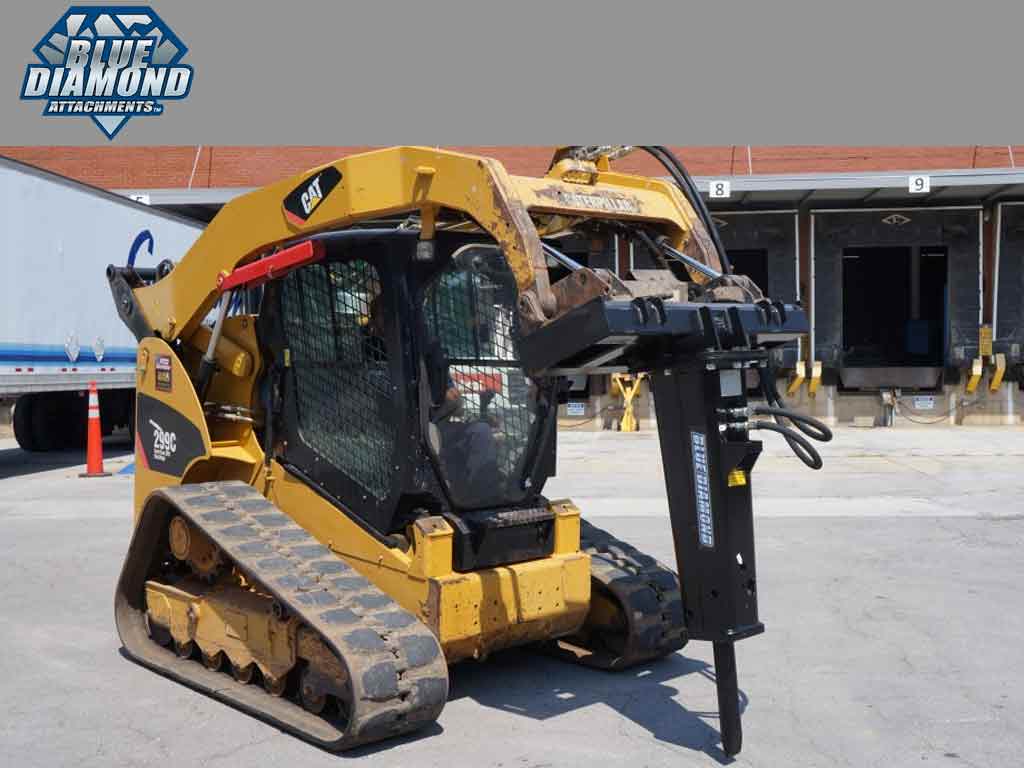

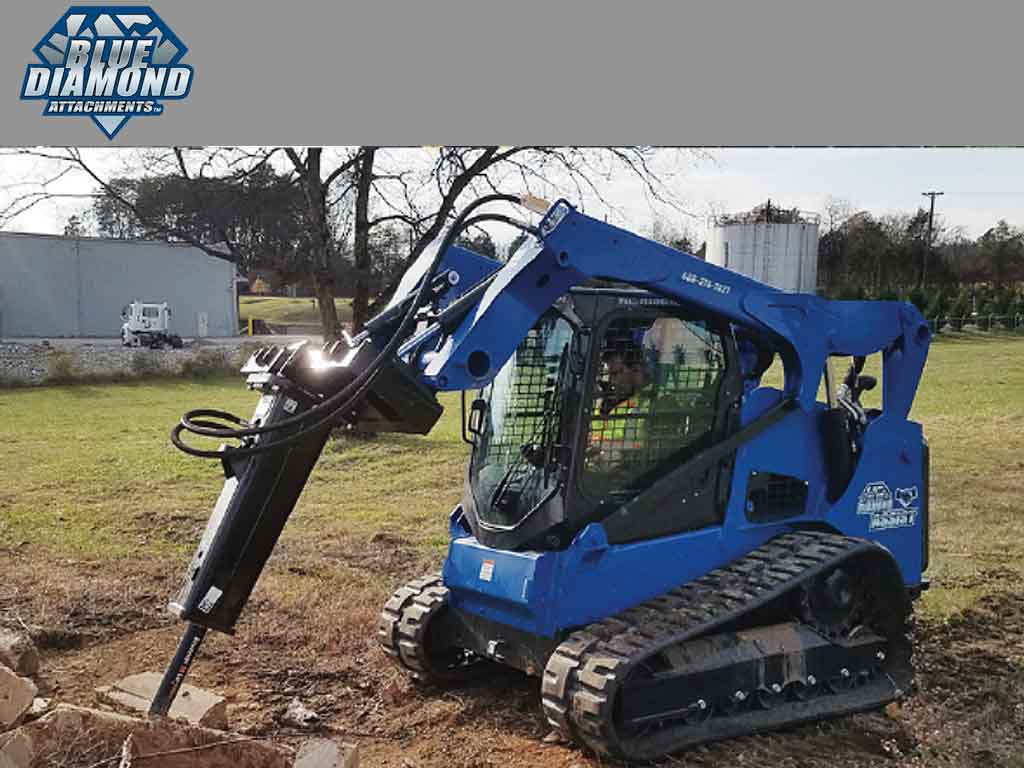

BLUE DIAMOND hydraulic breakers for skid steer loaders

MODEL

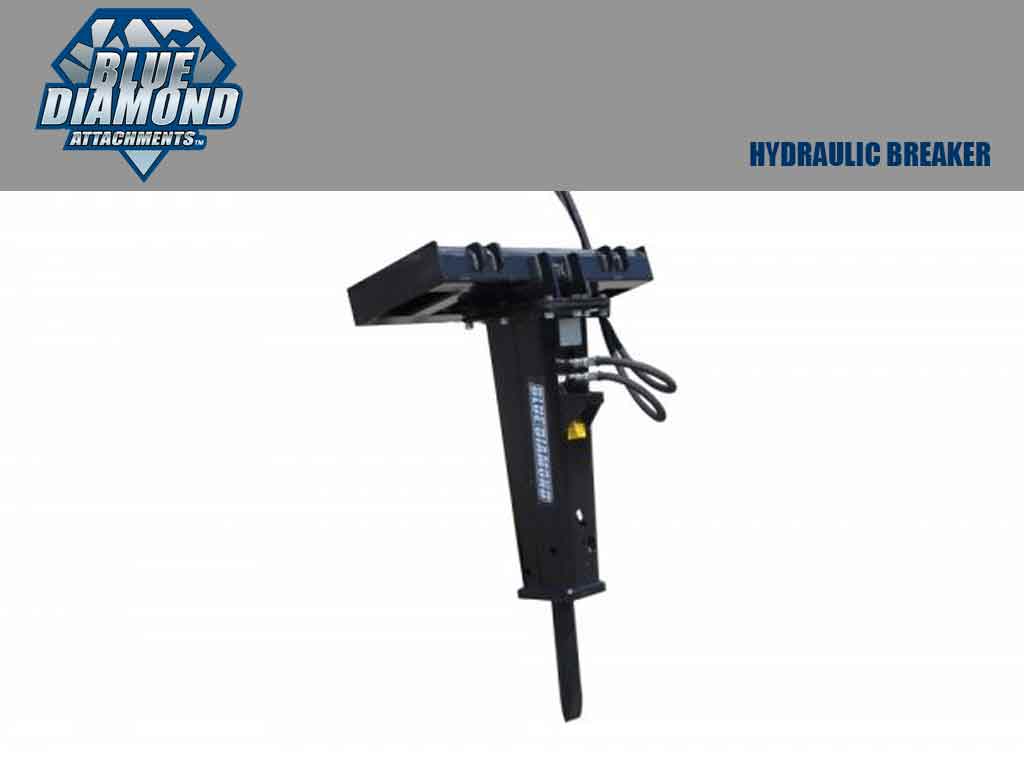

SKID STEER MOUNT HYDRAULIC BREAKER

Absolute superiority is the only way to describe this breaker!

Our 5 year quest to develop a superior hydraulic breaker is now available from Blue Diamond®. This “hammer” design offers technology, simplicity, reliability, ease of setup, and service support. No more downtime, get started on your demolition, construction, and quarry jobs now.

FEATURES INCLUDE:

  • 3 year warranty

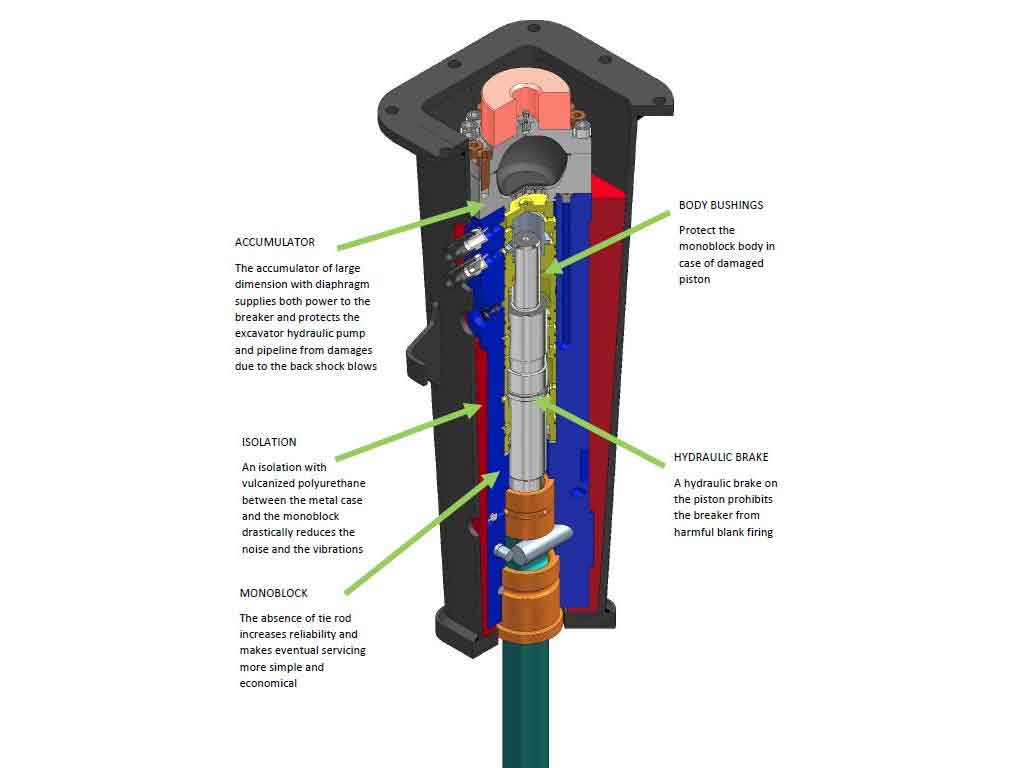

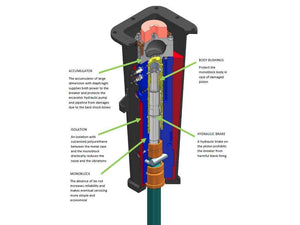

  • Mono-block design / no tie rods
  • Anti-blank firing system hydraulic brake
  • No re-gassing needed
  • Only 2 internal moving parts
  • 2 speed control / variable stroke
  • Quiet Operation
  • Self-regulating
  • Body bushings around piston



Part Number Model  Working Pressure  Max Oil Flow  Frequency (BPM) Operating Weight  Tool Diameter  Energy Class  Carrier Weight  (PSI) Back Pressure
135005 HB50 1,750 7 1,200 132 LBS 1.5 100 1,500-2,650 LBS 290-360
135009 HB95 1,750 11 1,200 220 LBS 1.8 200 2,650-4,000 LBS 290-360
135016 HB165 1,750 13 1,200 370 LBS 2.2 400 4,000-6,600 LBS 290-360
135021 HB210 1,750 16 1,100 463 LBS 2.5 500 6,100-9,900 LBS 290-360
135030 HB300 1,750 21.2 1,100 661 LBS 2.9 700 8,800-15,500 LBS 290-360
135040 HB400 1,750 29.2 900 882 LBS 3.1 1,000 13,500-20,900 LBS 363
135053 HB530 1,750 32 900 1,169 LBS 3.3 1,200 17,650-25,350 LBS 363
135095 HB950 1,950 34 900 2,161 LBS 4 2,000 22,000-33,000 LBS 363
135098 HB1400 2,050 37 600-800 2,976 LBS 4.6 3,000 30,000-50,000 LBS  145
135100 HB1800 2,050 53 490-630 3,968 LBS 5.4 4,000 48,000-70,000 LBS 145
135105 HB2500 2,200 61 460-630 5,291 LBS 6 5,000 60,000-80,000 LBS 145
135110 HB3000 2,350 75 380-500 6,614 LBS 6.5 7,000 70,000-110,000 LBS 145
