Blue Diamond

106065

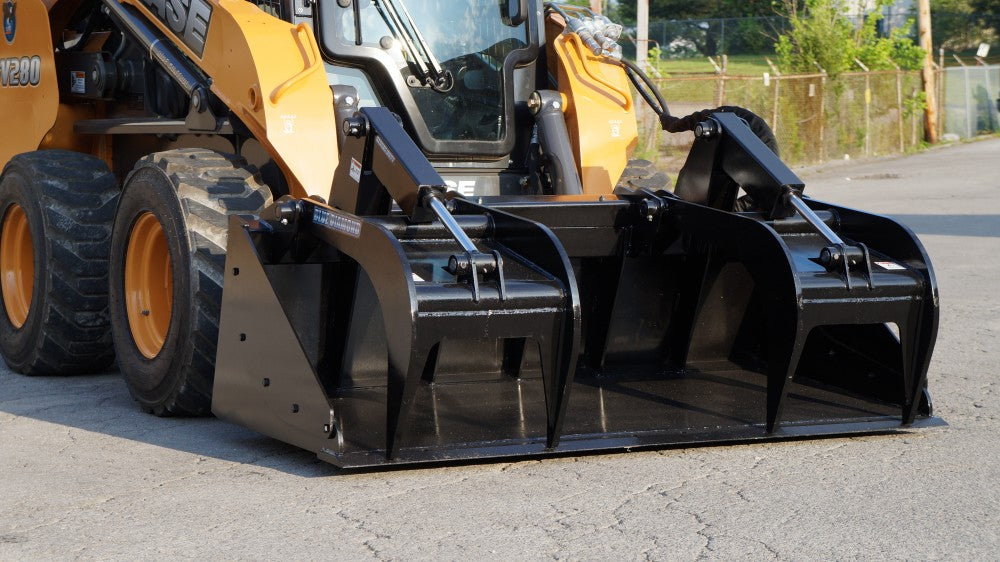

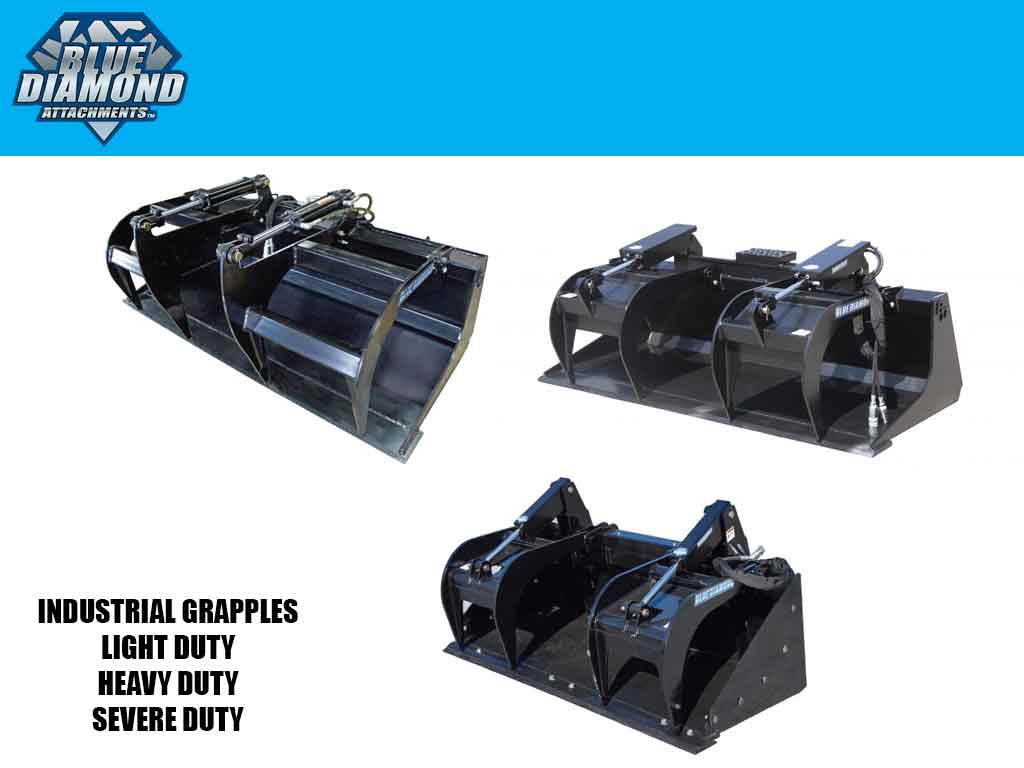

BLUE DIAMOND industrial grapple buckets

Style
Size

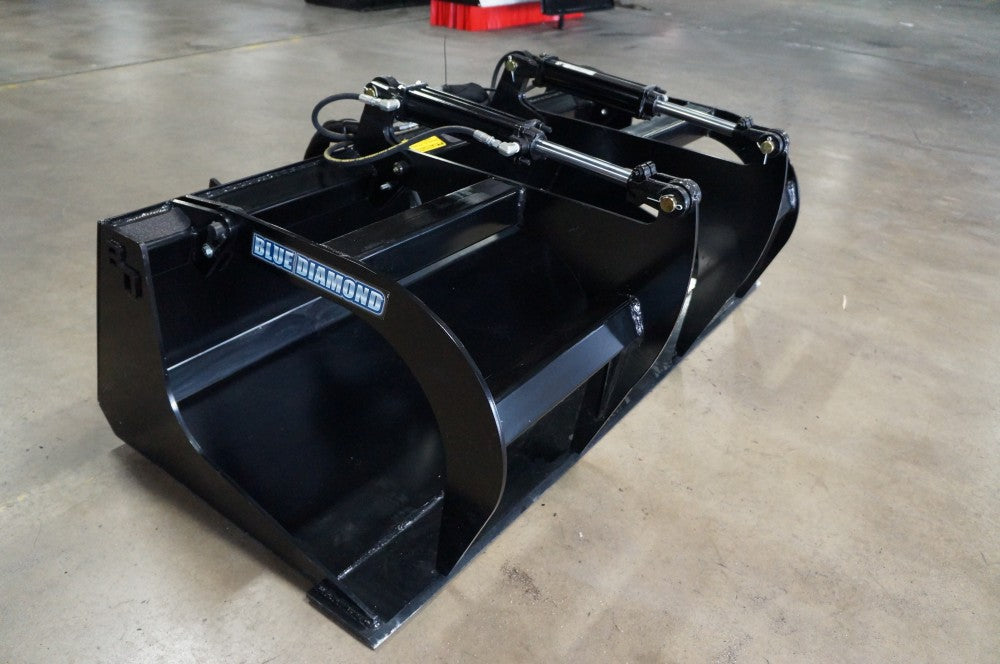

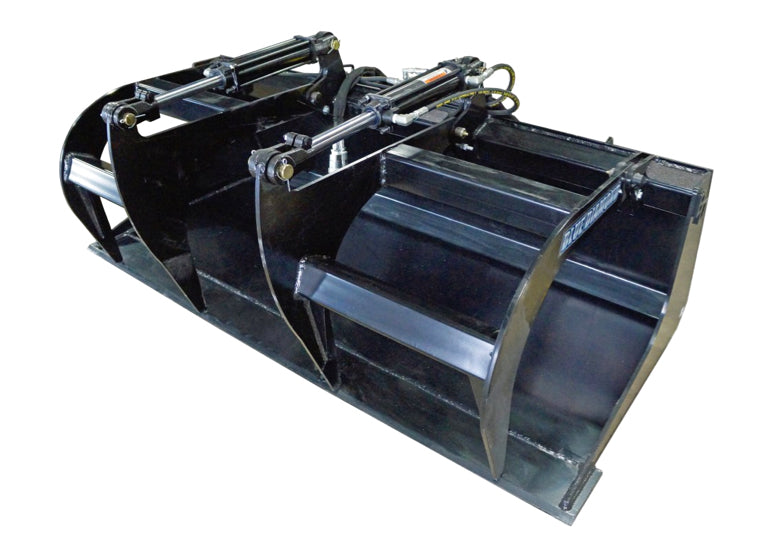

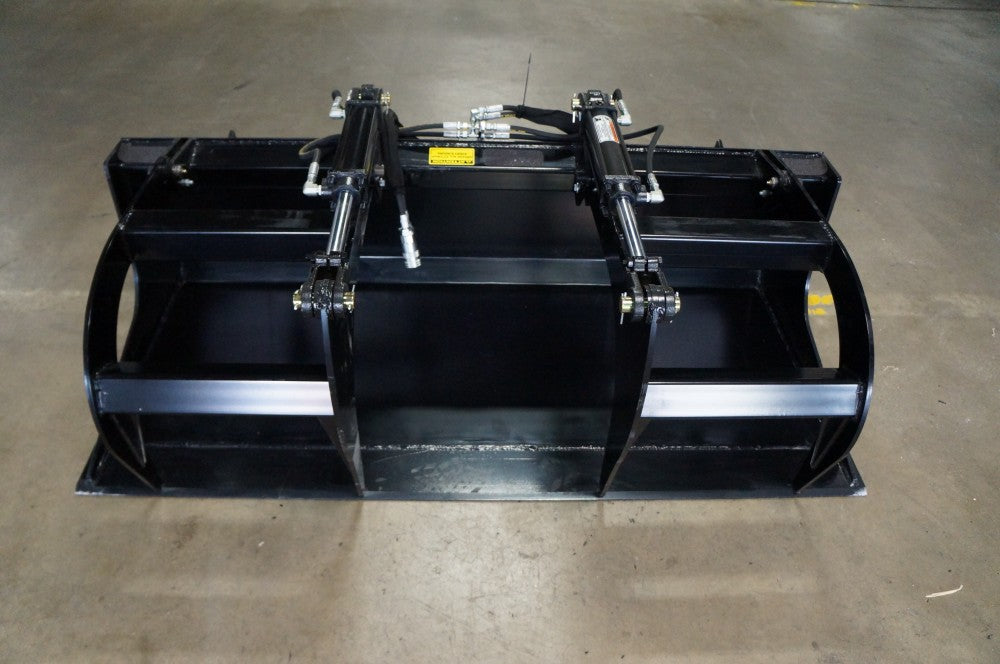

GRAPPLE BUCKET- LIGHT DUTY

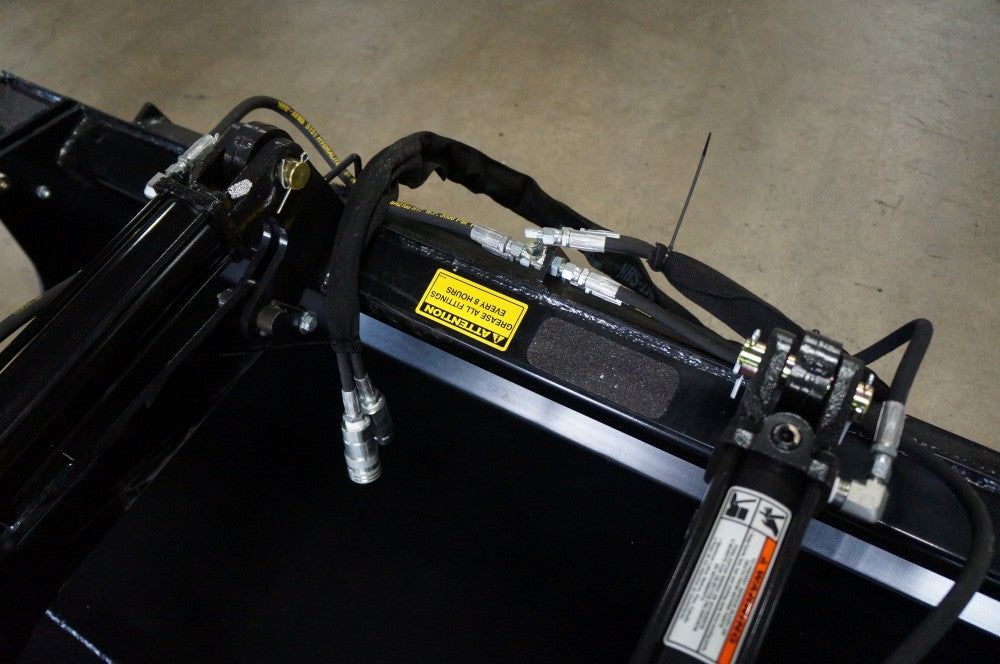

This lightweight grapple is designed with small loaders in mind with limited lift capacity. Weighing only 454 lbs, it lets you grab a load without the fear of tipping your machine. Dual top clamps and grease fittings are standard.

FEATURES INCLUDE:

• Dual independent clamps
• 3/8” steel

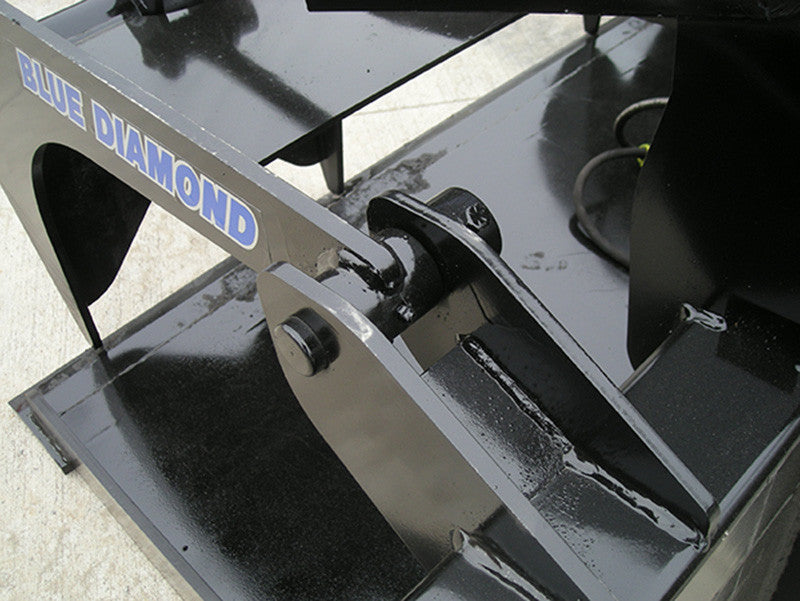

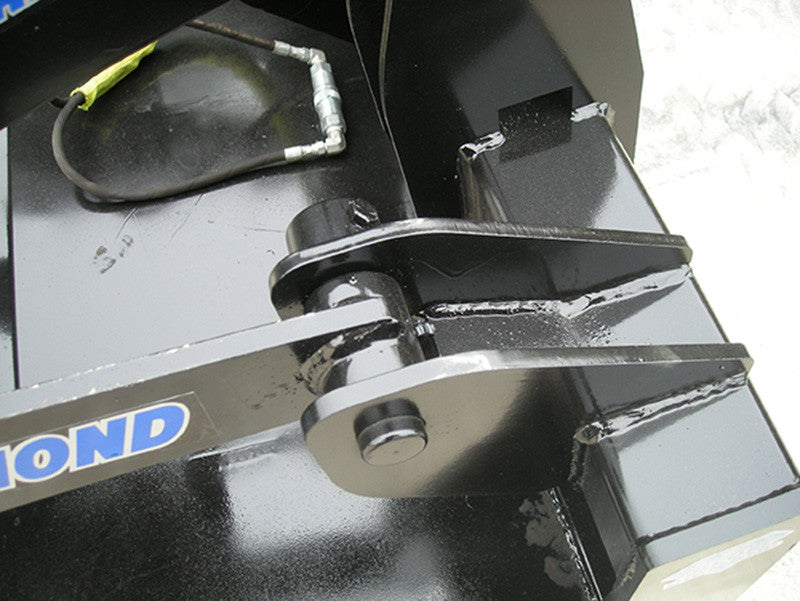

• Greaseable 1” pivot pins
• Flat face couplers included
• Opens to 30”

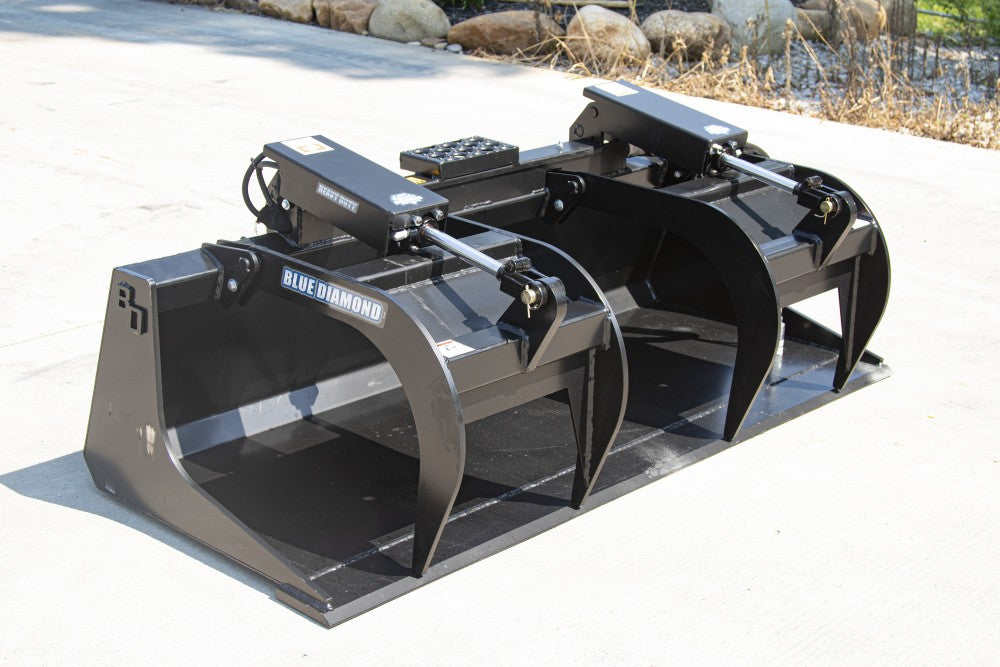

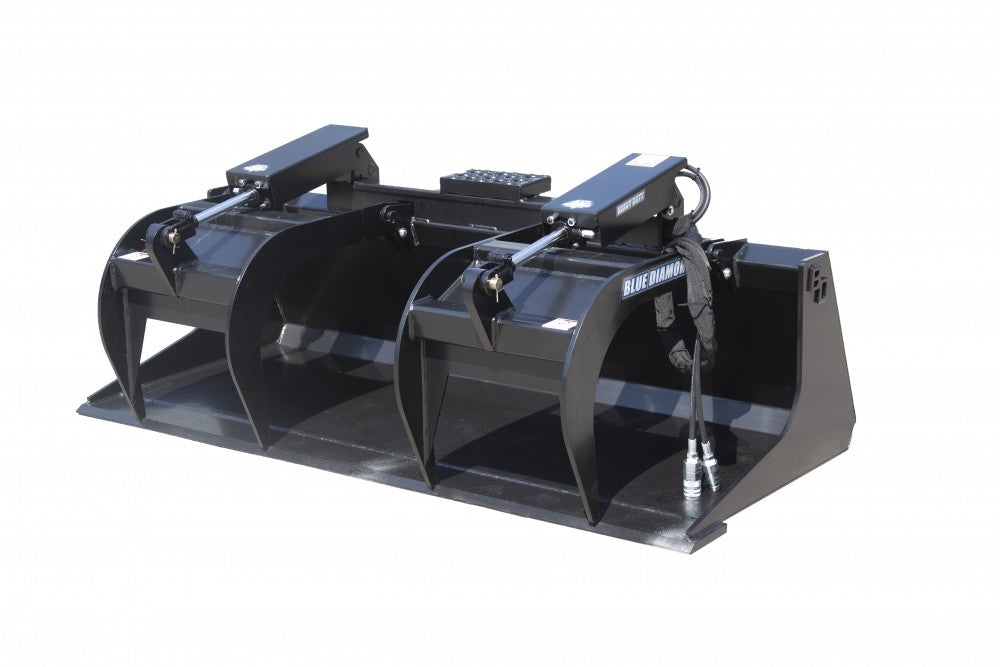

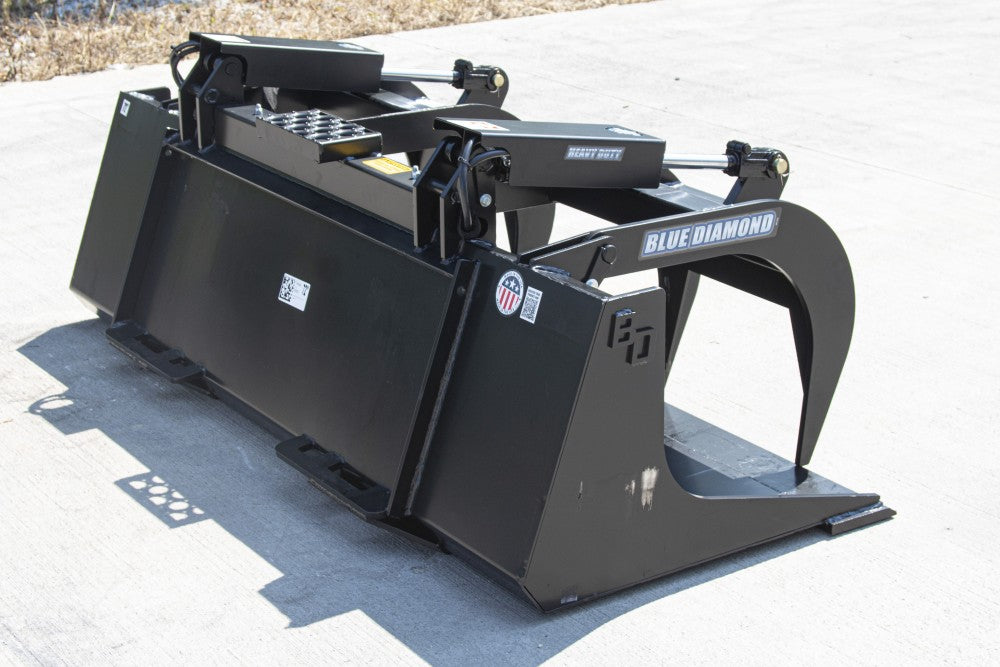

GRAPPLE BUCKET – HEAVY DUTY

The Heavy-Duty Grapple Bucket is designed for up to 50 hp machines with a moderate work load. Made from 1/2” steel, it is strong yet light enough for smaller machines. Pivot-point grease fittings and couplers are standard.

FEATURES INCLUDE:

  • 1/2″ thick top clamps
  • Cylinder protection covers
  • Opens to 32″
  • Best suited for machines up to 50HP or 1800 lb lift capacity
  • Protected hoses

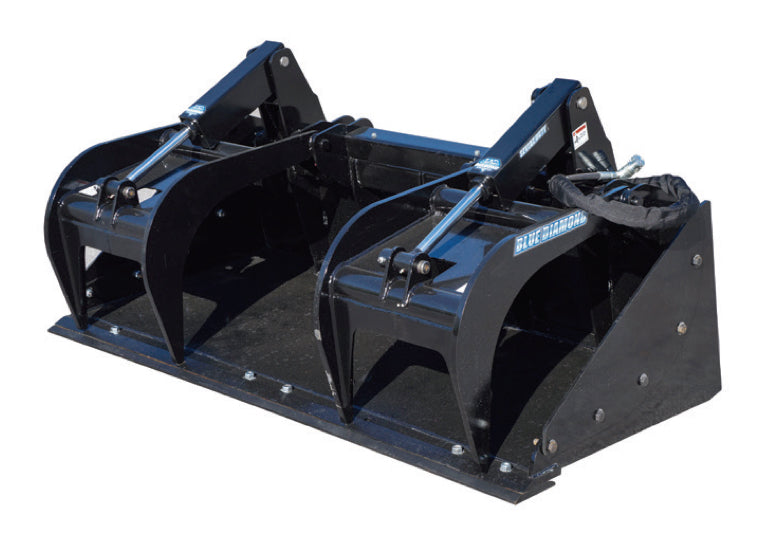

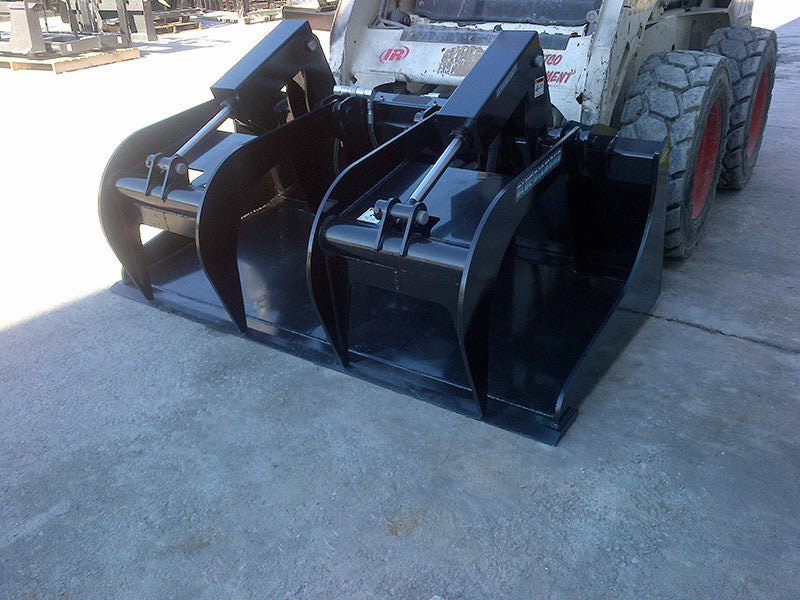

GRAPPLE BUCKET- SEVERE DUTY

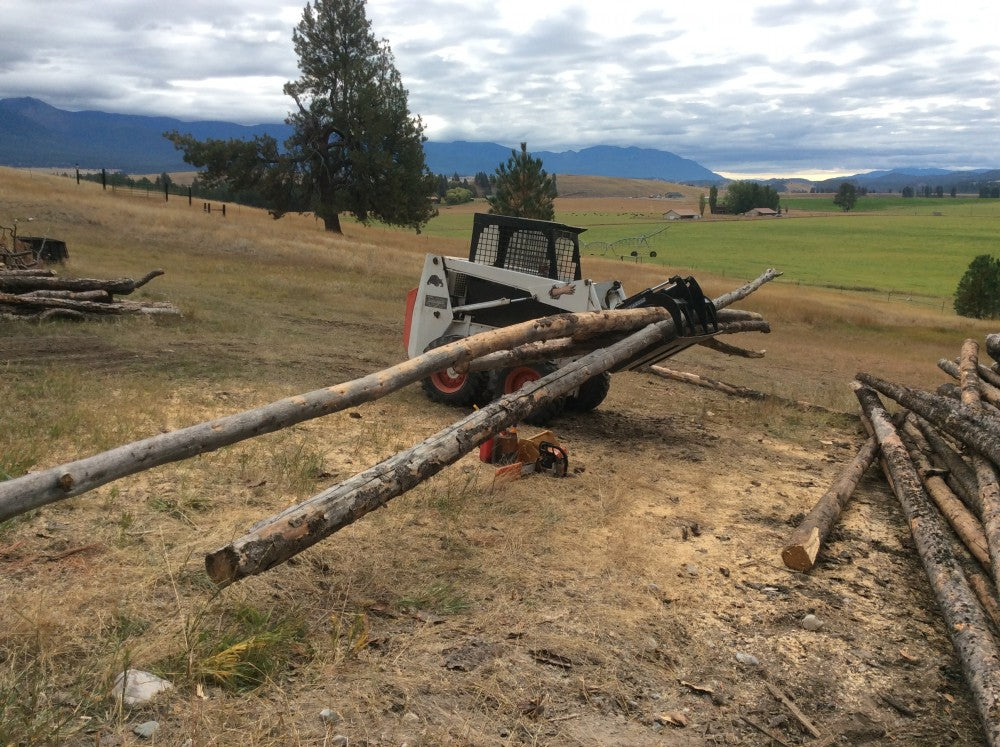

This brutal grapple comes from years of input from demolition contractors and recyclers. The Severe duty model combines features from our demolition series, our extreme duty model and some new features to offer one of the most effective and durable grapple buckets in the industry. The bolt-on-sides allows the operator to contain more material if needed or remove them for handling longer products like pipe or trees.

FEATURES INCLUDE:

  • No pinch hose routing

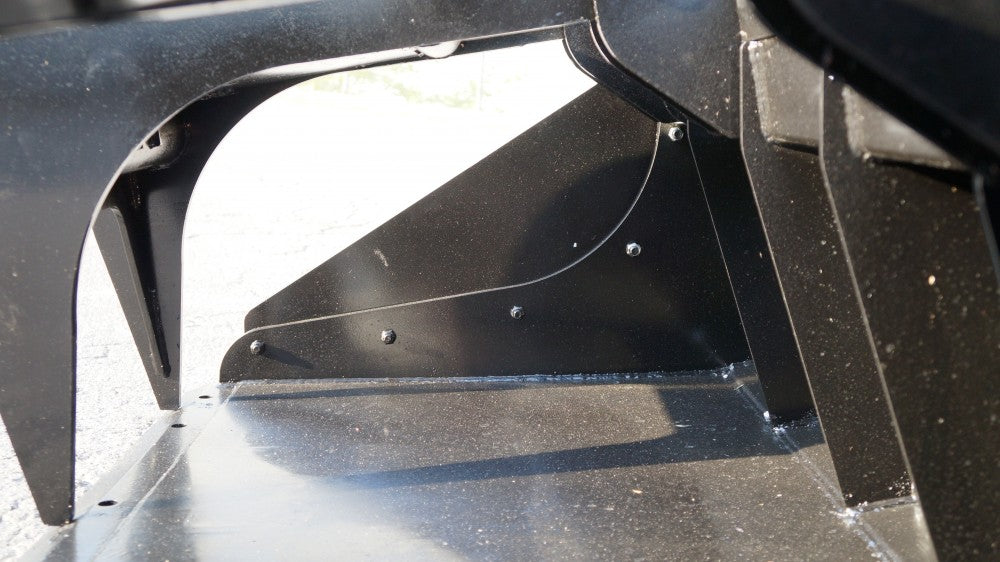

  • Bolt-on-sides
  • 3/4″ top tines
  • Heavily reinforced top clamps
 PART # MODEL CAPACITY WEIGHT
106065 66” Grapple Bucket, Light Duty, Dual Clamps 11.07 CU FT 480 lbs
106077 60” Grapple Bucket, HD, Dual Clamps 10.26 CU FT 740 lbs
106085 66” Grapple Bucket, HD, Dual Clamps 11.07 CU FT 587 lbs
106095 72” Grapple Bucket, HD, Dual Clamps 11.88 CU FT 613 lbs
106440 60” Grapple Bucket, Severe Duty 10.26 CU FT 875 lbs
106445 66” Grapple Bucket, Severe Duty 11.07 CU FT 910 lbs
106455 72” Grapple Bucket, Severe Duty 11.88 CU FT 995 lbs
106457 72” Grapple Bucket, Severe Duty W/Teeth 11.88 CU FT 1,066 lbs
106465 78” Grapple Bucket, Severe Duty 12.69 CU FT 1,033 lbs
106475 84” Grapple Bucket, Severe Duty 14.04 CU FT 1,066 lbs


    USUALLY SHIPS IN (3) TO (5) DAYS
