108005-25

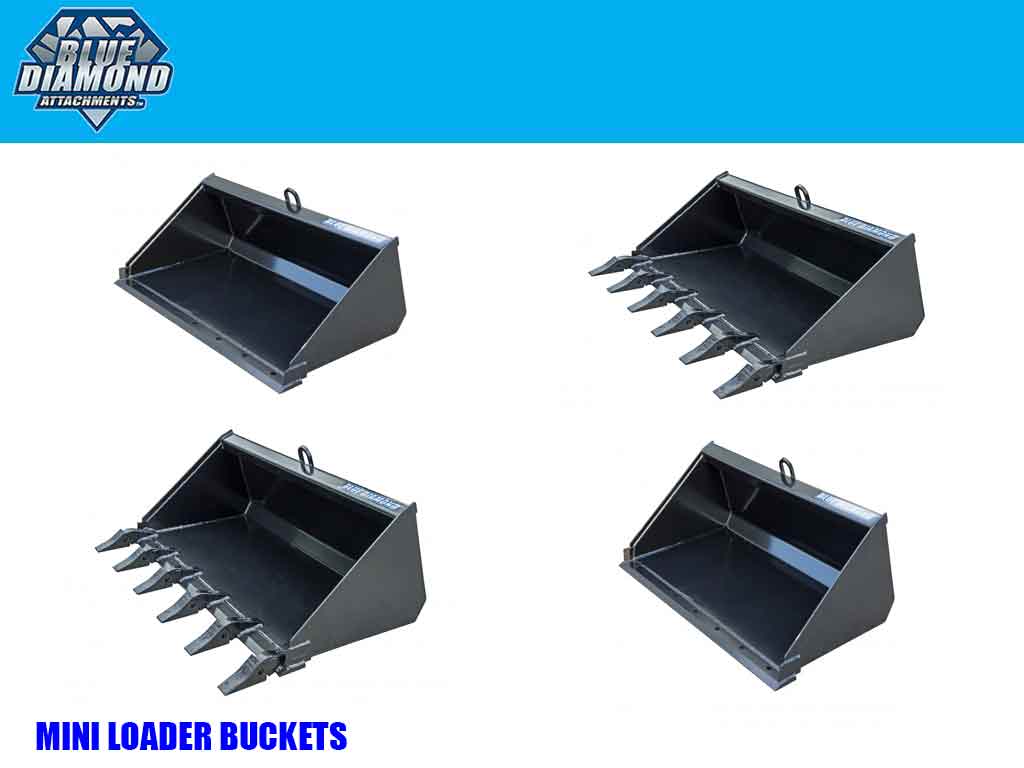

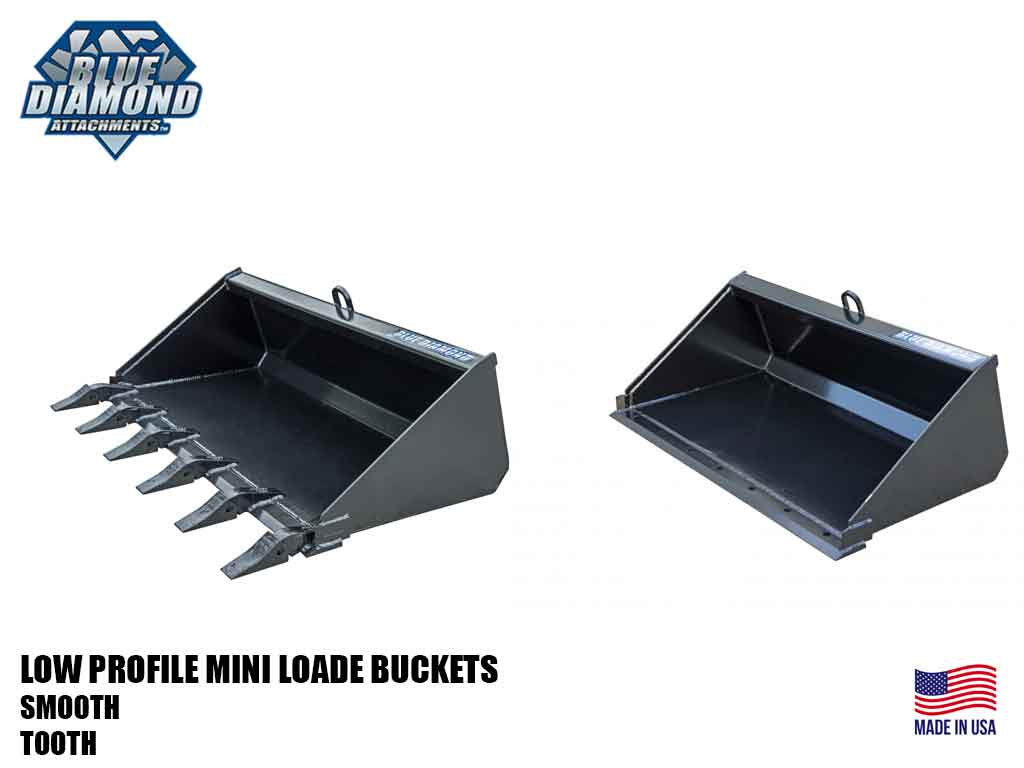

BLUE DIAMOND low profile buckets for mini loader
$0.00 - $1,782.00

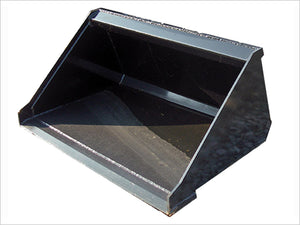

MINI BUCKET

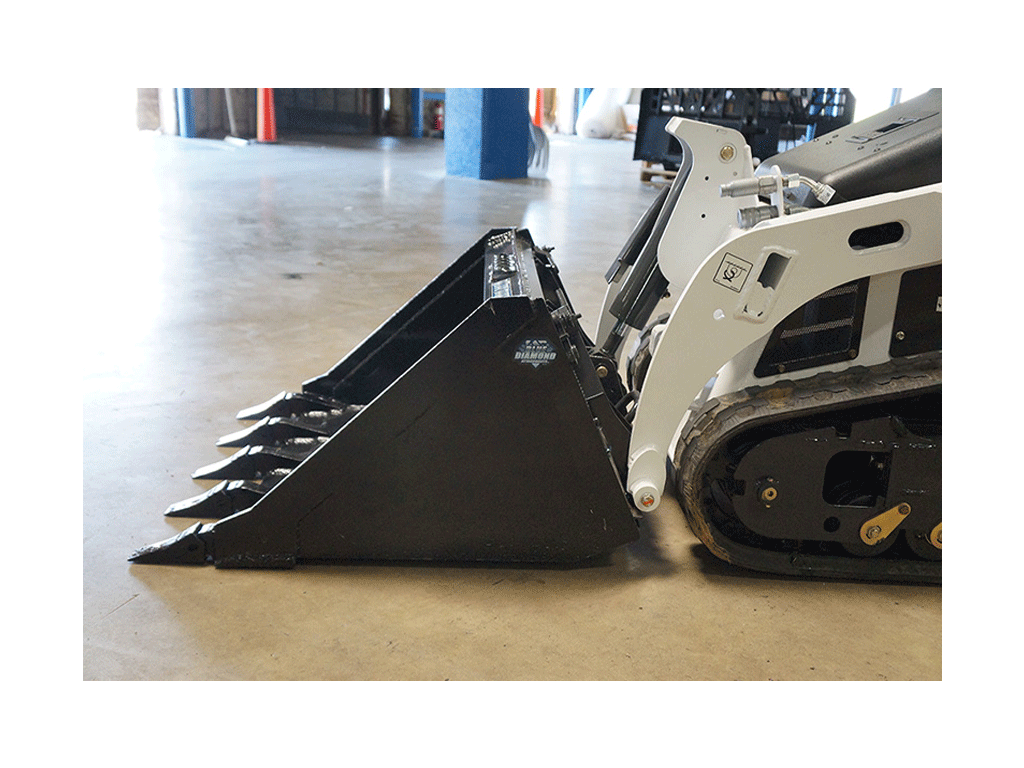

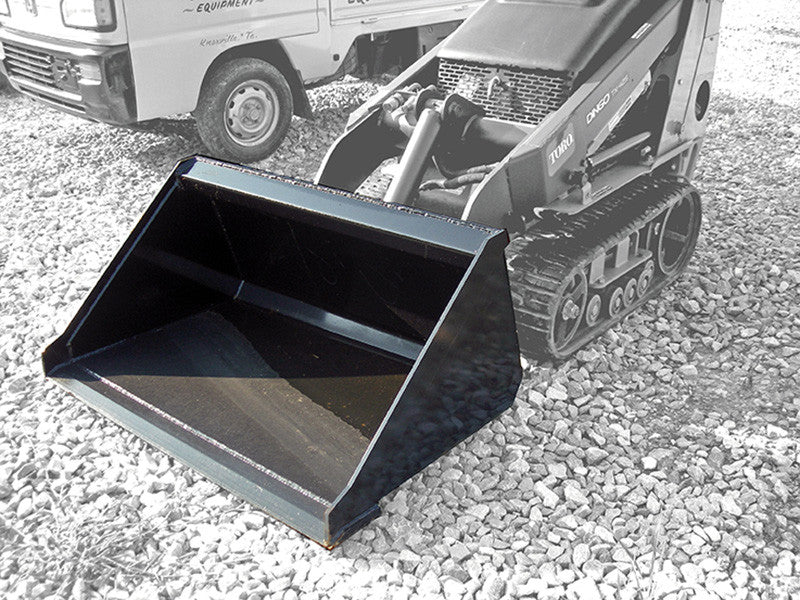

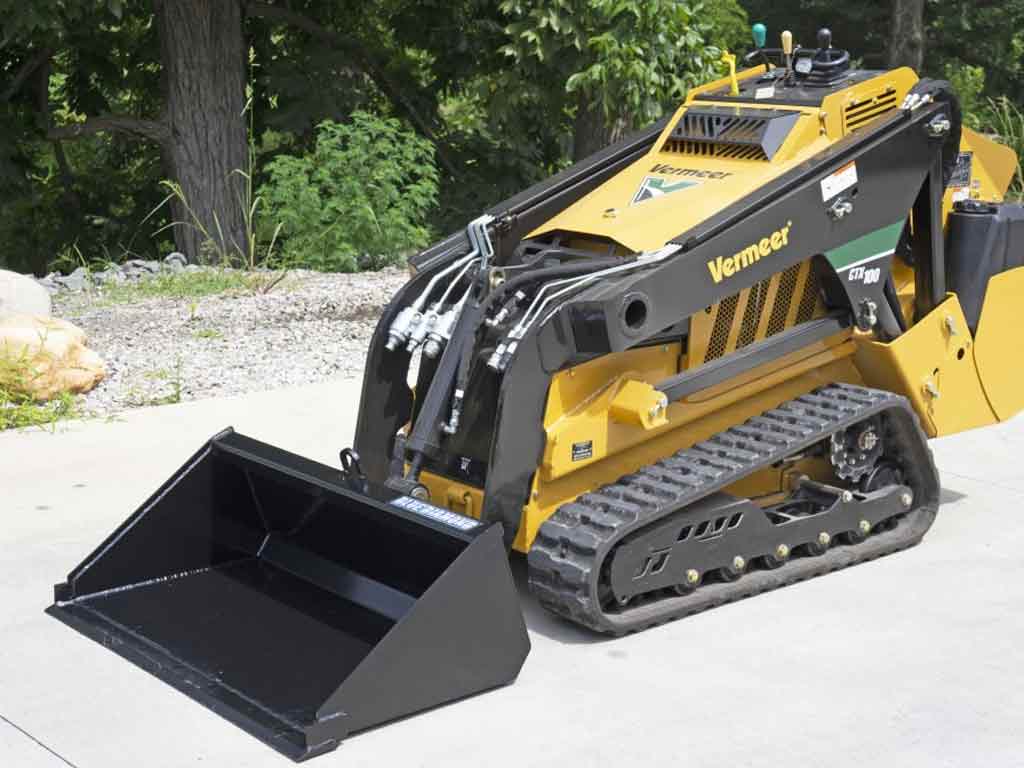

These very tough mini buckets come with either a 15” or 20” back height. Constructed sturdier than most OEM buckets, these buckets are built for the long haul! They are available in smooth and tooth, and a bolt-on edge is an available option. Standard widths are from 36” to 60” wide with a bottom length of 25″ deep. Each bucket comes standard with a D-ring.

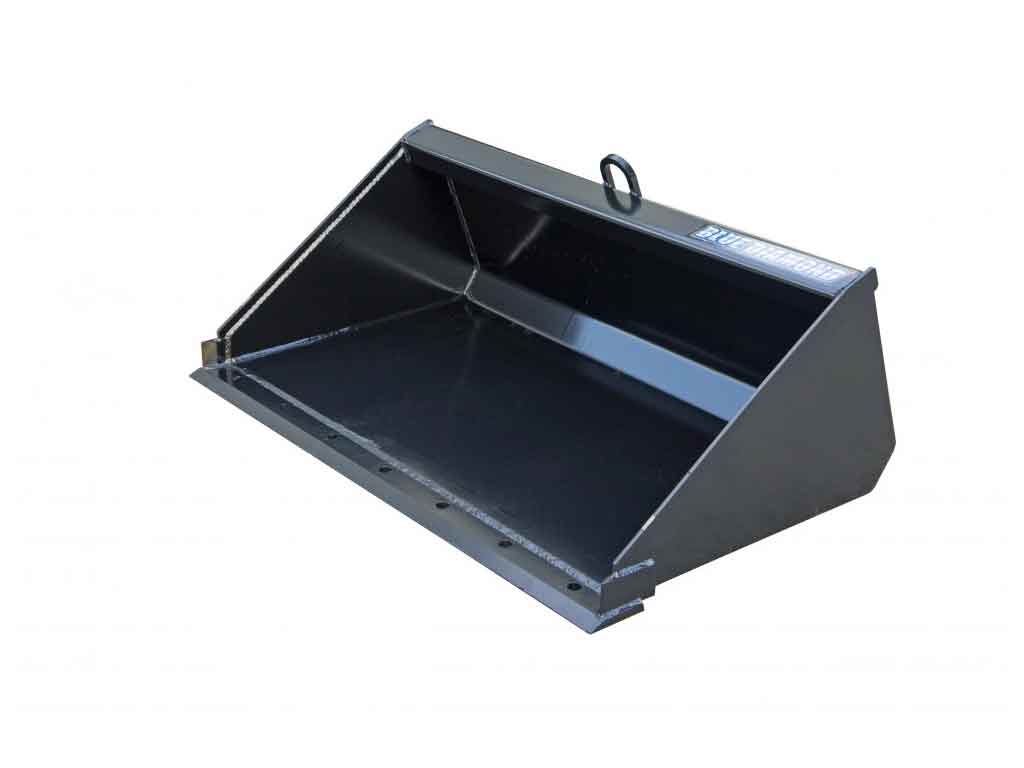

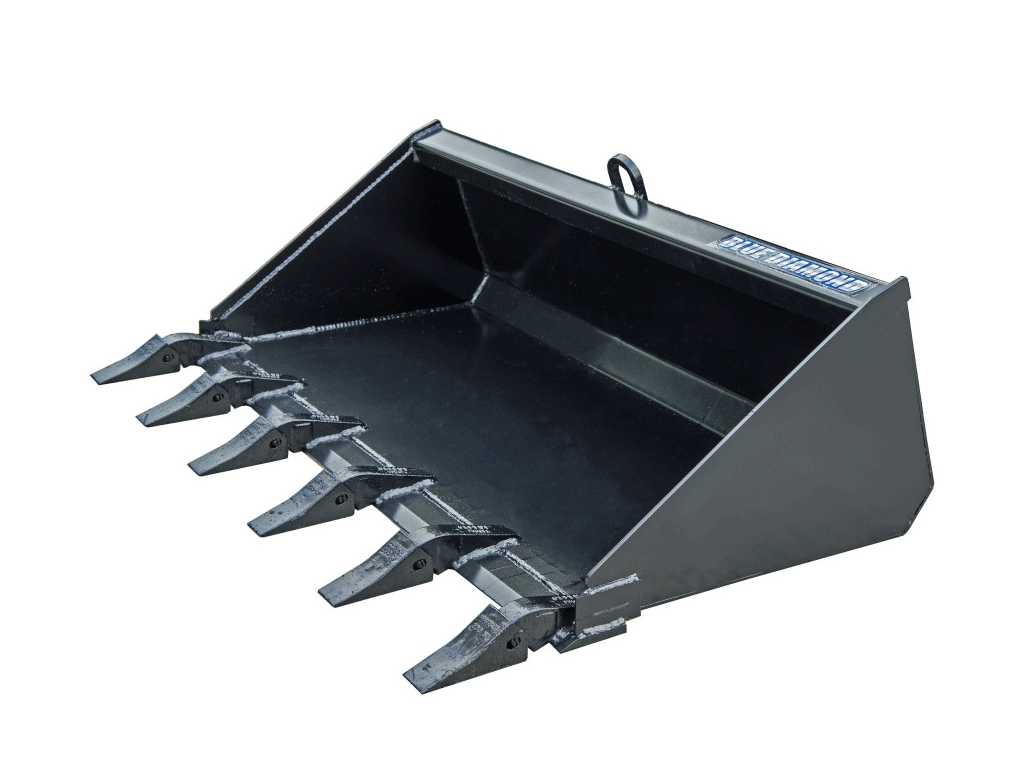

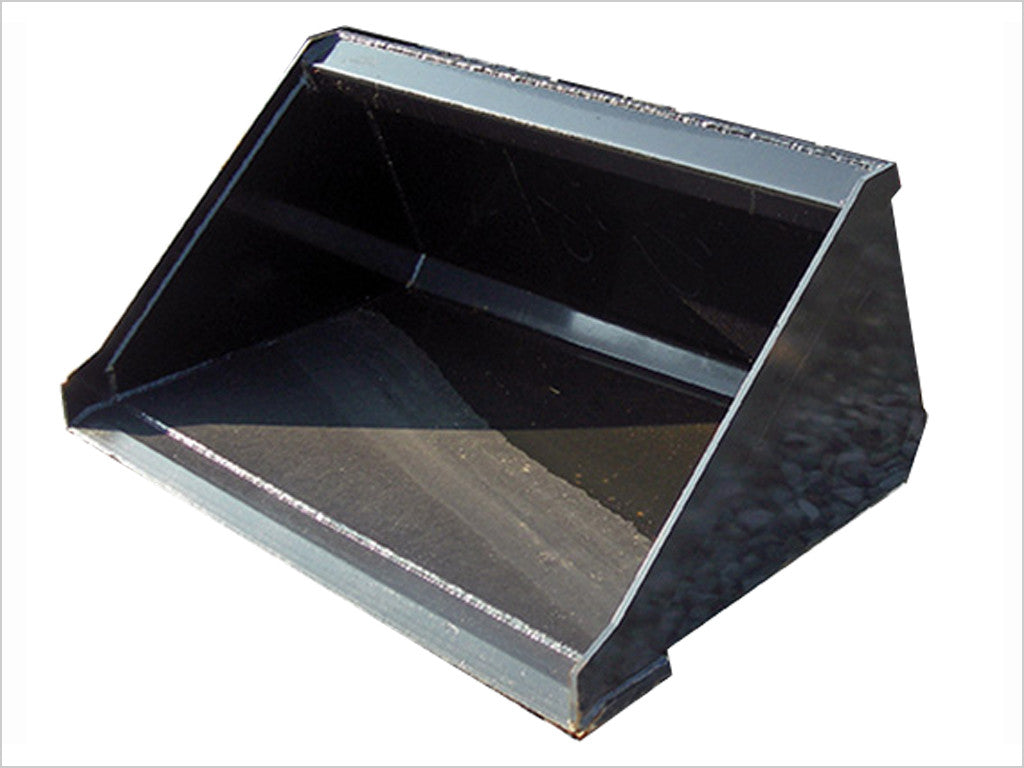

- LOW PROFILE BUCKET, SMOOTH OR TOOTH EDGE
- 15" OR 20" BACK
- MULTI-PURPOSE BUCKET
- MOVES ROCK, FIREWOOD, AND DIRT
- TOUGH MINI BUCKET
| 15" BACK | |||
| WIDTH | CU FT CAPACITY | EDGE | WEIGHT |
| 36" | 4.43 | SMOOTH | 181 lbs |
| 36" | 4.43 | TOOTH | 200 lbs |
| 42" | 5.17 | SMOOTH | 225 lbs |
| 42" | 5.17 | TOOTH | 250 lbs |
| 44" | 5.42 | SMOOTH | 225 lbs |
| 44" | 5.42 | TOOTH | 269 lbs |
| 48" | 5.91 | SMOOTH | 275 lbs |
| 48" | 5.91 | TOOTH | 230 lbs |
| 52" | 6.40 | SMOOTH | 275 lbs |
| 52" | 6.40 | TOOTH | 260 lbs |
| 20" BACK | |||
| WIDTH | CU FT CAPACITY | EDGE | WEIGHT |
| 36" | 6.14 |
SMOOTH | 249 lbs |
| 36" | 6.14 | TOOTH | 249 lbs |
| 42" | 7.16 | SMOOTH | 269 lbs |
| 42" | 7.16 | TOOTH | 225 lbs |
| 44" | 7.50 | SMOOTH | 275 lbs |
| 44" | 7.50 | TOOTH | 247 lbs |
| 48" | 8.19 | SMOOTH | 310 lbs |
| 48" | 8.19 | TOOTH | 276 lbs |
| 52" | 8.70 | SMOOTH | 300 lbs |
| 52" | 8.70 | TOOTH | 300 lbs |
