Blue Diamond

108503-25

BLUE DIAMOND SNOW mini loader snow and mulch bucket

Size
Mounting

MINI SKID STEERS

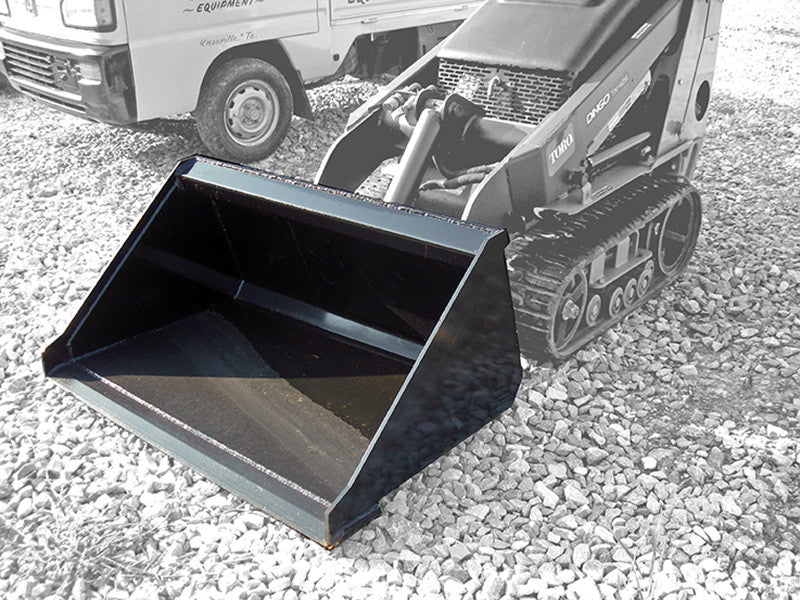

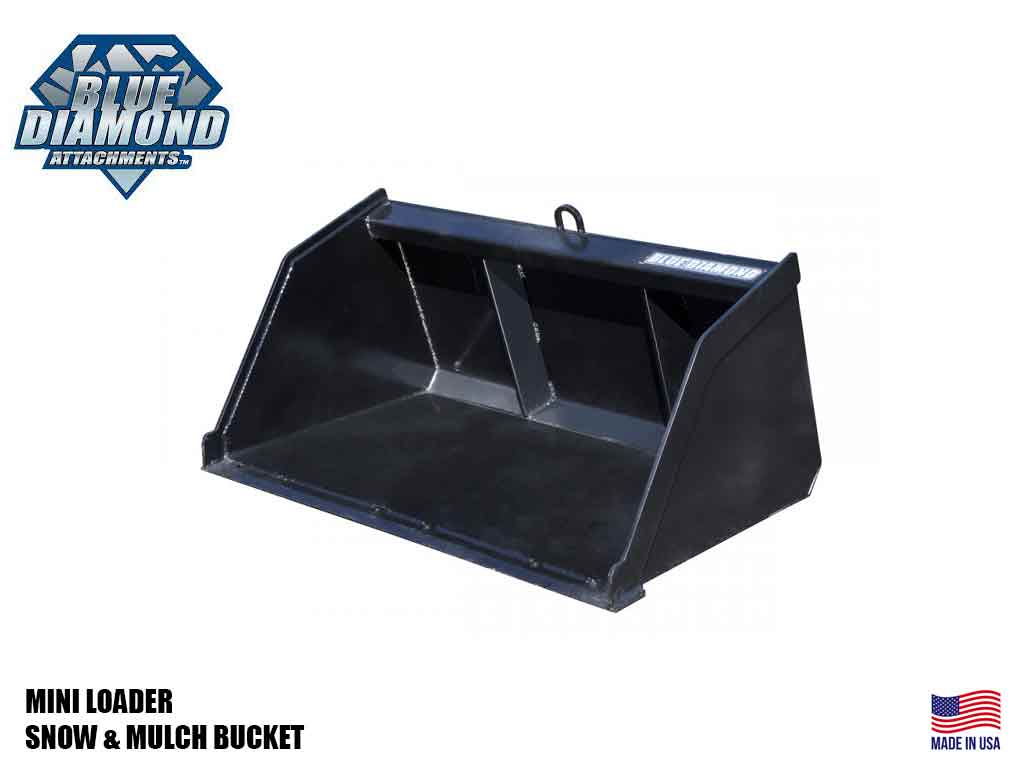

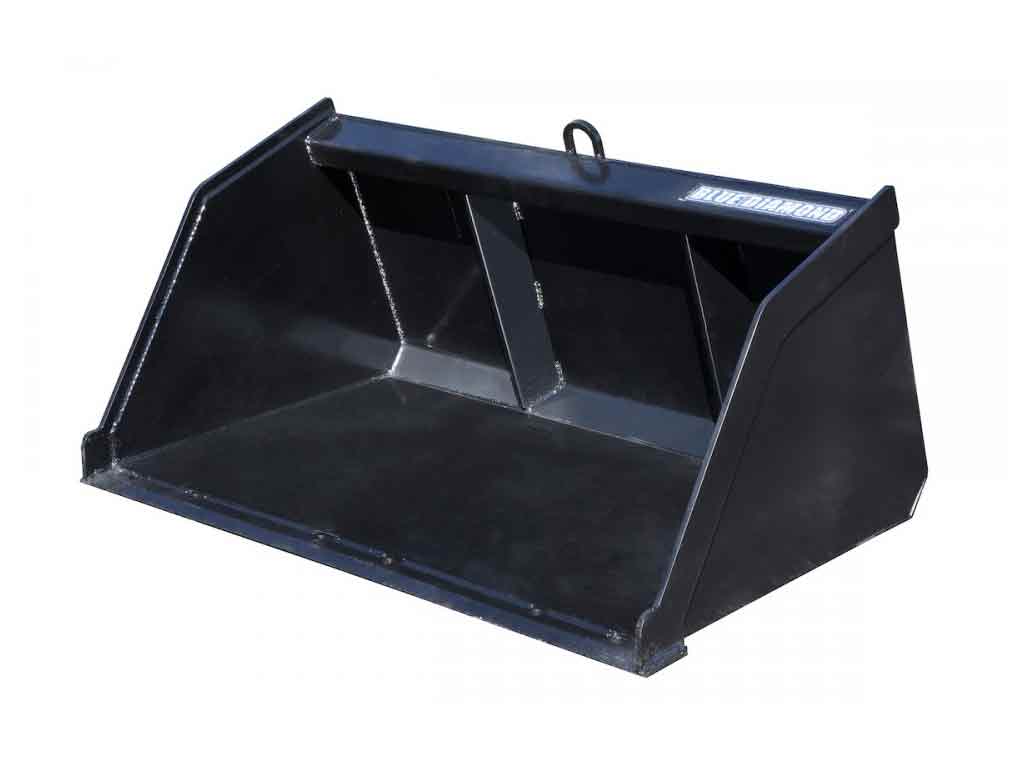

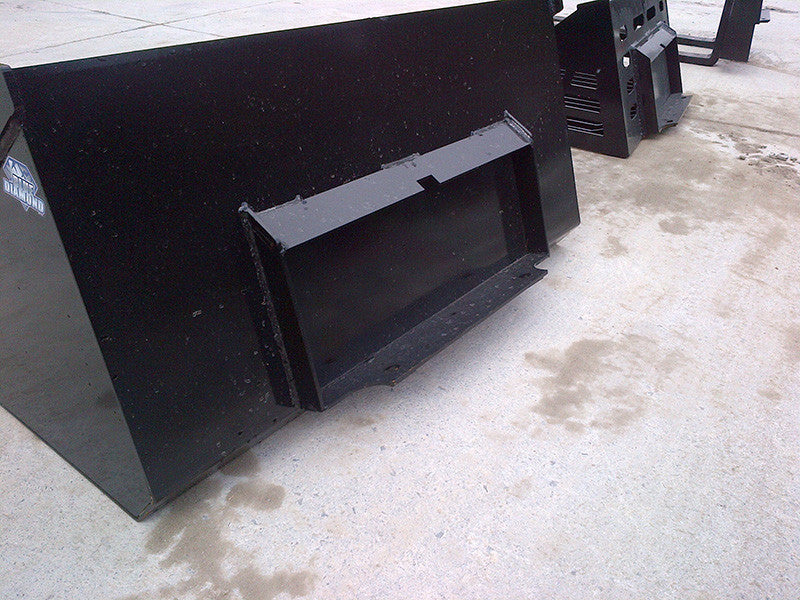

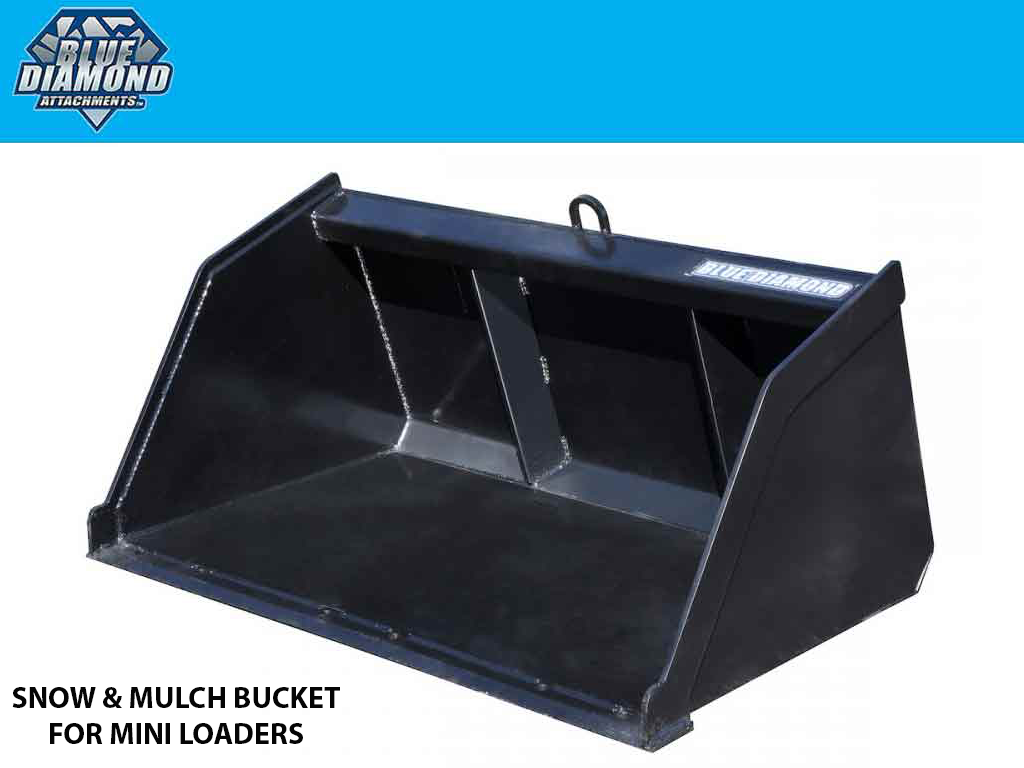

MINI SNOW AND MULCH BUCKET

The Mini Snow & Mulch bucket is ideal for handling bulky items with your mini skid loader. This bucket will survive the toughest conditions with its reinforced bracing in the main frame, wear bars on the underside, and quality construction. It is made of 3/16” steel and comes standard with a D-ring.

FEATURES INCLUDE:

  • Available to fit most mini skid steers
  • Standard widths: 36″, 44″, & 52″
  • Optional bolt-on cutting edge
  • Reinforced frame
  • 22″ tall
  • D-ring

These very tough  mini loader buckets  come with a 22” back height. Constructed sturdier than most OEM buckets, these buckets are built for the long haul!

  • SNOW & MULCH BUCKET BUCKET, SMOOTH EDGE
  • 22" BACK
  • 29" FLOOR
  • MULTI-PURPOSE BUCKET
  • MOVES SNOW, FIREWOOD, AND MULCH
  • TOUGH MINI BUCKET

PART # MODEL

STUCK

CAPACITY

WEGHT
108503
34” Bucket, Snow/Mulch, 22” Back 8.51 CU FT 101 lbs
108505 36” Bucket, Snow/Mulch, 22” Back 9.41 CU FT 249 lbs
108510 44” Bucket, Snow/Mulch, 22” Back 11.50 CU FT 275 lbs
108512 48” Bucket, Snow/Mulch, 22” Back 12.09 CU FT 325 lbs
108515 52” Bucket, Snow/Mulch, 22” Back 13.64 CU FT 310 lbs
108517 52” Bucket, Snow/Mulch, 22” Back 12.55 CU FT 331 lbs
108518 54” Bucket, Snow/Mulch, 22” Back 14.09 CU FT 450 lbs
108520 60” Bucket, Snow/Mulch, 3/16” Wrap 15.17 CU FT 450 lbs
108685 44” Bucket, Snow/Mulch, High Back W/Mesh 12.31 CU FT 400 lbs
108690 48” Bucket, Snow/Mulch, High Back W/Mesh 13.5 CU FT 350 lbs
108513 48” Bucket, Snow/Mulch 1 YARD 517 lbs
108612 48” Bucket, Snow/Mulch, 1/4 Wrap 1 YARD
  • USUALLY SHIPS IN (3) TO (5) DAYS
