174005/174105

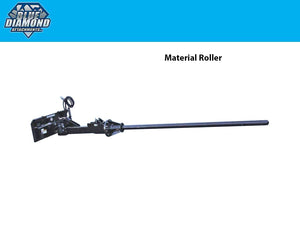

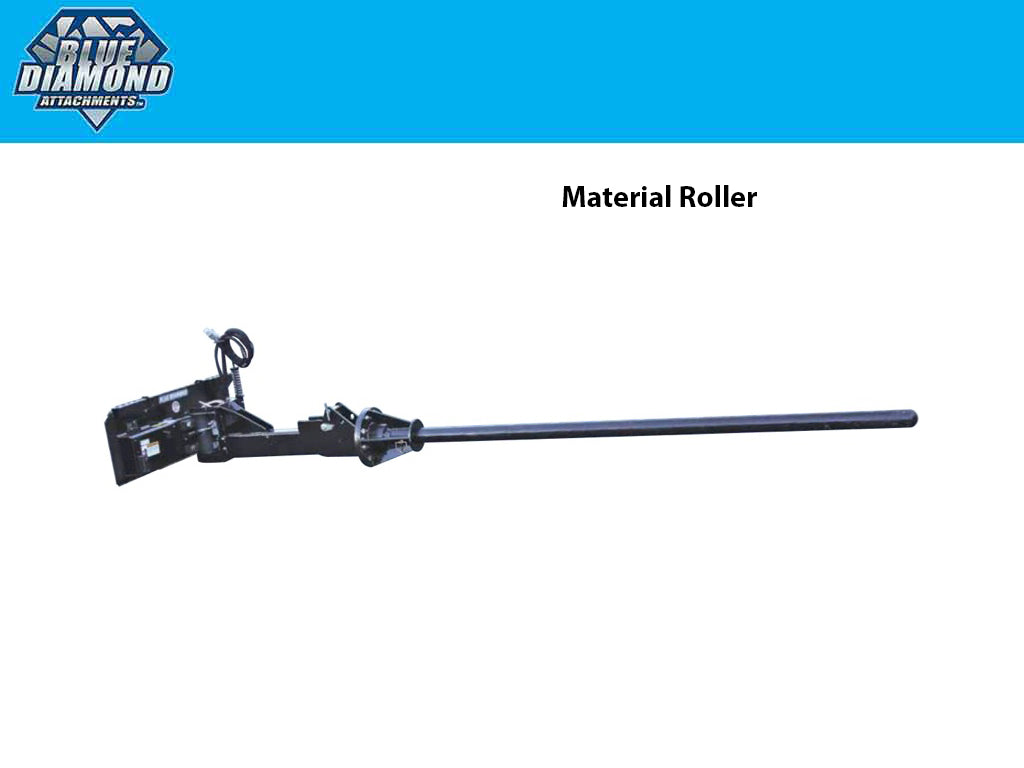

BLUE DIAMOND Material Roller

SIZE

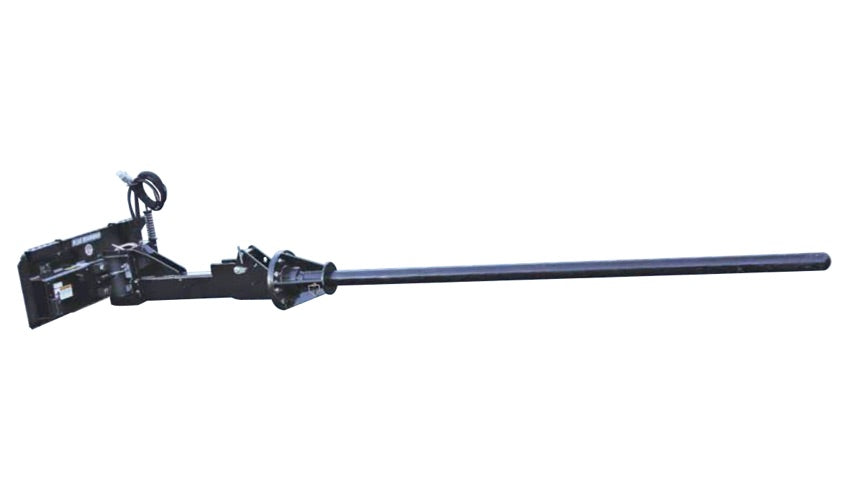

MATERIAL ROLLER

Your workday just got a lot easier. Introducing the Blue Diamond® Material Roller. Precisely crafted and ruggedly built, the material roller will not only lighten your load-but cut your crew requirements by almost half. From loading to unloading the flat-bed to laying down roll after roll, any project will get done faster with less physical effort with the material roller.

FEATURES INCLUDE :
  • Pivot arm locks for storage and transport
  • Pivot arm adjustable stop allows for below horizontal operation
  • Quickly and easily mounts on any skid steer
  • Hydraulic actuator allows the stem to swing 180˚ left or right, 115˚ up, and 8˚ down
  • Detachable stem available in 3 lengths
  • Retaining collar with quick pin keeps material perfectly positioned on the stem
PART NUMBER HEIGHT W/OUT STEM HEIGHT WITH STEM LENGTH W/OUT STEM WEIGHT W/OUT STEM PIVOT ARM SWING STEM ANGLE UP/DOWN
174005 19″ 45.5″ 68″ 530 lbs 180˚ 115˚ up / 8˚ down



STEM DIAMETER STEM DIAMETER WEIGHT MAX ROLL WEIGHT STEM DIAMETER STEM LENGTH WEIGHT MAX ROLL WEIGHT MOUNTABLE ROLL WIDTHS
2.375″ 5′ 36 lbs 420 lbs 3.5″ 5′ 39 lbs 500 lbs 4′ on 5′ stem
2.375″ 7.67′ 49 lbs 250 lbs 3.5″ 7.67′ 60 lbs 500 lbs 6.67′ on 7.67′ stem
2.375″ 9′ 56 lbs 210 lbs 3.5″ 9′ 70 lbs 500 lbs 8′ on 9′ stem
