BLUE DIAMOND pallet forks for skid steer (light duty, standard duty, heavy duty)
BLUE DIAMOND pallet forks for skid steer (light duty, standard duty, heavy duty)
BLUE DIAMOND pallet forks for skid steer (light duty, standard duty, heavy duty)
BLUE DIAMOND pallet forks for skid steer (light duty, standard duty, heavy duty)
BLUE DIAMOND pallet forks for skid steer (light duty, standard duty, heavy duty)
BLUE DIAMOND pallet forks for skid steer (light duty, standard duty, heavy duty)
BLUE DIAMOND pallet forks for skid steer (light duty, standard duty, heavy duty)
BLUE DIAMOND pallet forks for skid steer (light duty, standard duty, heavy duty)

314061

BLUE DIAMOND pallet forks for skid steer (light duty, standard duty, heavy duty)

$1,210.00 - $2,738.00

Business Financing Available

STYLE
TINE SIZE
STEPS

4/24

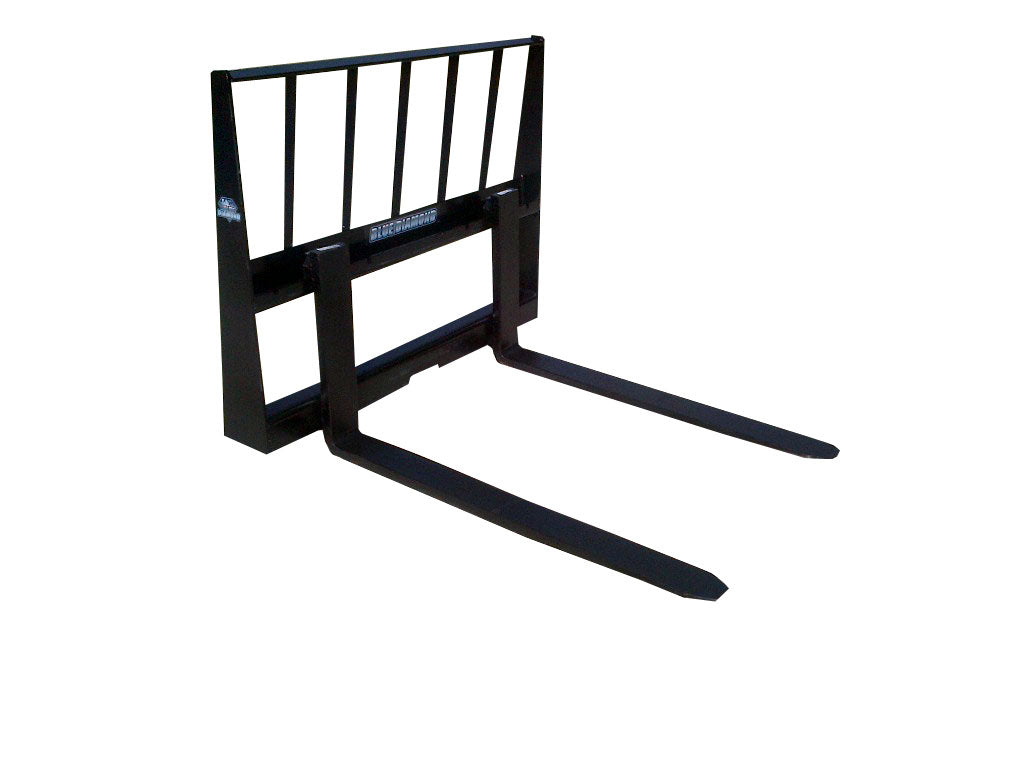

PALLET FORKS - 2,000 LBS. CAPACITY LIGHT DUTY

Blue Diamond® offers a large selection of pallet forks for tractors. Pallet forks are one of the most used attachments next to buckets and must be built well. Seeing your tines is important, so all Blue Diamond® frames have excellent visibility. We offer pallet forks from 2000 lbs. to 6000 lbs. capacity and offer a variety of tine lengths. Steps on the side of the frame are available on most models to allow the operator a safe place to step while entering or exiting the machine.

FEATURES & BENEFITS

  • Lightweight
  • 42” x 4” x 1 1/2”
  • 2,000 lb. capacity
  • Excellent visibility

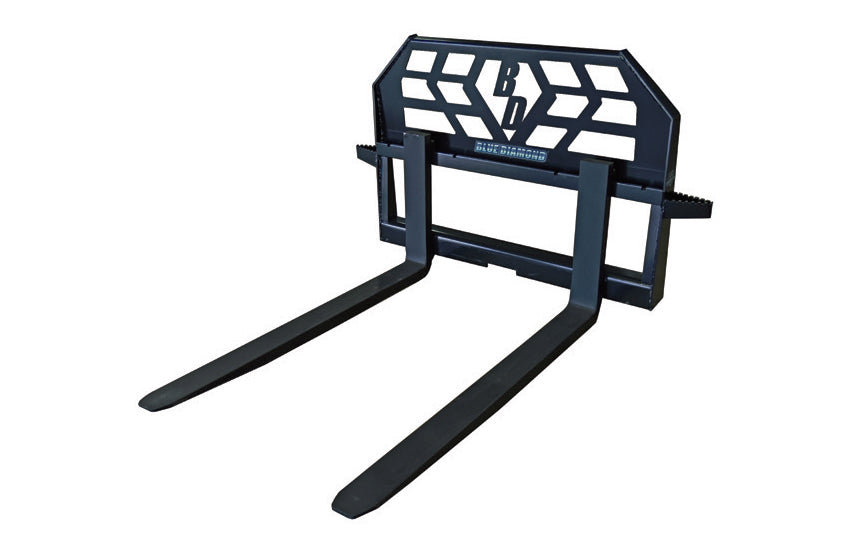

PALLET FORKS – 4,000 LBS. CAPACITY STANDARD DUTY

Our Blue Diamond® Skid Steer Pallet Forks offer great visibility on a heavy duty frame. The 48” tines are 1.5″ thick and are fully adjustable. This is our most popular style forks for general use. Frames are powder-coated for durable finish and serial numbered with lifting capacities in both pounds and kilograms to meet regulations in many counties. Available with or without the side steps.

FEATURES & BENEFITS

  • Rail mount tines
  • Easy to adjust
  • 4,000 lb. capacity
  • Non-floating tines
  • 48″ x 4″ x 1 1/2″ tines

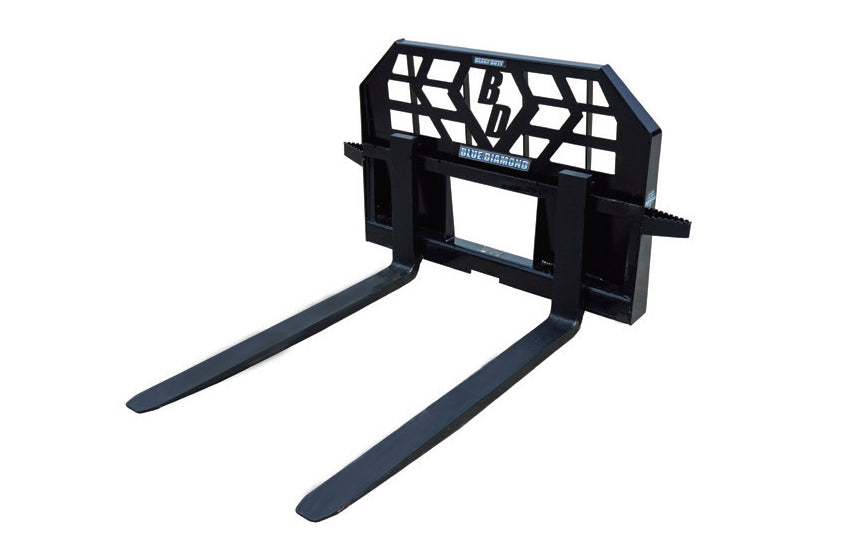

PALLET FORKS – 5,000 LBS. CAPACITY HEAVY DUTY

Blue Diamond® Heavy Duty Skid Steer Pallet Forks are rated for 5,000 lb. lift. Using an easy-to-see-through frame, the heavy duty pallet forks give added lift capacity for larger skid steers. The reinforced brick guard and quick attach area make it extremely durable for heavy use. 48” tines are standard, and 60” and 72″ are available. The powder-coated frames feature a riveted on serial tag that has the lift capacities in pounds and kilograms to meet job site requirements for lifting attachments.

FEATURES & BENEFITS

  • Reinforced brick guard
  • Added plate in quick-attach
  • 5,000 lb. capacity
  • Side steps standard

LIGHT DUTY

Part Number Model Tine Size Lift Capacity Weight
314003 Pallet Fork, Light Duty 42” X 1 1/4” 2,000 lbs 322 lbs
314061 Pallet Fork, Light Duty 36” X 1 1/2” 2,000 lbs 295 lbs
314060 Pallet Fork, Light Duty 48” X 1 1/2” 2,000 lbs 371 lbs



STANDARD DUTY

Part Number Model Tine Size Lift Capacity Weight
314006 Pallet Fork Std, W/Steps 42” X 1 1/4” 3,700 LBS 311 lbs
314007 Pallet Fork Std 42” X 1 1/4” 3,700 LBS 318 lbs
314004 Pallet Fork, Std, W/Steps 48” X 1 1/2” 4,000 LBS 375 lbs
314070 Pallet Fork Std 60” X 1 1/2” 4,000 LBS 413 lbs
314075 Pallet Fork Std 72” X 1 3/4” 4,000 LBS 493 lbs



HEAVY DUTY

Part Number Model Tine Size Lift Capacity Weight
314011 Pallet Fork, HD, W/Steps 48” X 1 1/2” 5,000 LBS 375 lbs
314012 Pallet Fork, HD, No Steps 48” X 1 3/4” 5,000 LBS 375 lbs
314013 Pallet Fork, HD, W/Steps 48” X 1 3/4” 5,000 LBS 375 lbs
314014 Pallet Fork, HD, W/Steps 60” X 1 3/4” 5,000 LBS 452 lbs
314085 Pallet Fork, HD, W/Steps 60” X 1 1/2” 5,000 LBS 420 lbs
314090 Pallet Fork, HD, W/Steps 72” X 1 3/4” 5,000 LBS 500 lbs
