Blue Diamond

114025

BLUE DIAMOND PALLET FORKS, WIDE FRAME, (SSL)(CTL)

FRAME
TINES

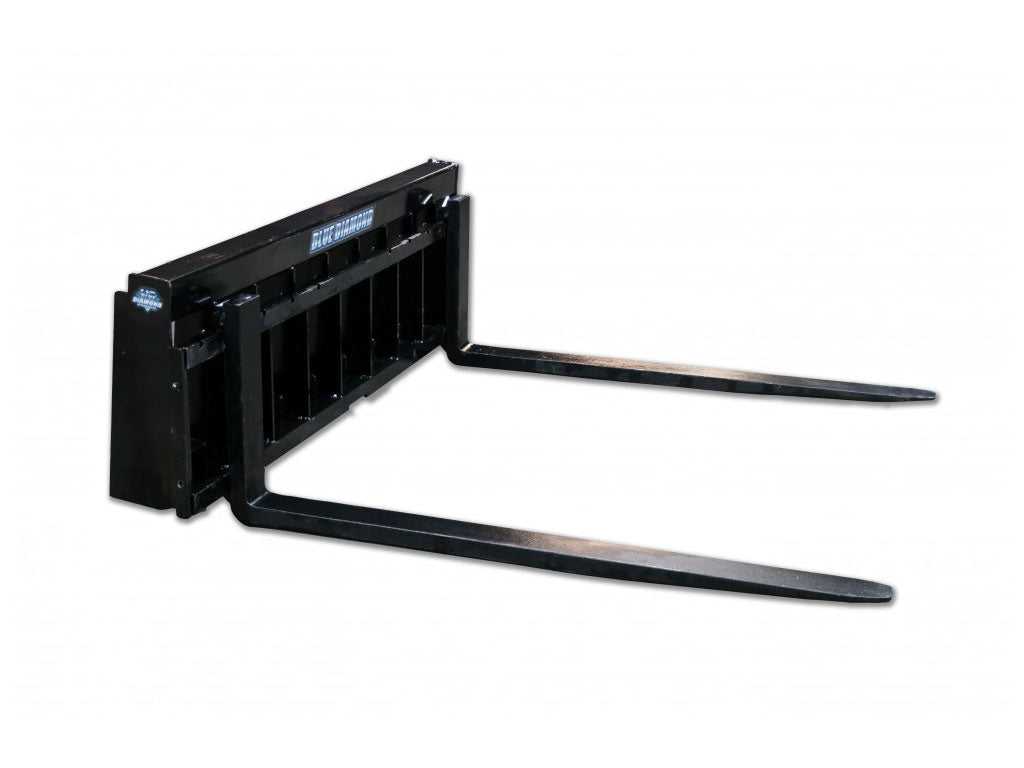

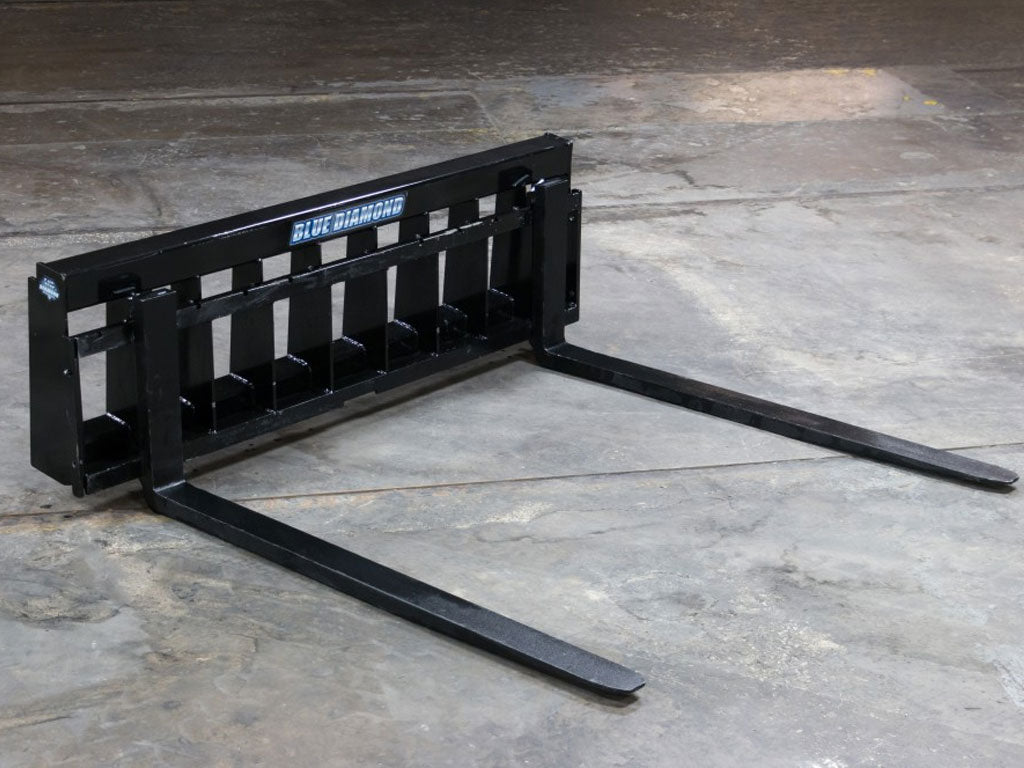

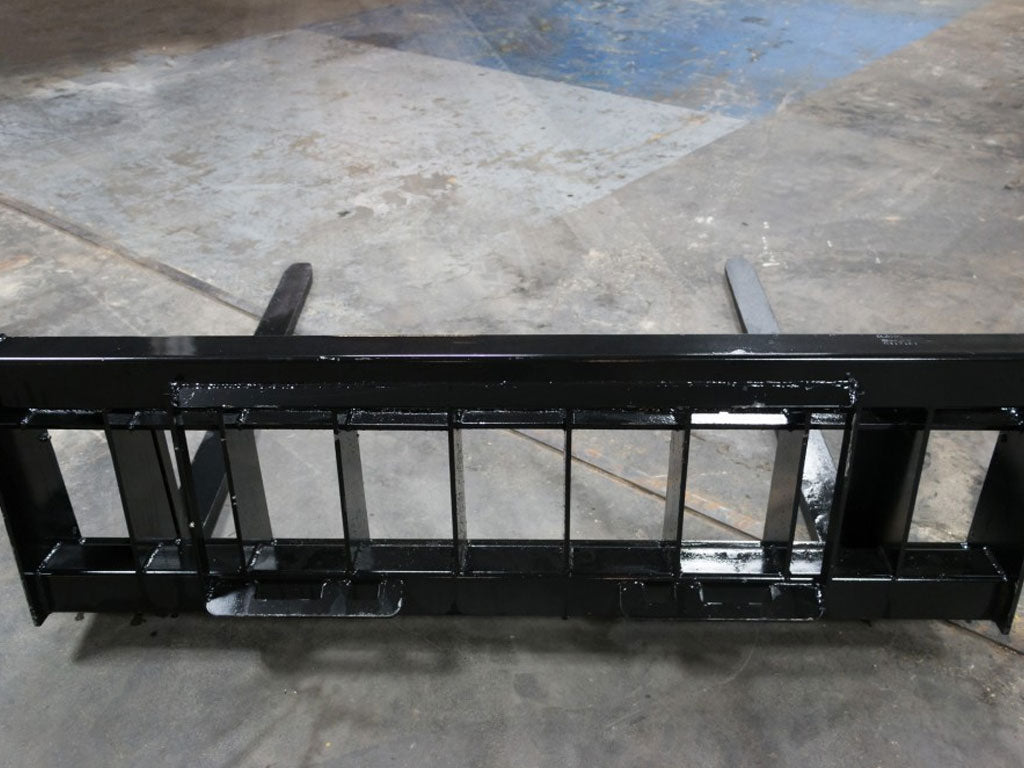

PALLET FORKS – WIDE FRAME HEAVY DUTY

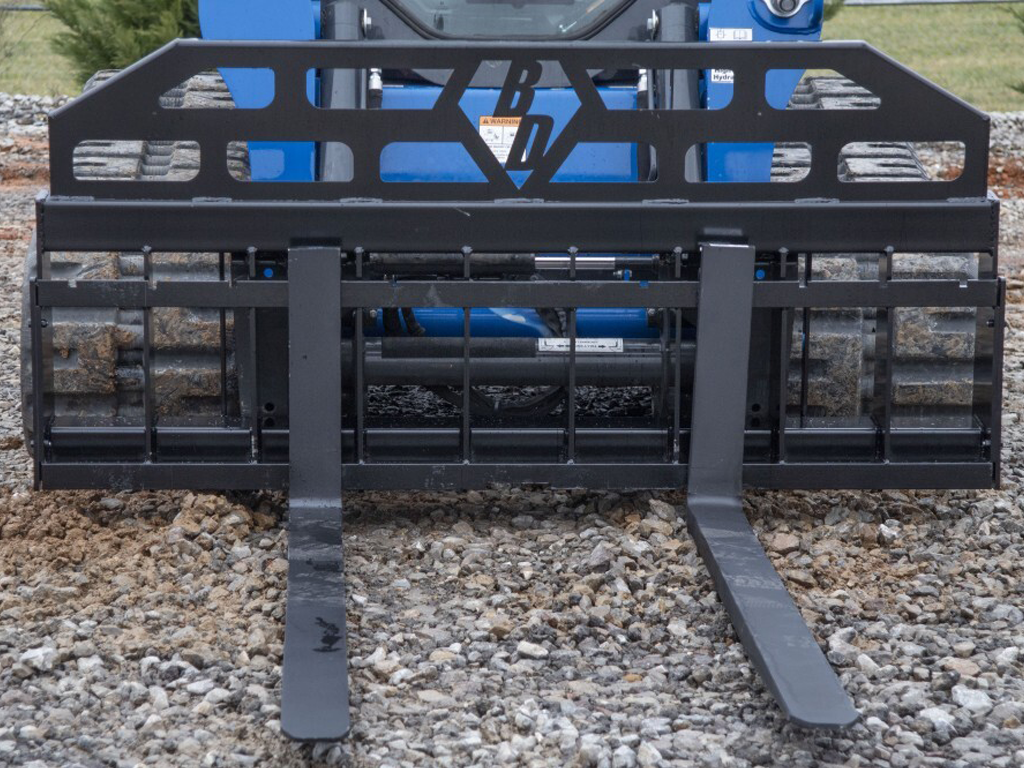

These Wide Frame HD Pallet Forks for skid steers or tractors are great for handling wide loads, with widths up to 72″ available. There are multiple tine options and a option for a backrest guard. Having no back guard provides maximum visibility and flexibility for working in tight spaces, especially near ceilings.  The heavy duty construction makes the fork frame good for a 6000 lb. load rating.

 ITEM CAPACITY LB LB
HD FRAME NO BACKREST 6000  390

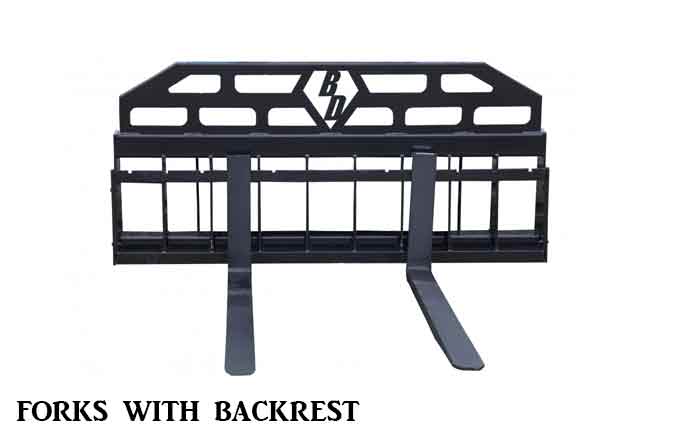

HD FRAME WITH BACKREST 6000
42x1.25x4 TINE SET 4000 168
48x1.50x4 TINE SET 5500 226
60x1.75x4 TINE SET 6000 300
72x1.75x4 TINE SET 6000 348
