Blue Diamond

106053

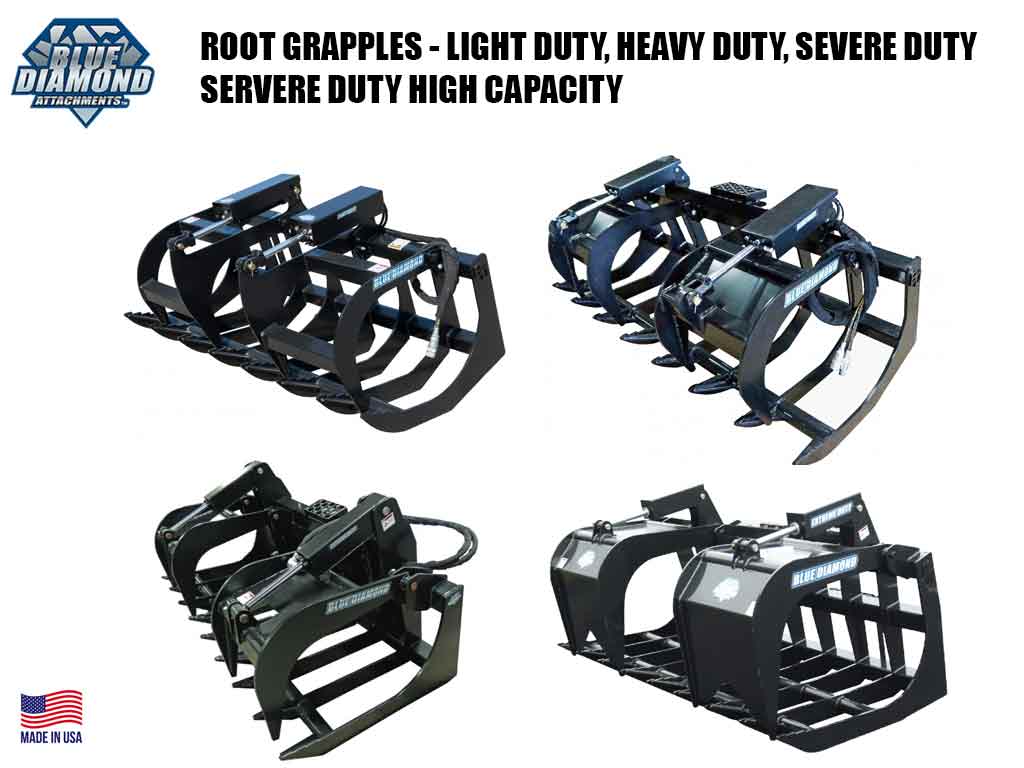

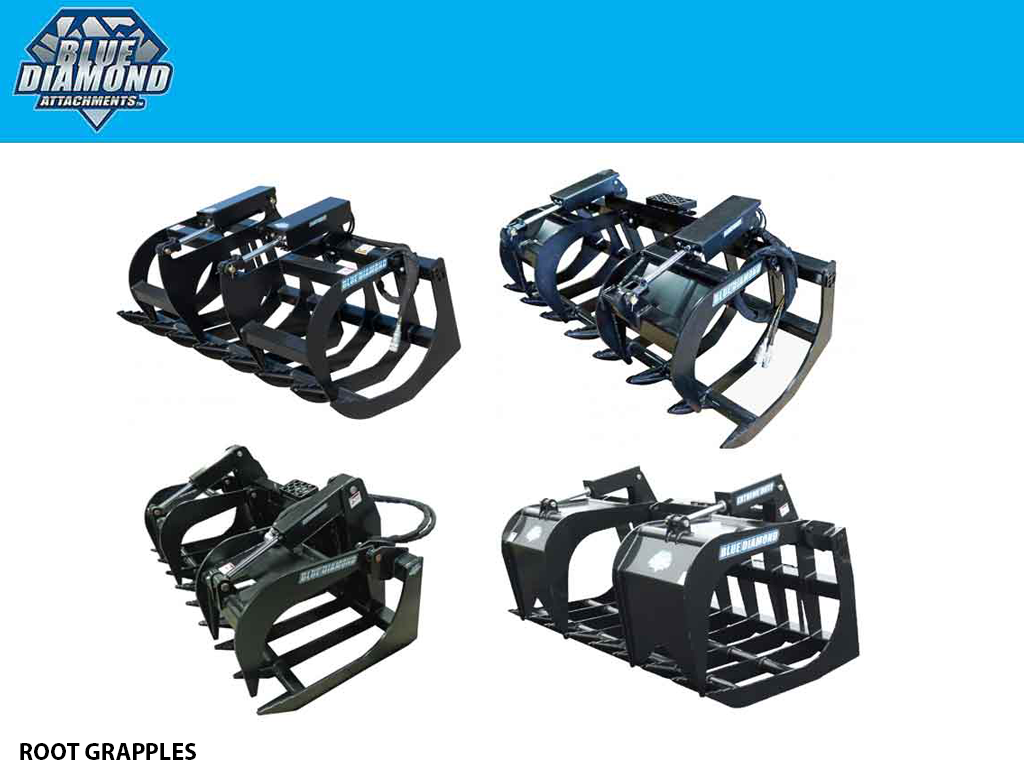

BLUE DIAMOND root grapples

Style
Size
Grapple

ROOT GRAPPLE – LIGHT DUTY

This lightweight grapple is designed with small loaders in mind with limited lift capacity. Weighing only 454 lbs, it lets you grab a load without the fear of tipping your machine. Dual top clamps and grease fittings are standard.

FEATURES INCLUDE:

  • Dual independent clamps
  • 3/8” steel
  • Greasable 1” pivot pin
  • One-piece tines
  • Protected cylinders
  • Flat face couplers included
  • Opens to 30”

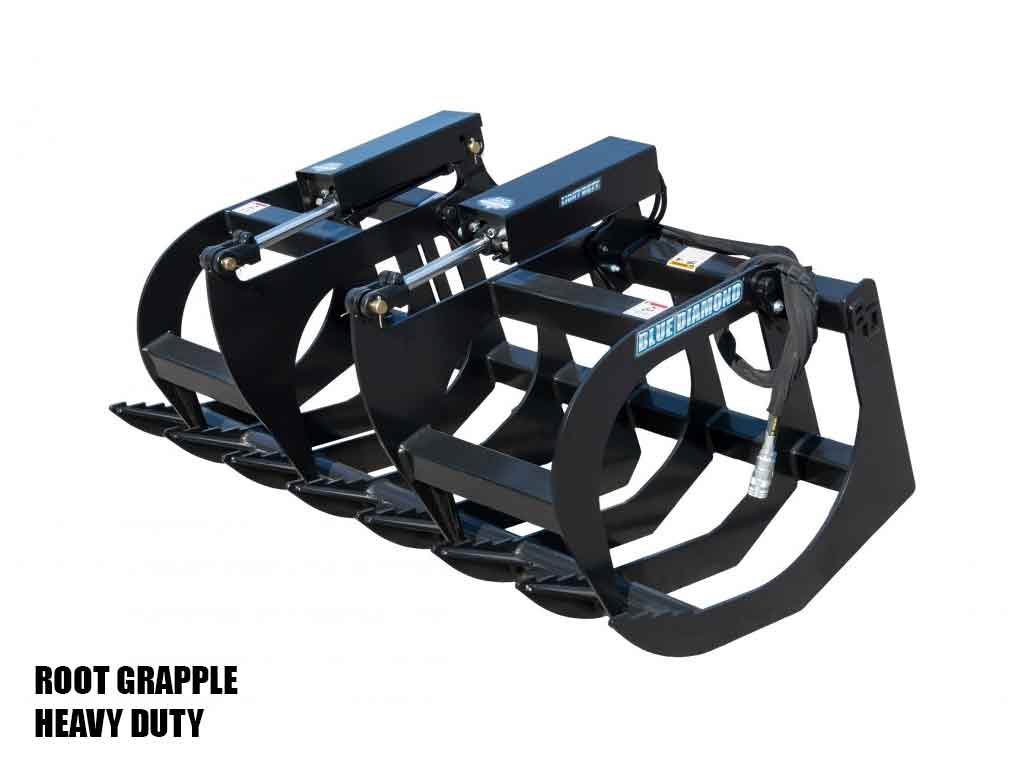

ROOT GRAPPLE – HEAVY DUTY

The Heavy-Duty Root Grapple is designed for up to 50 hp machines with a moderate work load. Made from 1/2” steel, it is strong yet light enough for smaller machines. Pivot-point grease fittings and couplers are standard.

FEATURES INCLUDE:

  • 1/2″ thick top clamps
  • Cylinder protection covers
  • Opens to 32″
  • Best suited for machines up to 50HP or 1800 lb lift capacity
  • Protected hoses

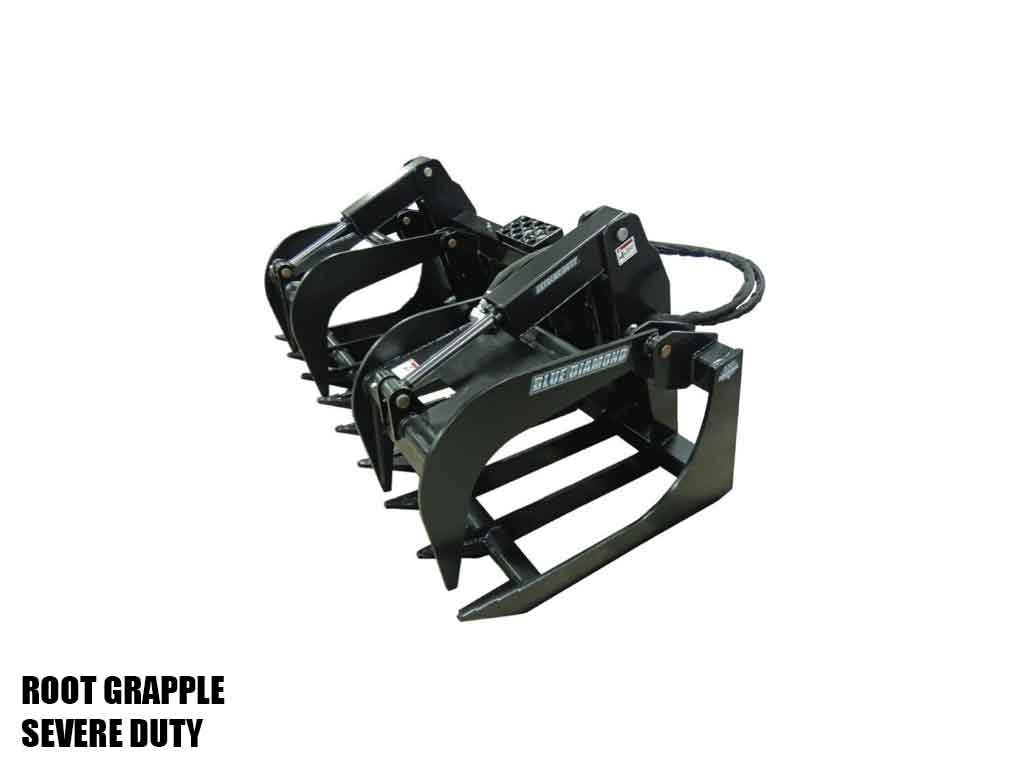

ROOT GRAPPLE – SEVERE DUTY

This awesome addition to the Blue Diamond skid steer grapples offers some great new features suggested by our customers!  The new hose routing keeps the hoses out of the pinch area by running them internally through the left cylinder tower. The quick attach area is solid to protect the cylinder and lines on the hydraulic quick attach that many newer machines offer. Extra tubing in the grapple clamps prevents twisting and the one piece tines bucket tines no longer have a seam in the back of the grapple. This new design has made a great grapple even better.

FEATURES INCLUDE:

  • Half inch, extra strong one-piece tines throughout
  • Closed in quick attach area
  • Reinforced top clamps
  • New “no pinch” hose routing
  • Opens to 34″
  • 35″ deep
  • 8″ tine spacing
  • 1.25″ pivot pins in bushings with grease fittings

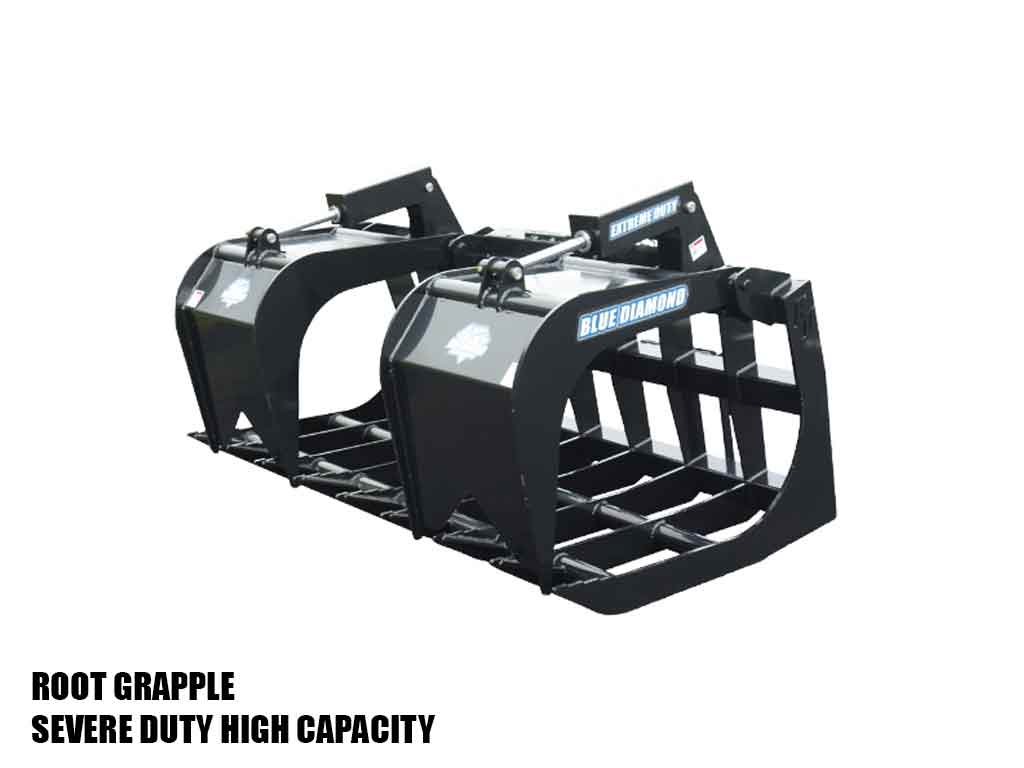

EXTREME DUTY HIGH CAPACITY ROOT GRAPPLE

 This Blue Diamond® Extreme Duty High Capacity Root Grapple is designed to handle very large jobs with ease. The protected cylinders and hoses ensure that down time is kept to a minimum. From the heavily reinforced mount to the rugged top clamps, this grapple is one of the toughest on the market. The massive top clamps allow for 25”H x 42”D worth of material to be grabbed in each load.

FEATURES INCLUDE:

  • 3/8” thick tines with 1/2” top clamps
  • 25”H x 42”D opening inside of clamps
  • Opens to 59” at tip of tines/clamp
  • Dual acting cylinders
  • Heavily reinforced mount
  • Serrated tine tips to rip through roots
