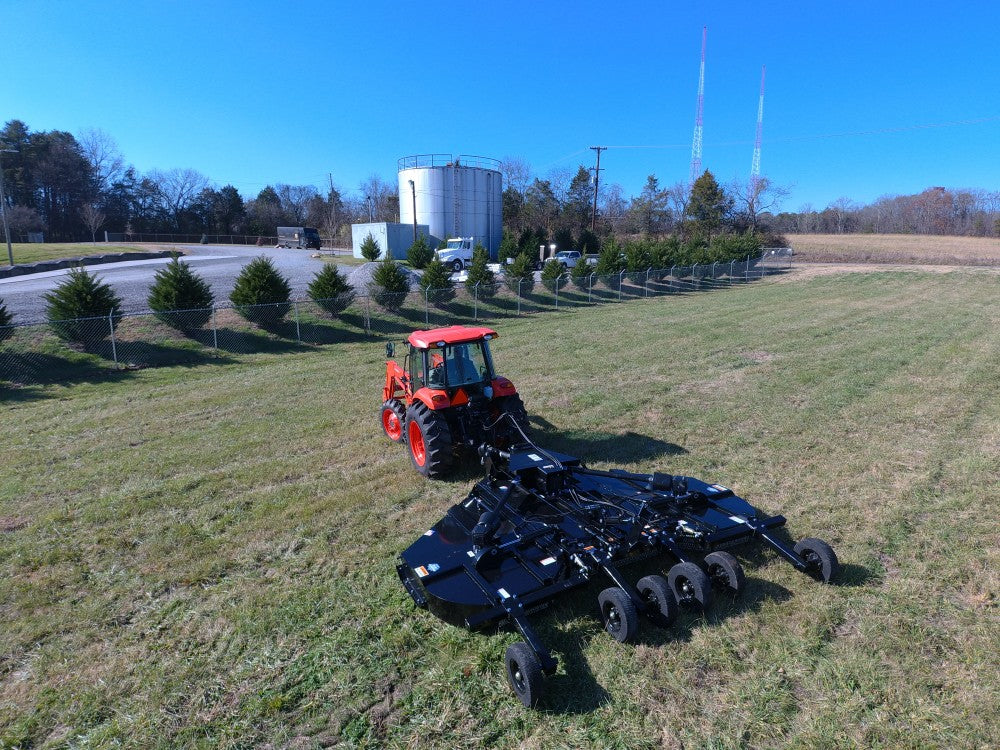

BLUE DIAMOND ROTARY CUTTER FLEX-WING

MODEL
TIRES

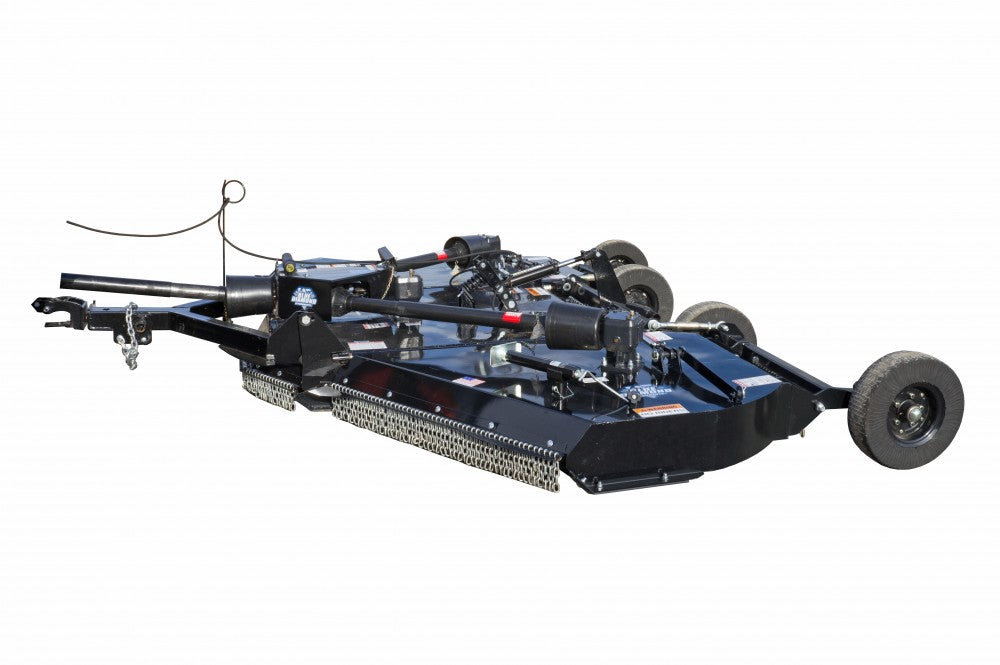

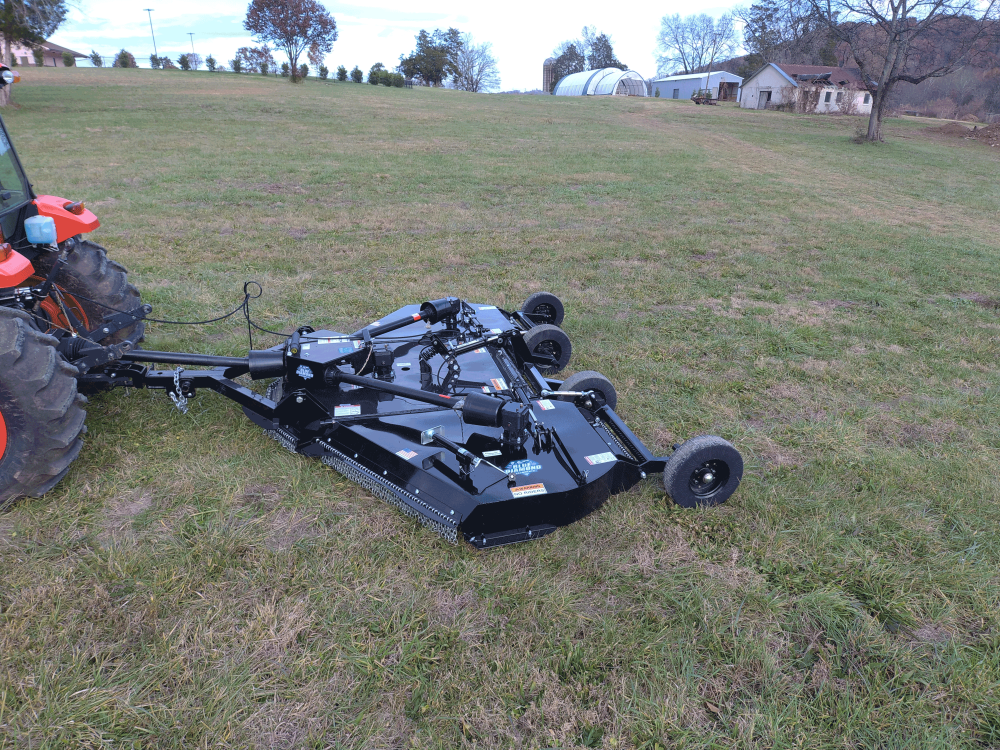

With its smooth top deck and spring suspension, this Flex-Wing Rotary Cutter is ideal for medium-duty applications such as weeds, grass, and brush up to 2” diameter. Designed for use with compact tractors as small as 35 hp, the cutterrequires only one hydraulic outlet. For its 144” cutting width, the cutter uses three independent spindles with two free-swinging blades each, to reduce the shock of hitting a stationary object. Slip clutches protect the gearboxes and drivelines from damage. Standard equipment includes driveline shields, clutch shields, chain discharge shields, and a towing safety chain.

FEATURES INCLUDE

  • Smooth top deck design
  • Protected gearboxes and drivelines
  • 144” cutting width
  • 2-year warranty

PRODUCT SPECS

MODEL  12"
MINIMUM HORSEPOWER 35 hp (Gear-drive Trans)
HITCH Swivel Clevis
DECK THICKNESS 10 GA
DECK HEIGHT 11”
SIDE SKIRT MATERIAL 3/16”
HINGE RODS 1”

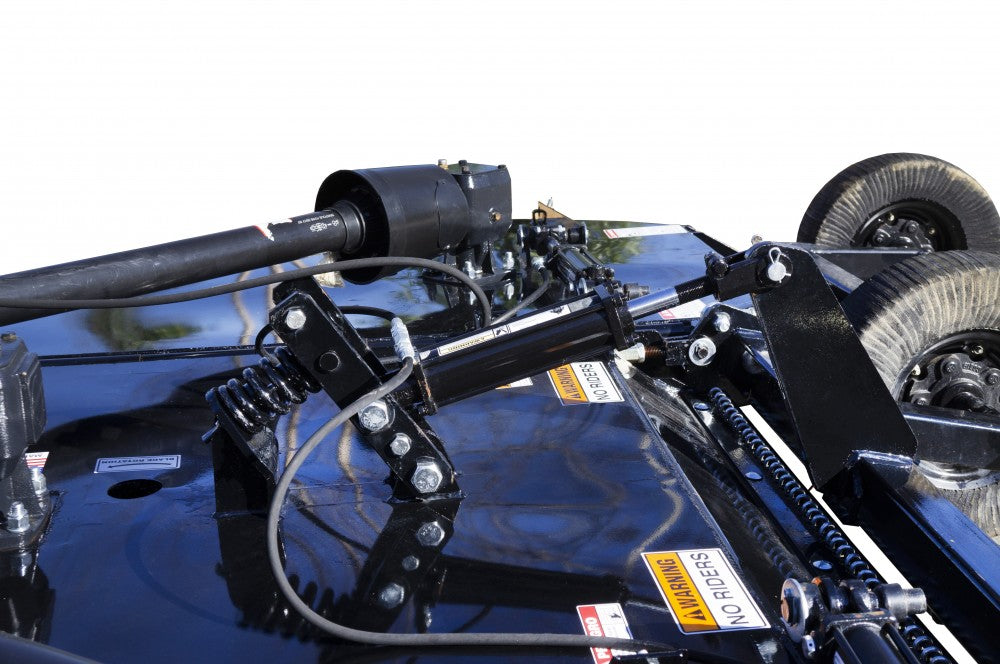

SUSPENSION Single Spring
OUTBOARD GEARBOX 75hp
SPLITTER GEARBOX 175 hp
GEARBOX 540 RPM
BLADES 1/2” x 3” w/lift
BLADE TIP SPEED 15,657 FPM
BLADE OVERLAP 6”
BLADE CARRIERS 3/16” Formed Plate w/3/4” x 5” x 20” Blade Bar
CUT WIDTH 144"
OVERALL WEIGHT 2,630 LB
CUTTING CAPACITY UP TO 2"

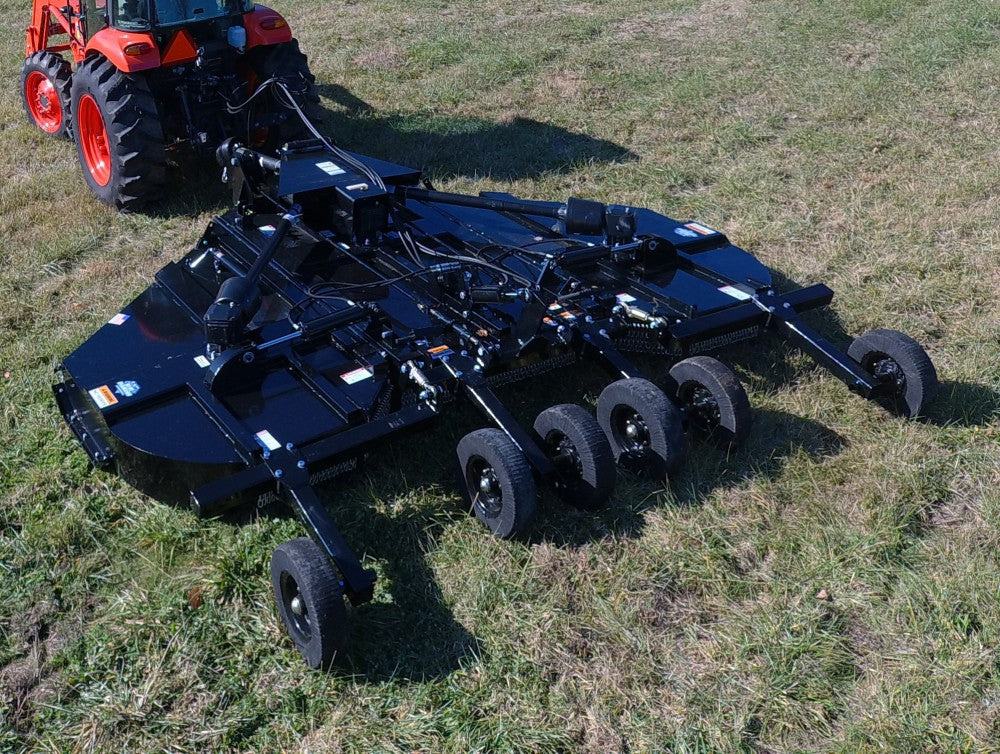

With its heavily braced deck and triple spring suspension, this Flex-Wing Rotary Cutter is designed for heavy-duty applications such as weeds, grass, and brush up to 4” diameter. Designed for use with tractors as small as 55 hp, the cutter has a 180” cutting width. The cutter uses three spindles with two free-swinging blades each, to reduce the shock of hitting a stationary object. Slip clutches protect the gearboxes and driveline from damage. Standard equipment includes driveline shields and clutch shields. Front and rear chain discharge shields and a towing safety chain are standard.

FEATURES INCLUDE :

  • Protected gearboxes and drivelines
  • 180” cutting width
  • 2-year warranty
  • 3.5” Cut Capacity
  • Comes standard with slip clutches and chain guards

PRODUCT SPECS

MODEL  15"
MINIMUM HORSEPOWER
55 hp
HITCH Swivel Pivot
DECK THICKNESS 7 GA
BODY DEPTH 9.5”
SIDE SKIRT MATERIAL 1/4” x 12”
UNDERNEATH DECK Heavily Braced
OUTBOARD GEARBOX 190 hp
SPLITTER GEARBOX 235 hp
GEARBOX 540 RPM
BLADES 1/2” x 4”
BLADE TIP SPEED 17,135 FPM
BLADE OVERLAP 6 1/2”
BLADE CARRIER WARRANTY 5 year

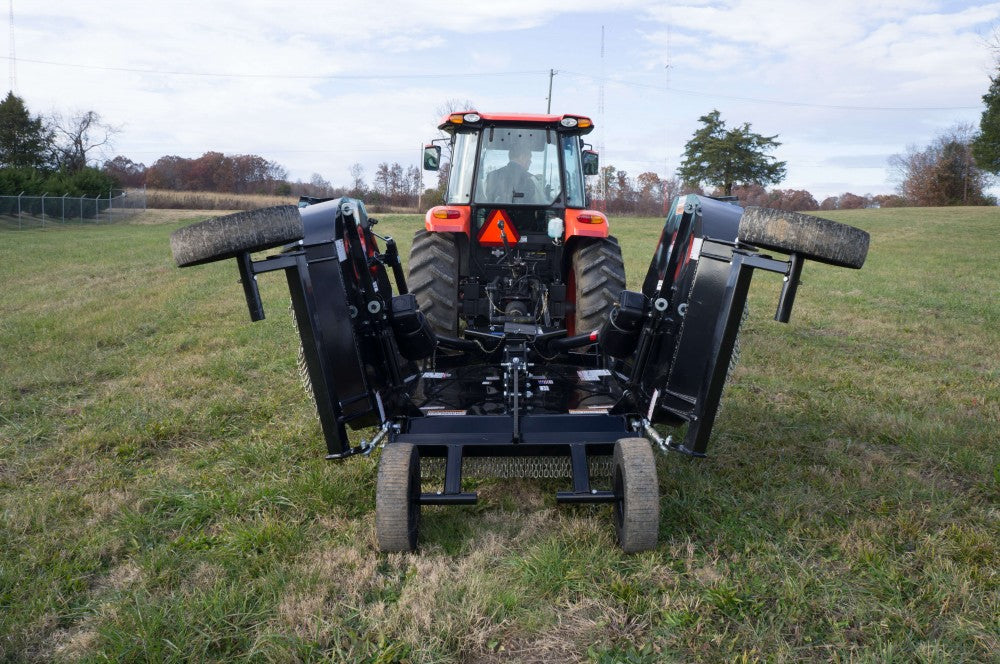

WING FLEX 88 degrees up – 22 degrees down
GEARBOX WARRANTY 5 yr. limited
CUTTING WIDTH 180”
OVERALL WIDTH 188”
OVERALL LENGTH 189”
OVERALL WEIGHT 5,175 lbs
CUT HEIGHT 2” – 15”
CUTTING CAPACITY 3.5"
INPUT PTO ASAE CAT 8 Constant Velocity
WING DRIVE PTO ASAE CAT 6
SKID SHOES Replaceable
CHAIN SHIELDS Standard
TOWING SAFETY CHAINS Standard

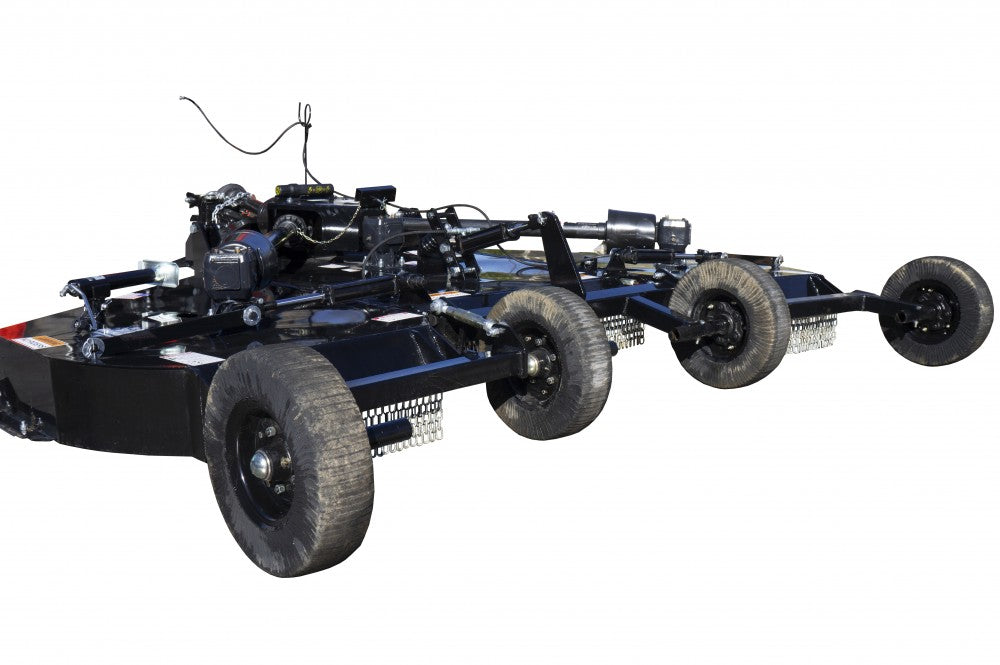

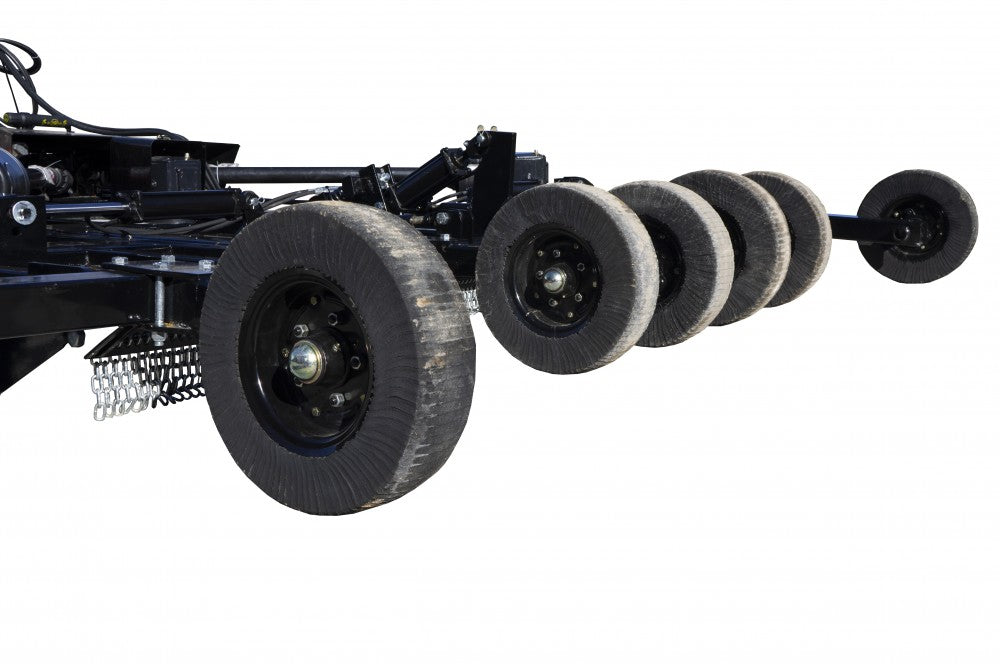

WHEEL TYPE 5 Lug Laminated Standard
BLADE CARRIERS 3/8” Formed Plate w/ 5/8” x 10 ” x 23” Blade Bar
