Blue Diamond

123415

BLUE DIAMOND series 2 multi purpose blade

Size

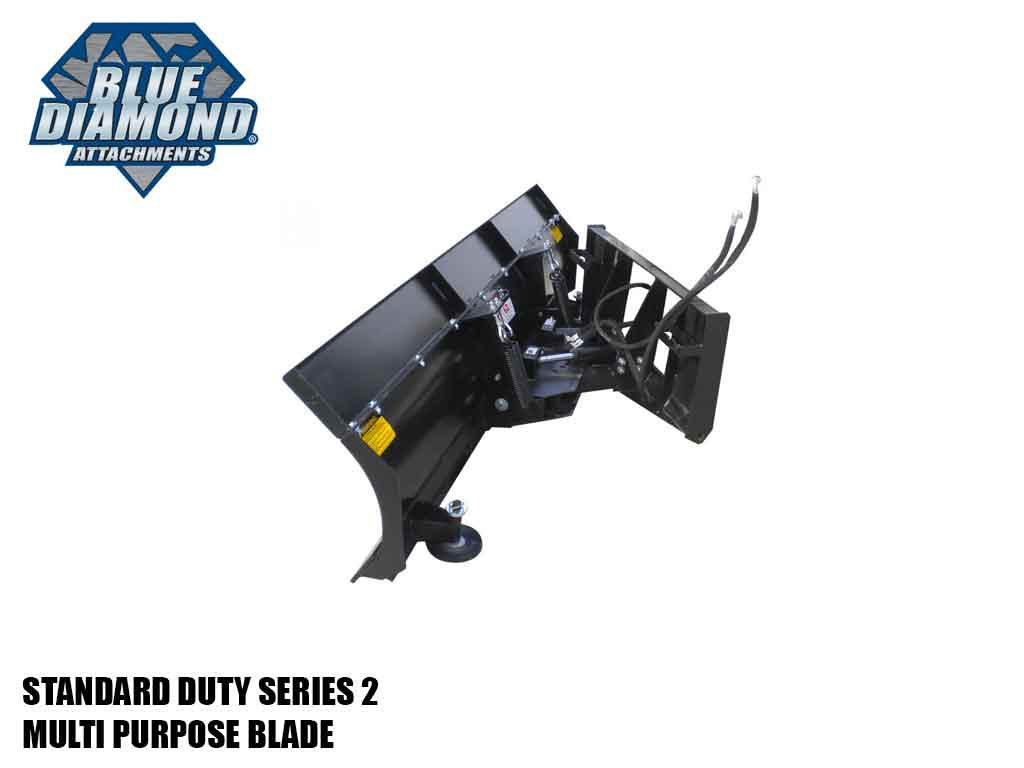

STANDARD DUTY SERIES 2 MULTI-PURPOSE BLADE

The Blue Diamond Standard Duty Series 2 Multi-Purpose blade is great for snow and light dirt work. At 22” tall, this blade is a great fit for most users and has an optional 8” height extension that can be bolted on for high-volume applications. The curved back keeps the material rolling for maximum efficiency. Adjustable skid shoes allow the cutting edge to land perfectly every time. The full-trip mouldboard protects the operator and equipment from hidden obstacles or curbs. These blades have a trip-lockout pin that can be installed when using the blade for dirt applications.

FEATURES INCLUDE:

  • Available in 72” and 84” widths
  • 22″ Blade height
  • Optional bolt-on 8″ height extension
  • Full-Trip moldboard
  • Steel cutting edge
  • Hydraulic angle

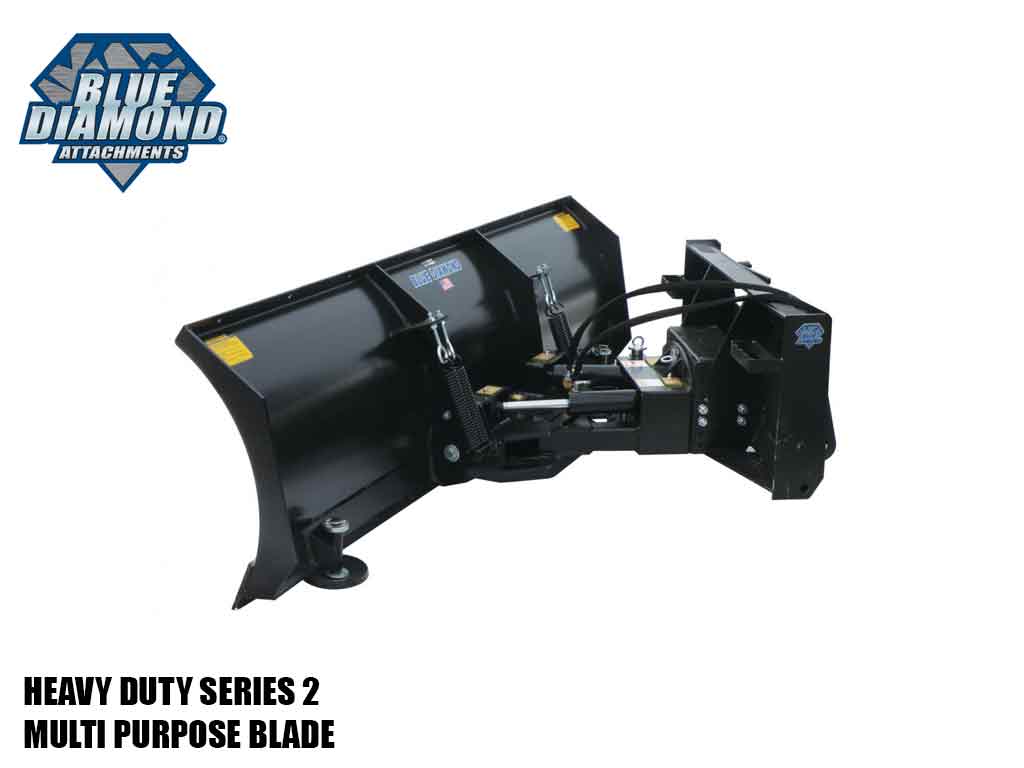

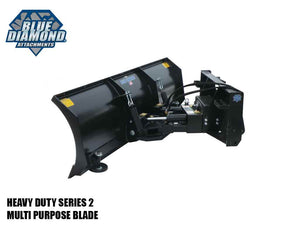

HEAVY DUTY SERIES 2 MULTI-PURPOSE BLADE

The Blue Diamond Heavy Duty Series 2 Multi-Purpose blade is designed for commercial contractors. At 28” tall,
this blade is purpose-built for large applications and has an optional 8” height extension that can be bolted on for
even more capacity. The curved back keeps the material rolling for maximum efficiency. Adjustable skid shoes
allow the cutting edge to land perfectly every time. The full-trip mouldboard protects the operator and equipment
from hidden obstacles or curbs. These blades have a trip-lockout pin that can be installed when using the blade
for dirt applications.

FEATURES INCLUDE:

• Available in 84”, 96”, 108”, and 120” widths
• 28” blade height
• Optional bolt-on 8” height extension
• Full-trip moldboard
• Steel cutting edge
• Hydraulic angle





PART NUMBER 123415 123420
STRAIGHT WIDTH 72” 84"
ANGLED WIDTH 62 1/4" 72 1/2"
ANGLE 30° 30°
HEIGHT 22" 22"
WEIGHT 560 lbs 590 lbs
PART NUMBER 123470 123475
STRAIGHT WIDTH 84” 96"
ANGLED WIDTH 72 1/2" 83"
ANGLE 30° 30°
HEIGHT 28" 28"
WEIGHT 901 lbs 946 lbs
PART NUMBER 123480 123485
STRAIGHT WIDTH 108" 120"
ANGLED WIDTH 93" 104"
ANGLE 30° 30°
HEIGHT 28" 28"
WEIGHT 986 lbs 1,016 lbs
