Blue Diamond

103820

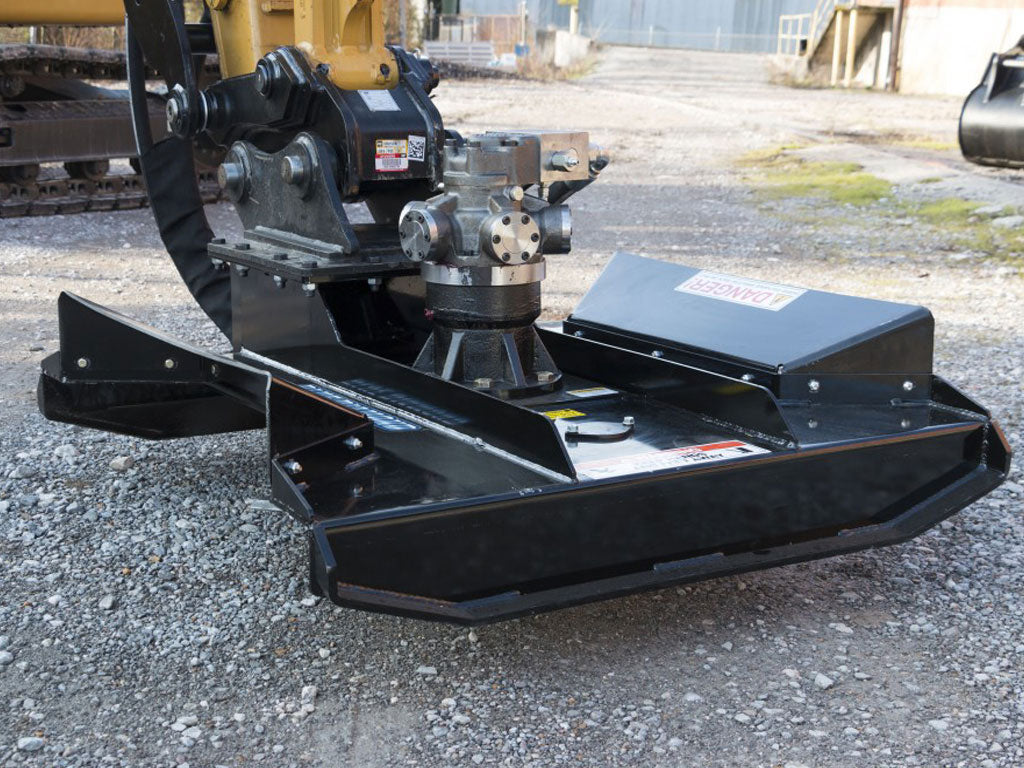

BLUE DIAMOND SEVERE DUTY BRUSH CUTTER, MINI EXCAVATOR (EXC)

MOUNINGS

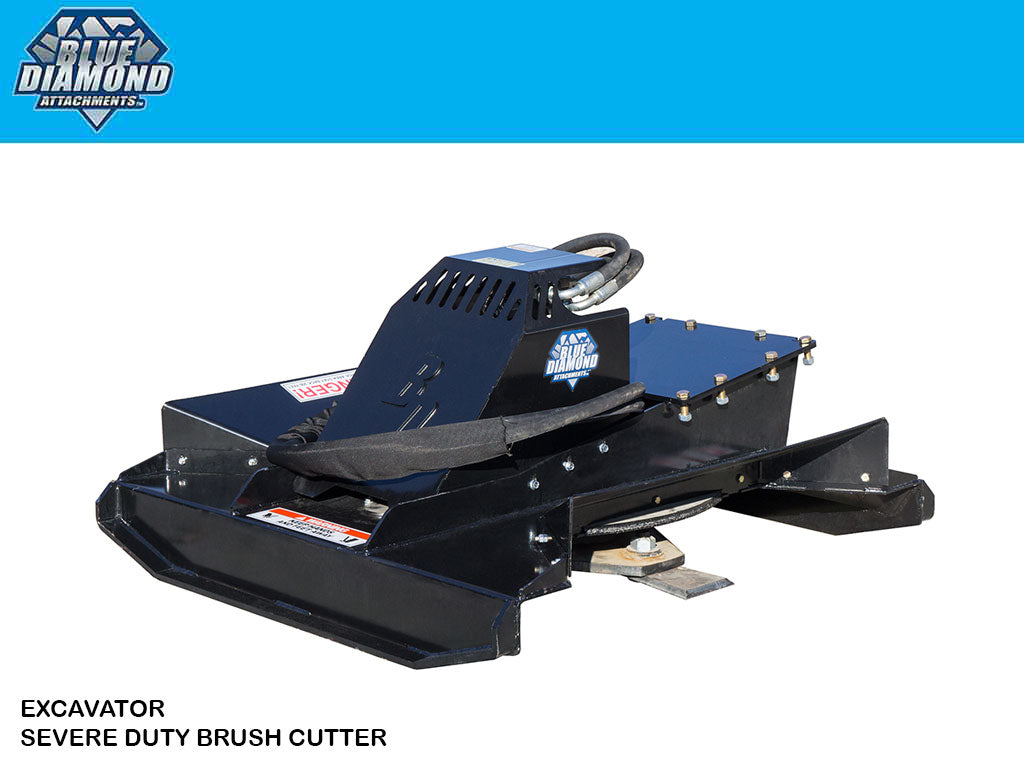

MINI EXCAVATOR BRUSH CUTTER – SEVERE DUTY

10000 LB MIN. EXCAVATOR WEIGHT TO RUN THIS CUTTER.

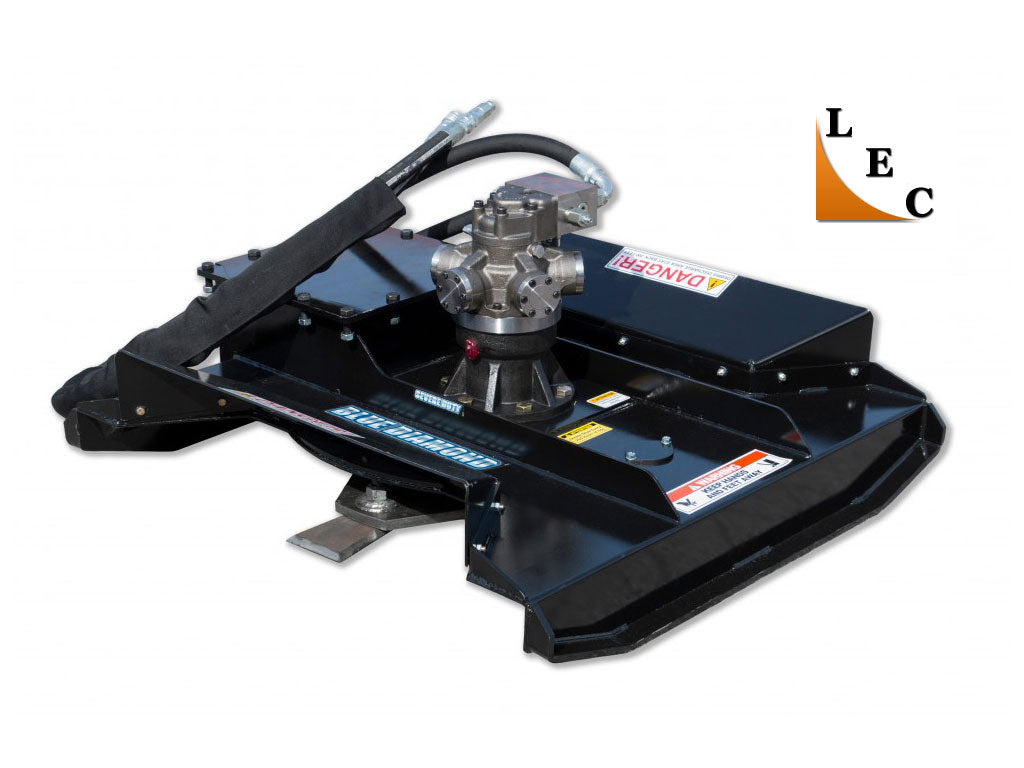

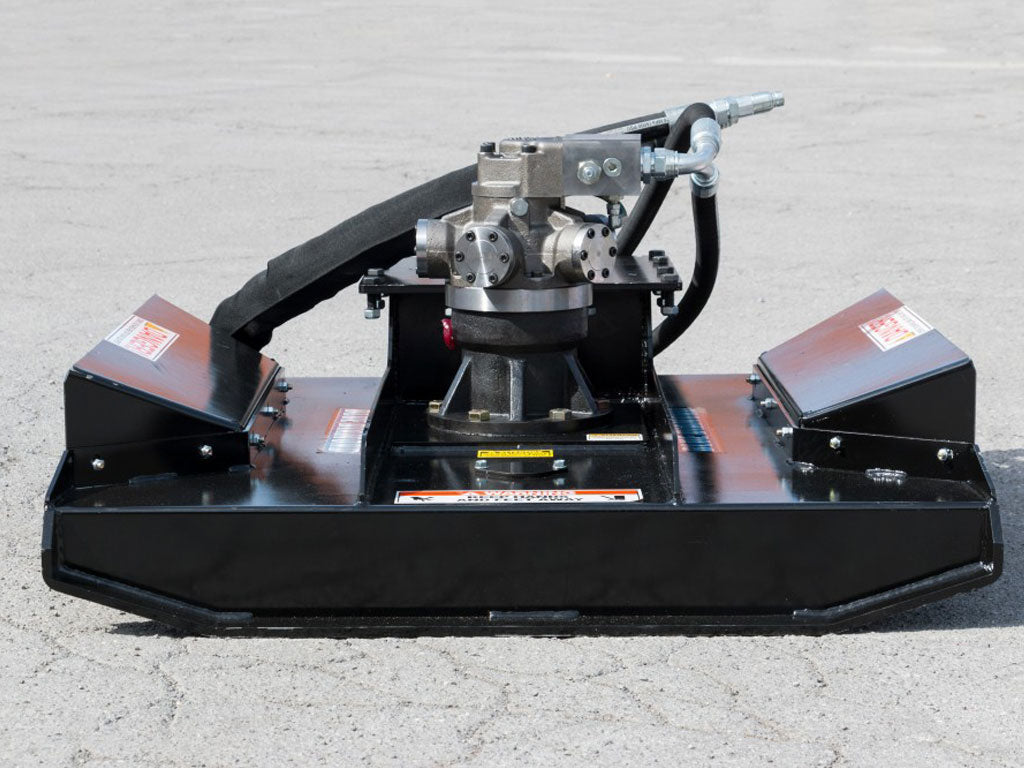

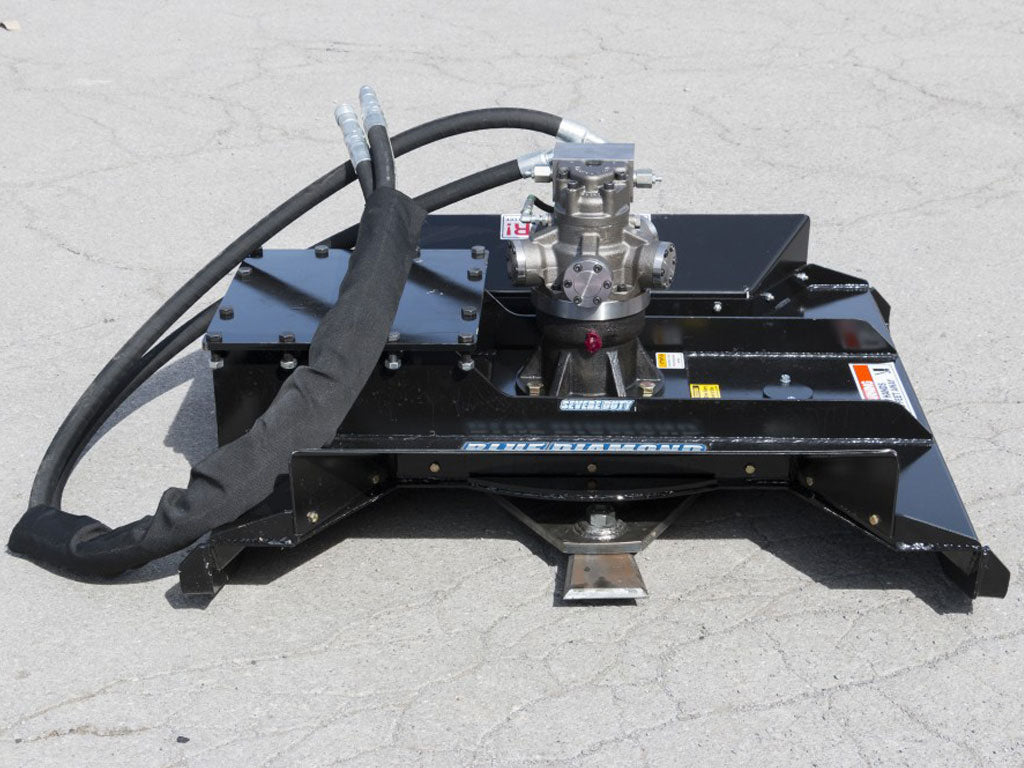

This brutally powerful brush cutter is a serious attachment for clearing land! The Italian made piston motor will tear through large brush with ease, boasting 40% more torque than geroler/gerotor type motors. The cut-away design allows better access to larger material and keeps grass standing while cutting, leaving a cleaner finish. The three double edged AR400 blades make quick work of brush or grass, and being bi-directional adds twice the blade life. Proprietary valving allows this unit to be used without installing a case drain line, a first for a piston motor! This saves you time and money while giving the benefit of the piston motor’s increased torque.  Available only in 42″ cut currently, it weighs 729 lbs without a mount. Flow range is 16 to 26 GPM. 10,000 lbs min machine weight recommended, for up to 19,000 lb. machines.

FEATURES INCLUDE:

  • 1 year warranty

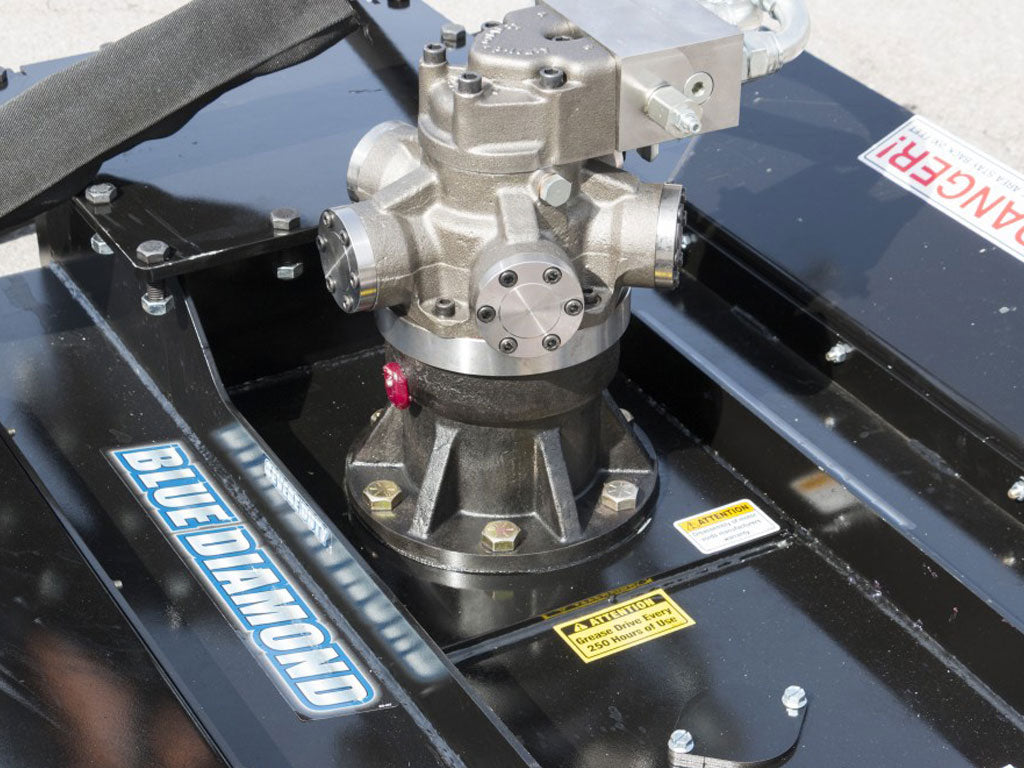

  • High torque piston motor
  • Cutaway side
  • 6” cutting capacity
  • No case drain needed

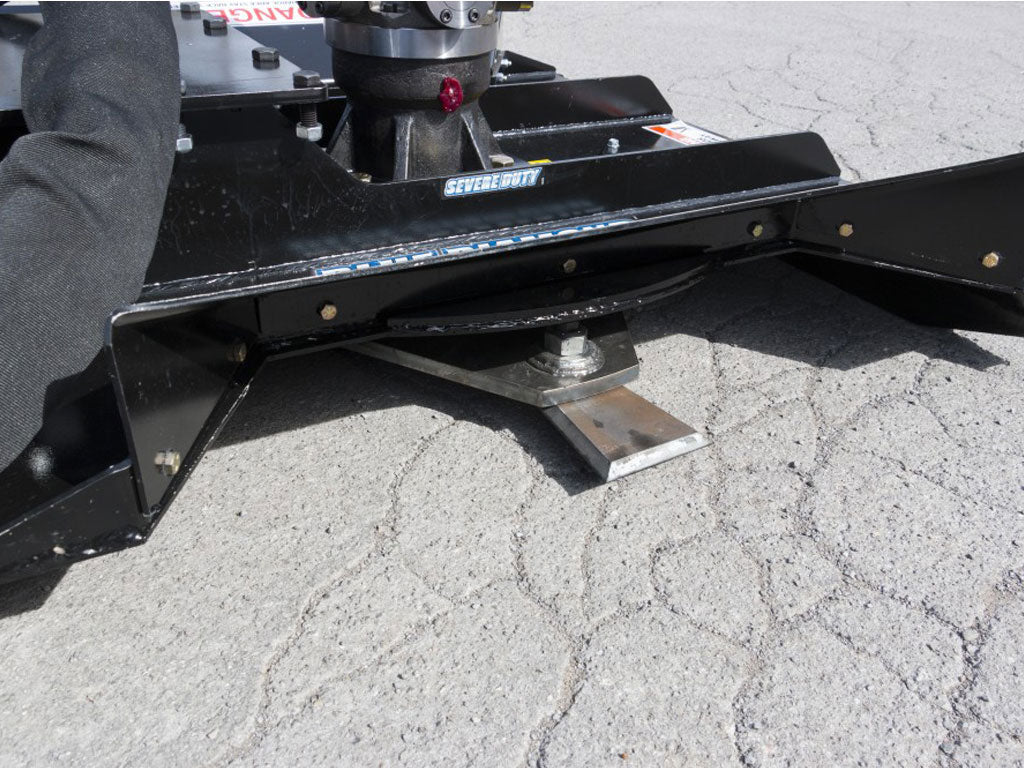

  • Bidirectional cutting; control discharge angle and double blade life
  • Bearing seal protection kit under deck
  • Grease filled drive dramatically improves bearing life and prevents downtime from seal damage
Cut Width Weight Blades Req. GPM
42″ 729 lbs. 3 16 – 26

WARNING:  A Forestry package must be installed on the host machine before removing side guards.  Only remove one guard at a time, and rotate the cutter so the debris is directed away from the host machine, to avoid machine damage.  Operate with care!

  • MOUNTING INCLUDED IN OUR PRICE, WE WILL NEED TO KNOW WHAT YOU NEED.

Cut Width Weight Blades Req. GPM
42″ 729 lbs. 3 16 – 26



Applications:

  • Mowing steep banks
  • Mowing around ponds
  • Cutting back brush on roadways and trails
  • Reaching over fences and guardrails

NOTE: HOSES PROVIDED MAY NOT BE CORRECT LENGTH FOR EVERY MACHINE. IT IS THE RESPONSIBILITY OF THE CUSTOMER TO MODIFY HOSES OR COUPLERS IF NEEDED

800008 JOHN DEERE 50/60 ZTS MOUNT ON FLAT PLATE FOR QUICK COUPLER MODEL
800023 BOBCAT E-26 through E-63 and 325 through 435 QUICK X-CHANGE MOUNT(E55 REQUIRES HOSE EXTENSIONS FOR BRUSH CUTTERSPN 203038) ON FLAT PLATE
800032 CAT 307D-CR 307E2 307.5 308CR 308D-CR (SB) 308E 308E2-CR (SB) 309CR PIN ON/PIN GRABBER MOUNT ON FLAT PLATE
800032-1 CAT 307D-CR 307.5 308CR 308D-CR (SB) 308E 308E2-CR (SB) 309CR PIN KIT
800050 CAT 304/305C-CR MOUNT ON FLAT PLATE (fits 304C, 304C-CR, 305C-CR, 305D-CR, 305E, 305E-CR, 305E2CR, 305.5D-CR, 305.5E-CR, 306CR)
800050-1 CAT 304/305C-CR DEAD PINS (fits 304C, 304C-CR, 305C-CR, 305D-CR, 305E, 305E-CR, 305E2CR, 305.5D-CR, 305.5E-CR, 306CR)
800035 KUBOTA KX057 (U.S. MODEL), U55 QUICK COUPLER MOUNT ON FLAT PLATE
TAG / CP / GANNON QC29
TAG / CP / GANNON QC30
WAIN ROY XLS 1/8 YD
WAIN ROY XLS 1/4 YD

Please call if you have questions about sizing (513)276-5500

We will need to know the following:

  • Make and model of your excavator
  • If your machine uses "pin on" or has a quick-coupler
  • Type of coupler you have? Deere wedge, Bobcat exchange, Woods / Wain Roy, Tag....or what ever you have.

USUALLY SHIPS IN (2) TO (4) WEEKS

When looking to purchase a mini excavator brush cutter, there are a number of things to consider:

  1. Is your machine heavy enough to carry the brush cutter at full reach?
    1. 36” minimum operating weight recommendation – 6,000lbs.
    2. 42” minimum operating weight recommendation – 7,300lbs.
    3. 50” minimum operating weight recommendation – 12,000lbs.
  2. Is the auxiliary flow of your machine within range for the brush cutter?
    1. Minimum auxiliary flow recommendation – 13gpm. For machines with less flow than this, feel free to ask us about your machine.  In some cases, we have found that smaller machines will still run the head, depending on how the manufacturer arranges the hydraulic pumps.
    2. Maximum auxiliary flow recommendation – 23gpm. For machines with more flow than this, feel free to ask us about your machine.  With most larger machines, it is possible to restrict the flow and pressure to within safe operating range.  In some cases, this can even be done automatically from within the cab.
  3. Is the total flow of all hydraulic pumps close to double the auxiliary pump?
    1. This is important so that the volume of hydraulic oil going to the brush cutter is not drastically reduced when operating another function such as boom or drive.
    2. All brands respond differently when operating attachments, based on how their pumps are set up and whether or not a priority valve is installed.
  4. What are your expectations?
    1. Generally, mini excavators will not produce the hydraulic flow of a skid steer until you get into the 80 class size machines. Therefore, you are not going to get the same cutting torque as you would see with a compact track or skid steer machine.
    2. The attachment and the standard movement of your machine are both powered by the same hydraulic oil, so performance may be restricted. When working with a bucket, the undercarriage and boom have access to all of the hydraulic flow.  However, when the brush cutter is using half of that to turn the blades, you will most likely experience a slower drive speed, and a harder time booming up or down.  Booming down and swinging are usually the least affected functions.
  5. Can I mount this to my machine?
    1. Yes, Blue Diamond offers most mounts for factory pin or quick coupler style mounts on all major brands.
    2. We can also make most aftermarket quick coupler mounts.
    3. Just give us a call and ask! We will do what we can to find the mount you need.
    4. You can also choose to purchase this machine without a mount, and it will be sent with a flat plate to weld on the correct ears for your coupler.
  1. What if one of the three models doesn’t fit my machine?
    1. Give our Customer Service team a call and ask them what experience they may have had with your machine in the past. We may have done or be able to configure an attachment compatible with your machine.

Note: The Blue Diamond mini excavator brush cutter does not require a case drain line be installed on the excavator saving both time and money on set up.
