132125-332520-200011

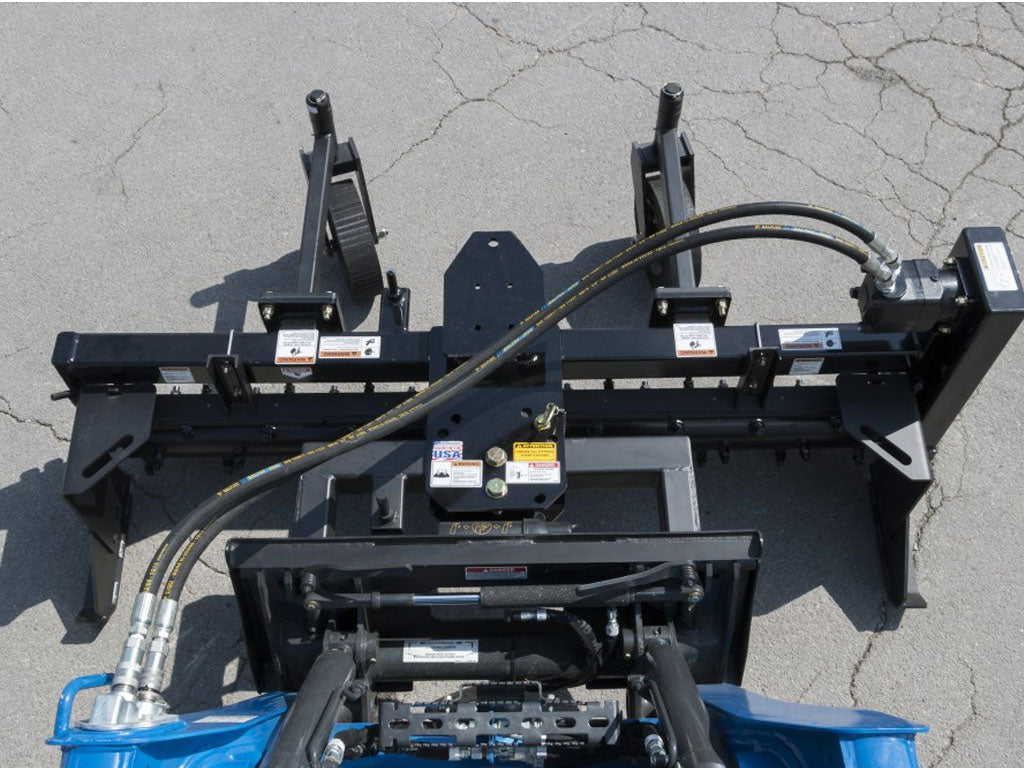

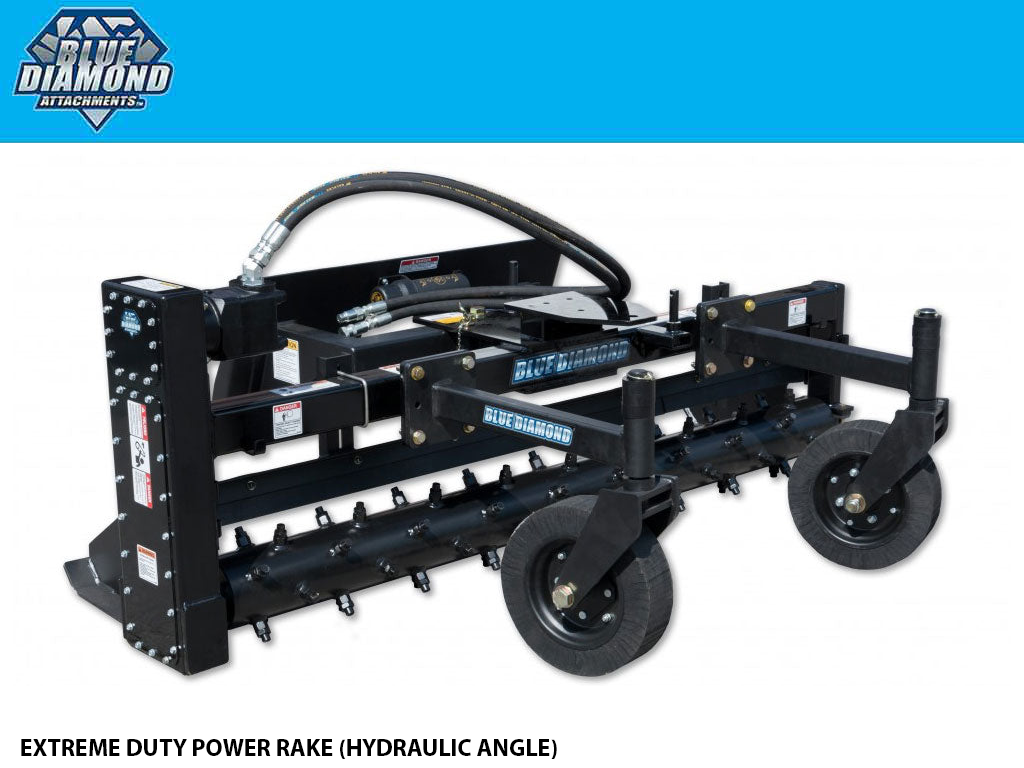

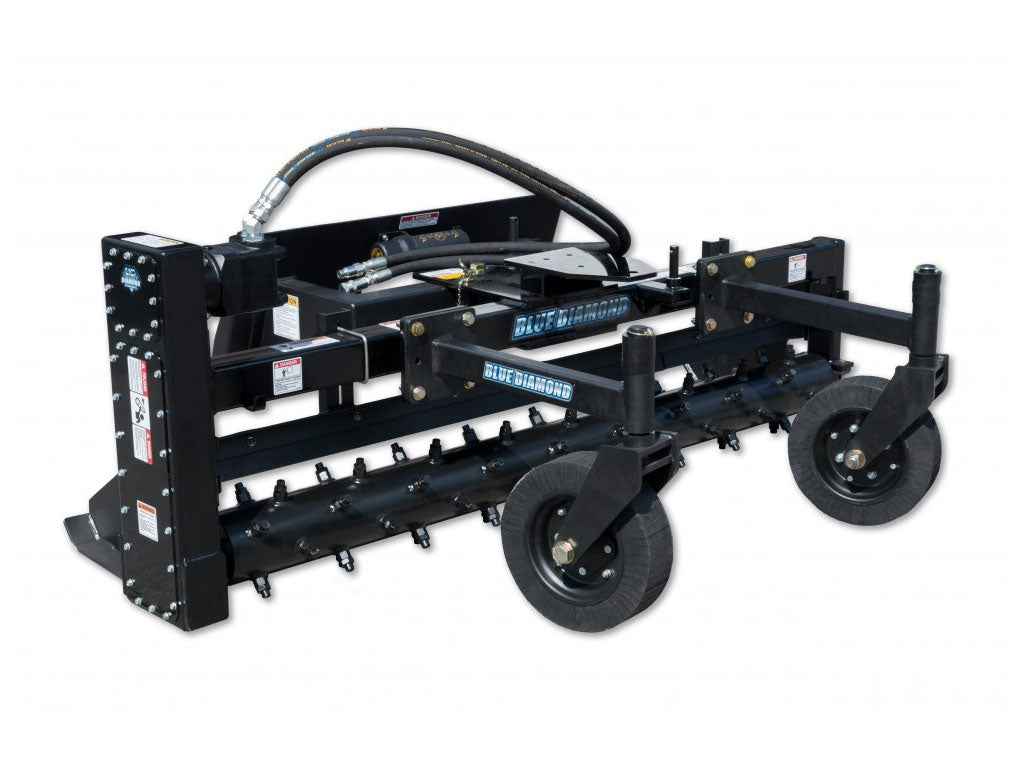

BLUE DIAMOND EXTREME DUTY POWER RAKE, HYDRAULIC ANGLE

Size
TEETH
HARNESS

EXTREME DUTY POWER RAKE, HYDRAULIC ANGLE

With skid steer machine sizes increasing in the industry, there is a need for a more powerful and durable power rake / soil conditioner attachment.  The Blue Diamond Power Rake is designed to power through jobs where others fail, and is set up for simple servicing.  The massive 6000 series motor and optimal drum size produce maximum torque, and the motor is kept out of the way, maximizing usable width in tighter areas.  Aggressive 2″ teeth are ideal for leaving a fresh seed bed with fewer passes. Our rental customers are finding this unit rents more often, is asked for by name and the customers love the increased productivity over all other brands! *Over 3,000 PSI requires a case drain.

NOTE: These are shown with OPTIONAL Skid shoes and replaceable teeth.

*CALL FOR SKID SHOES*

PREMIUM FEATURES:

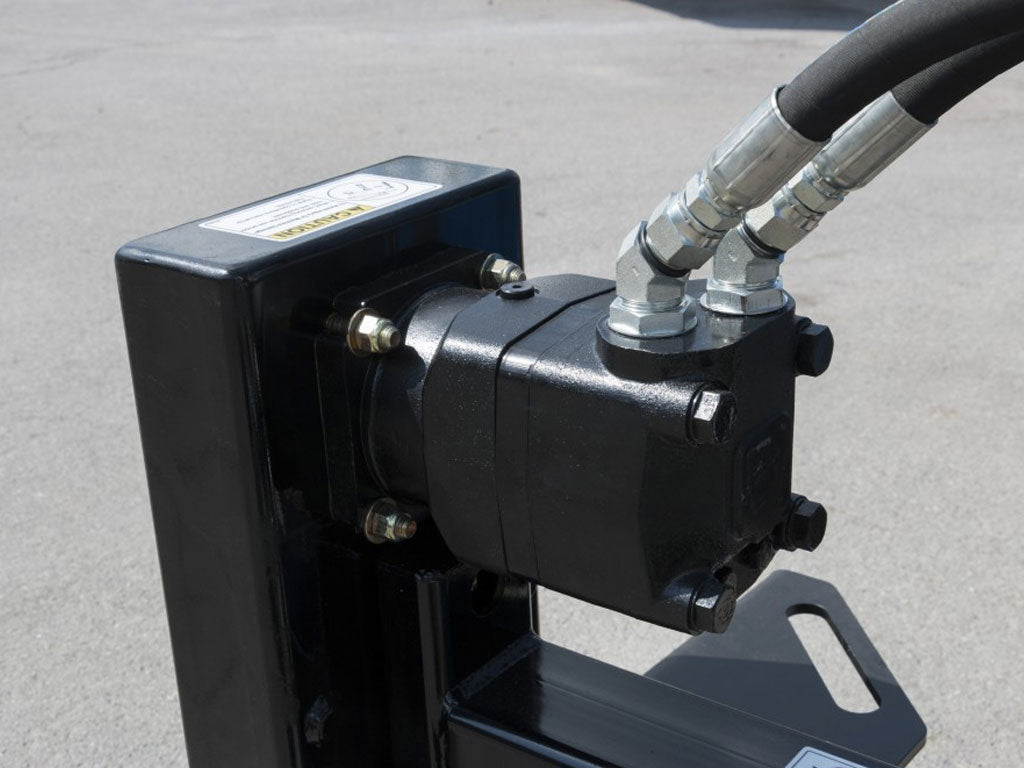

  • 6000 series motor weighs twice what competitive models do, and has around 40% more torque.
  • 4” x 4″ square tube frame.
  • 18 – 26 GPM hydraulic flow, max 4000 PSI

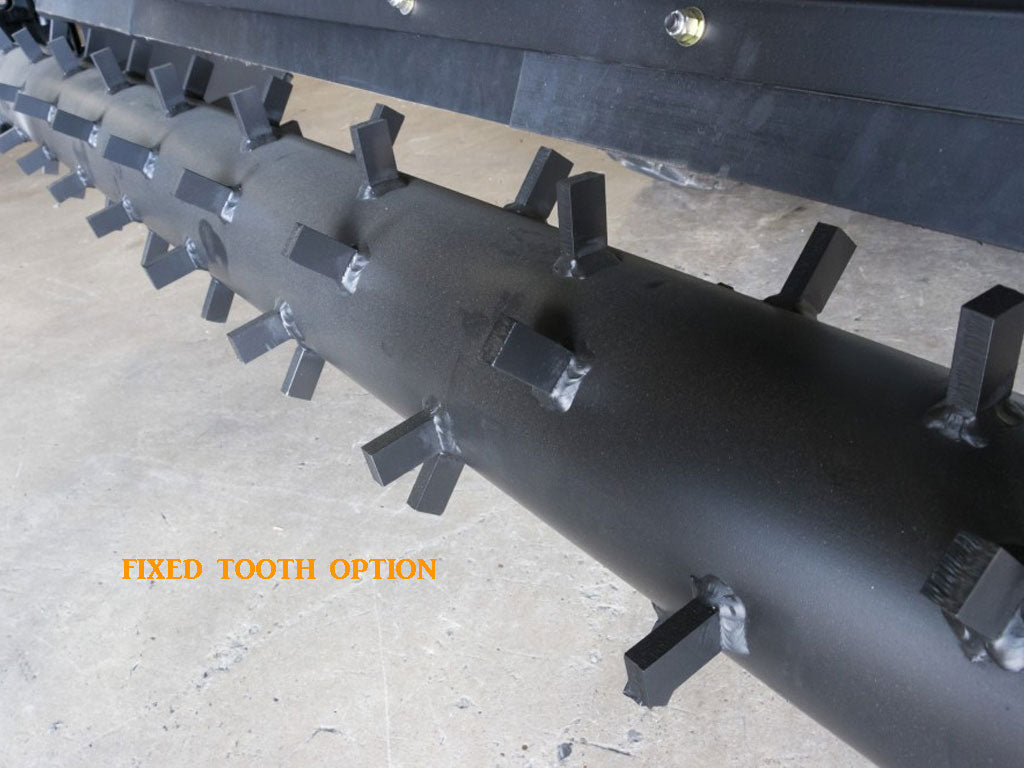

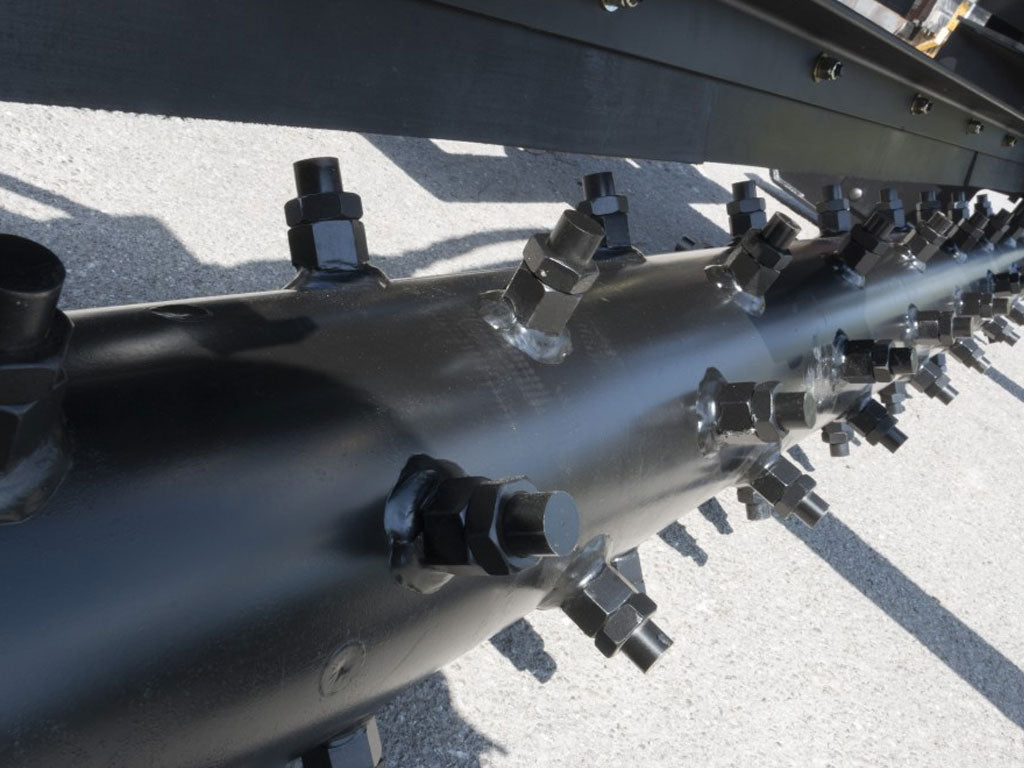

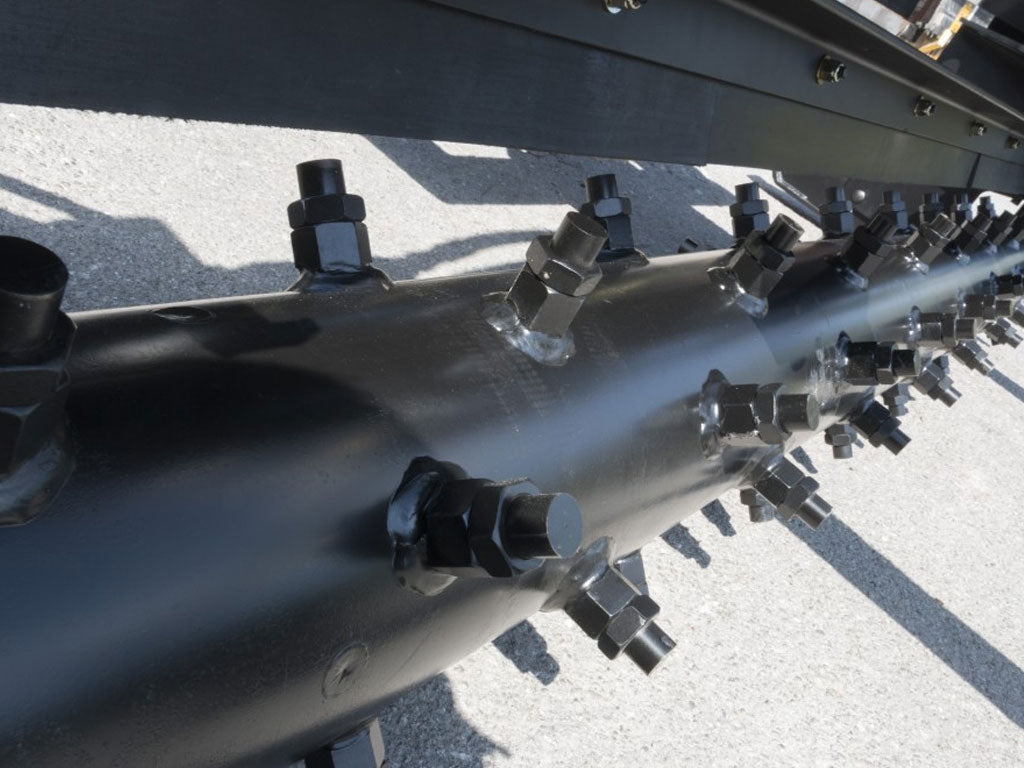

  • Optional replaceable teeth versus fixed teeth that require welding to replace.

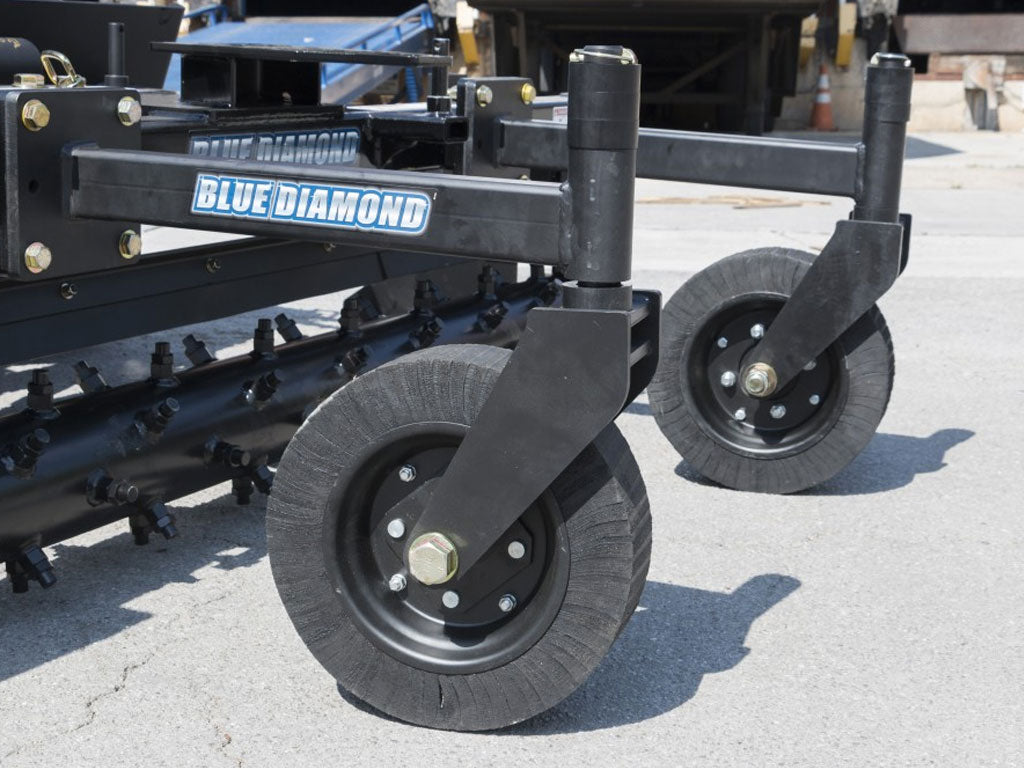

  • 1.5” spindle on castors with spacers versus friction adjusters that work loose.
  • Airless tires – no flats.
  • 1” front wheel axles versus competitive ¾”.
  • 1.5” motor shaft and high pressure seals.
  • 5 position, 20 degree angle, manual or hydraulic.
  • Optional bolt-on skid shoes add 30% load capacity over side plates alone.
  • 6 3/4” drum diameter, 10 3/4” including teeth.
  • Replaceable teeth hardness is HRC 50.
  • Double struts on the castors.

INCLUDES:

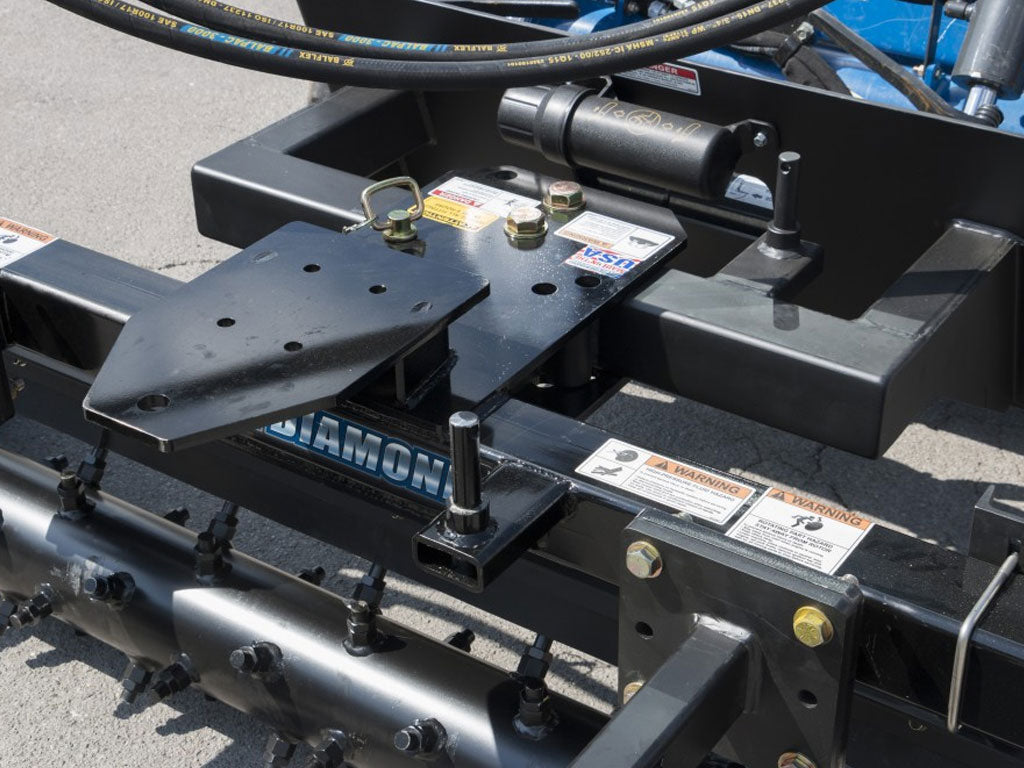

  • UNIVERSAL / BOBCAT MOUNTING
  • HYDRAULIC ANGLE UNITS GET ANGLE KIT AND UNIVERSAL CONTROL HARNESS
  • HOSES AND FITTINGS
  • CASE DRAIN LINE ADDED ON REQUEST, NEEDED FOR MACHINES OVER 25 GPM
PART NUMBER TEETH WORKING WIDTH (STRAIGHT) WORKING WIDTH (ANGLED) OVERALL WORKING WIDTH (STRAIGHT) WEIGHT
132110 Replaceable 72″ 66″ 82″ 1,135 lbs
132112 Fixed 72″ 66″ 82″ 1,085 lbs
132115 Replaceable 84″ 78″ 78″ 1,160 lbs
132117 Fixed 84″ 78″ 94″ 1,110 lbs
132120 Replaceable 96″ 90″ 106″ 1,185 lbs
132122 Fixed 96″ 90″ 106″ 1,135 lbs
