Blue Diamond

114092

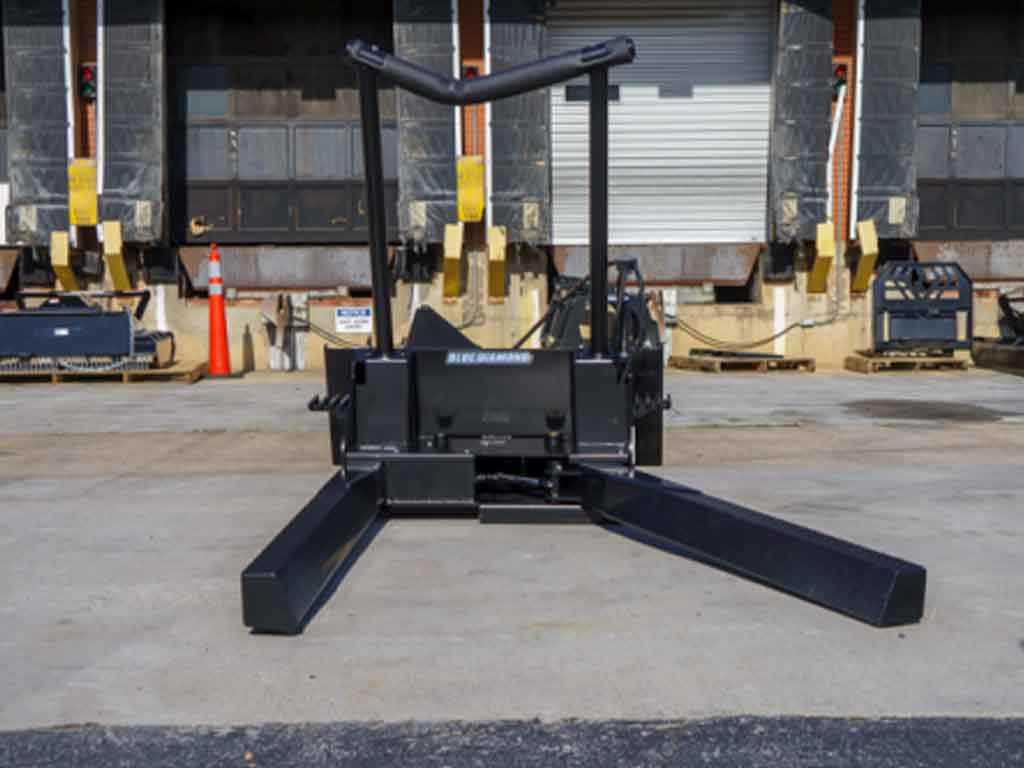

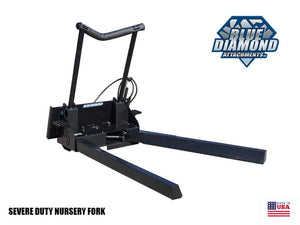

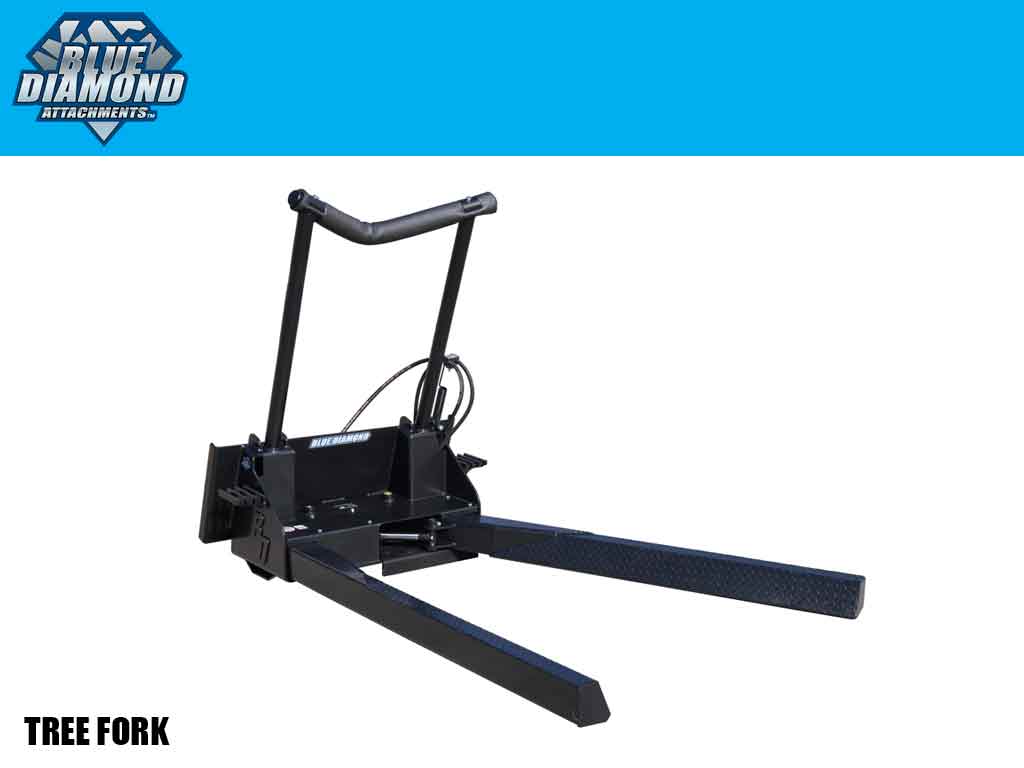

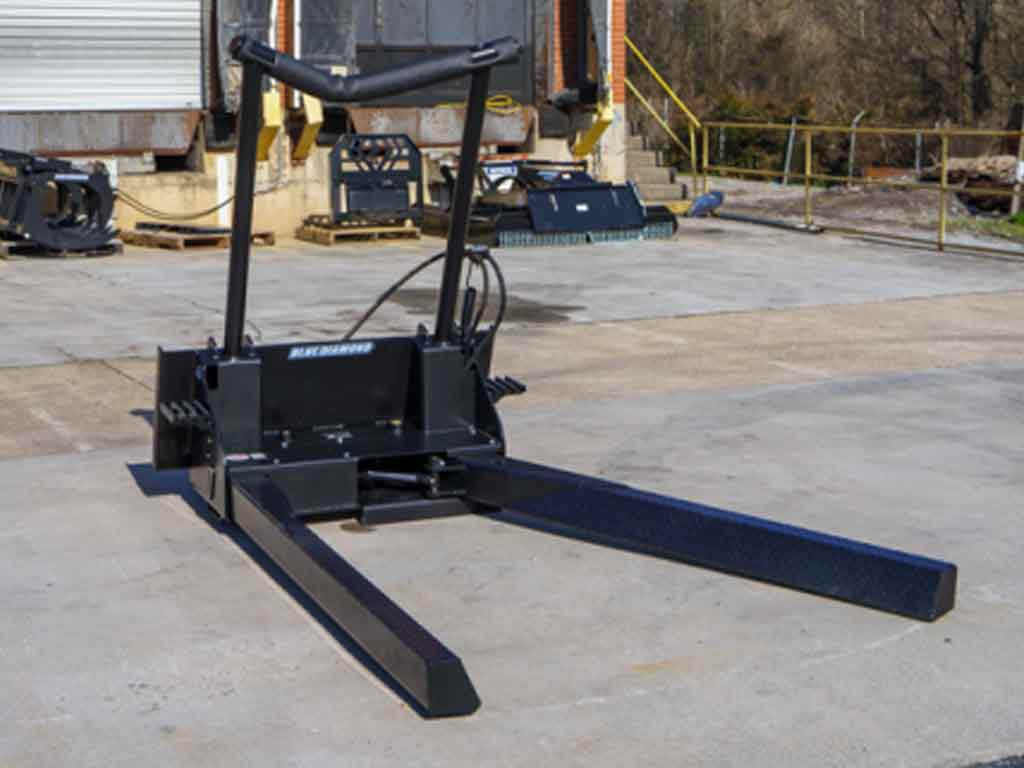

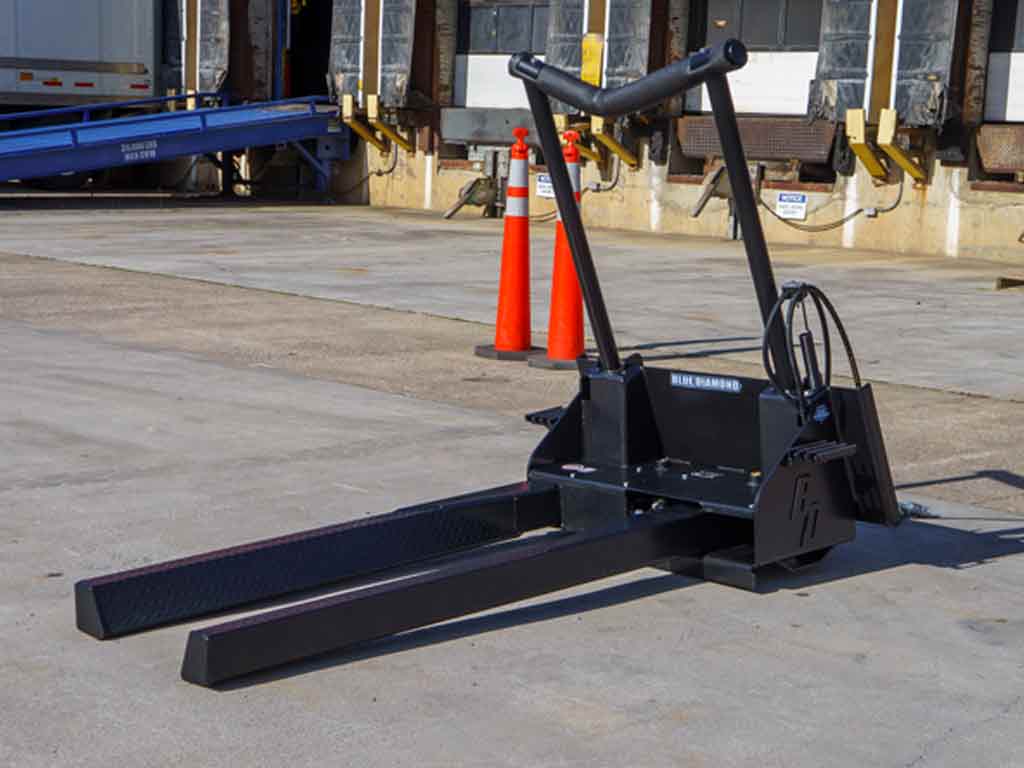

BLUE DIAMOND Nursery Tree Fork

STYLE

NURSERY FORK

The Blue Diamond Duty Nursery Fork was designed for the operator who handles tree bulbs regularly. The attachment comes ready to use and includes hoses, couplers, and a protective foam sleeve to cradle the tree trunk. The hoses can be routed to the left or right side to best fit where your machine couplers are. The hose protector spring prevents the hose from getting pinched in between the mount and machine. All pivots have grease fittings and can be accessed without removing any panels.

Features Include:

  • Internal Protected Hose
  • Greaseable Pivots
  • Hose Saver Spring
  • Safety Step
  • Foam Tree Trunk Protection on Cradle
  • Left or Right Hose Routing





MODEL 114092 114095
WEIGHT 442 LB 693 LB
LENGTH 86.5" 86.5"
HEIGHT  60.5" 60.5"
ARM LENGTH 65" 65"
OPEN TIP 54" 54"
MAX BALL 44" 44"
MAX LOAD 3000 LB 3000 LB
TYPE STANDARD SEVERE DUTY
