Blue Diamond Skid Steer Screening Bucket

Size

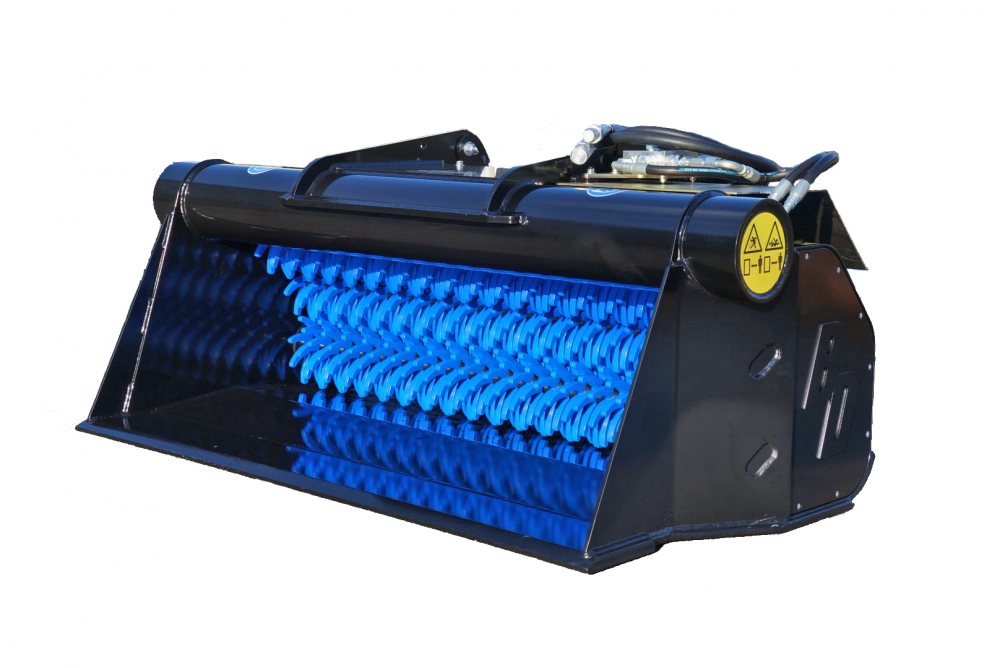

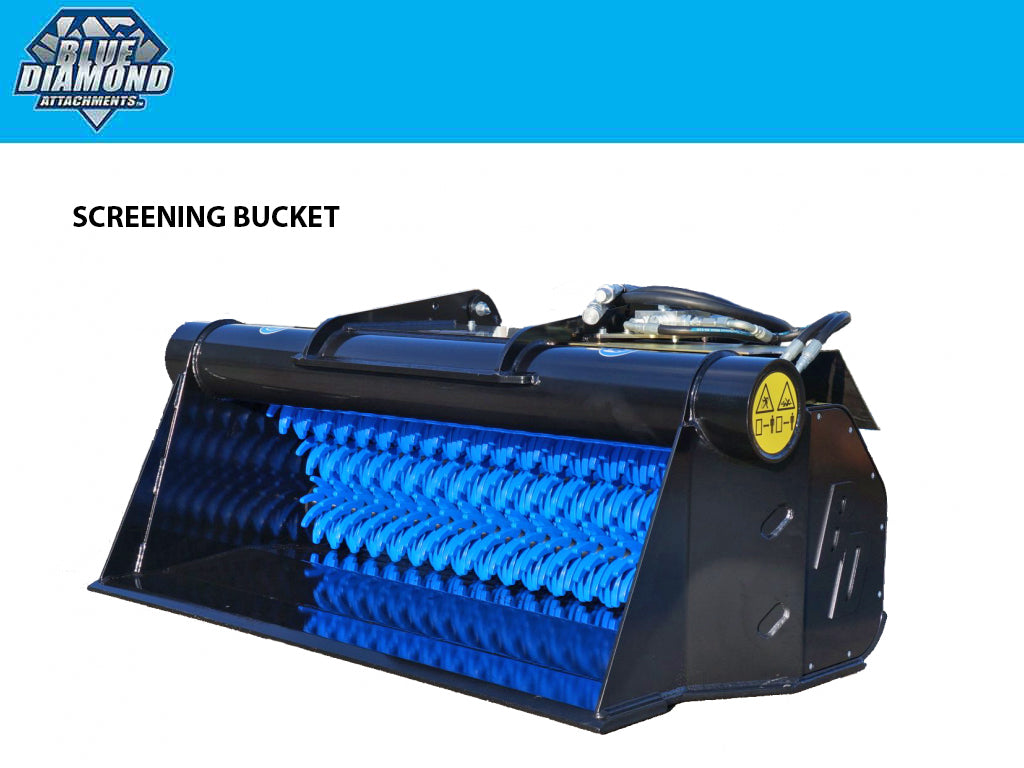

SKID STEER SCREENING BUCKET

The Blue Diamond® Screening Bucket is used for the screening, aerating, separating and mixing of soils, aggregates, woodchip, and compost. The efficient screening process is created by the star rotors agitating the material, causing the fines to flow through the rotating stars leaving the oversized material in the bucket. A hydraulic flow regulator is included to maintain correct RPM for poly stars.

Features include:

  • 1” or smaller material will flow through

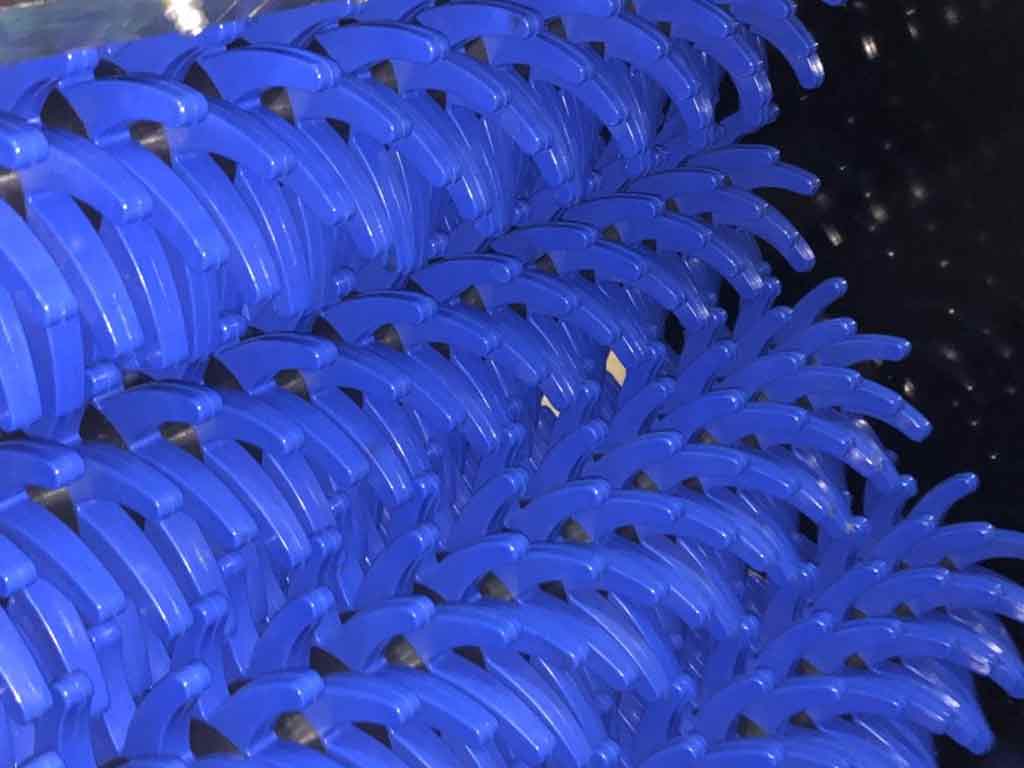

  • Horizontal shafts, fitted with poly stars that rotate in the same upwards direction
  • Hardened steel cutting edge
  • 2-position mount plate
  • Hoses and couplers included
  • Mounts available to fit most machines
  • 1-year warranty
  • Skid Steer Mounting Bracket
MODEL 3-47S 3-60S
HOST MACHINE 2200-6600 LB 4400-11000 LB
MAX FLOW 17 18
MAX PSI 2900 2900
WEIGHT 860 LB 1320 LB
CAPACITY 9.11 CU FT 11.4 CU FT



Availability varies. If in stock item will ship in 3-5 days.
