Blue Diamond

119098

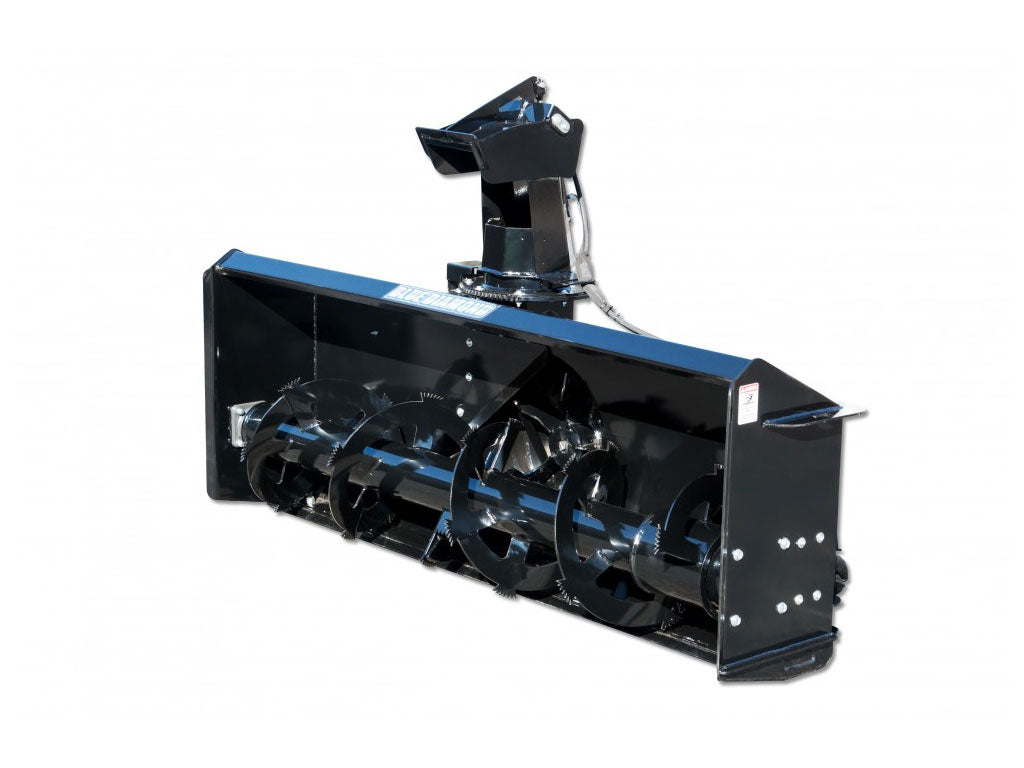

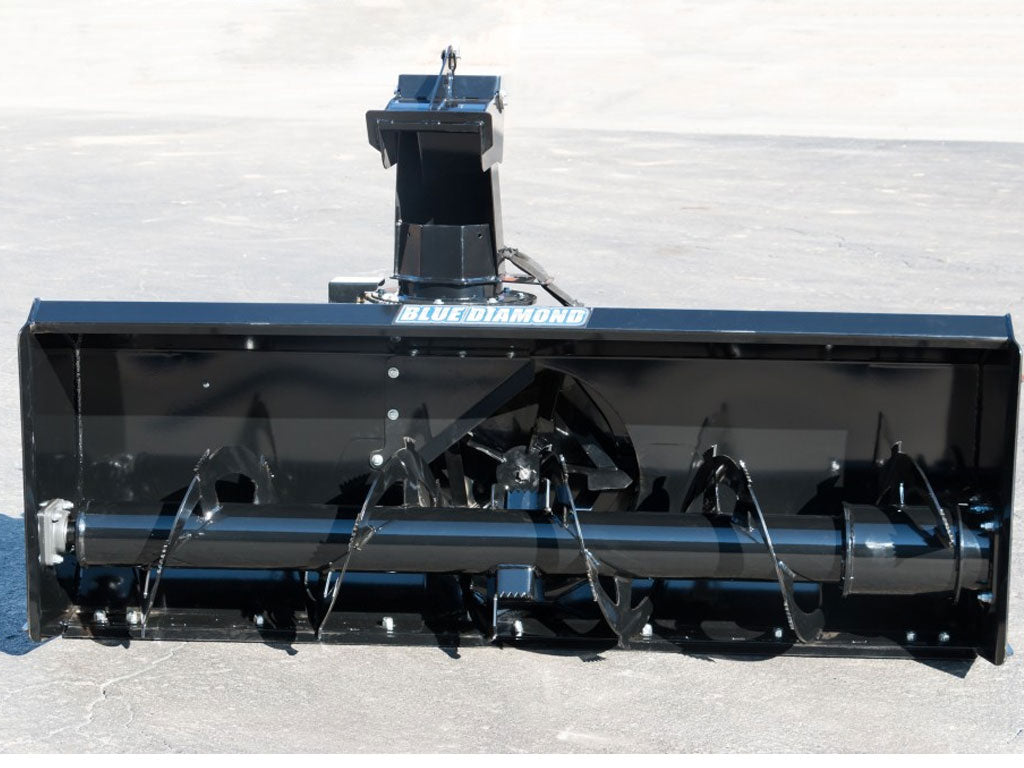

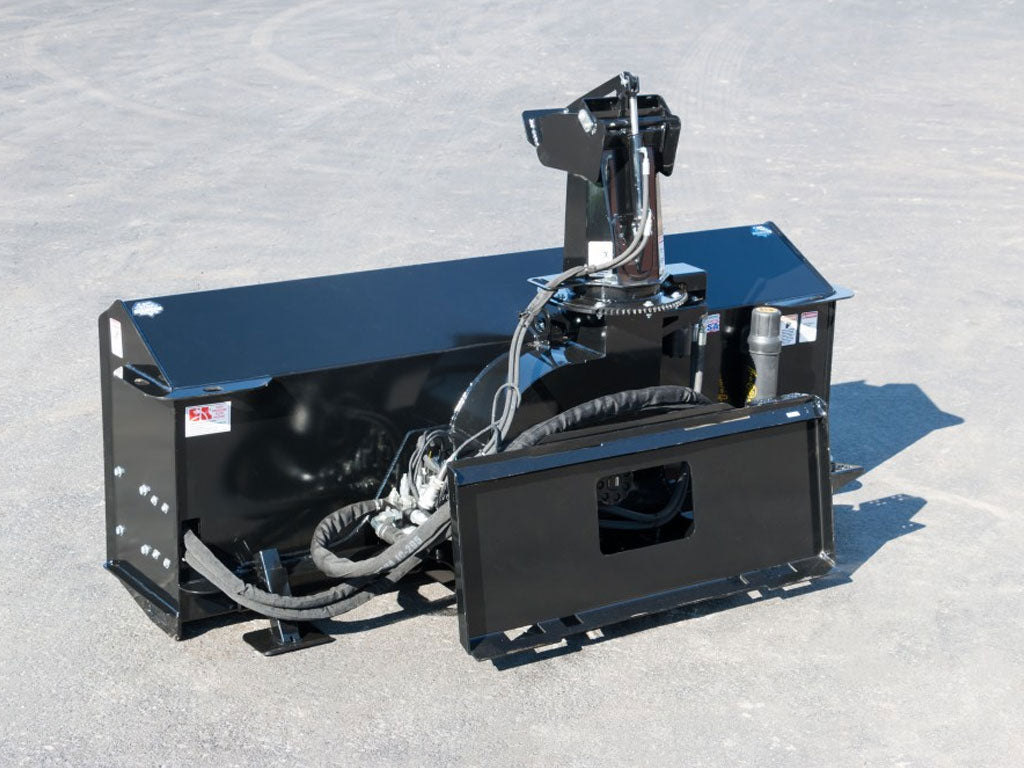

BLUE DIAMOND EXTREME DUTY SNOW BLOWER, (SSL)(CTL)

Size

SNOW BLOWER – EXTREME DUTY

The Blue Diamond Skid Steer Snow Blower is engineered for years of use.  A high pressure bypass relief system eliminates the need for shear pins during sudden stops.  With a choice of widths and motor packages, you can find the optimal sized snow blower to match your skid steer or compact track loader’s capacity.

FEATURES:

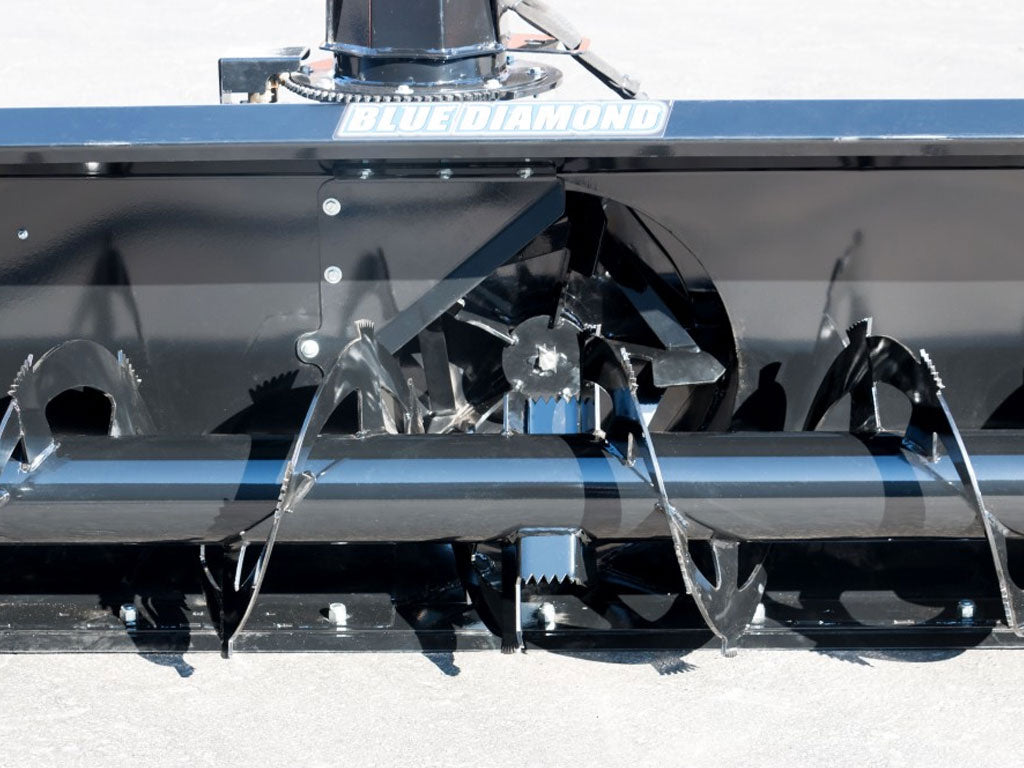

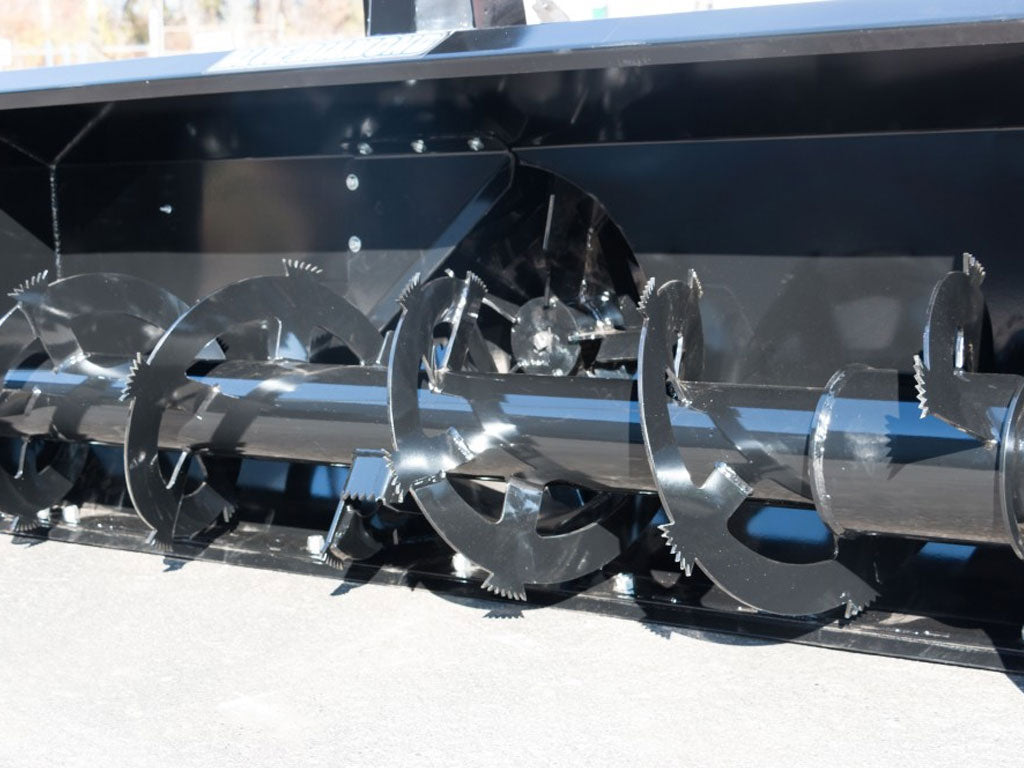

  • Aggressive toothed 16″ auger with 2 ¼ x ¼” ribbon flighting
  • 5 blade fan, 22″ diameter, 6 1/2″ deep

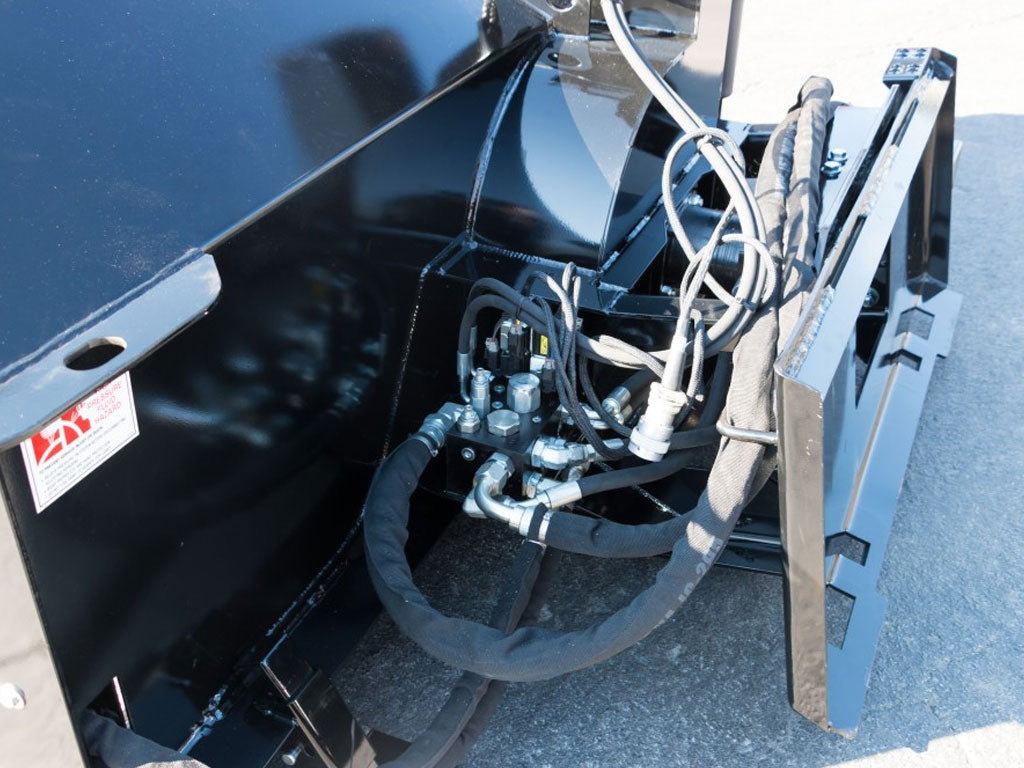

  • No shear pins; high pressure bypass relief system
  • No chains; direct drive auger and fan

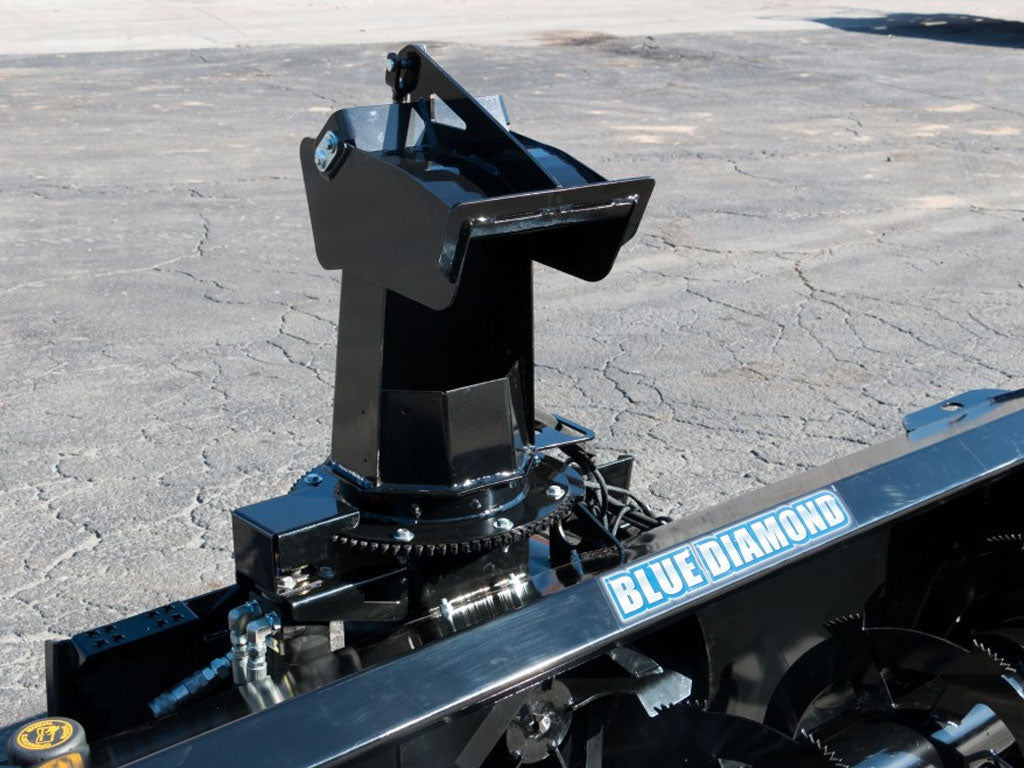

  • 270 hydraulic rotary chute with 7” opening
  • Hydraulic chute deflector
  • Adjustable hardened steel skid shoes
  • 7 gauge steel fan housing
  • 10 gauge steel blower shell
  • 1/4″ end plates
  • High strength corner bracing
  • Heavy-duty polyurethane idler wheels
  • Bolt-on grader cutting edge
Model Flow Range Cut Width Cut Height Overall Width Overall Height Weight
68″ 11-16 GPM 69.7″ 29.5″ 73.5″ 60.5″ 915 lbs.
68″ 17-20 GPM 69.7″ 29.5″ 73.5″ 60.5″ 915 lbs.
68″ 21-23 GPM 69.7″ 29.5″ 73.5″ 60.5″ 915 lbs.
72″ 17-20 GPM 73.7″ 29.5″ 77.5″ 60.5″ 950 lbs.
72″ 21-23 GPM 73.7″ 29.5″ 77.5″ 60.5″ 950 lbs.
72″ 24-25 GPM 73.7″ 29.5″ 77.5″ 60.5″ 950 lbs.
72"  26-29 GPM 73.7" 29.5" 77.5" 60.5" 1046 lbs.
72″ 30-40 GPM 73.7″ 29.5″ 77.5″ 60.5″ 950 lbs.
84" 21-23 GPM 85.7" 29.5" 89.5" 60.5" 1110 lbs.
84″ 24-25 GPM 85.7″ 29.5″ 89.5″ 60.5″ 1050 lbs.
84″ 26-29 GPM 85.7″ 29.5″ 89.5″ 60.5″ 1050 lbs.
84″ 30-40 GPM 85.7″ 29.5″ 89.5″ 60.5″ 1050 lbs.

USUALLY SHIPS IN (3) TO (5) DAYS
