Blue Diamond

102005

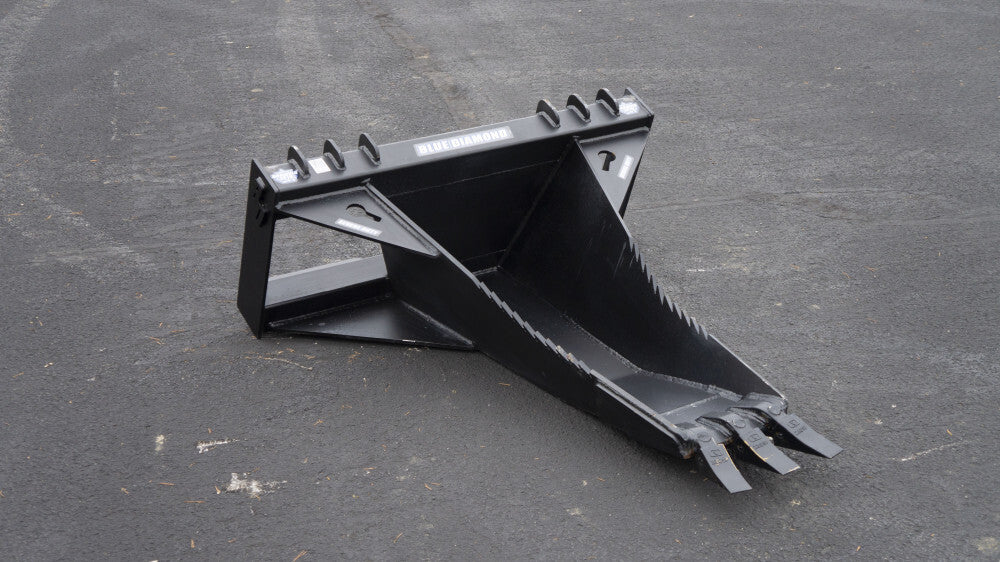

BLUE DIAMOND stump bucket

Style
Type

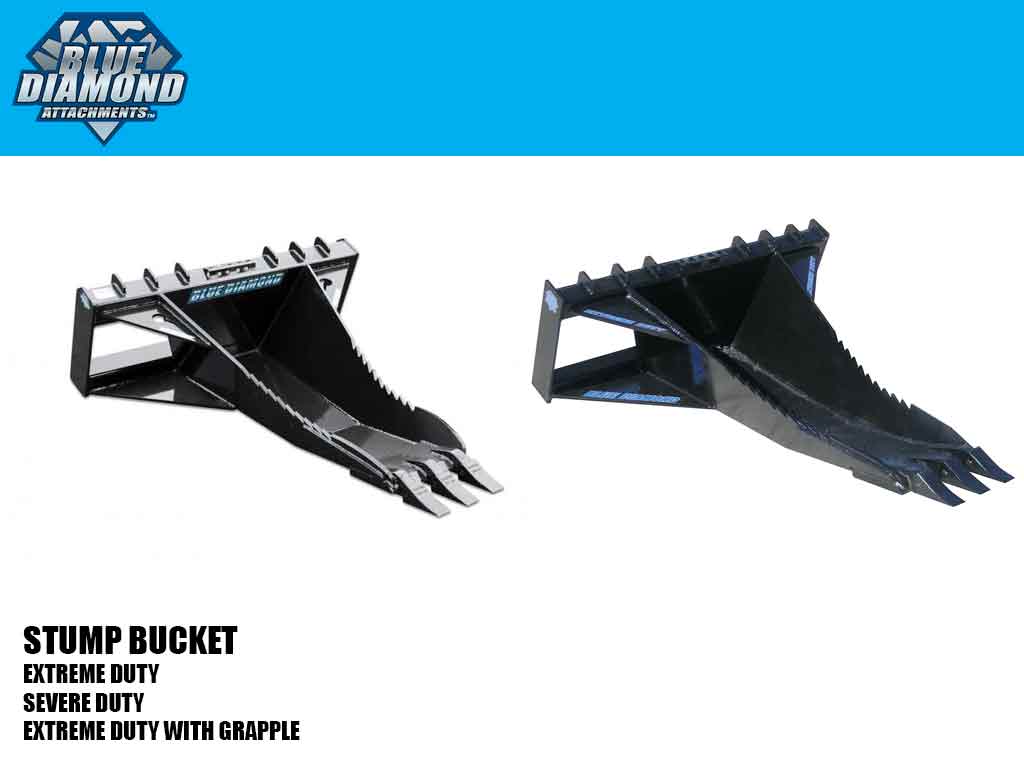

STUMP BUCKETS

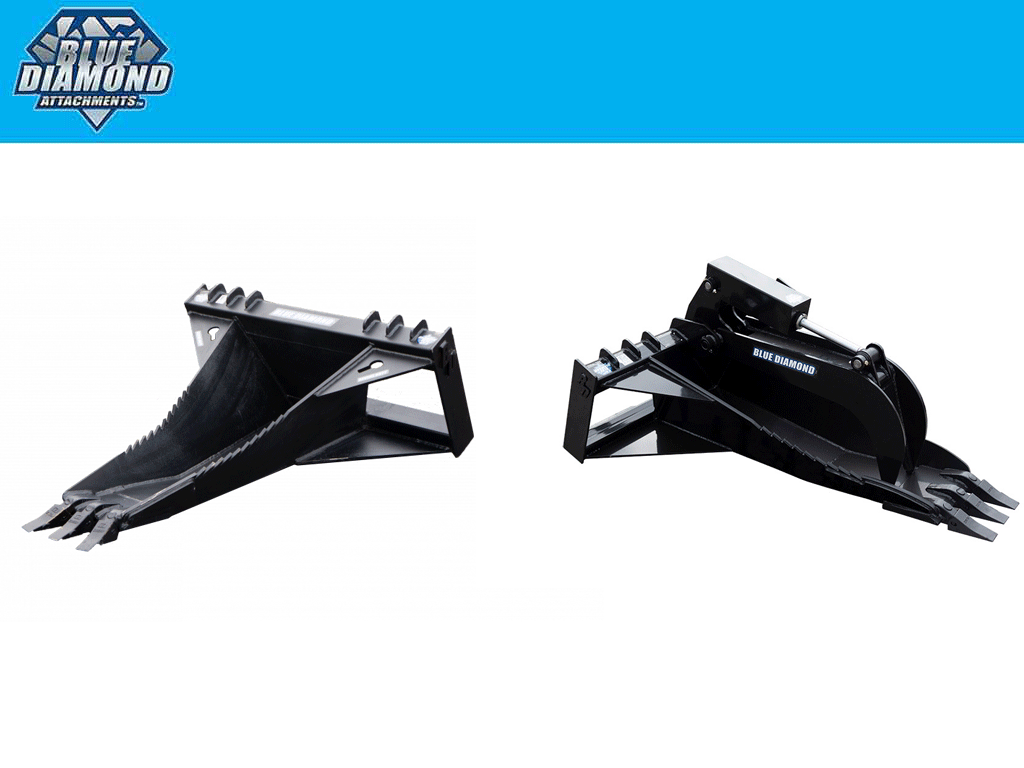

TWO TYPES - EXTREME DUTY AND SEVERE DUTY

TWO SYLES - NO GRAPPLE AND GRAPPLE

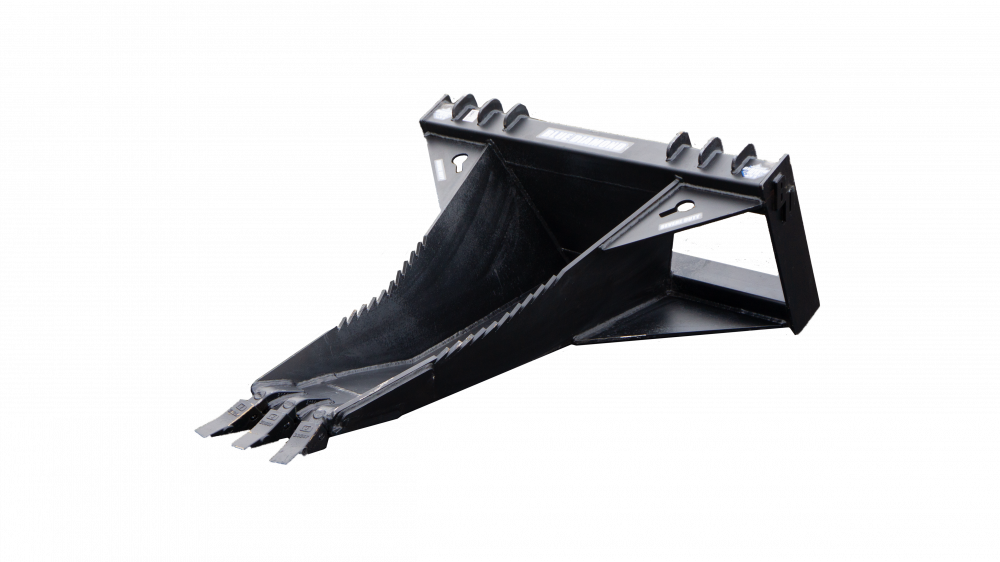

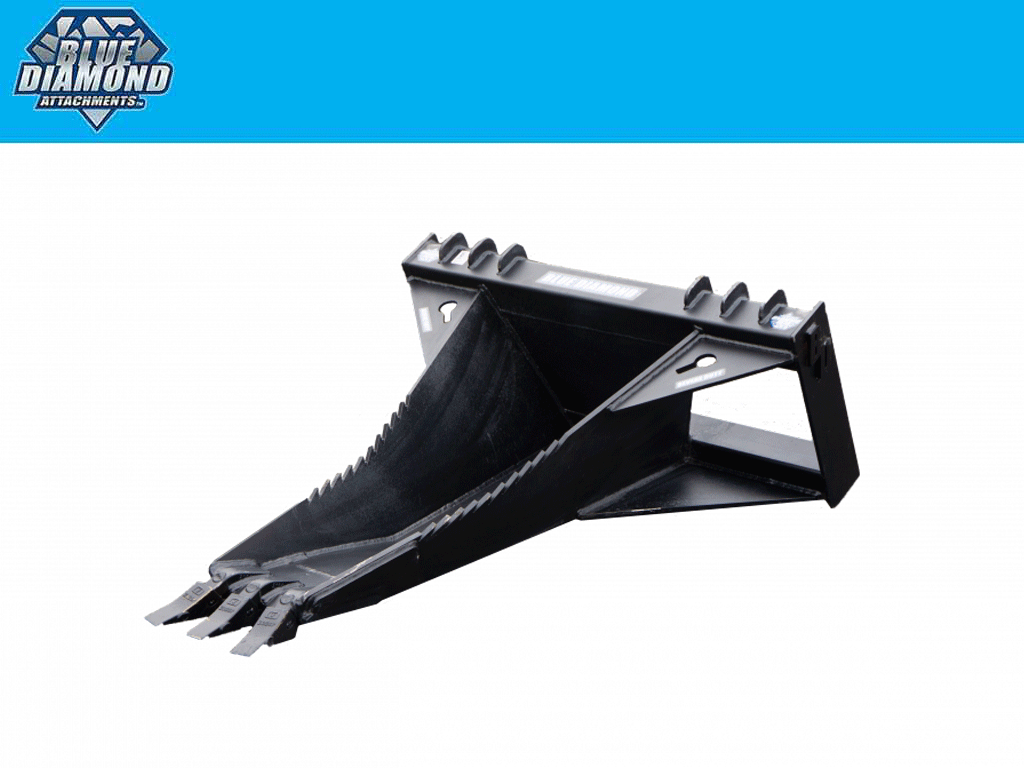

The new Severe Duty stump bucket improves on our original Extreme Duty stump bucket and gives Blue Diamond the absolute heaviest duty stump bucket in the industry! The long profile and curved bottom make quick work of large stumps and can pry up rocks with ease. It reaches far under the stump and tears the roots with the teeth located on the side of the bucket. Other uses for this skid steer stump bucket include prying up old fence posts, removing sidewalks and asphalt, and digging ditches and swales.

This brutal bucket is like having a crowbar on the front of your skid steer!

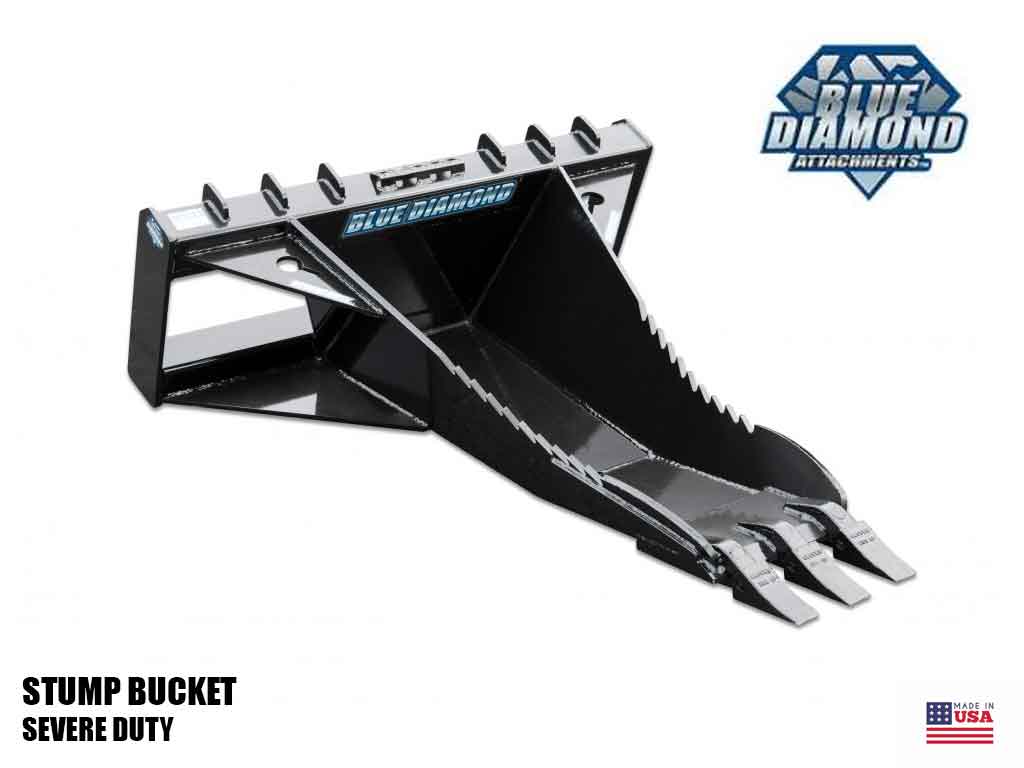

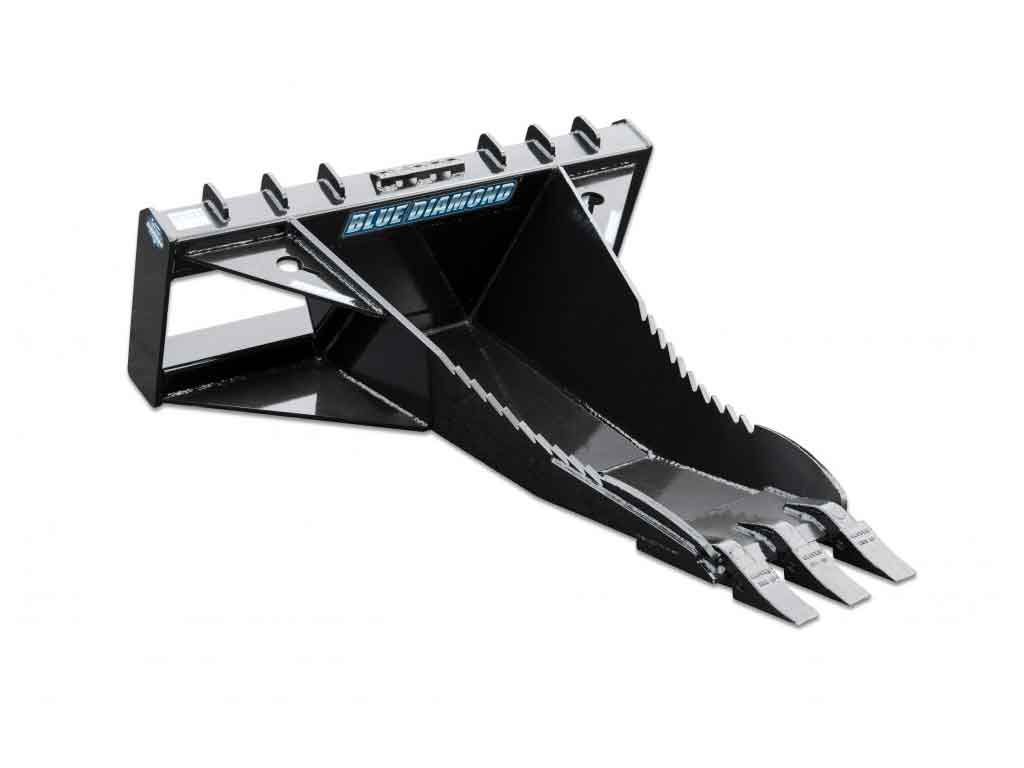

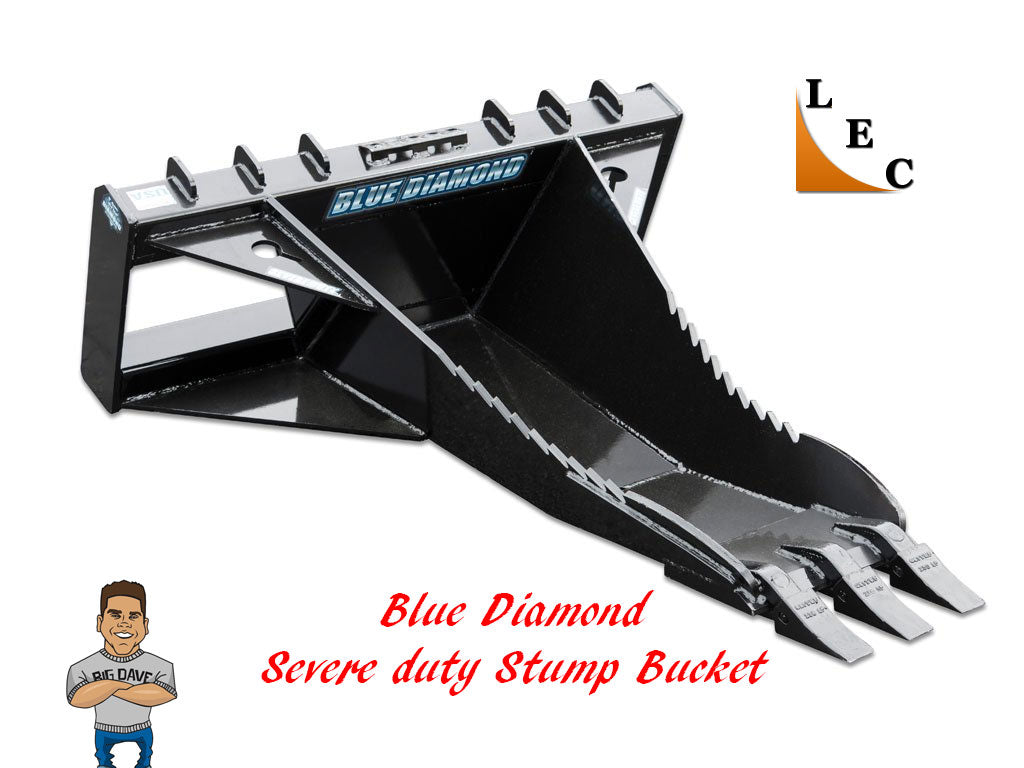

SEVERE DUTY FEATURES INCLUDE:

  • 443 lbs.
  • 3 year warranty!
  • 3 cast # 230 replaceable teeth
  • 4″ square tube
  • 56″ long

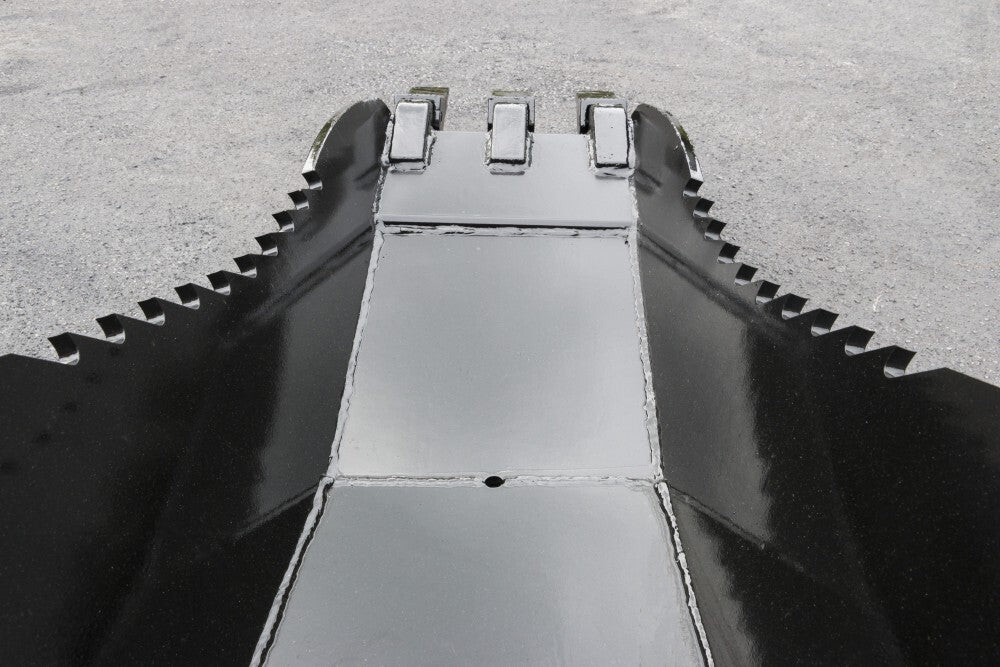

  • Formed bottom with 1″ x 8″ cutting edge
  • Heavily gusseted quick attach

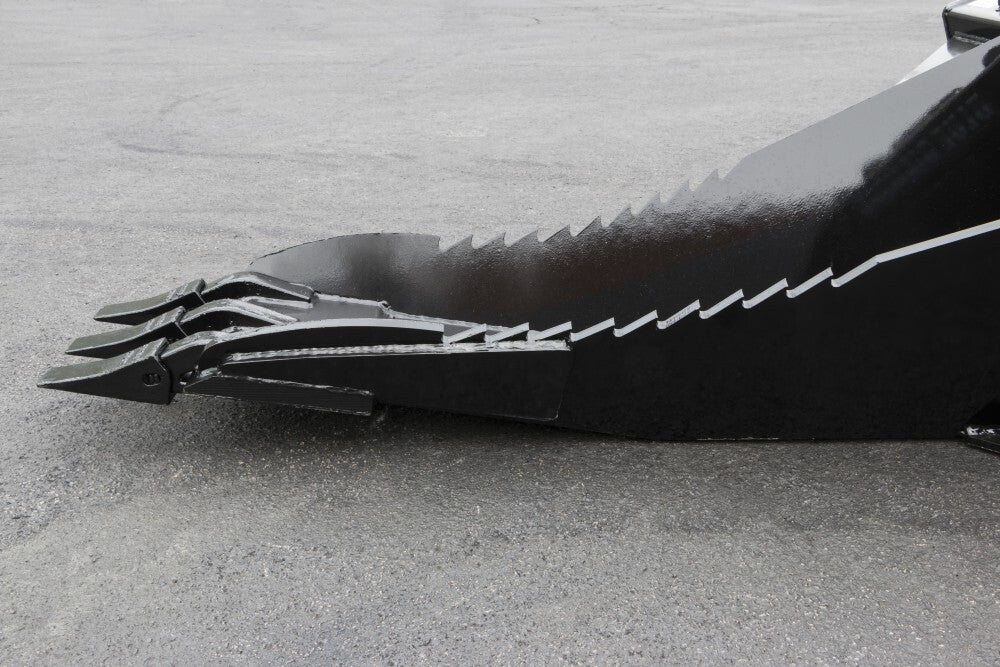

  • Reverse curled teeth up both sides
  • Curved bottom for better leverage
  • Narrow profile digs without wedging into the ground
  • NEW chain slot tie downs for securing stumps for transfer

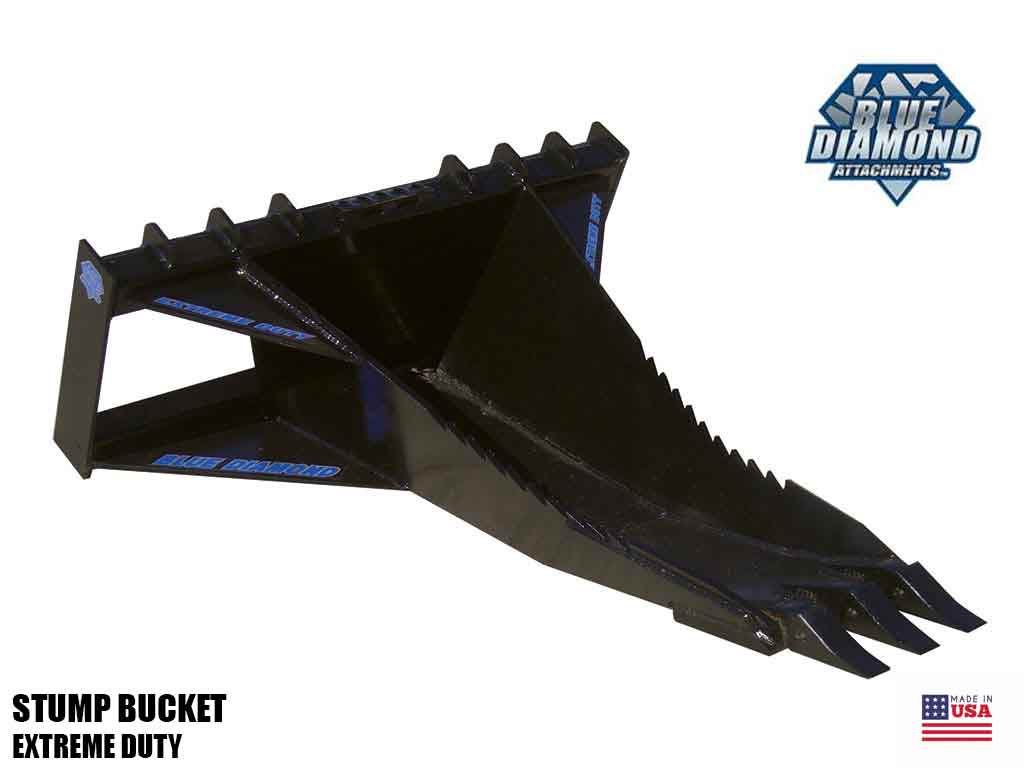

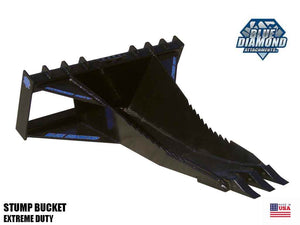

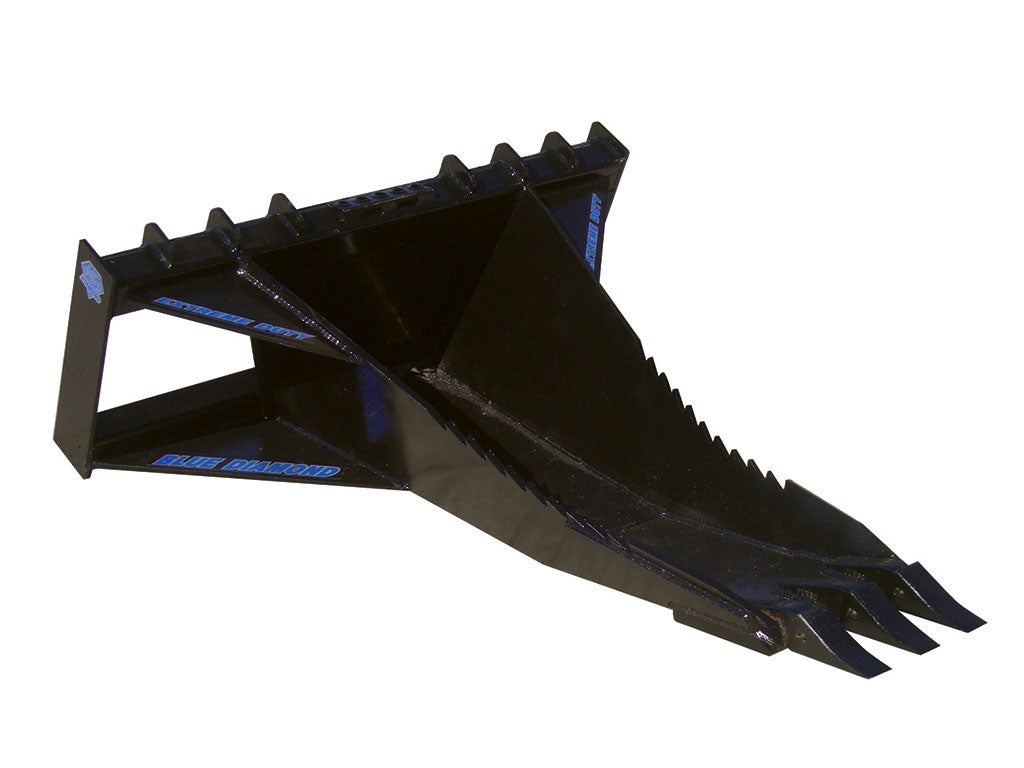

EXTREME DUTY

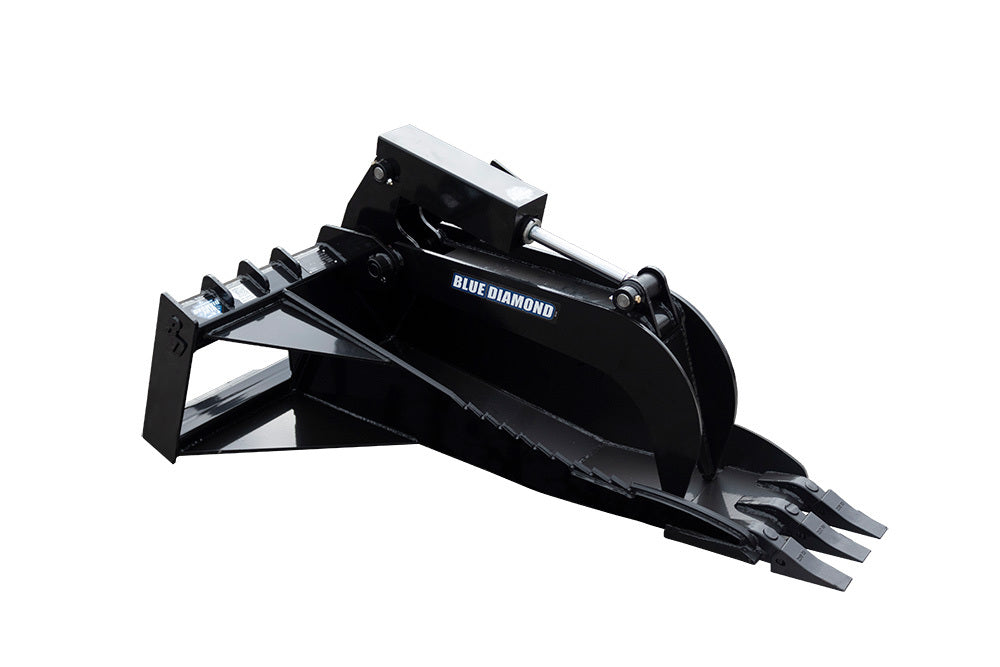

with grapple

SEVERE DUTY

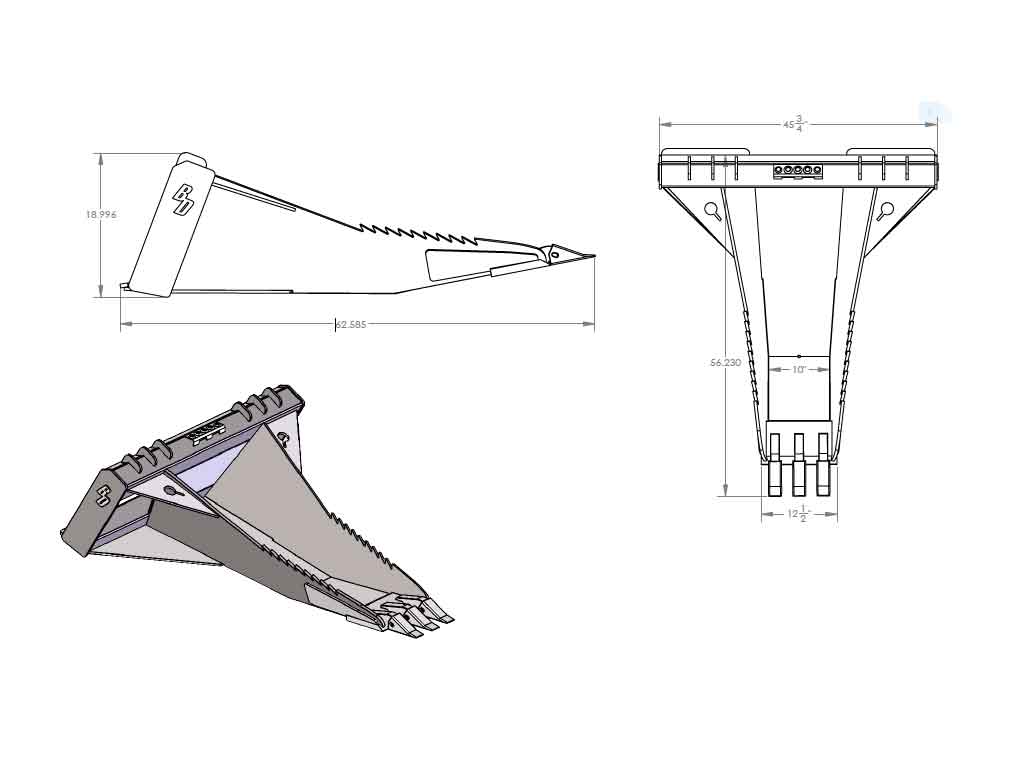

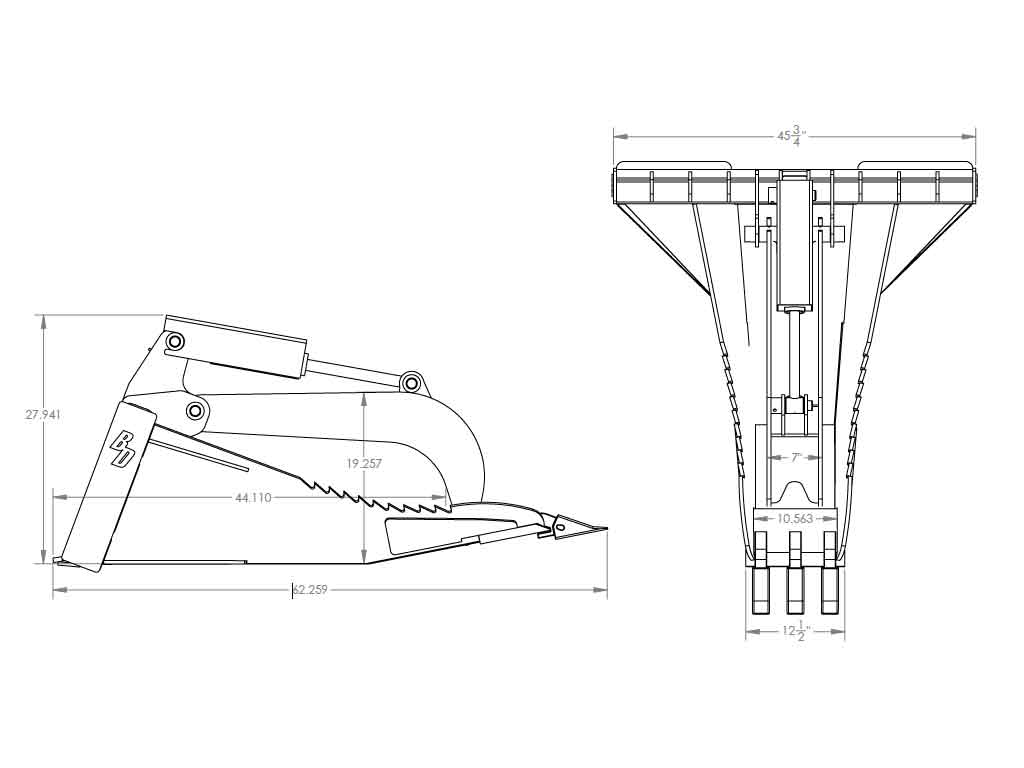

WEIGHT  LB 435 LB
LENGTH 62.259" 62.585"
WIDTH 45.75" 45.75"
HEIGHT 27.941" 18.996"
STEEL THICKNESSES EXTREME DUTY SEVERE DUTY
BOTTOM  .375" .375
GUSSETS .375" .375
CYLINDER TOWER .375" .375
SIDES .500" .500
TOP TINE .500" .500
EDGE 1"X8" 1"X8"
SQUARE TUBE 4" 4"

Typically ships in 3-5 days

WHATS THE MAIN DIFFERENCE BETWEEN SEVERE DUTY AND EXTREME DUTY?

  • EXTREME DUTY WAS THE ORIGINAL DESIGN, SEVERE DUTY IS THE UPGRADE
  • THE SEVERE DUTY HAS A HEAVIER FLOOR
  • SEVERE DUTY HAS CHAIN HOLDS

In general

  • Extreme duty are made out of 3/8" material
  • Severe duty are made out of 1/2" material
