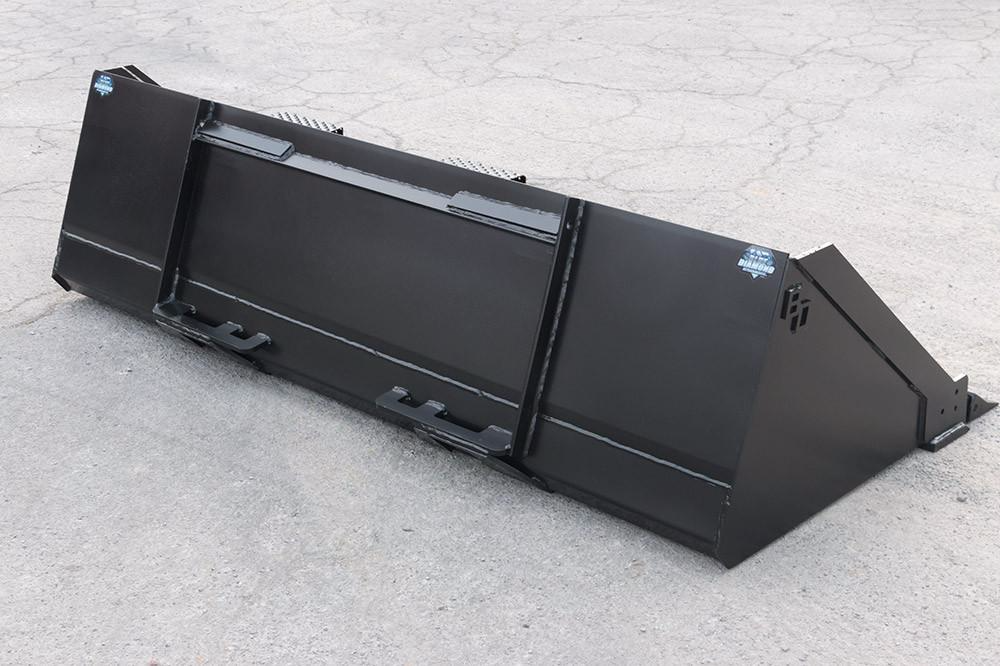

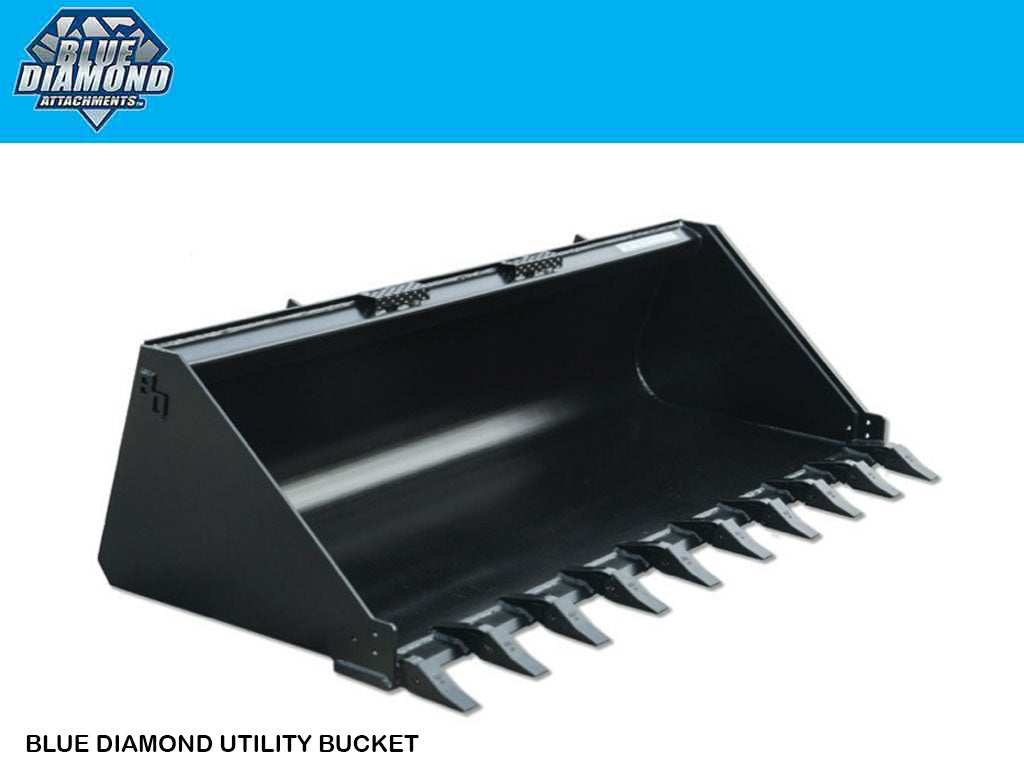

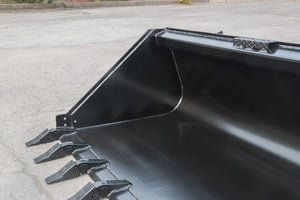

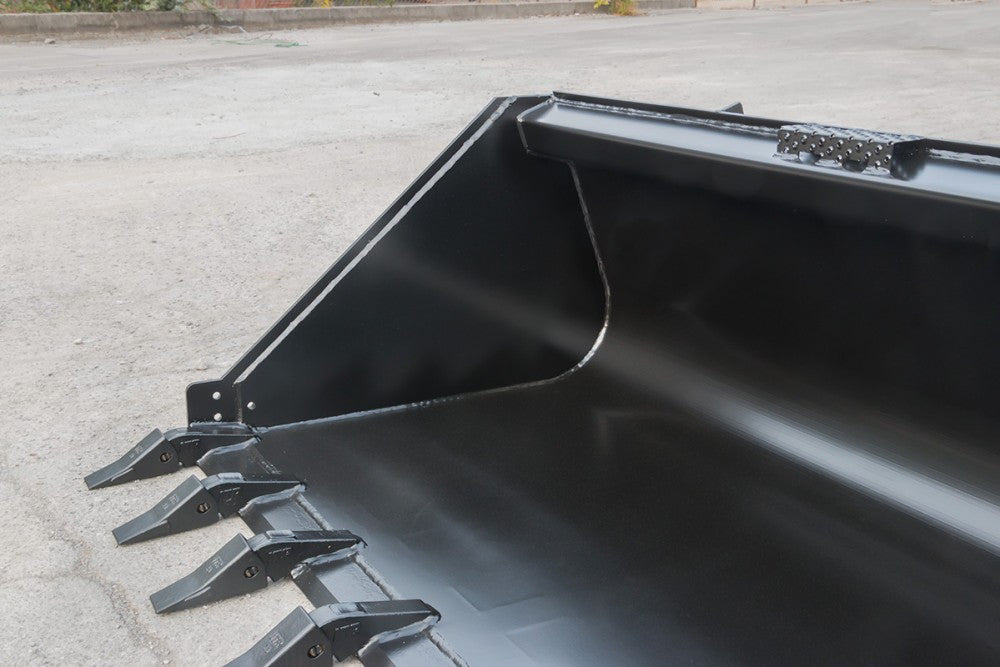

BLUE DIAMOND UTILITY BUCKET

Size
EDGE

BUCKET – UTILITY

This very rugged bucket offers more capacity than a standard low profile bucket yet does not get as cumbersome as a high capacity bucket. Designed for larger machines, it can handle the horsepower and not get overloaded as fast as some OEM buckets. The rolled back on the inside allows the bucket to clean out easier yet the rear heel still offers excellent back dragging and leveling capabilities. Now available in 72″ wide! This is our most popular skid steer bucket!

FEATURES INCLUDE :

  • ¼” material in the back and floor

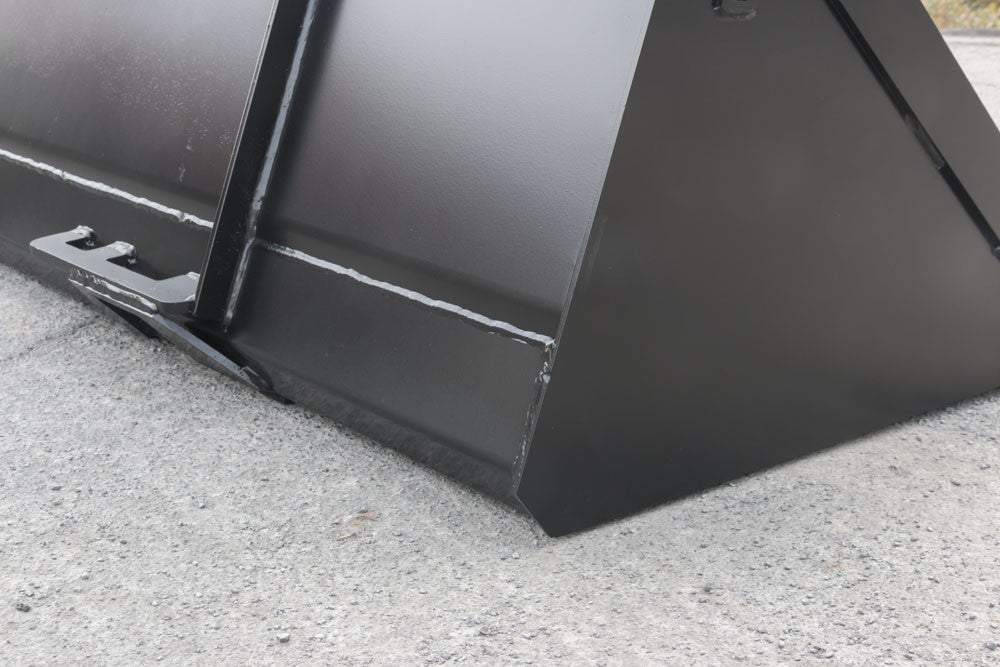

  • Heavy top crossbar and boxed in bottom corner for strength
  • 22” tall and 34” deep

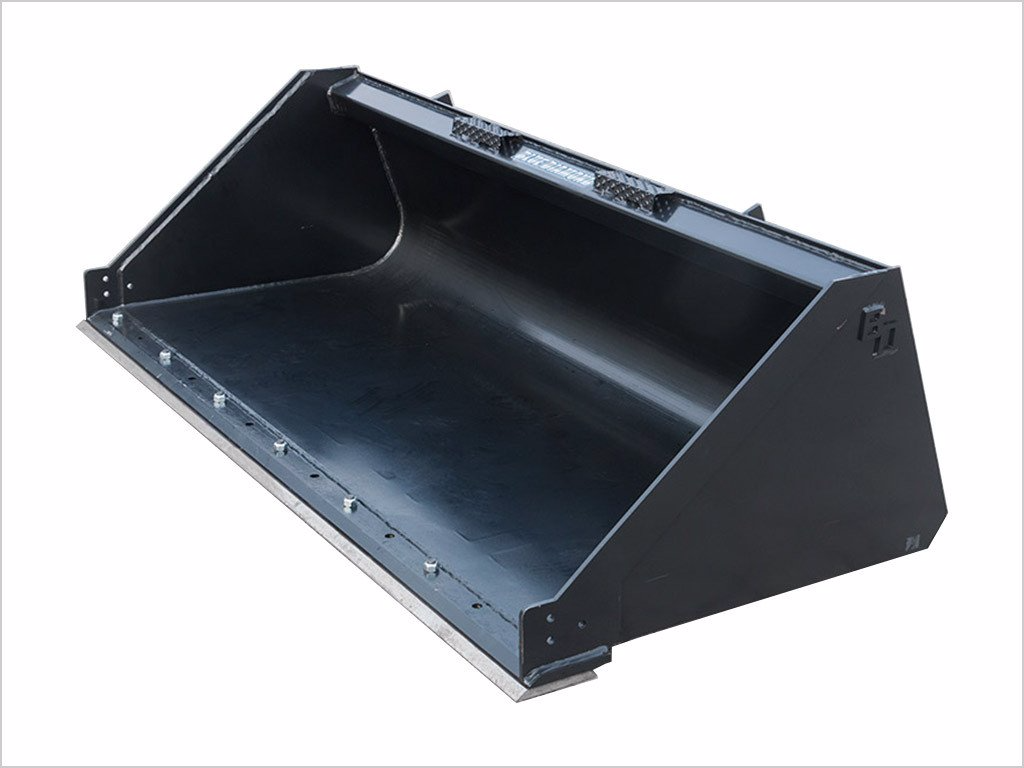

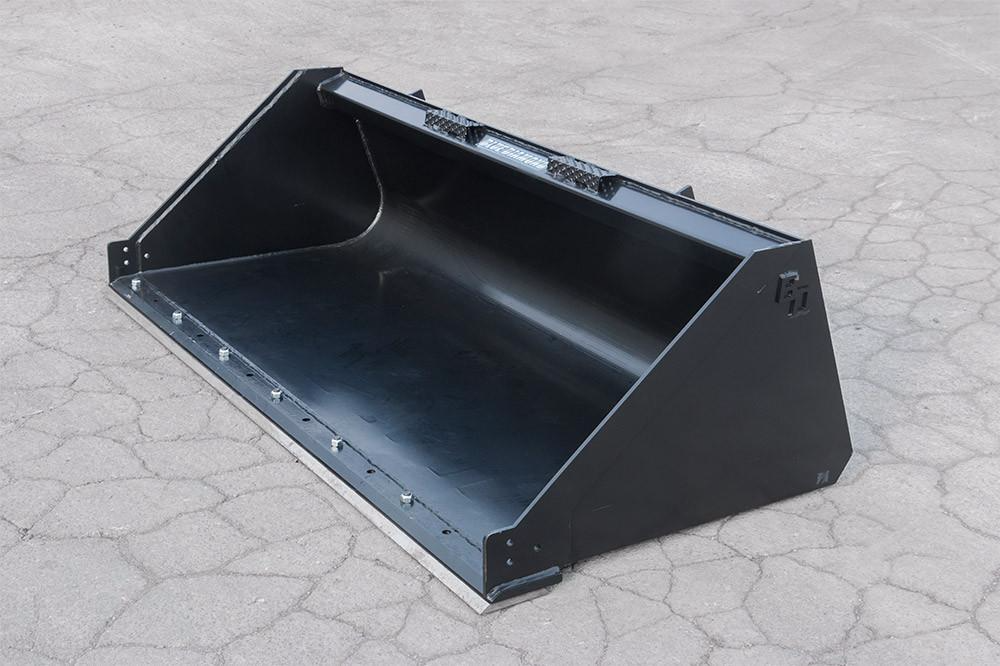

  • Smooth model includes a bolt-on-edge
  • Rolled back for easy clean out
  • Increased capacity over low profile
  • Increased structure in damage prone areas
    MODEL WEIGHT CAPACITY
    72" smooth w/BOE 624 lbs. 17.71 cubic ft.
    72" tooth 610 lbs 17.71 cubic ft.
    78 smooth w/BOE 653 lbs 18.66 cubic ft.
    78" tooth 605 lbs 18.66 cubic ft.
    84" smooth w/BOE 797 lbs 20.09 cubic ft.
    84" tooth 687 lbs 20.09 cubic ft.

    The utility bucket is a very nice product. This bucket seems to be popular with our customers that have bigger skid steers and compact track loaders. My store in West Chester sells a lot of 84" buckets on Bobcat T300, T650, and T750's. This is really just an upgraded bucket of the long bottom and low profile. I don't think it matches the traditional "Utility" bucket in the market place that is a lighter duty bucket.

    Features I like:

    • Rolled back allows dirt to flow in and out of bucket well
    • Larger capacity
    • Longer floor
