314009

BLUE DIAMOND WALK THROUGH pallet forks for skid steer loader

CAPACITY
TINE LENGTH

4/24

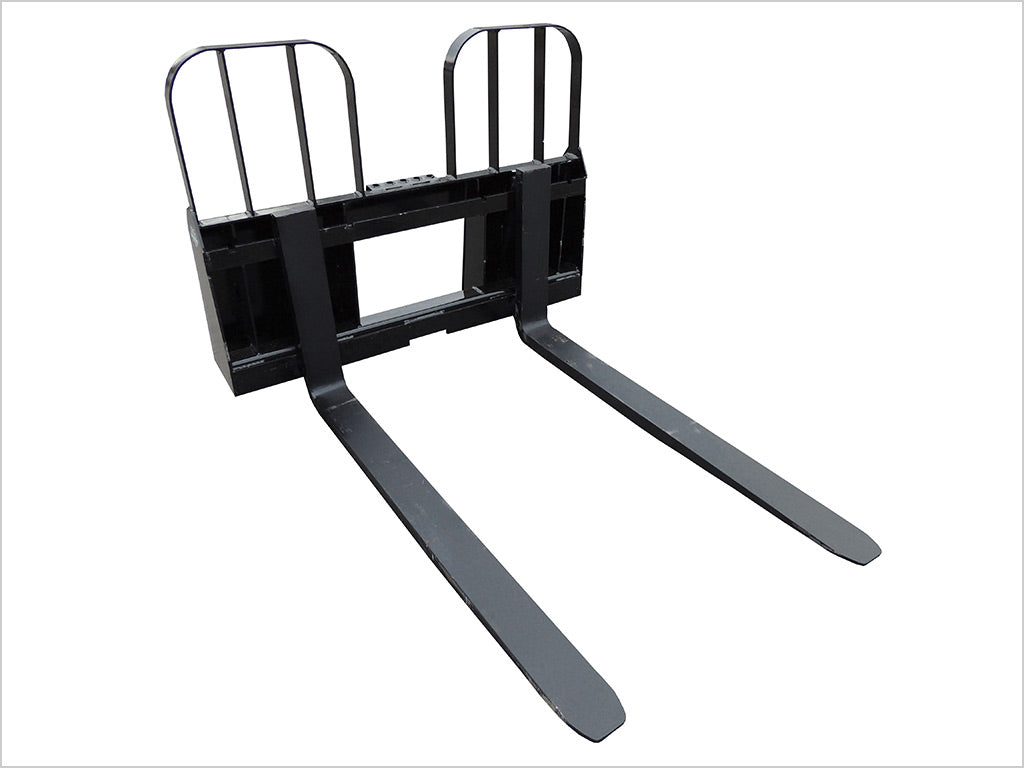

PALLET FORKS – 5,000 LB CAPACITY WALK-THROUGH

Blue Diamond® Heavy Duty Skid Steer Pallet Forks are rated for 5,000 lb. lift. Using an easy-to-see-through frame, the heavy duty pallet forks give added lift capacity for larger skid steers. The reinforced brick guard and quick attach area make it extremely durable for heavy use. 48” tines are standard, and 60” and 72″ are available. The powder-coated frames feature a riveted on serial tag that has the lift capacities in pounds and kilograms to meet job site requirements for lifting attachments. Rental Recommended.

FEATURES INCLUDE:

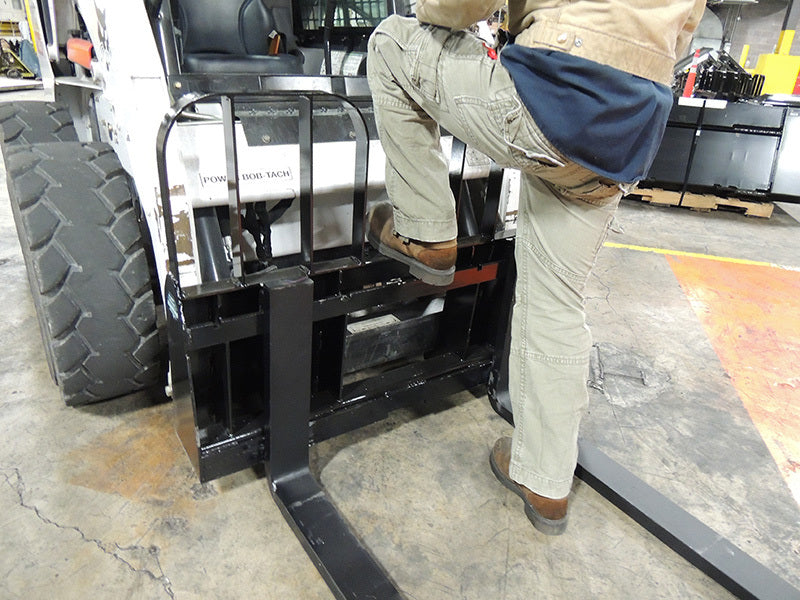

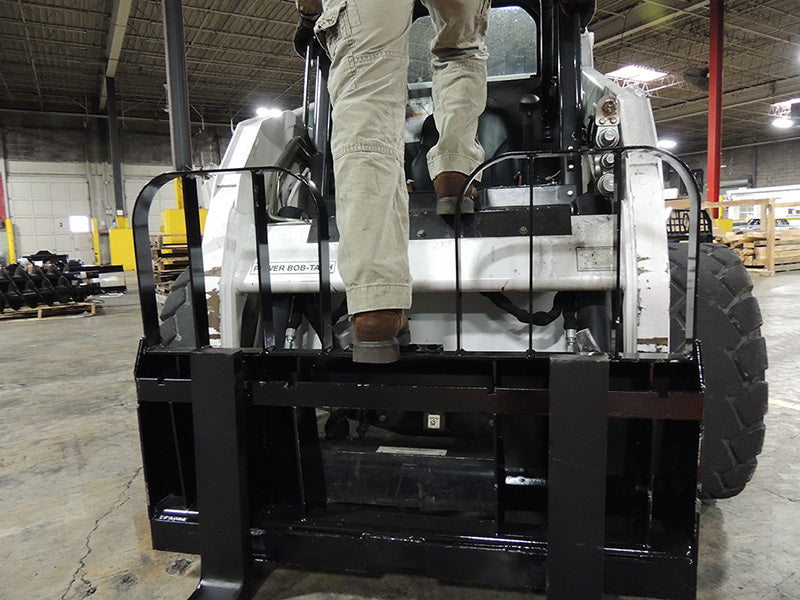

  • Walk through frame allows easy entry to machine
  • Tread plate gives safe footing

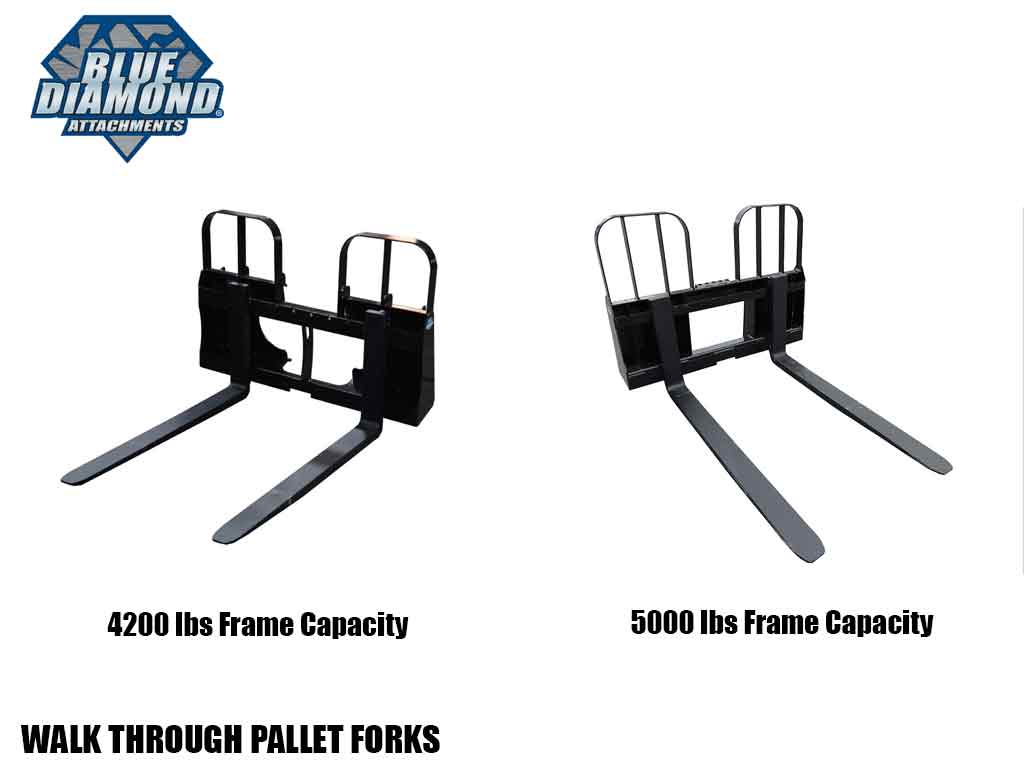

  • 4200 OR 5000 lbs capacity
  • 48” and 60” tines available
  • Forks lock in position
  • Excellent visibility

5000 LB FRAMES MAKE CONTACT WITH SOME CAB DOORS



Part Number Model Lift Capacity Tine Size Weight
314009 Pallet Fork - Walk-through with 48" Tines 4,200 lbs. 1 1/2″ X 48″ 369 lbs.
314008 Pallet Fork - Walk-through with 48" Tines 5,000 lbs. 1 1/2″ X 48″ 418 lbs.
