BLUE DIAOMND POWER RAKE – SEVERE DUTY WITH 3 PT. HITCH

MODEL
TEETH
OPTIONS

TRACTOR ATTACHMENTS

POWER RAKE – SEVERE DUTY WITH 3 PT. HITCH

The Blue Diamond® Severe Duty Power Rake for tractors is designed to succeed in conditions where others start failing – structurally and mechanically, and is set up for simple servicing. With the same frame design as our proven Severe Duty model for skid steers, this unit features a Category 2 hitch and a PTO drive to power the drum. The optional hydraulic angle kit is a great accessory that allows you to angle the unit from the operator’s seat.

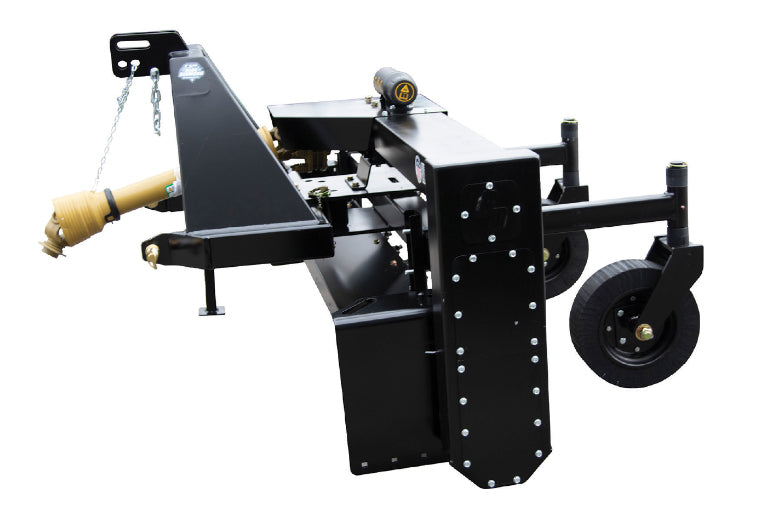

NOTE: These are shown with OPTIONAL stand and teeth.

 *HYDRAULIC ANGLE NOT AVAILABLE ON HD MODELS. (HD FITS CAT 1 & 3 PT HITCH, EXTREME FITS CAT 2 & 3 PT HITCH)*

FEATURES INCLUDE

  • Available in 72″, 84″, and 96″ widths
  • 4″ x 4″ square tube frame
  • PTO requires 540 RPM
  • Optional replaceable teeth versus fixed teeth that require welding to replace
  • 1.5″ spindle on castors with spacers versus friction adjusters that work loose
  • Airless tires prevent the frustrating aggravation of flat tires
  • 1″ wheel axles versus competitor’s 3/4″
  • 5 position, 20 degree angle
  • Optional hydraulic angle kit
  • Optional bolt-on skid shoes add 30% load capacity over side plates alone
  • 6″ drum diameter, 10″ including teeth
  • Double struts on the castors
PART NUMBER TEETH WORKING WIDTH (STRAIGHT) WORKING WIDTH (ANGLED) OVERALL WORKING WIDTH (STRAIGHT)
432005 Replaceable 72″ 66″ 82″
432007 Fixed 72″ 66″ 82″
432007 Replaceable 84″ 78" 94″
432007 Fixed 84″ 78" 94″
432015 Replaceable 96″ 90″ 106″
432017 Fixed 96″ 90″ 106″
