BRADCO

BRADCO HIGH DUMP BUCKET (SSL)(CTL)

Size
EDGE

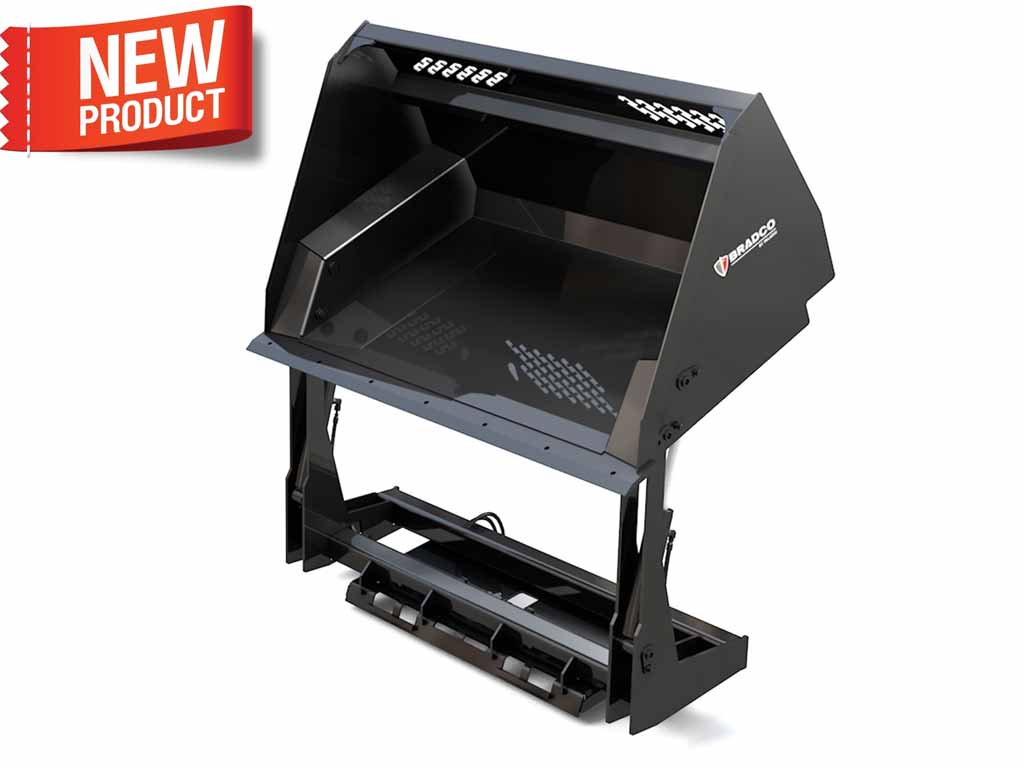

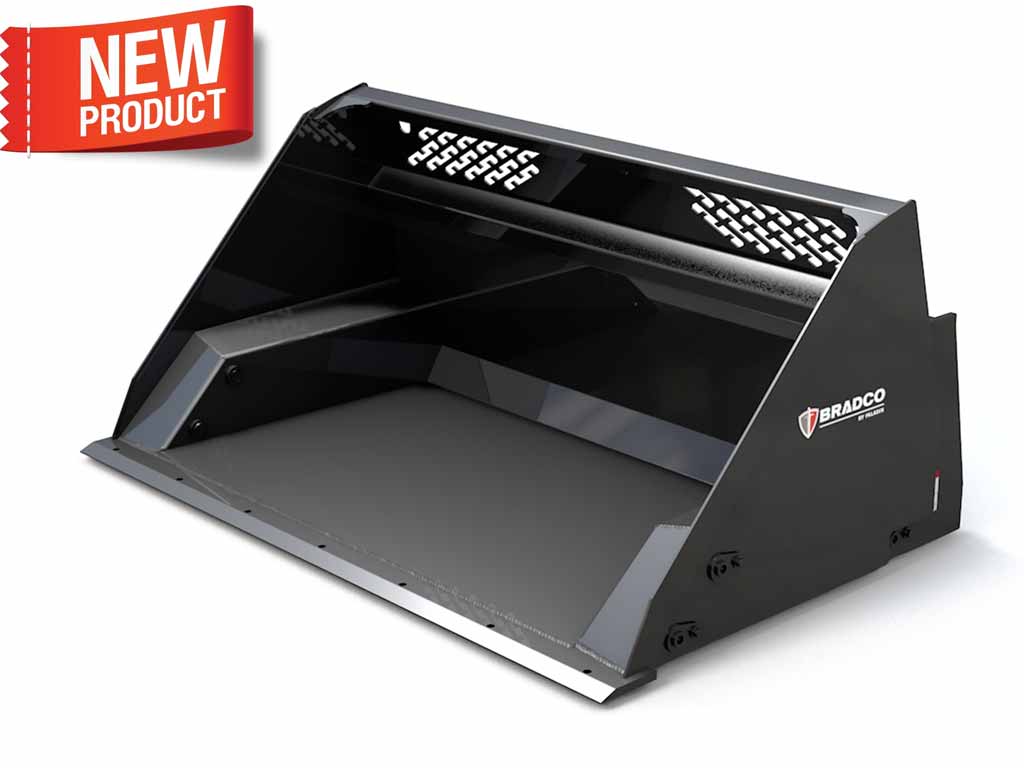

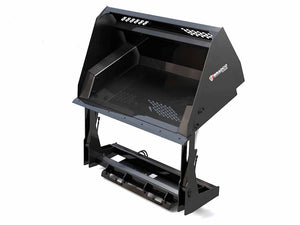

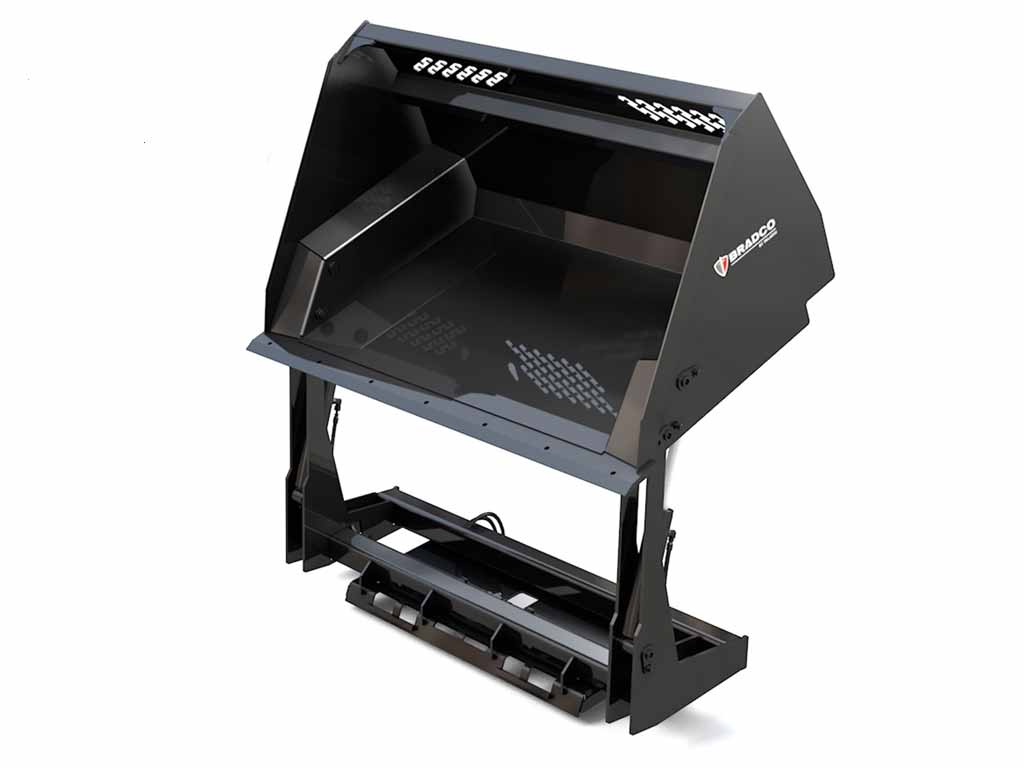

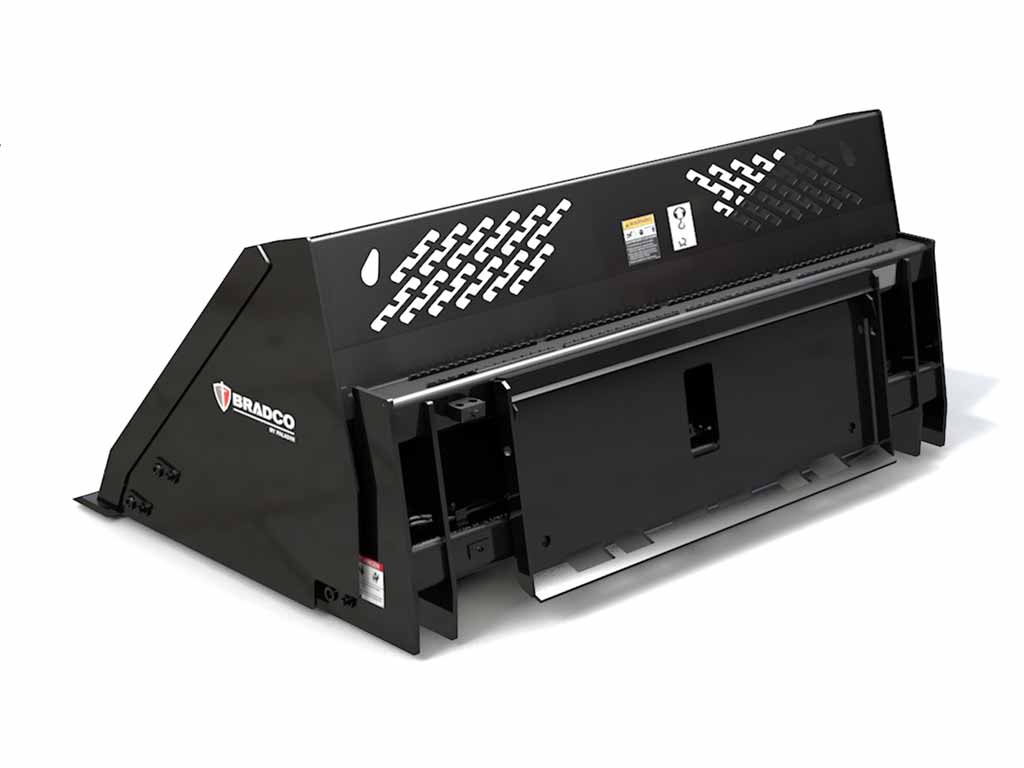

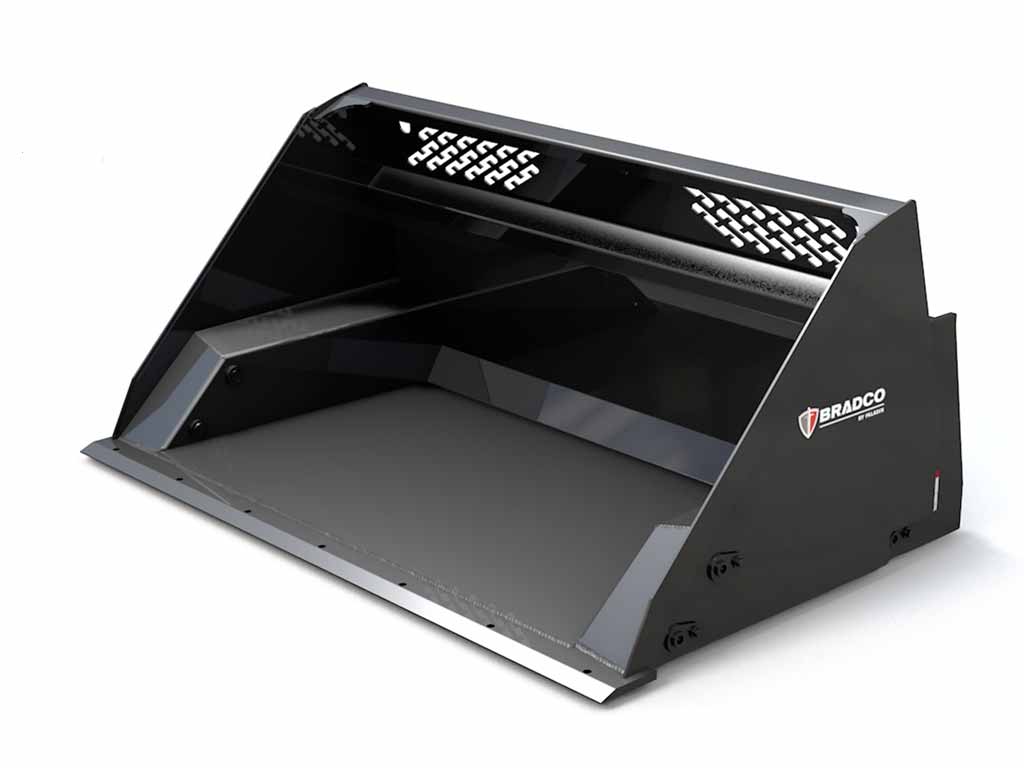

Bradco SS High-Dump Bucket

The Bradco High-Dump line of buckets allow users to increase the dumping height of their machine by 74 inches and load material into trucks, feed bins and reach other landing heights previously not obtainable with a standard bucket. This light material high-dump bucket exceeds all competitive units by offering increased capacities, cushioned hydraulics, 114° of roll out and the most robust design in the industry. These features translate to higher productivity and faster cycle times.

  • Robust industry leading design
  • Increases dump height by 74” compared to standard buckets
  • Dual cushion cylinders for smooth operation with rapid cycle times
  • 1.5” Diameter pivot pins from high strength material
Model Weight (lb) Capacity Width (in) Height (in) Depth (in) Rotation Pivot Pin Size (in) Cylinder Bore (in) Cylinder Rod Diameter (in)
60" 1,000 1 60.75 32.38 49.85 114° 1.5 2.5 1.5
72" 1,170 1.19 73 32.38 49.85 114° 1.5 2.5 1.5
84" 1,275 1.44 84.75 32.38 49.85 114° 1.5 2.5 1.5
96" 1,359 1.68 97.5 32.38 49.85 114° 1.5 2.5 1.5

NEW PRODUCT - CALL
