BRADCO

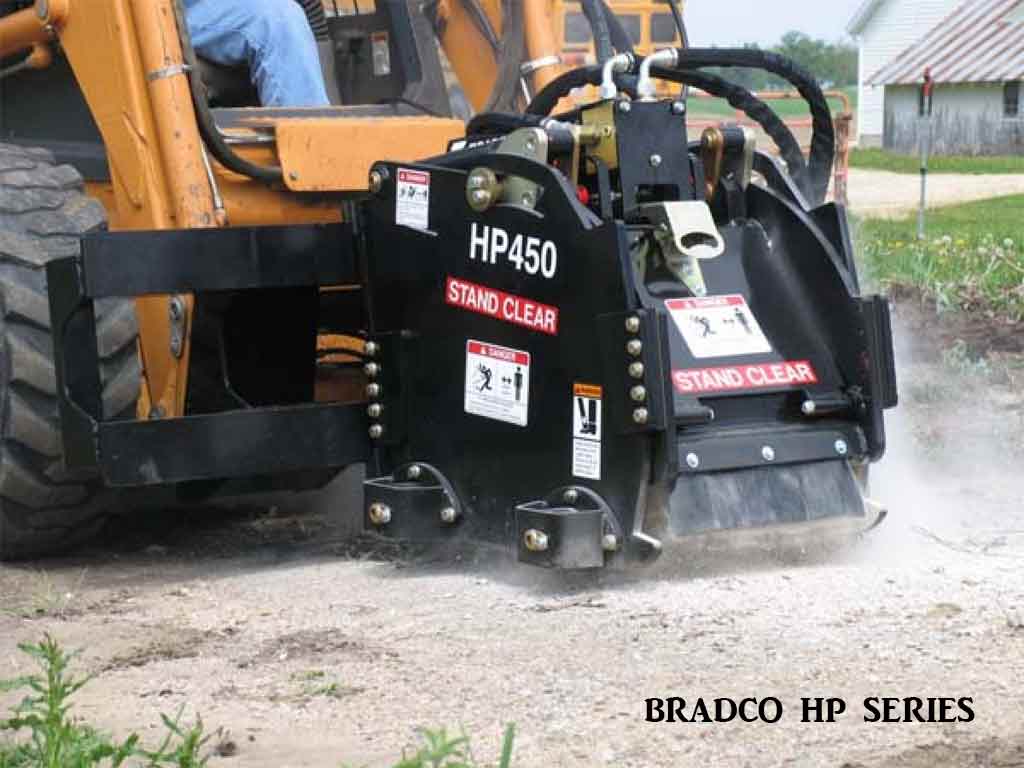

BRADCO HP series cold planer, High flow (SSL)(CTL)

MODEL
VALVE
HYDRAULIC MOTOR

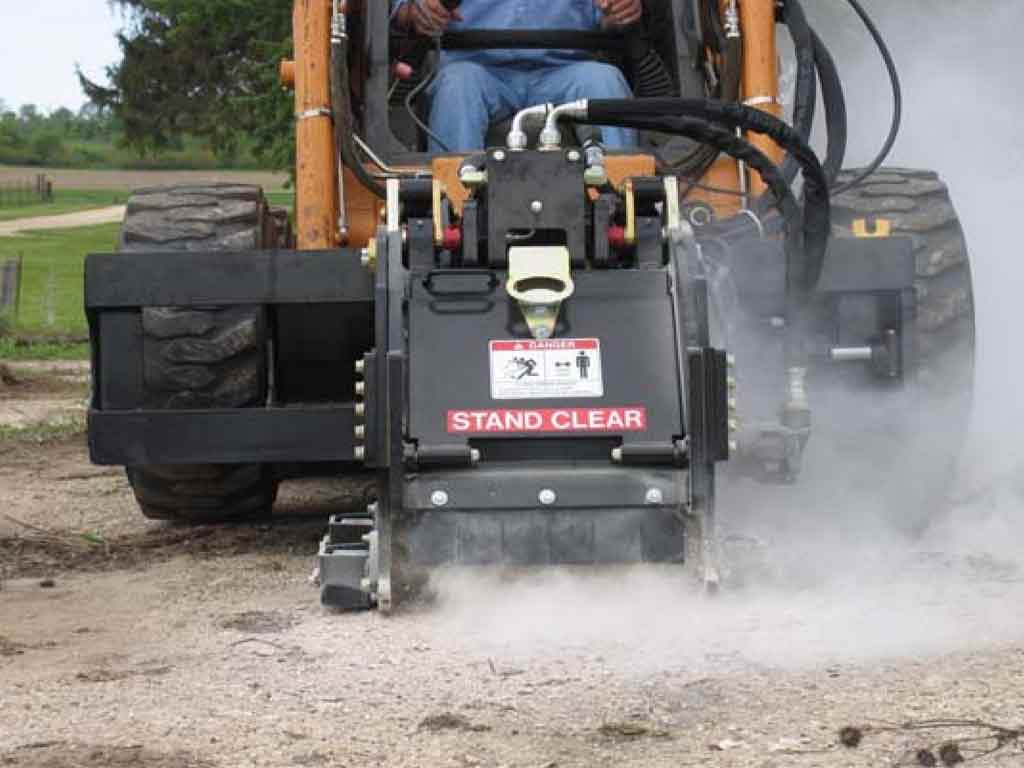

Cold Planer

The value and popularity of Bradco's skid steer cold planer attachments are becoming increasingly more evident because of the variety of jobs they can assist with. In addition to small milling jobs in which large milling machines can't efficiently be used, cold planers are an effective tool for asphalt and concrete pothole and frost heave repair, curb cutting, pavement texturing for improved skid resistance, and the removal of traffic lane stripes and roadway around manholes. This product is also available CE certified.

  • Planetary drive delivers high torque
  • High rear spoil clearance to prevent re-circulation of material
  • Protective shields for hydraulic and electrical components
  • Efficient piston drive motor
  • Optional water tank available with adjustable mounting brackets to fit most skid steer loaders


 MODEL HP400 HP450 HP600
REQ FLOW HIGH FLOW HIGH FLOW HIGH FLOW
REQ RANGE 22-40 GPM 22-40 GPM 22-40 GPM
WIDTH 65" 65" 65"
HEIGHT 35" 35" 35"
LENGTH 50" 50" 50"
WORKING WIDTH 16" 18" 24"
WORKING DEPTH 0-5" 0-5" 0-5"
TILT 8 8 8
DRUM 22" 22" 22"
PICKS 43 45 57
CENTER TO RIGHT 3-22" 3-22" 3-22"
PRESSURE 2500-3000 2500-3000 2500-3000



 MODEL HP750 HP1000
REQ FLOW HIGH FLOW HIGH FLOW
REQ RANGE 22-40 GPM 22-40 GPM
WIDTH 65" 65"
HEIGHT 35" 35"
LENGTH 50" 50"
WORKING WIDTH 30" 40"
WORKING DEPTH 0-5" 0-5"
TILT 8 8
DRUM 22" 22"
PICKS 69 89
CENTER TO RIGHT 3-22" 3-22"
PRESSURE 2500-3000 2500-3000
  • Fully adjustable with electrohydraulic controls
  • Manual depth and tilt option available on standard flow Cold Planer ONLY
  • Convenient for milling frost heaves, expansion joints, railroad approaches, etc.
  • Water nozzle kit standard with integral water nozzle ports
  • Optional in-cab control harness for most skid-steer loader models
  • Pick maintenance tool included and stowed with the Cold Planer
  • Convenient ergonomic electrohydraulic control joystick for depth, tilt and side shift standard
  • Independent self-leveling depth adjustment plates which allow for precise lapping cuts and taper cuts
  • Replaceable steel bushings at pivot locations
  • Efficient piston drive motor
  • Solid hardened steel wheels with greasable manifold pins and secluded greased zerks
  • Exclusive angled spoil guard wheel design prevents wheels from riding up and over millings, this feature provides more force to the cutting action by significantly reducing rolling resistance and allow for maintained control over depth of cut

VARIES ON MODEL

CONTROLS 4 FUNCTION

  • 114874 - BOBCAT, DITCH WITCH, GEHL, MUSTANG, JCB, TAKEUCHI, VOLVO
  • 116745 - CNH, KUBOTA SVL-2
  • 114969 - JOHN DEERE
  • 115403 - BRADCO CONTROL HANDLE
  • 120262 - CAT D SERIES

CONTROLS 3 FUNCTION

  • 19644 - BOBCAT, CNH, GEHL, JCB, MUSTANG, VOLVO, WACKER
  • 108618 - JOHN DEERE
  • 19644 - KUBOTA
  • 118650 - BRADCO CONTROL HANDLE ASSEMBLY
  • 120337 - TAKEUCHI
  • 122128 - CAT D SERIES

OTHER OPTIONS

  • 30 GAL WATER TANK W/O ELECTRIC CONTROL BOX
  • 30 GAL WATER TANK W/ ELECTRIC CONTROL BOX
  • 2.5" STANDARD FLOW SLOT CUTTER
  • 2.5" HIGH FLOW SLOT CUTTER
  • 4" HIGH FLOW SLOT CUTTER
  • 6" HIGH FLOW SLOT CUTTER
