T1031U

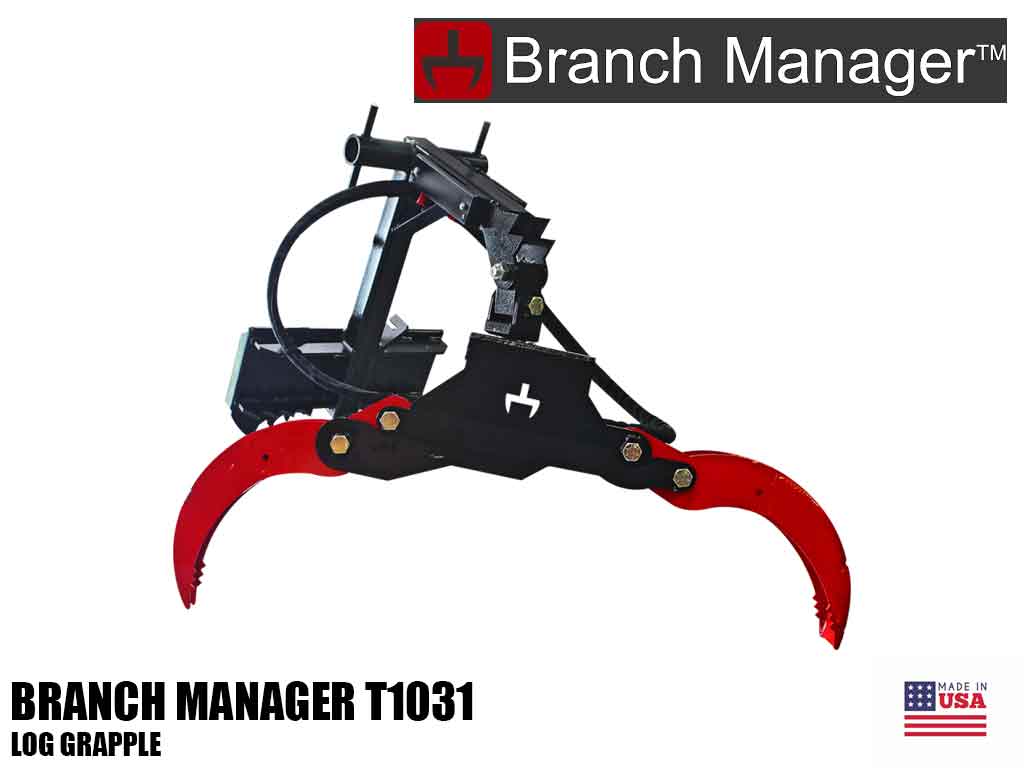

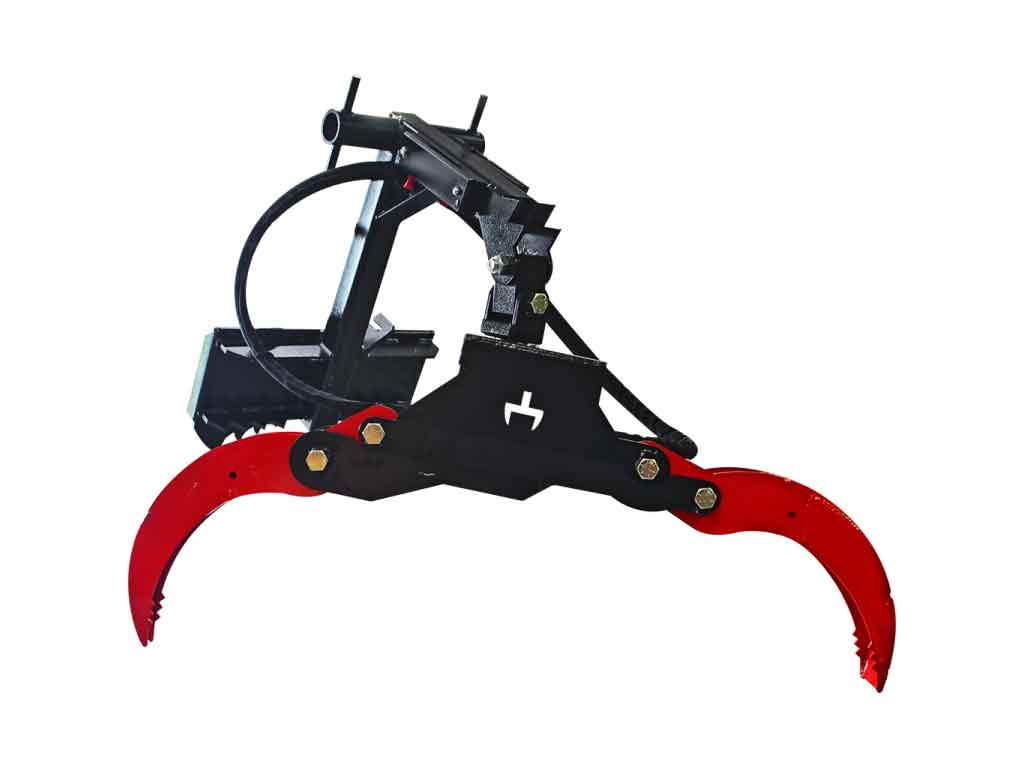

Branch Manager T1031 log grapple

MOUNTING

BRANCH MANAGER T1031 BMG

Rotating Bypass Grapple

The original mini-grapple by Branch Manager™ with Hardox® wear plate in the body and arms.

Using Hardox® wear plate instead of our standard Grade 60 increases the strength by up to three times while also providing superior abrasion resistance.



Mounts onto all mini-loaders, coming fully assembled & ready to go to work. Speed up your forwarding operations with the BMG!


The swivel mount with "knock around" rotation means less maintenance and less weight, allowing you to lift more. We don't use locking pins on the rotation and instead prefer to heel the log with log dogs to provide a similar and intuitive function.

Customers with competitor's products have reported over the years that locking pins sheer and spring returns break.


Same large 56" opening with a light weight of 265 lbs.

With the free rotation you turn the grapple instead of your machine, saving wear & tear on both your customers' lawns & your machine

FEATURES & BENIFITS

  • The built-in tree pusher allows you to assist felling a stem
  • Aggressive teeth help the tree pusher stay on track
  • 3" Rope Bollard for you to easily capture the rope mid-line for lifting or directing in tree operations
  • Handy receiver hitch to move a chipper or anything!
  • You know when you're driving your machine & you have no place to put your saw? The Branch Manager™ Mini Grapple solves this by giving you dual saw scabbards, built with UHS industrial plastic to safely transport your saws without dulling the teeth.
  • Carry your brush and logs out long instead of wide, get bigger pieces through tighter accesses. Turn the grapple not your machine, less wear and tear on lawns & your machine.
  • Feeds a chipper better than ANY "bucket" style grapple "Once you feed a chipper with our grapple you'll never want to go back to a bucket style grapple"

MOUNTINGS

  • Mini-Universal Hitch Plate with Universal Flat Face Hydraulic Couplers, Fits Vermeer, Ditch Witch, Toro, BME, Giant & More!
  • Mini-European Hitch Plate with Avant Hydraulic Couplers
  • Mini-Bobcat (MT) Hitch Plate with Universal Flat Face Hydraulic Couplers
  • Mini-European Hitch Plate with NO Hydraulic Couplers
  • Full size universal skid steer mounting
MODEL T1031 BMG
WEIGHT 265 LB
