BRANCH MANAGER

T4040EX

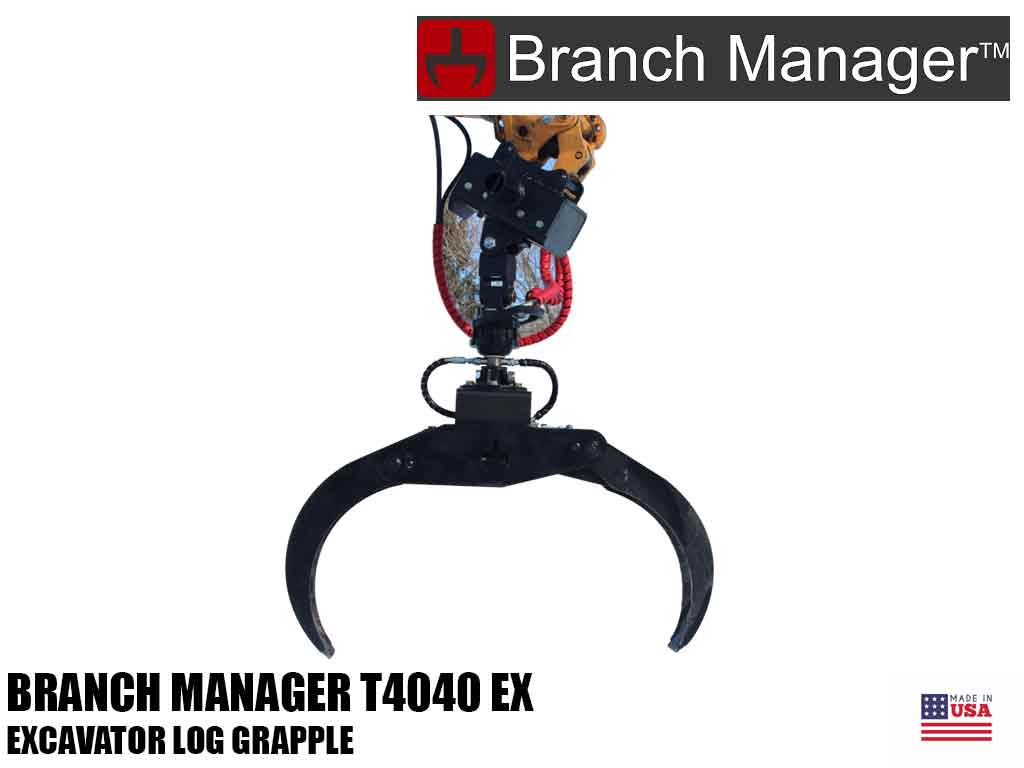

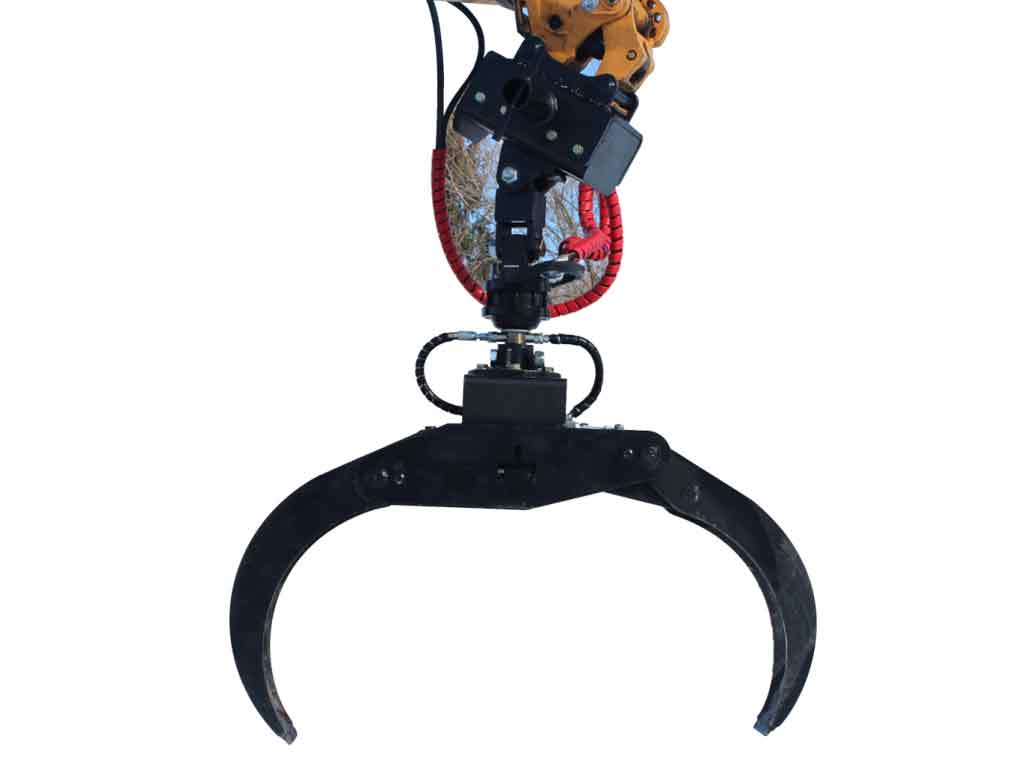

Branch Manager T4040 EX log grapple

MOUNTING

BRANCH MANAGER T4040 EX BMG

Log Grapple for 3-6 Ton Excavators - Bypass Rotating Grapples

Mounts onto 3 - 6 Ton excavators, coming fully assembled & ready to go to work.

Large 53" opening, sturdy built @ 600 lbs

Turn the grapple, not your machine, saving wear & tear on both your customers' lawns & your machine

FEATURES & BENIFITS

  • Optional heeling bar to have better control over a log with a dangle style excavator grapple
  • Our T4040 Excavator Grapple also has a Rope Bollard so you can easily tie off & lower sections of a tree.

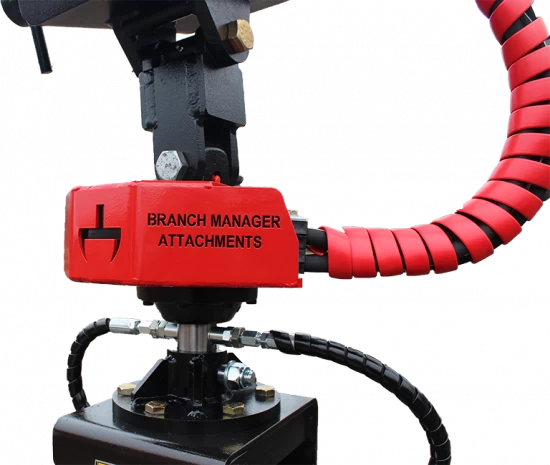

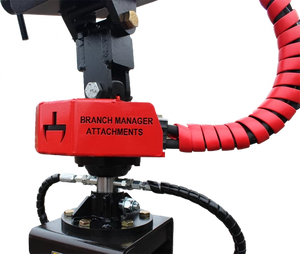

  • The 4-hose model is only for machines with 2 auxiliary hydraulic circuits. The rotator function is achieved via the electric oil diverter. When energized, it switches the oil flow to the rotator instead of the grapple. No messing with levers! Branch Manager™ rotating grapples include an electric kit to wire into your machine.

  • The grapple head is made of SSAB Strenx® 700 steel, increasing it's maximum tensile strength and durability while maintaining a lighter grapple.

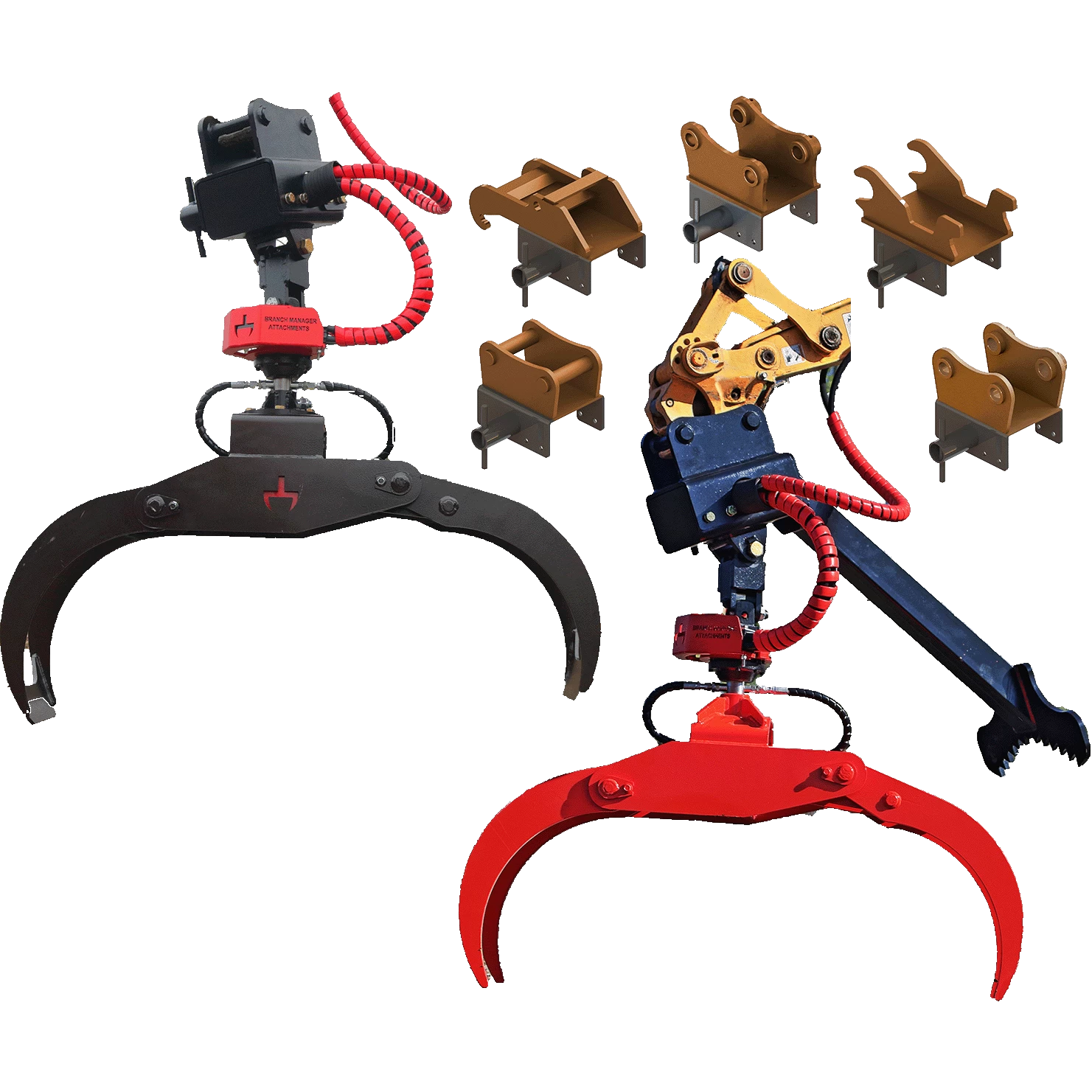

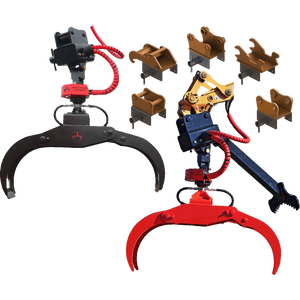

MOUNTINGS

  • Mounts onto 3 - 6 Ton excavators,. Two pin mount.
MODEL T4040 EX BMG
WEIGHT 600 LB
