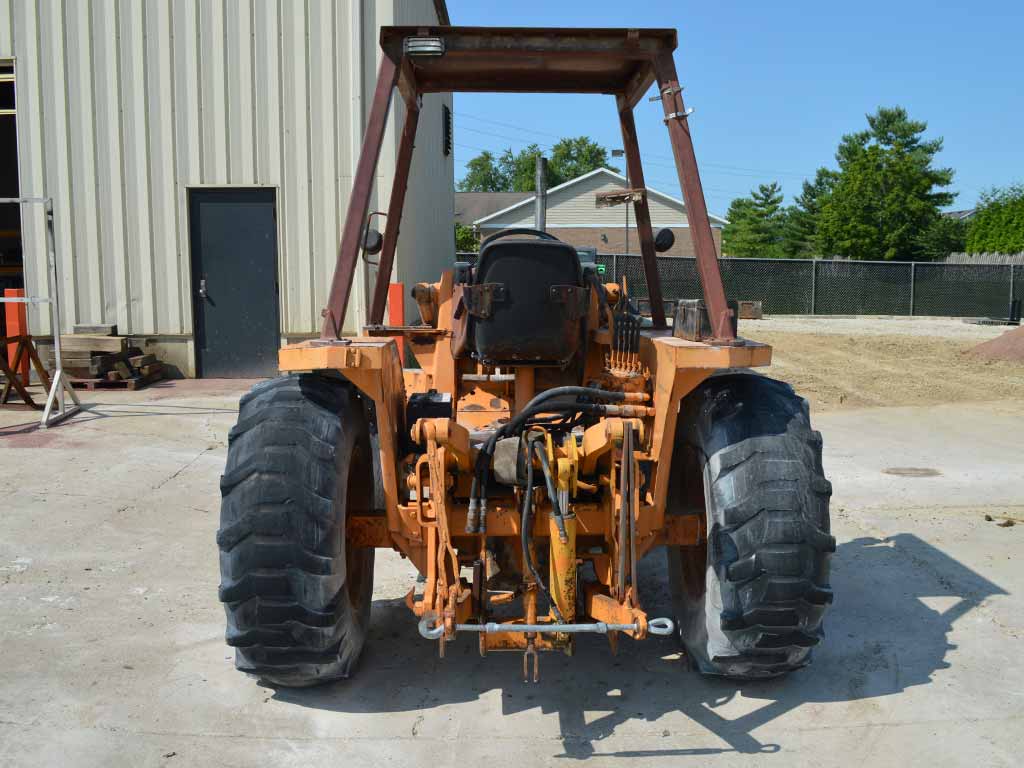

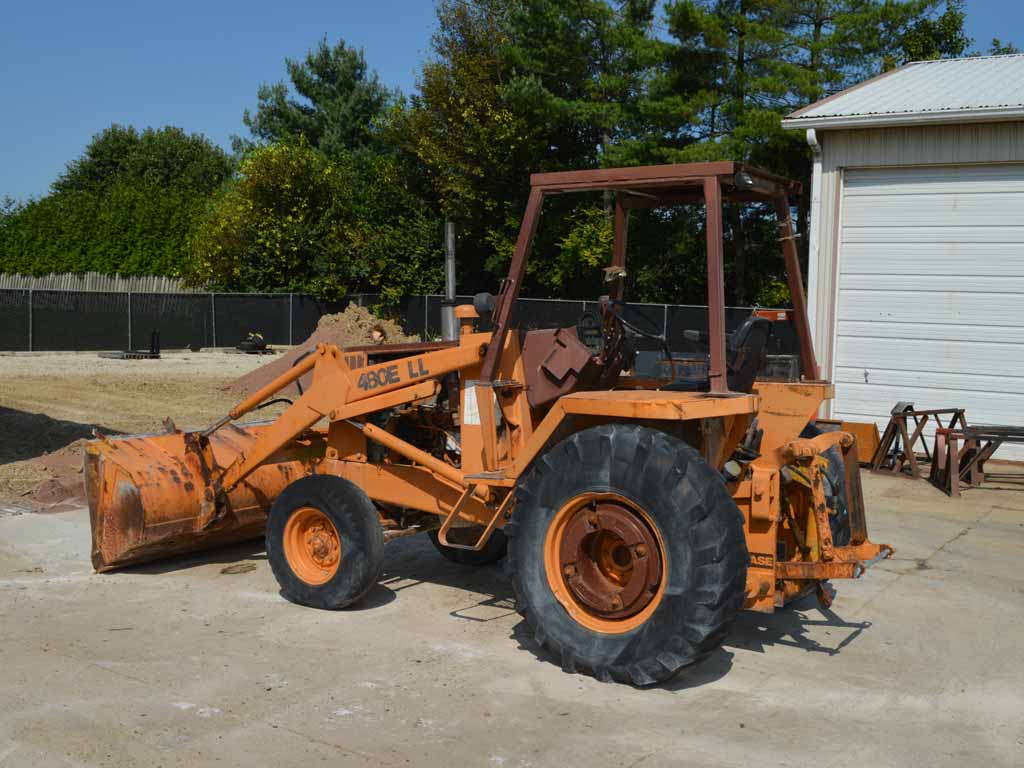

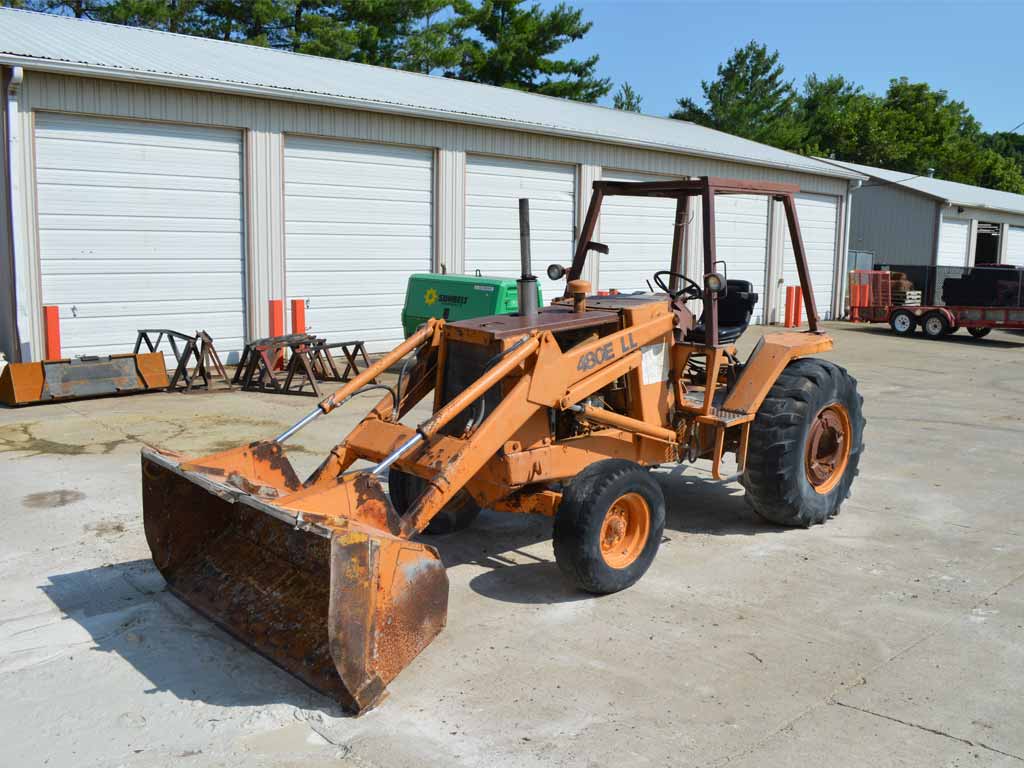

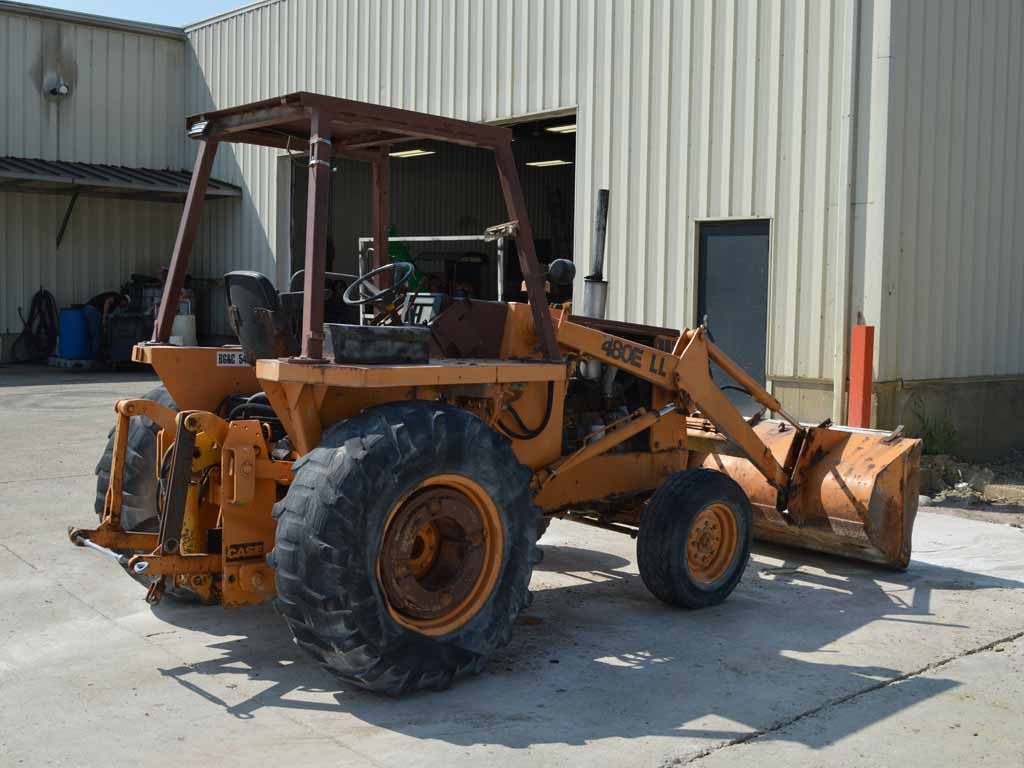

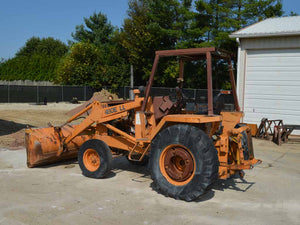

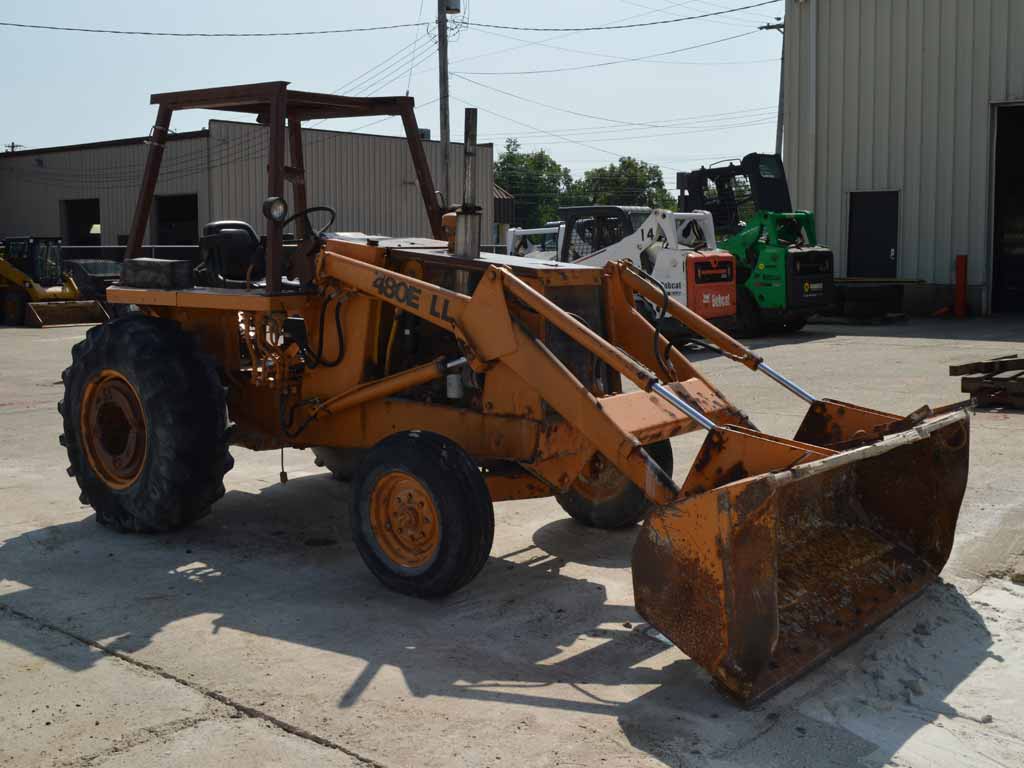

CASE 480E LL LANDSCAPE LOADER

The landscape loader, also known as a skip loader is a backhoe with out the "hoe". In place of the backhoe or "hoe" is a 3 point hitch. Usually a grading box or grading blade is attached to the 3 point hitch. These machine are very productive in certain applications and the machines are very durable. Case and John Deere are the most popular brands of landscape loaders.

THIS UNIT....

  • OROPS (OPEN CANOPY)
  • FRONT LOADER BUCKET, GENERAL PURPOSE, PIN ON
  • 2843 HOURS
  • 11L-16 FRONT TIRES
  • 17.5L-24 REAR TIRES
  • REAR WHEEL WEIGHTS
ENGINE: J.I. Case 4-390
  diesel
  4-cylinder
  liquid-cooled
  239 ci [3.9 L]
Bore/Stroke: 4.02x4.72 inches [102 x 120 mm]
Power (gross): 69 hp [51.5 kW]
Air cleaner: dry
Compression: 17:1
Rated RPM: 2200
Torque: 186 lb-ft [252.2 Nm]
Torque RPM: 1200
Starter volts: 12
TRANSMISSION
Type: power shuttle
Gears: 4 forward and reverse
Four gears with power shuttle and torque converter. Synchronized up-shift between gears 2, 3, and 4. Synchronized down shift from 4 to 3.
TIRE OPTIONS
Industrial front: 7.50x16
Industrial rear: 14.9x24
Industrial front: 8.00x16
  11Lx16
  12x16.5
Industrial rear: 16.9x24
  17.5Lx24
LOADER
Loader type: J.I. Case
Weight: 1724 lbs [782 kg]
Height (to pin): 1275 inches [3238 cm]
Clearance, dumped bucket: 102.5 inches [260 cm]
Dump reach: 27 inches [68 cm]
Dump angle: 43
Rollback at ground: 33
Breakout force (lift): 6340 lbs [2875 kg]
Lift to full height (at pin): 3170 lbs [1437 kg]
Raise time to height: 3.7 s
Bucket dump time: 3.0 s
Lowering time: 1.9 s
REAR HITCH TYPE: I
  II*
Rear lift (at ends): 5197 lbs [2357 kg]
Rear lift (at 24"/610mm): 2850 lbs [1292 kg]
DIMENSIONS
2WD ROPS Weight: 5284 lbs [2396 kg]
4WD Cab Weight: 6168 lbs [2797 kg]
2WD Front axle load: 9000 lbs [4082 kg]
4WD Front axle load: 12500 lbs [5670 kg]
Rear axle load: 13500 lbs [6123 kg]
2WD Wheelbase: 80 inches [203 cm]
4WD Wheelbase: 80.5 inches [204 cm]
Length: 126.1 inches [320 cm] (tractor)
  185.5 inches [471 cm] (loader-tractor)
Width: 75.3 inches [191 cm] *
Height (steering wheel): 68.9 inches [175 cm]
Height (ROPS): 100.5 inches [255 cm]
Height (cab): 100.4 inches [255 cm]
Height (exhaust): 105 inches [266 cm]
Ground clearance: 12.6 inches [32 cm]
2WD
[149 to 157 cm] 2WD} 67 {4WD} to inches
[170 to 0 cm] Front tread:
59 to 62 inches
Rear tread: 60 to 66 inches
[152 to 167 cm]
