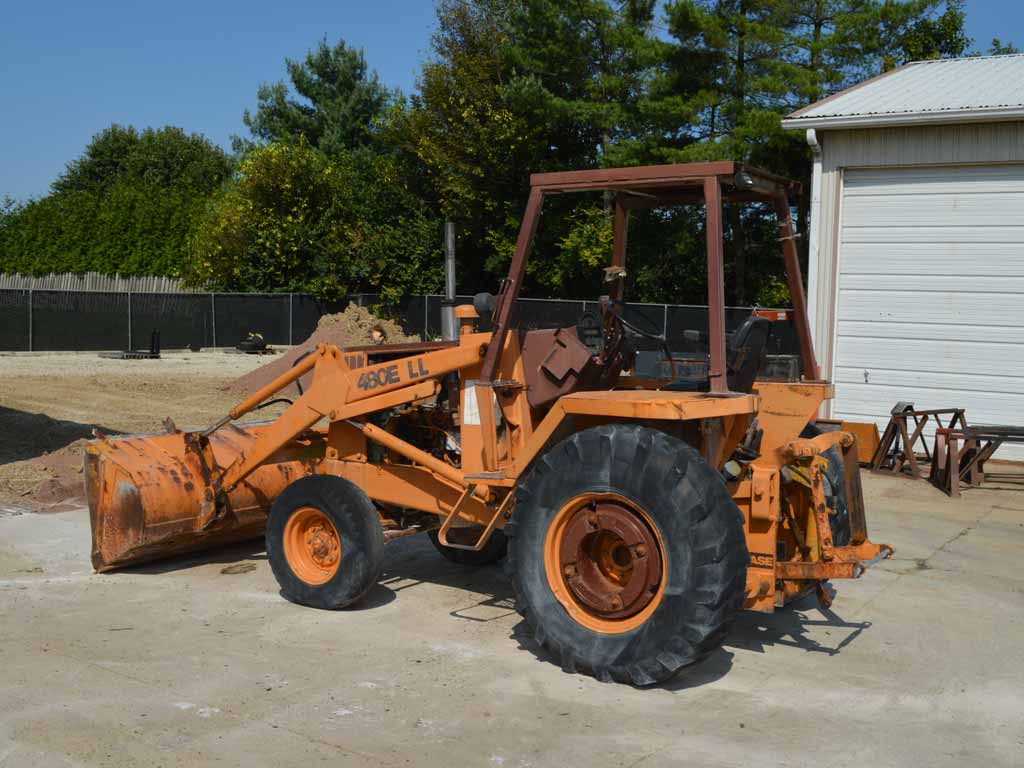

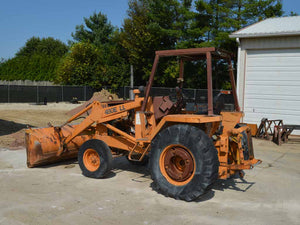

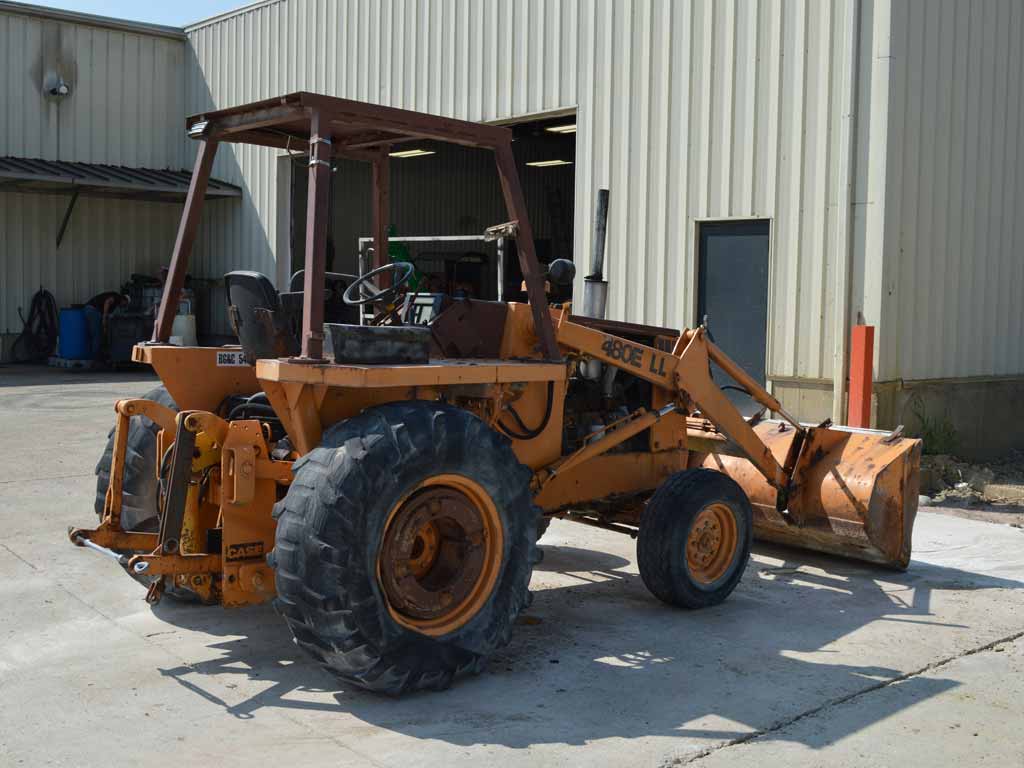

CASE 480E LL LANDSCAPE LOADER
$6,500.00
CASE 480E LL LANDSCAPE LOADER
The landscape loader, also known as a skip loader is a backhoe with out the "hoe". In place of the backhoe or "hoe" is a 3 point hitch. Usually a grading box or grading blade is attached to the 3 point hitch. These machine are very productive in certain applications and the machines are very durable. Case and John Deere are the most popular brands of landscape loaders.
THIS UNIT....
- OROPS (OPEN CANOPY)

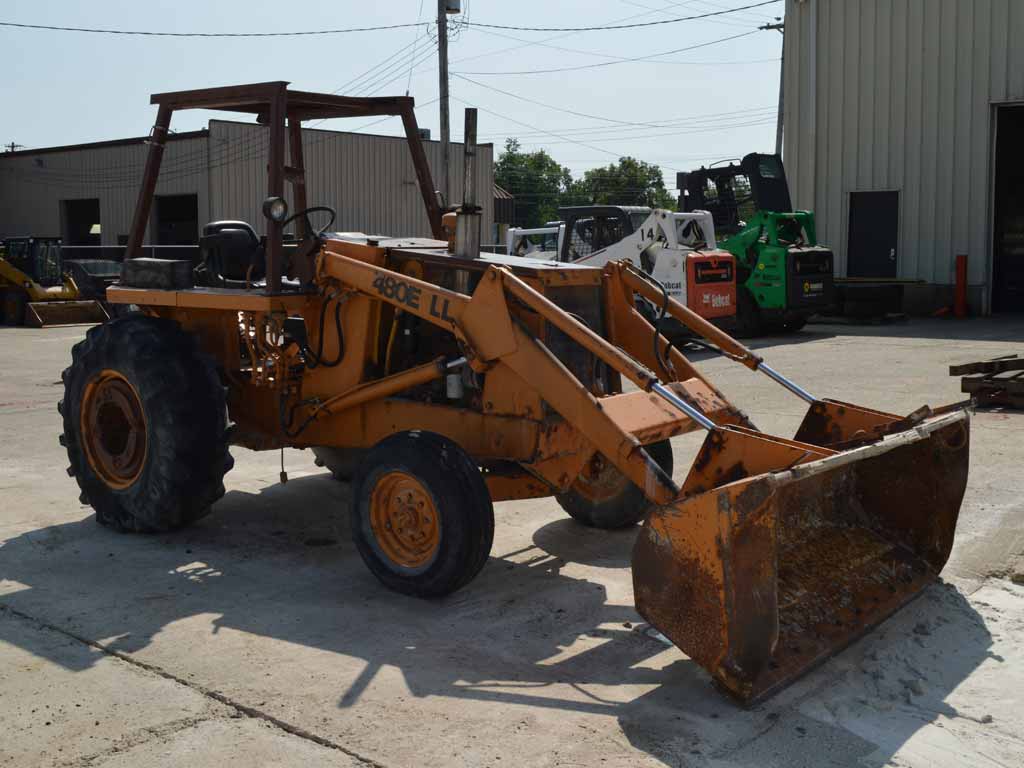

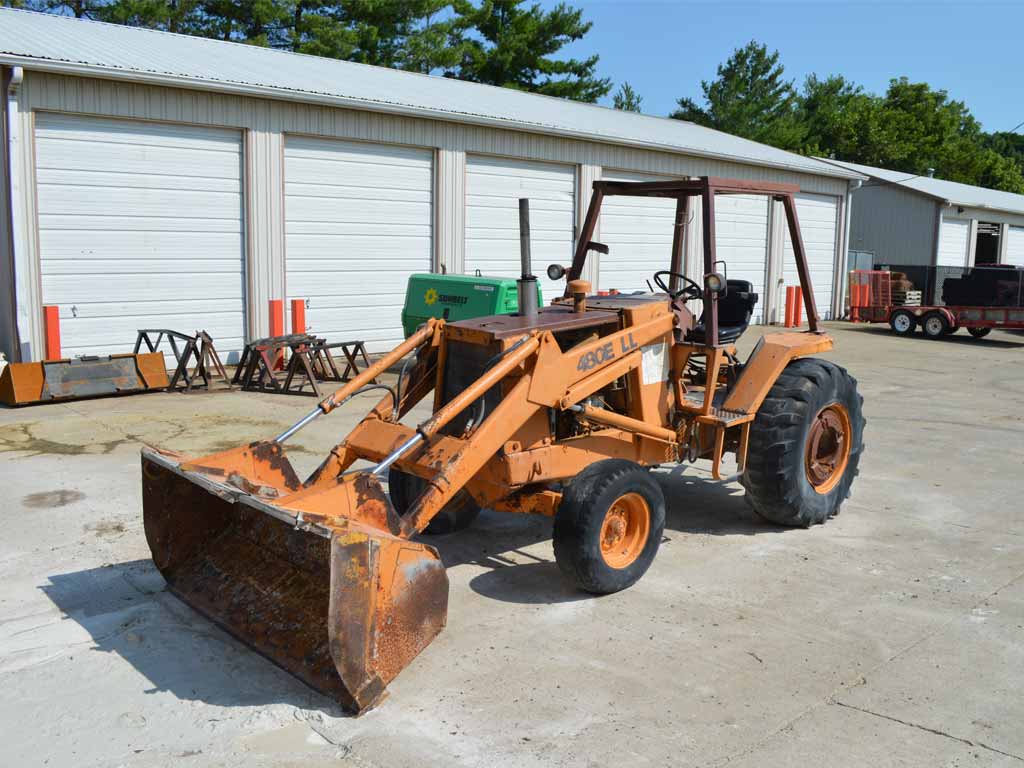

- FRONT LOADER BUCKET, GENERAL PURPOSE, PIN ON
- 2843 HOURS
- 11L-16 FRONT TIRES
- 17.5L-24 REAR TIRES
- REAR WHEEL WEIGHTS
| ENGINE: J.I. Case 4-390 | |
| diesel | |
| 4-cylinder | |
| liquid-cooled | |
| 239 ci [3.9 L] |
| Bore/Stroke: | 4.02x4.72 inches [102 x 120 mm] |
| Power (gross): | 69 hp [51.5 kW] |
| Air cleaner: | dry |
| Compression: | 17:1 |
| Rated RPM: | 2200 |
| Torque: | 186 lb-ft [252.2 Nm] |
| Torque RPM: | 1200 |
| Starter volts: | 12 |
| TRANSMISSION | |
| Type: | power shuttle |
| Gears: | 4 forward and reverse |
| Four gears with power shuttle and torque converter. Synchronized up-shift between gears 2, 3, and 4. Synchronized down shift from 4 to 3. | |
| TIRE OPTIONS | |
| Industrial front: | 7.50x16 |
| Industrial rear: | 14.9x24 |
| Industrial front: | 8.00x16 |
| 11Lx16 | |
| 12x16.5 | |
| Industrial rear: | 16.9x24 |
| 17.5Lx24 |
| LOADER | |
| Loader type: | J.I. Case |
| Weight: | 1724 lbs [782 kg] |
| Height (to pin): | 1275 inches [3238 cm] |
| Clearance, dumped bucket: | 102.5 inches [260 cm] |
| Dump reach: | 27 inches [68 cm] |
| Dump angle: | 43 |
| Rollback at ground: | 33 |
| Breakout force (lift): | 6340 lbs [2875 kg] |
| Lift to full height (at pin): | 3170 lbs [1437 kg] |
| Raise time to height: | 3.7 s |
| Bucket dump time: | 3.0 s |
| Lowering time: | 1.9 s |

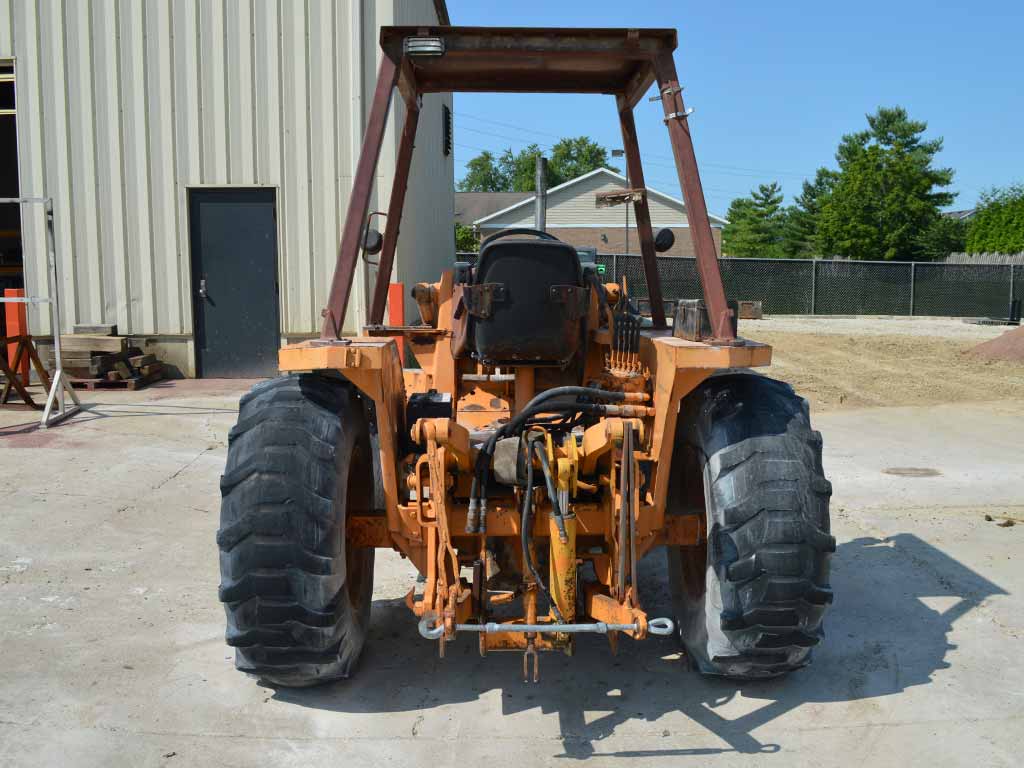

| REAR HITCH TYPE: | I |
| II* | |
| Rear lift (at ends): | 5197 lbs [2357 kg] |
| Rear lift (at 24"/610mm): | 2850 lbs [1292 kg] |
| DIMENSIONS | |
| 2WD ROPS Weight: | 5284 lbs [2396 kg] |
| 4WD Cab Weight: | 6168 lbs [2797 kg] |
| 2WD Front axle load: | 9000 lbs [4082 kg] |
| 4WD Front axle load: | 12500 lbs [5670 kg] |
| Rear axle load: | 13500 lbs [6123 kg] |
| 2WD Wheelbase: | 80 inches [203 cm] |
| 4WD Wheelbase: | 80.5 inches [204 cm] |
| Length: | 126.1 inches [320 cm] (tractor) |
| 185.5 inches [471 cm] (loader-tractor) | |
| Width: | 75.3 inches [191 cm] * |
| Height (steering wheel): | 68.9 inches [175 cm] |
| Height (ROPS): | 100.5 inches [255 cm] |
| Height (cab): | 100.4 inches [255 cm] |
| Height (exhaust): | 105 inches [266 cm] |
| Ground clearance: | 12.6 inches [32 cm] |
| 2WD [149 to 157 cm] 2WD} 67 {4WD} to inches [170 to 0 cm] Front tread: |
59 to 62 inches |
| Rear tread: | 60 to 66 inches [152 to 167 cm] |
