HDROKG63

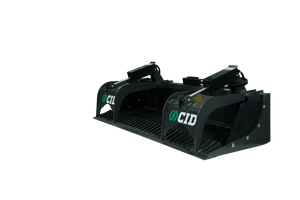

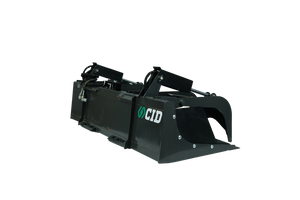

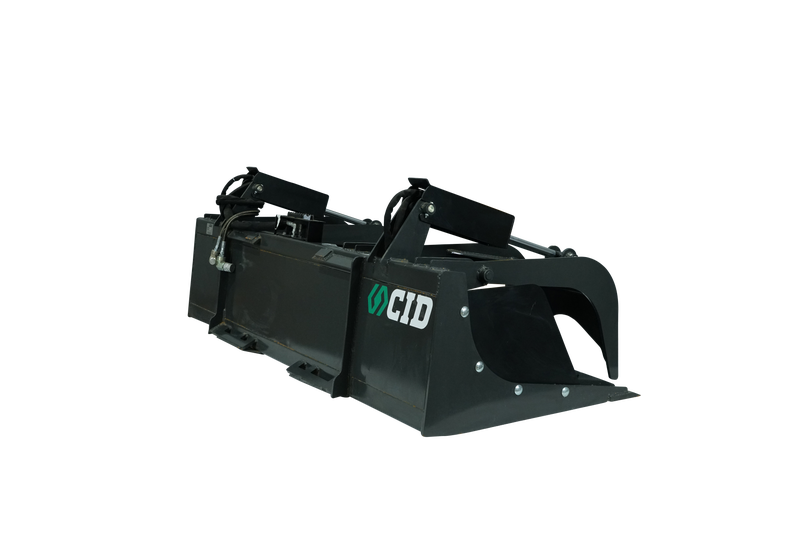

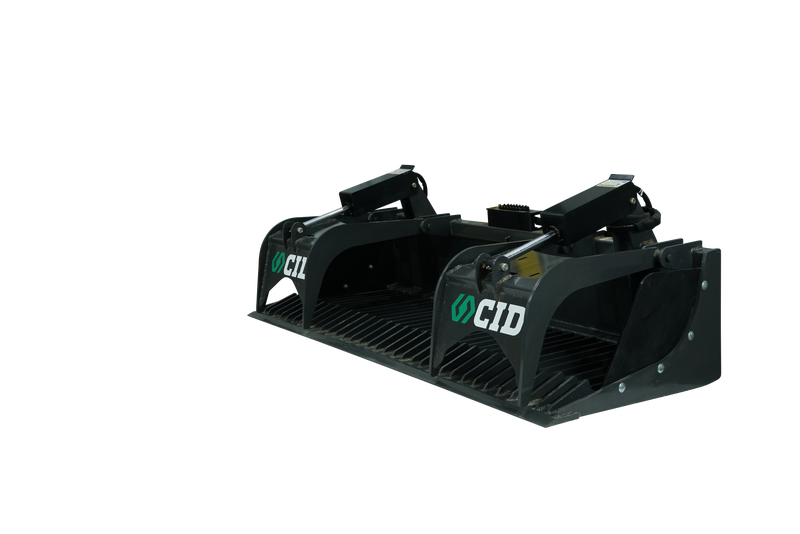

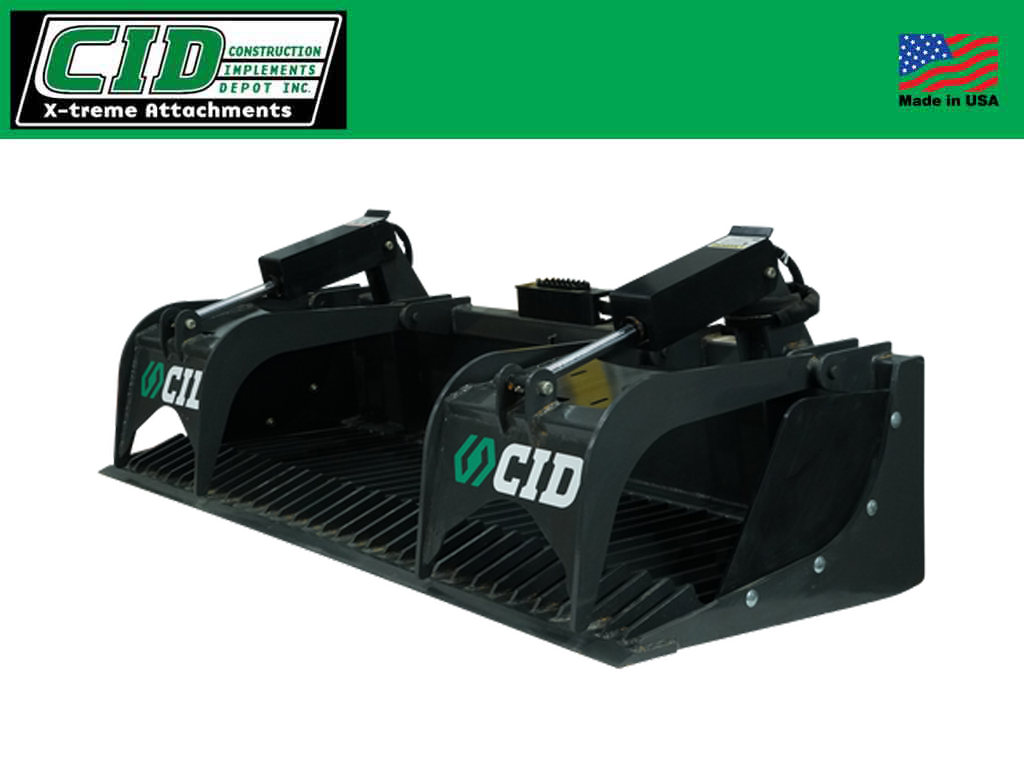

CID Heavy Duty Rock Grapple for Skid Steers

Size
Teeth

7/25

Heavy Duty Rock Grapple

Our Heavy Duty Rock Grapple is great for sifting through dirt in order to remove rocks. With the tines set at 2–3/8″ apart, you pick up most everything but the dirt. You can also pick up large rocks, logs, brush or just about anything else with these grapples. We use twin 2″ bore by 10″ stroke cylinders rated at 4,000 psi on all of our grapples. The rock grapple comes standard with 3/4 x 6 cutting edge and is upgraded to 1 x 8 edge when optional teeth are added. Up to 65 HP. Cylinder Covers Standard.


     Part Number Size Weight
    HDROKG63 63" 750 lbs.
    HDROKG66 66" 851 lbs.
    HDROKG72 72" 900 lbs.
    HDROKG78 78" 941 lbs.
    HDROKG81 81" 960 lbs.
    HDROKG84 84" 982 lbs.
    HDROKG63T 63" 799 lbs.
    HDROKG66T 66" 950 lbs.
    HDROKG72T 72" 902 lbs.
    HDROKG78T 78" 942 lbs.
    HDROKG81T 81" 963 lbs.
    HDROKG84T 84" 985 lbs.
