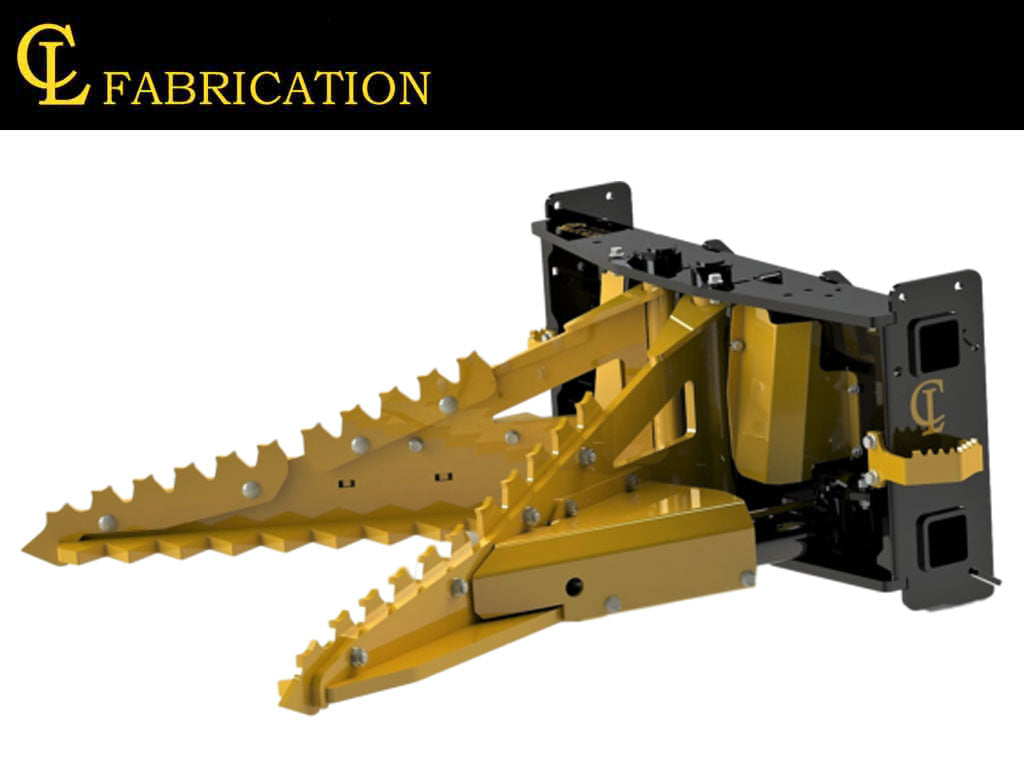

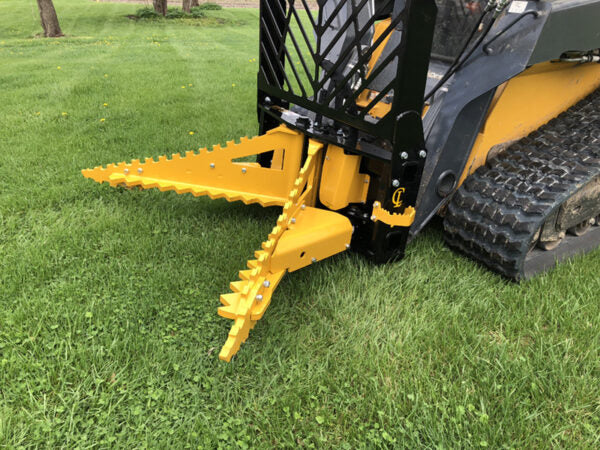

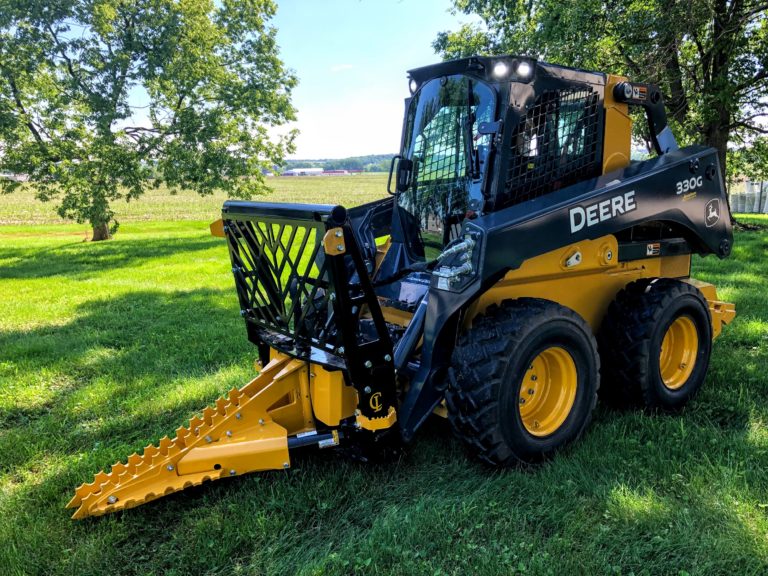

CL FABRICATION DOMINATOR tree puller

MOUNTING
OPTIONS

DOMINATOR®

TWIN CYLINDER TREE AND POST PULLER MULTI PURPOSE GRASPING TOOL

  • DIG, SAW, RIP AND PULL.  THE ULTIMATE TREE PULLER
  • Features 1″ thick AR400 Steel Jaws with removable bolt on root rippers.
  • 60″ OPENING EASILY GRASPS LARGE OBJECTS

  • 60” opening easily grasps large objects.
  • Jaws are 1” thick AR400 high strength steel.
  • AR400 steel root rippers are removable
  • 3/4” thick vertical jaw braces
  • 3/4” thick upper and lower frame plates
  • 4″x4″x3/8“ frame cross tubes.
  • Twin 3.5”x8” cross tube welded cylinders
  • Each cylinder can produce over 33,000 pounds of force
  • Hydraulic cylinder guards built from 3/8” plate protects cylinders when digging or pulling.
  • 2” diameter, CF 1045 main pivot pins
  • Greasable at all pivot points
  • Abrasive blasted and powdered coated.
  • Dig with jaws open or closed.
  • Includes 4780 PSI hoses and flat faced couplers

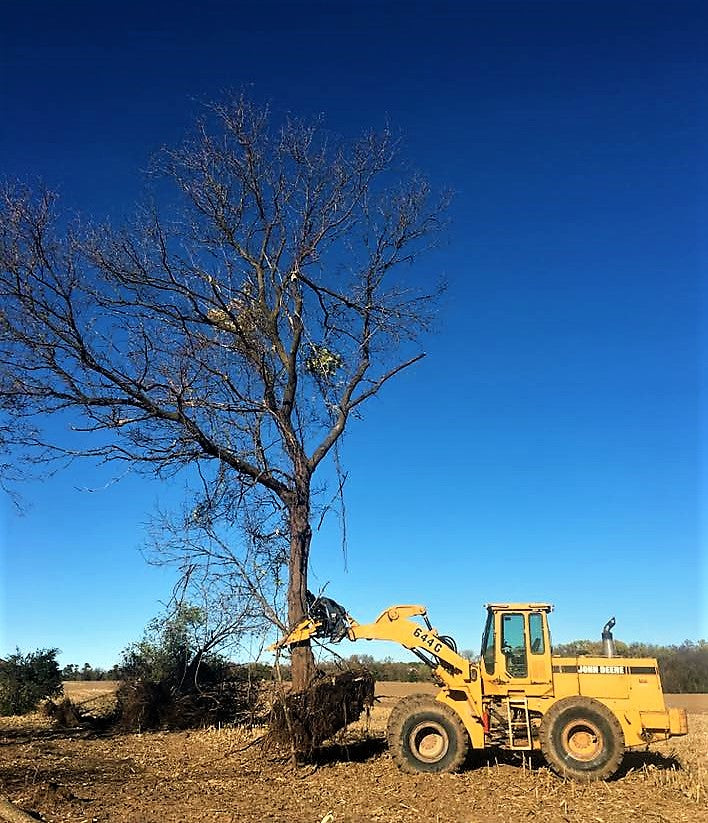

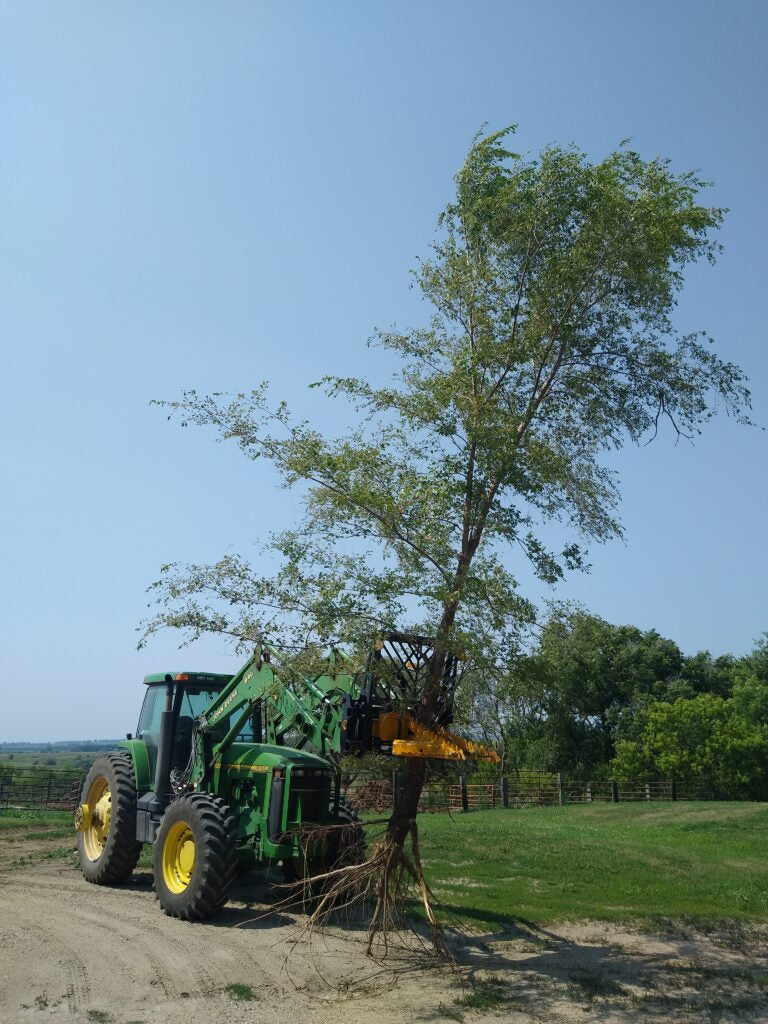

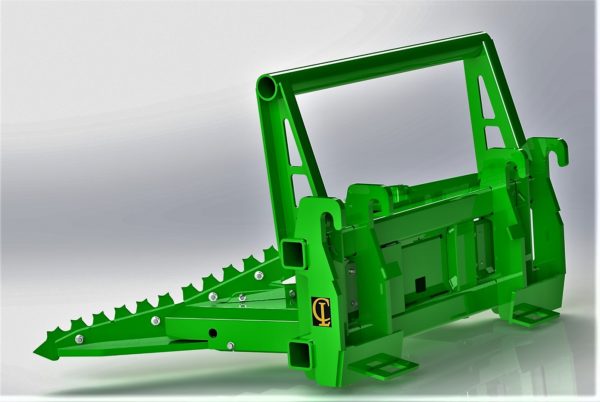

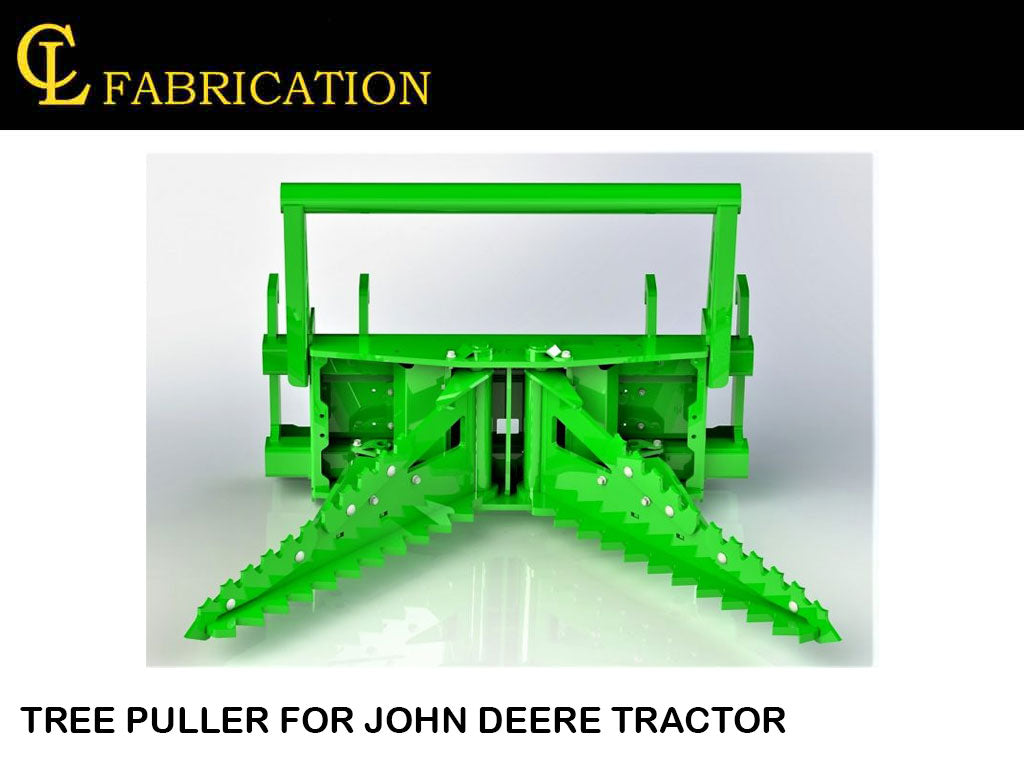

  • Mounts are available for most loaders

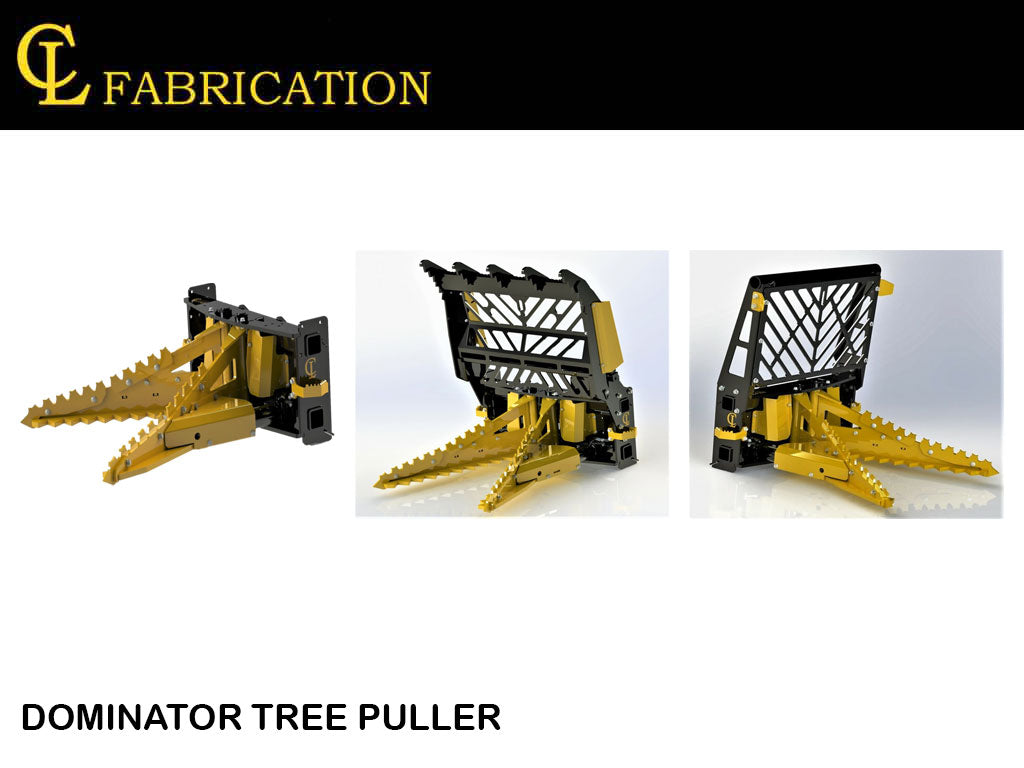

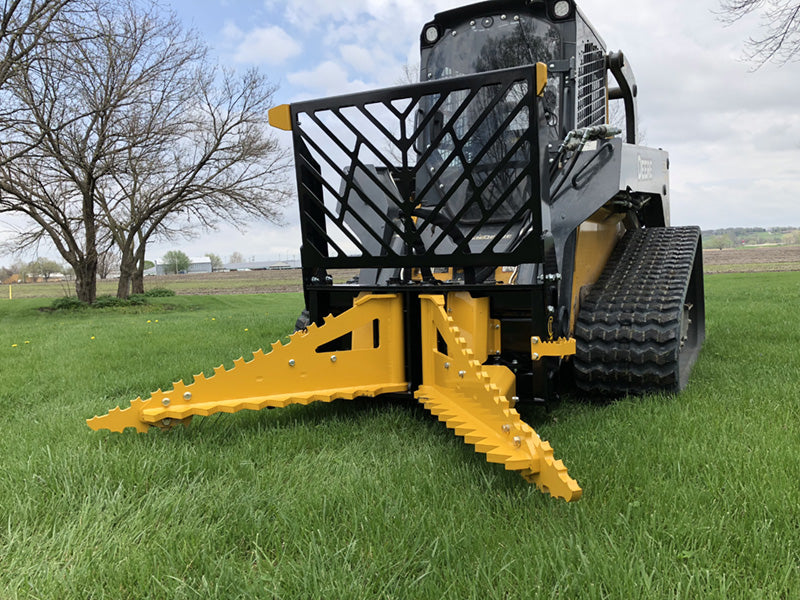

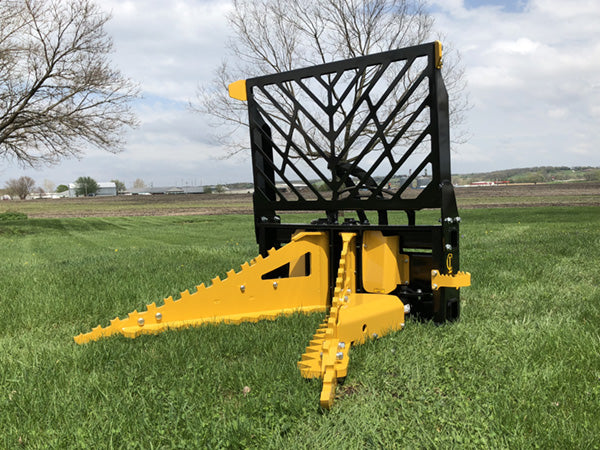

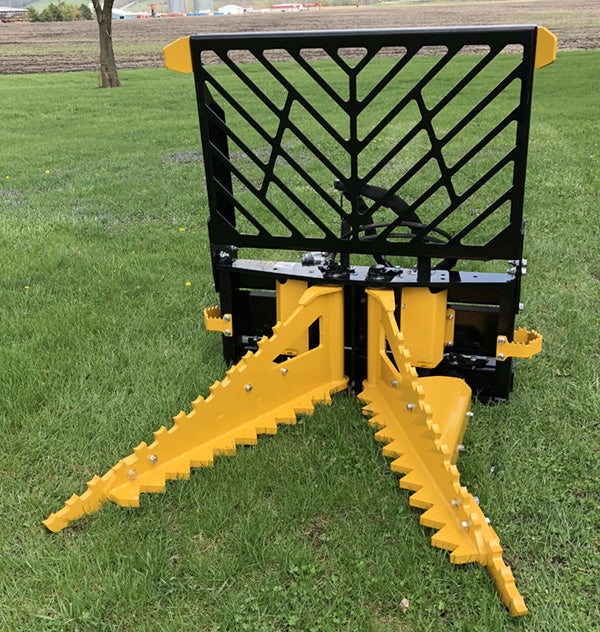

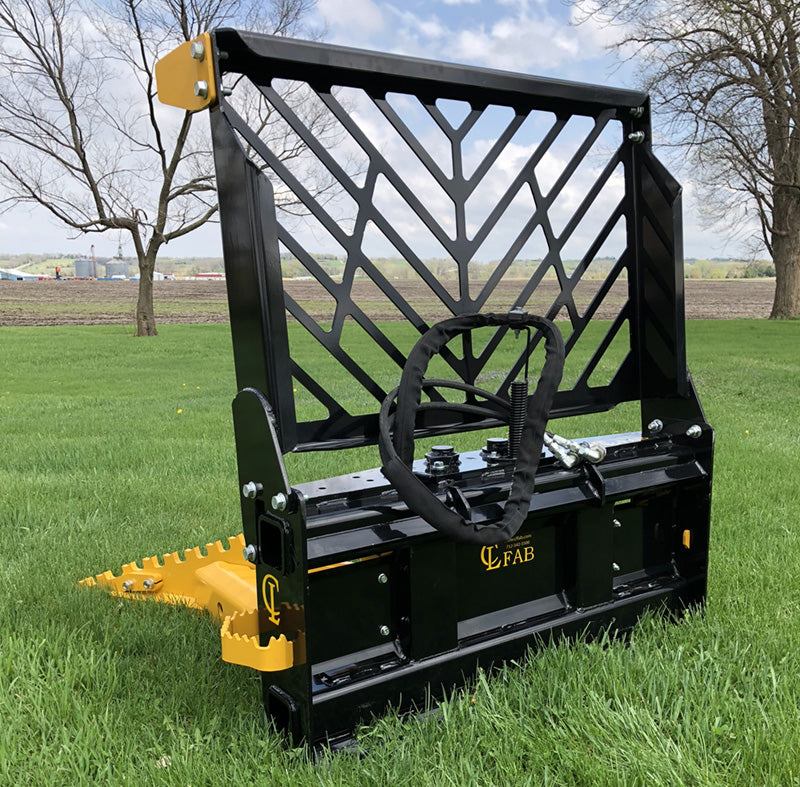

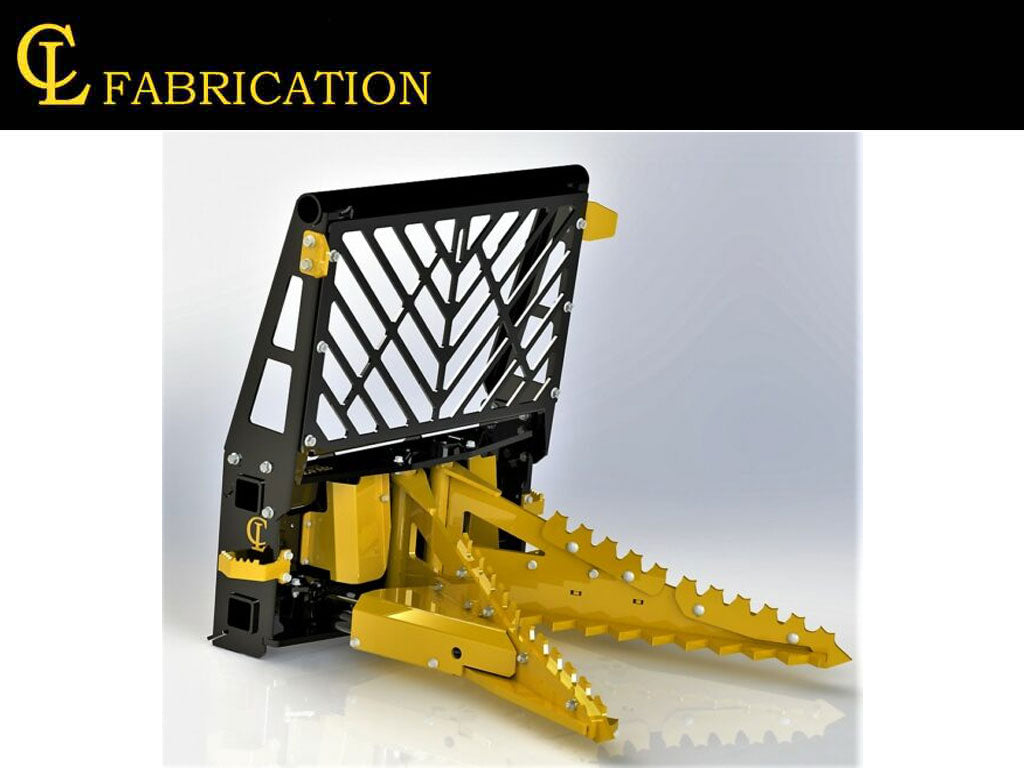

Optional Pusher/Cab Guard

  • 21″ or 31″ height.
  • 3/8″ thick, formed uprights.
  • 3.5″ SCH 80 pipe cross tube.
  • Three different screen thicknesses 1/4", 3/8", 1/2"
  • to fit your needs

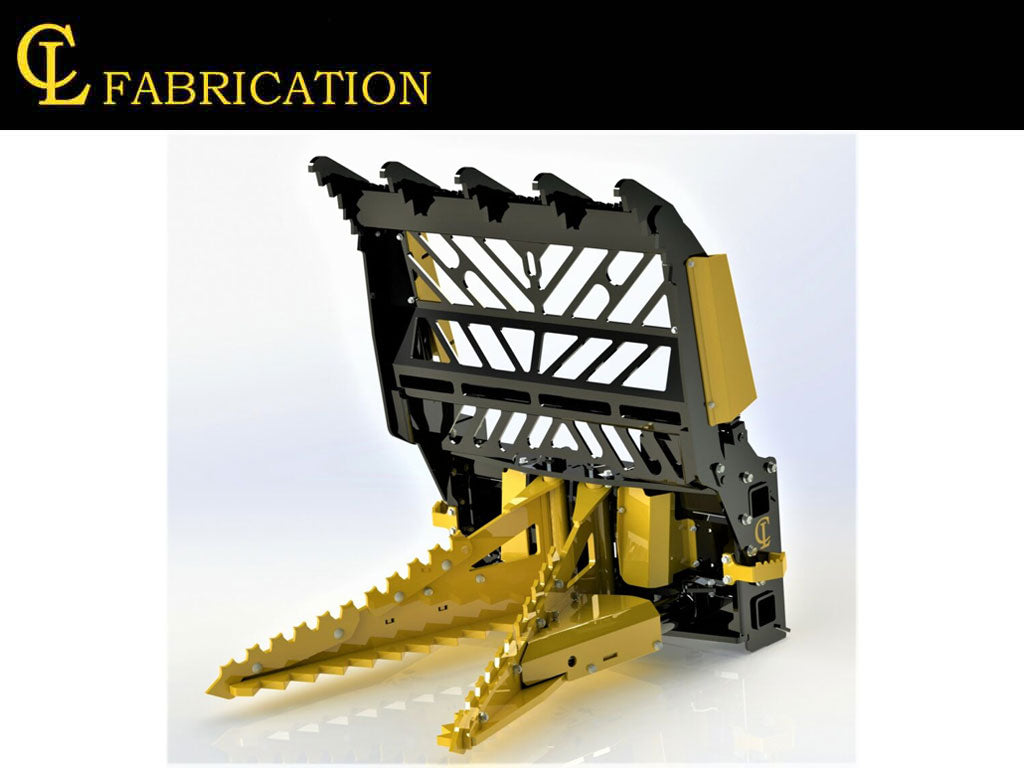

Optional hydraulic grapple
