BERLON Bale Spear Carriages for skid steers

Configuration

Bale Spear Carriages

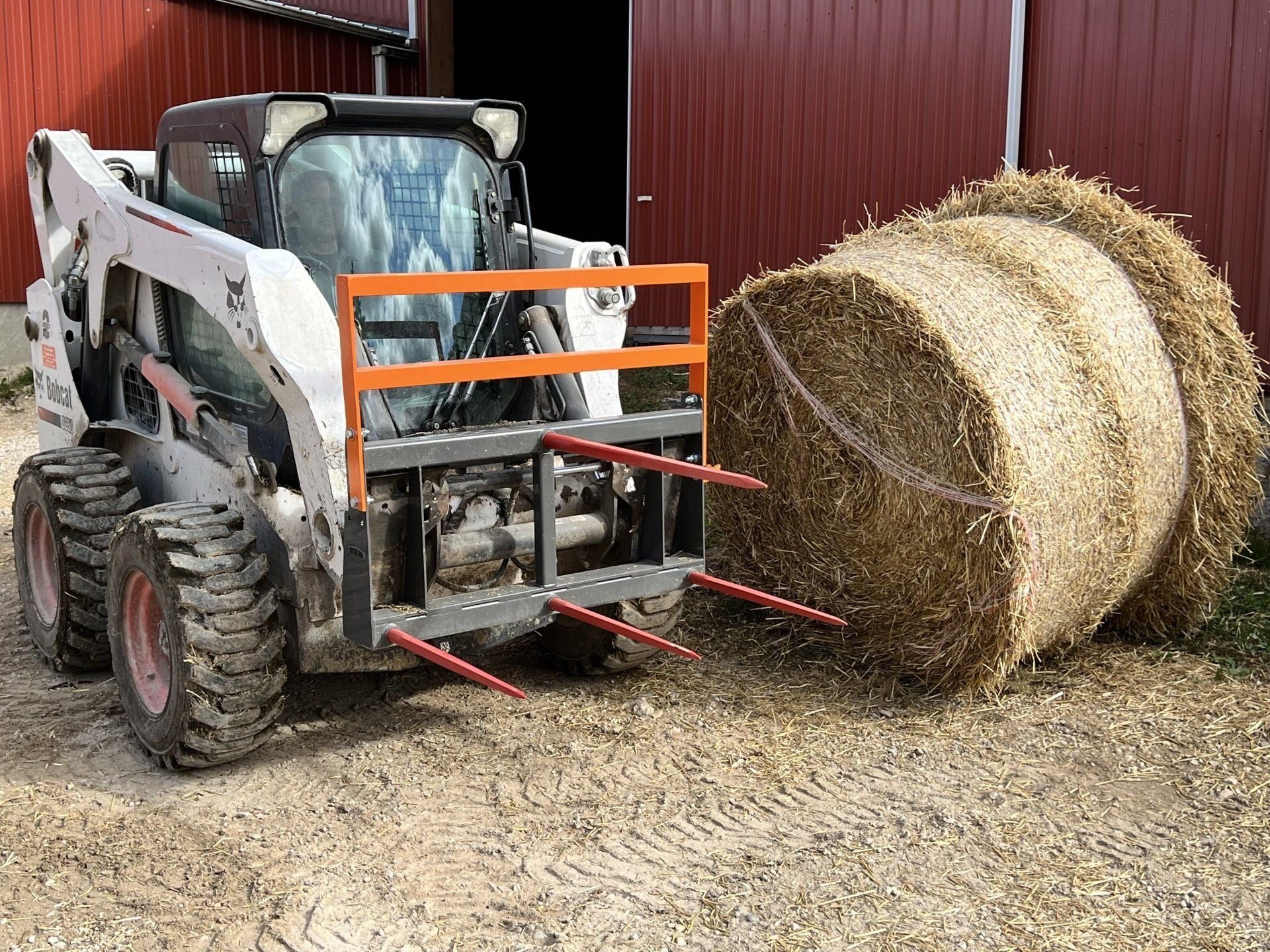

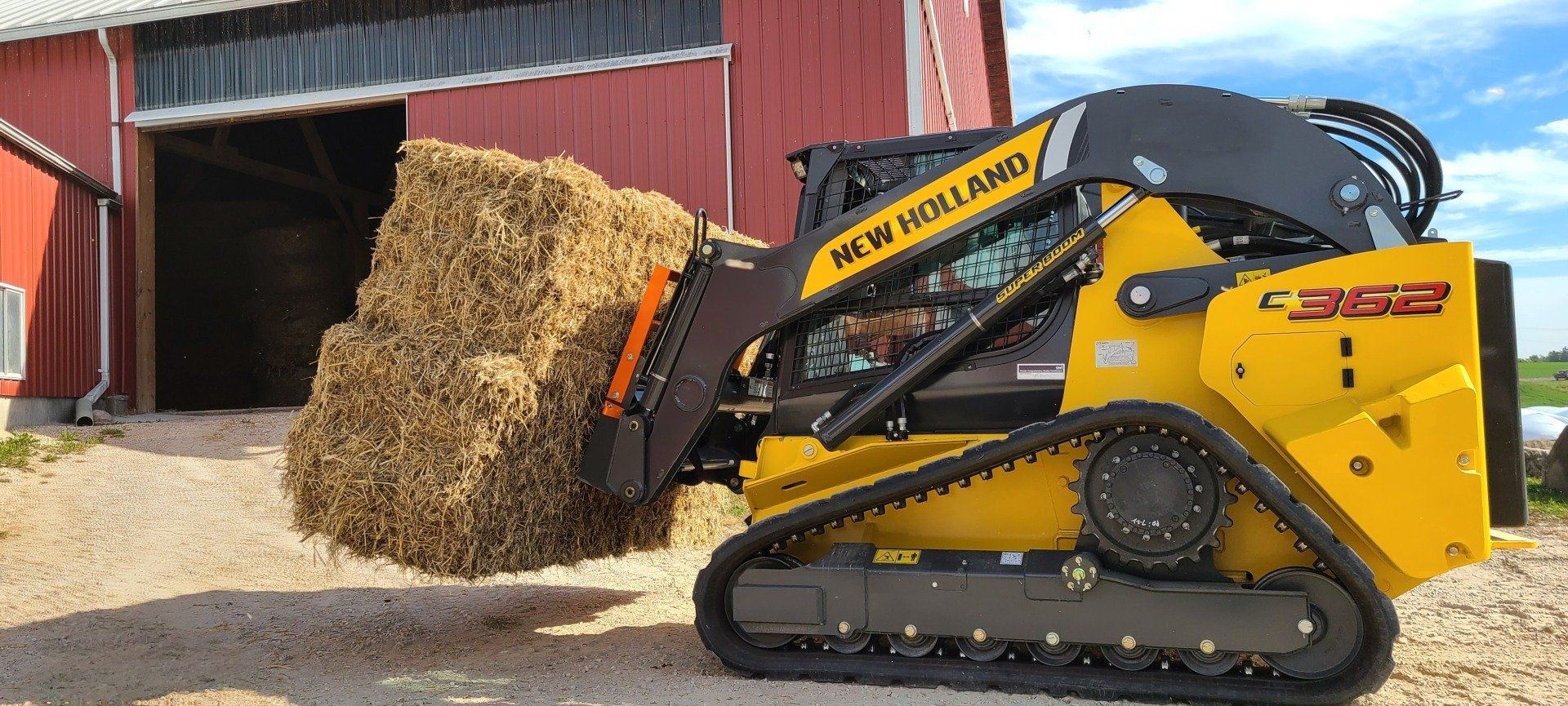

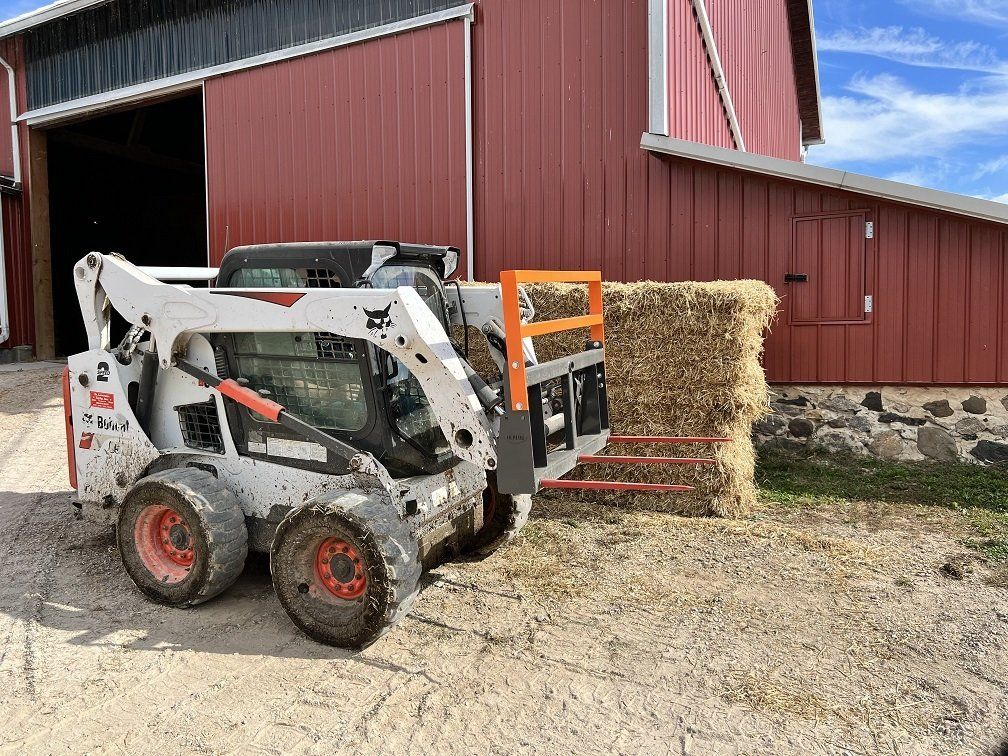

Bale Spear Carriages provide unmatched versatility in handling hay bales. Our standard skid steer bale spear carriage attachment can be purchased with or without a bale guard. We offer several different configurations to accommodate moving round or square bales.

  • Models available for skid steers, loaders, compact tractors, telehandlers, and wheel loaders
  • Carriages are available with and without bale guards, giving options to best suit your needs
  • Conus I or Conus II tines with rating from 1,795 lbs to 3,495 lbs. per tine
  • All models include universal mounting plate; other mounts available (No mount priced on BSCTH or BSCWL)
  • Unique 4-sided tapered tine design enables tines to slip into and retract from dense bales

FRAME SPECIFICATIONS

TINE SPECIFICATIONS

***CALL LANGEFELS EQUIPMENT COMPANY FOR SPECIAL CONFIGURATIONS.

MODEL DESCRIPTION
BSC-3324

(BSC) Carriage including a bale guard.

3 (C1T-324) Bottom tines.

BSC-3324NR

(BSCNR) Carriage without a bale guard.

(C2T-440) Top tine, and 3 (C1T-324) Bottom tines.

BSC-1442324

(BSC) Carriage including a bale guard.

(C2T-440) Top tine, and 2 (C1T-324) Bottom Tines.

BSC-1442324NR

(BSCNR) Carriage without a bale guard.

(C2T-440) Top tine, and 2 (C1T-324) Bottom Tines.

BSC-1443324

(BSC) Carriage including a bale guard.

(C2T-440) Top tine, and 3 (C1T-324) Bottom Tines.

BSC-1443324NR

(BSCNR) Carriage without a bale guard.

(C2T-440) Top tine, and 3 (C1T-324) Bottom Tines.

BSC-249NR-2

(BSCNR-2) Carriage without a bale guard.

(CT2-490) Bottom tines.

BSC-1442400

(BSC) Carriage including a bale guard.

(C2T-440) Top Tine, and 2 (C1T-400) Bottom Tines.

BSC-4324SQ

(BSCSQ) Carriage with an optional bale guard.

(C1T-324) Bottom Tines.


CARRIAGE MODEL DESCRIPTION
BSC

DESIGNED FOR BOTH SQUARE AND ROUND BALES.

INCLUDES A BALE GUARD.

BSCNR / BSCNR-2

DESIGNED FOR ROUND BALES.

NO BALE GUARD.

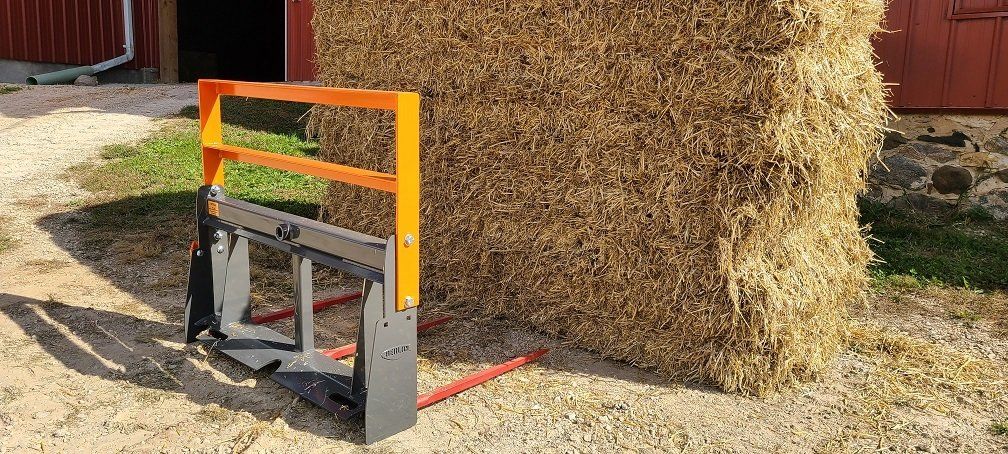

BSCSQ

DESIGNED FOR SQUARE BALES

BALE GUARD IS OPTIONAL.
