BERLON Extended Lip Heavy Duty Grapple Bucket skid steers

Size
Edge

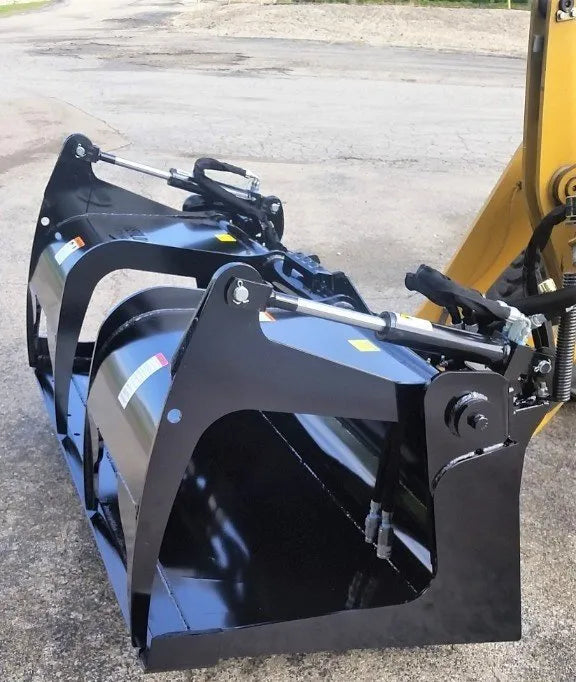

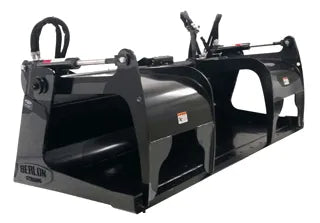

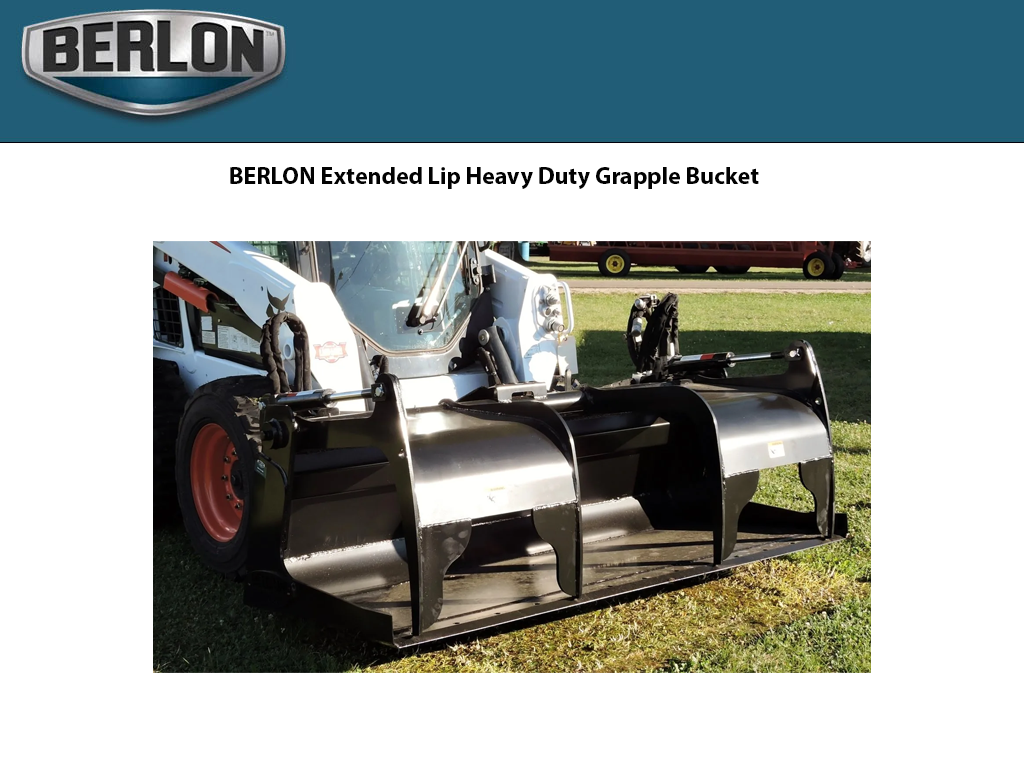

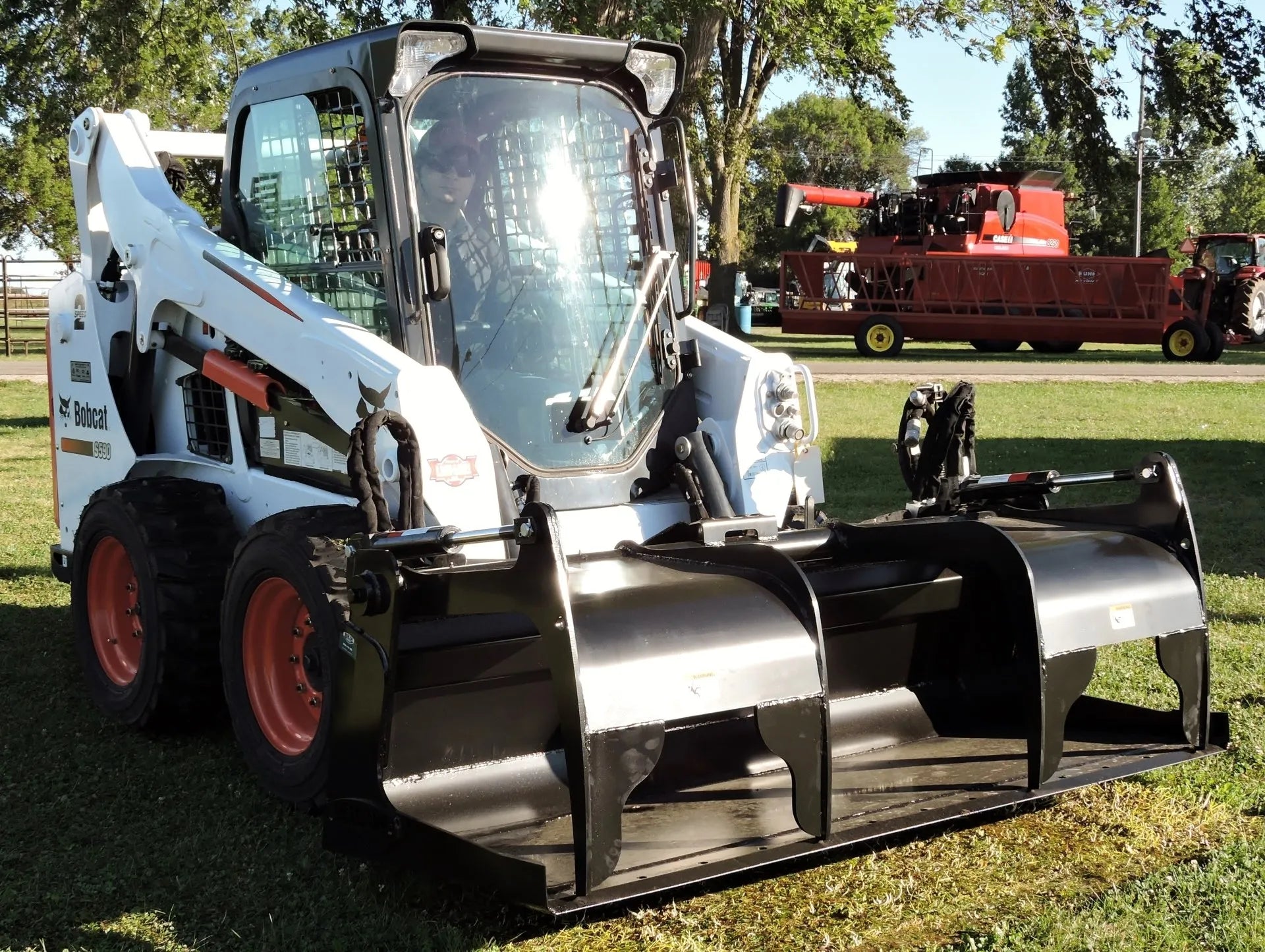

Extended Lip Heavy Duty Grapple

Berlon’s Extended Lip Heavy Duty Grapple has claws that operate independently to accommodate a variety of material shapes and sizes.

Common uses include: Demolition, scrap yard, and other general clean-up applications.

  • 1/4” thick steel body
  • Double reinforcement tube across back of bucket
  • 3/4” x 6” weld-on cutting edge with holes
  • Dual, independent claws
  • Cylinders - 3,000 lb., 2.5” bore
  • Scrap ends, hose & couplers, hose saver and needle valve included
  • Bucket bottom includes a heavy-duty dimple plate *A Berlon Exclusive*

B SERIES INSIDE DIMENSION  OUTSIDE DIMENSION "A" HEIGHT "B" DEPTH "C" ANGLE "D" GRAPPLE OPENING LBS
BELHDGR-78
78.0"
79.5" 23.5" 36.0" 70° 34.25" 1384
BELHDGR-84
84.0" 85.5"
23.5" 36.0" 70°
34.25" 1452
BELHDGR-90 90.0" 91.5"
23.5" 36.0" 70° 34.25" 1530
