MISLMB-48

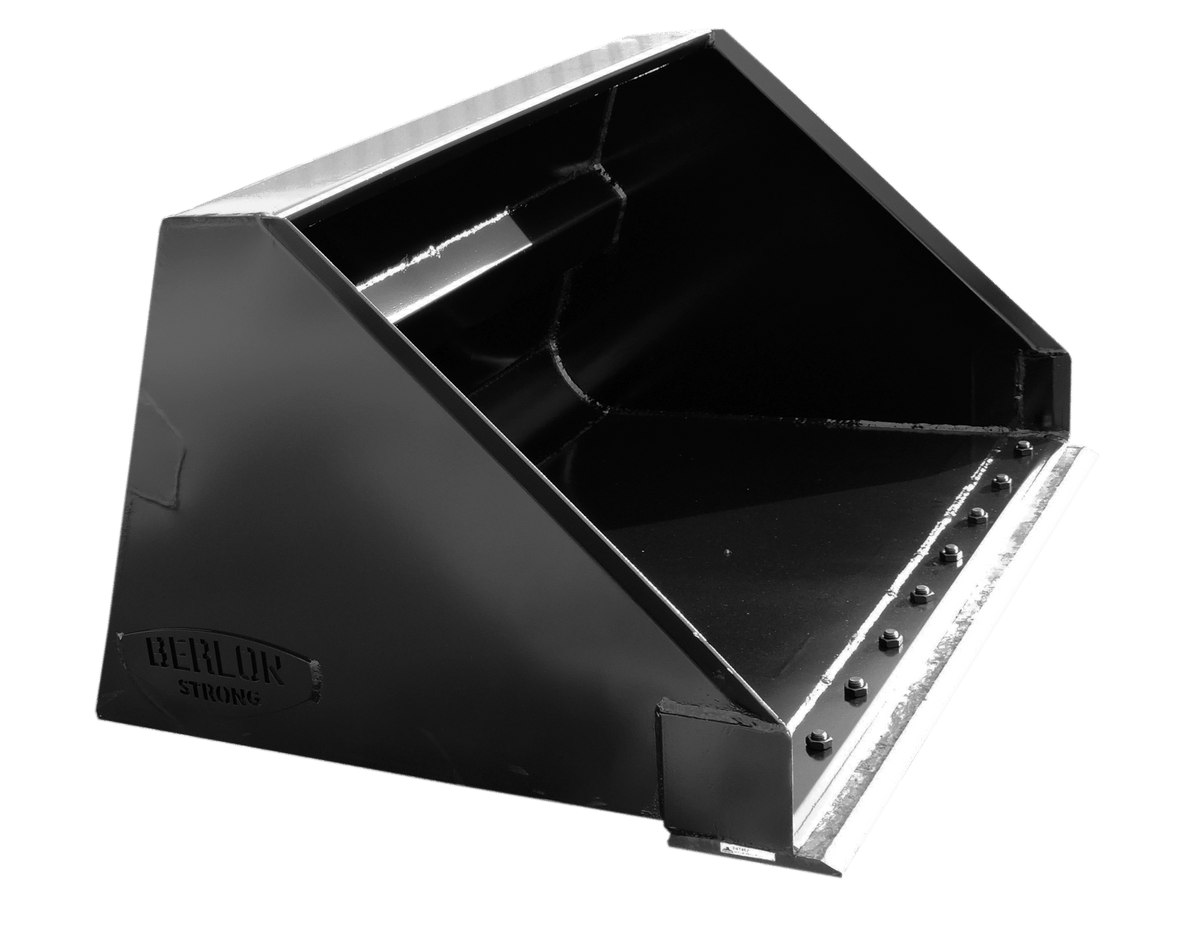

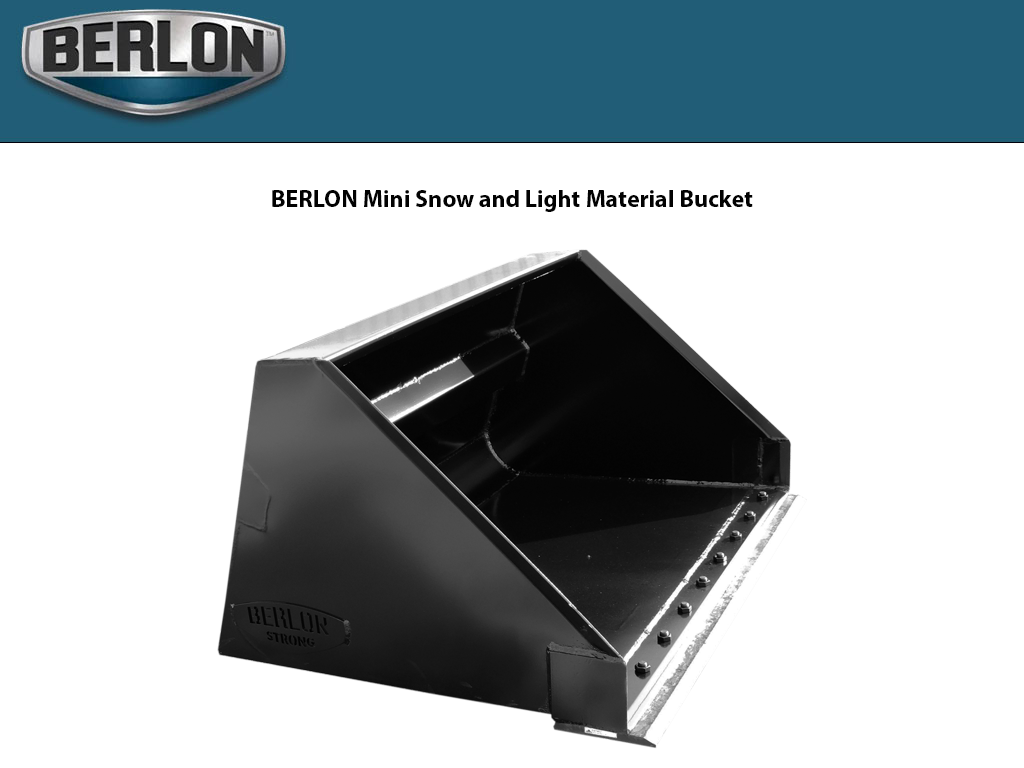

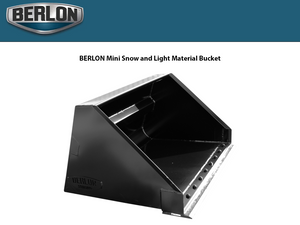

BERLON Snow and Light Material Bucket for Mini Loaders

Size
Edge
Revised 1/24

Mini Snow and Light Material

Berlon’s Mini Snow and Light Material bucket is ideal for snow and light materials such as mulch.

Common uses include: Snow removal and mulch

  • 3/16” thick steel body
  • 1/2" x 4" weld-on cutting edge with holes
  • Radius kick-out plate for added strength and easy clean-out
  • Reinforcement tube across back of bucket for added strength

    B SERIES INSIDE DIMENSION  OUTSIDE DIMENSION "A" HEIGHT "B" DEPTH "C" ANGLE LBS
    MISLMB-48 48.0"
    49.5"
    29.0" 39.0" 70° 440
    MISLMB-54
    42.0"
    33.5"
    29.0" 39.0" 70°
    465
    MISLMB-60
    60.0"
    61.5"
    29.0" 39.0" 70° 490





    How to Determine Bucket Capacity

    The amount of material a bucket can carry is determined as struck (level) capacity and heaped capacity. The heaped capacity is the actual cubic feet. The following formulas are used to determine capacities and will help you compare the capacity of various buckets.


    To calculate cubic feet of a bucket:

    1: Measure from the top of the bucket straight down to the bottom in inches = Height

    2: Measure from the front of the floor to the back in inches = Depth

    3: Height x Depth ÷ 2 x Width = Cubic Inches ÷ 1,728 = Struck Capacity (Cubic Feet)


    To calculate heaped capacity of a bucket:

    For B, BEL, BELHD, UT, CCT, BEC, MIB, & MIBEL series buckets: Cubic Feet ÷ 3 = Heaped Amount + Cubic Feet = Heaped Capacity

    For UTHB, FMX, HCSB, HVMB, CAL, & MISLMB series buckets: Cubic Feet ÷ 2.5 = Heaped Amount + Cubic Feet = Heaped Capacity
