BERLON HVMB High volume marterial buckets for skid steers

Size
Edge
Options

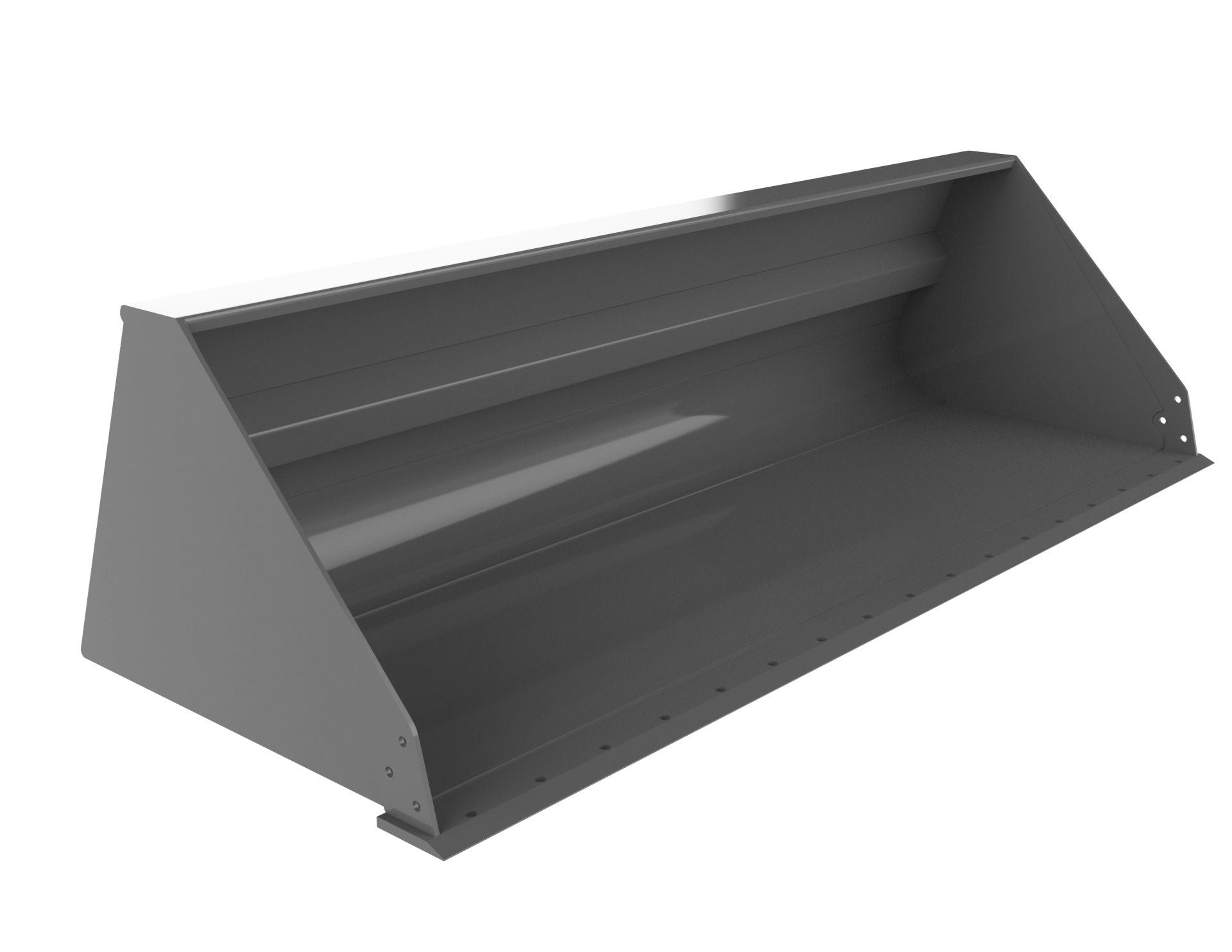

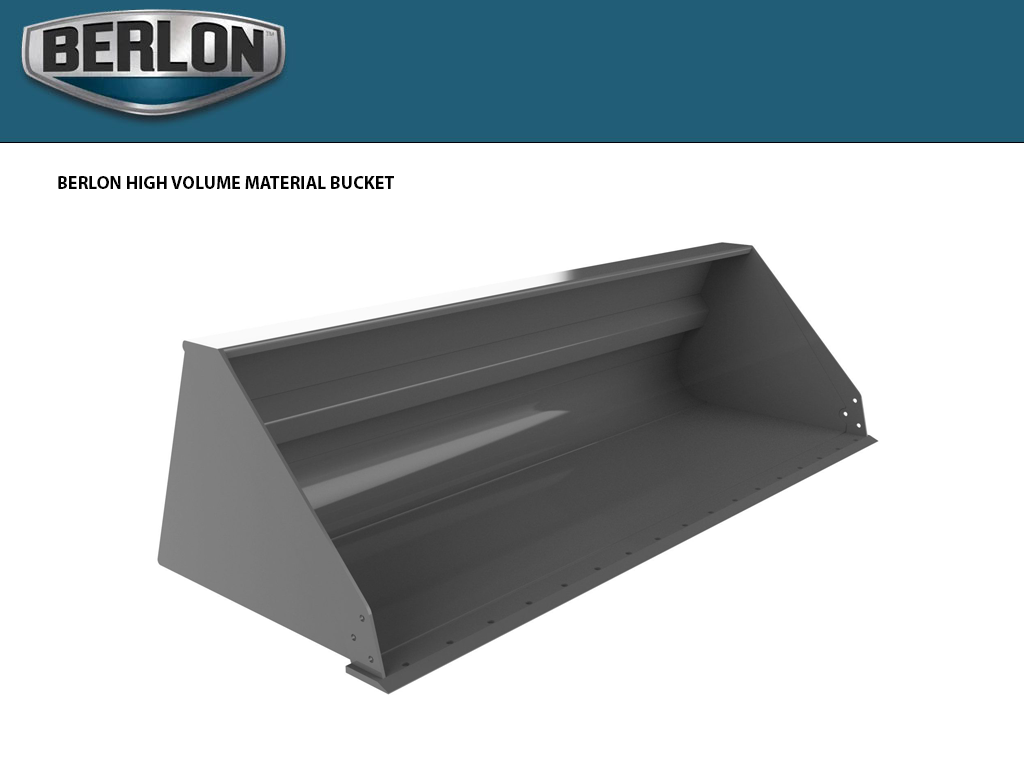

High Volume Material Bucket

Berlon’s High Volume Material bucket is ideal for use on the farm, handling livestock feed, digging out bag silage, snow removal, landscaping and other high volume applications.


 Common uses include: Feed, snow, digging out bag silage, landscaping and farm use.

  • 3/16” thick steel body
  • Reinforcement tube across back of bucket for added strength
  • 3/4” x 6” weld-on cutting edge with holes
  • Combined SLMB, MDHV and HDHV Series
  • Radius kick-out plate for added strength and easy clean-out

      B SERIES INSIDE DIMENSION (IN.) OUTSIDE DIMENSION "A" HEIGHT "B" DEPTH "C" ANGLE LBS
      HVMB-60 60.0" 61.5" 29.0" 39.0" 70° 510
      HVMB-66 66.0" 67.5" 29.0" 39.0" 70° 553
      HVMB-72
      72.0" 73.5" 29.0" 39.0" 70° 573
      HVMB-78
      78.0" 79.5" 29.0" 39.0" 70° 607
      HVMB-84
      84.0" 85.5" 29.0" 39.0" 70° 710
      HVMB-96
      90.0" 91.5" 29.0" 39.0" 70° 840
      HVMB-102 102.0" 103.5" 29.0" 39.0" 70° 925



      How to Determine Bucket Capacity

      The amount of material a bucket can carry is determined as struck (level) capacity and heaped capacity. The heaped capacity is the actual cubic feet. The following formulas are used to determine capacities and will help you compare the capacity of various buckets.


      To calculate cubic feet of a bucket:

      1: Measure from the top of the bucket straight down to the bottom in inches = Height

      2: Measure from the front of the floor to the back in inches = Depth

      3: Height x Depth ÷ 2 x Width = Cubic Inches ÷ 1,728 = Struck Capacity (Cubic Feet)


      To calculate heaped capacity of a bucket:

      For B, BEL, BELHD, UT, CCT, BEC, MIB, & MIBEL series buckets: Cubic Feet ÷ 3 = Heaped Amount + Cubic Feet = Heaped Capacity

      For UTHB, FMX, HCSB, HVMB, CAL, & MISLMB series buckets: Cubic Feet ÷ 2.5 = Heaped Amount + Cubic Feet = Heaped Capacity
