BERLON CAL series Compact Articulating Loader Buckets for skid steers

Size
Edge
Options

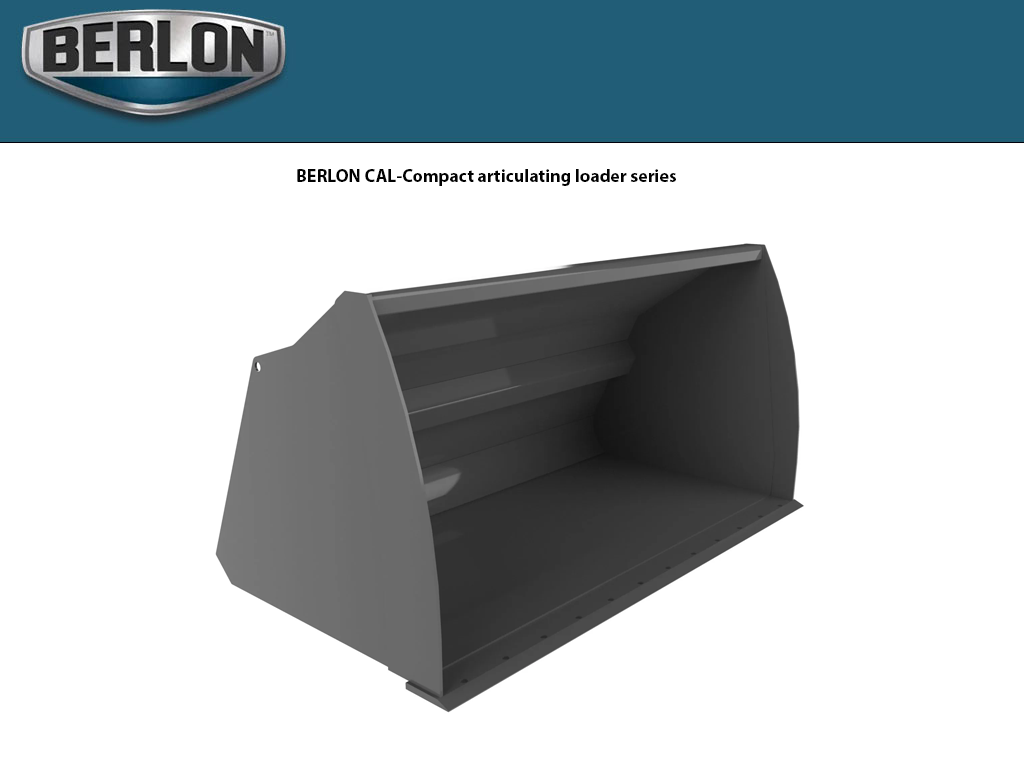

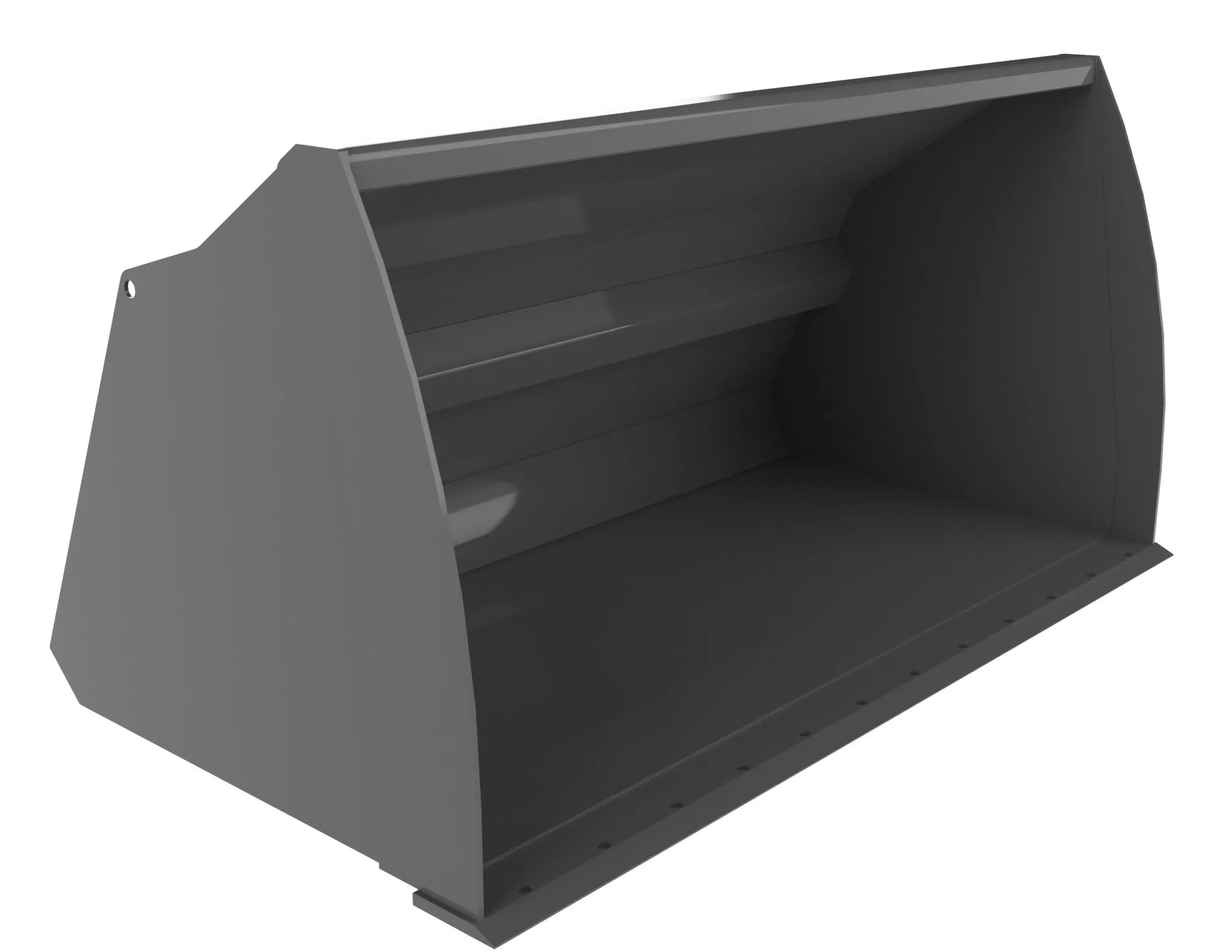

Compact Articulating Loader Bucket

Berlon’s Compact Articulating Loader bucket is ideal for loading feed mixers and other heavy duty material handling equipment.


 Common uses include: Feed, Snow, Dirt, Gravel.

  • 1/4” thick steel body
  • Reinforcement tube across back of bucket for added strength
  • 3/4” x 6” weld-on cutting edge with holes
  • Bucket bottom includes 5 wear bars for durability
  • Radius kick-out plate top and bottom for added strength and easy clean out

    B SERIES INSIDE DIMENSION (IN.) OUTSIDE DIMENSION "A" HEIGHT "B" DEPTH "C" ANGLE LBS
    CAL-72 72.0" 73.5" 35.0"  40.0" 65° 970
    CAL-78
    78.0"
    79.5"
    35.0" 40.0" 65° 1000
    CAL-84
    84.0"
    85.5" 35.0" 40.0" 65° 1030



    How to Determine Bucket Capacity

    The amount of material a bucket can carry is determined as struck (level) capacity and heaped capacity. The heaped capacity is the actual cubic feet. The following formulas are used to determine capacities and will help you compare the capacity of various buckets.


    To calculate cubic feet of a bucket:

    1: Measure from the top of the bucket straight down to the bottom in inches = Height

    2: Measure from the front of the floor to the back in inches = Depth

    3: Height x Depth ÷ 2 x Width = Cubic Inches ÷ 1,728 = Struck Capacity (Cubic Feet)


    To calculate heaped capacity of a bucket:

    For B, BEL, BELHD, UT, CCT, BEC, MIB, & MIBEL series buckets: Cubic Feet ÷ 3 = Heaped Amount + Cubic Feet = Heaped Capacity

    For UTHB, FMX, HCSB, HVMB, CAL, & MISLMB series buckets: Cubic Feet ÷ 2.5 = Heaped Amount + Cubic Feet = Heaped Capacity
