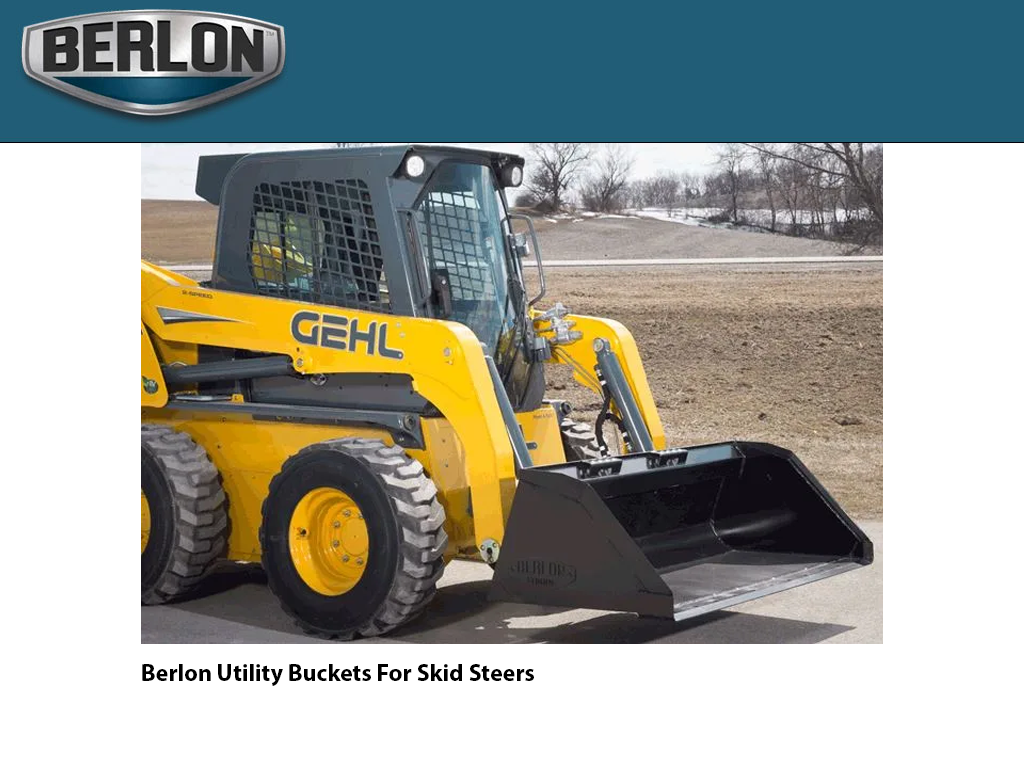

BERLON Utility bucket for skid steers

Size
Edge
Options

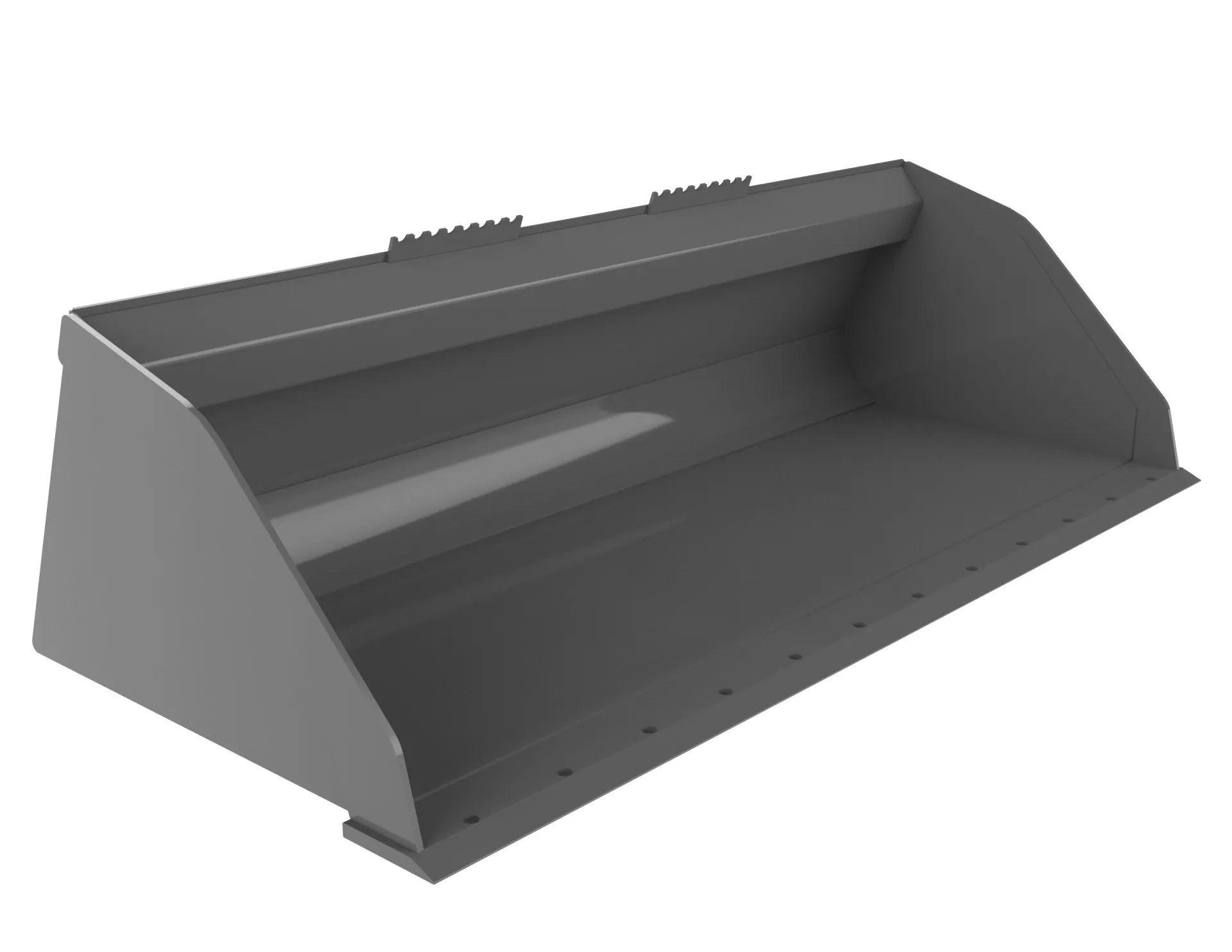

Utility Bucket

Berlon’s Utility bucket is a general purpose bucket and ideal for handling mulch and other dry materials.


 Common uses include: General purpose.

  • 3/16” thick steel body
  • Radius kick-out plate for added strength and easy clean-out
  • 3/4” x 6” weld-on cutting edge with holes
  • Reinforcement tube across back of bucket for added strength

      B SERIES INSIDE DIMENSION (IN.) OUTSIDE DIMENSION "A" HEIGHT "B" DEPTH "C" ANGLE LBS
      UT-48 48.0" 49.5" 21.0" 33.0" 70° 353
      UT-54 54.0" 55.5" 21.0" 33.0" 70° 385
      UT-60 60.0"
      61.5"
      21.0" 33.0" 70° 406
      UT-66 66.0"
      67.5"
      21.0" 33.0" 70° 431
      UT-72
      72.0"
      73.5"
      21.0" 33.0" 70° 770
      UT-78
      78.0"
      79.5"
      21.0"
      33.0" 70° 505



      How to Determine Bucket Capacity

      The amount of material a bucket can carry is determined as struck (level) capacity and heaped capacity. The heaped capacity is the actual cubic feet. The following formulas are used to determine capacities and will help you compare the capacity of various buckets.


      To calculate cubic feet of a bucket:

      1: Measure from the top of the bucket straight down to the bottom in inches = Height

      2: Measure from the front of the floor to the back in inches = Depth

      3: Height x Depth ÷ 2 x Width = Cubic Inches ÷ 1,728 = Struck Capacity (Cubic Feet)


      To calculate heaped capacity of a bucket:

      For B, BEL, BELHD, UT, CCT, BEC, MIB, & MIBEL series buckets: Cubic Feet ÷ 3 = Heaped Amount + Cubic Feet = Heaped Capacity

      For UTHB, FMX, HCSB, HVMB, CAL, & MISLMB series buckets: Cubic Feet ÷ 2.5 = Heaped Amount + Cubic Feet = Heaped Capacity
