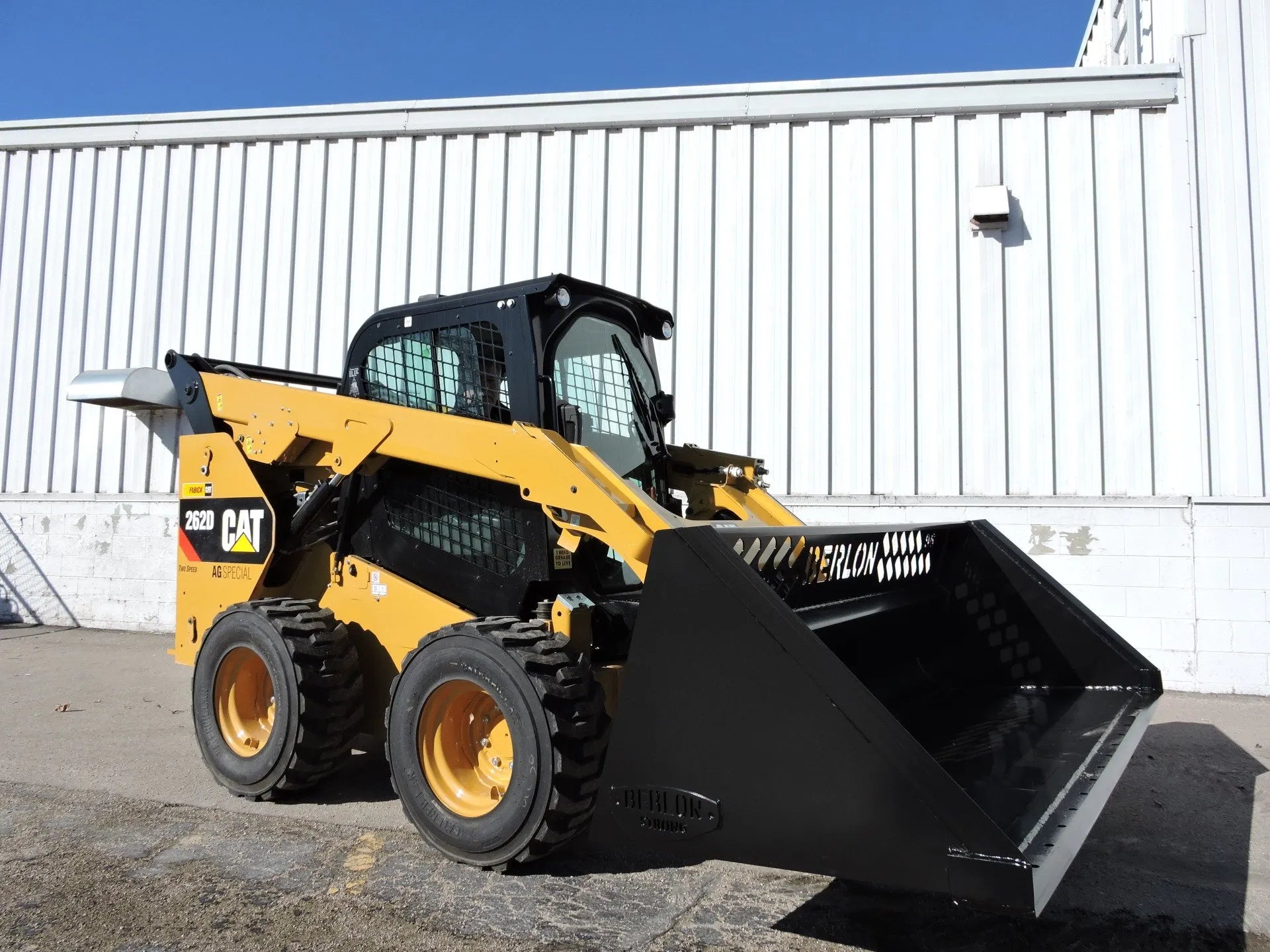

BERLON HCSB High Capacity Snow Buckets for skid steers

Size
Edge
Options

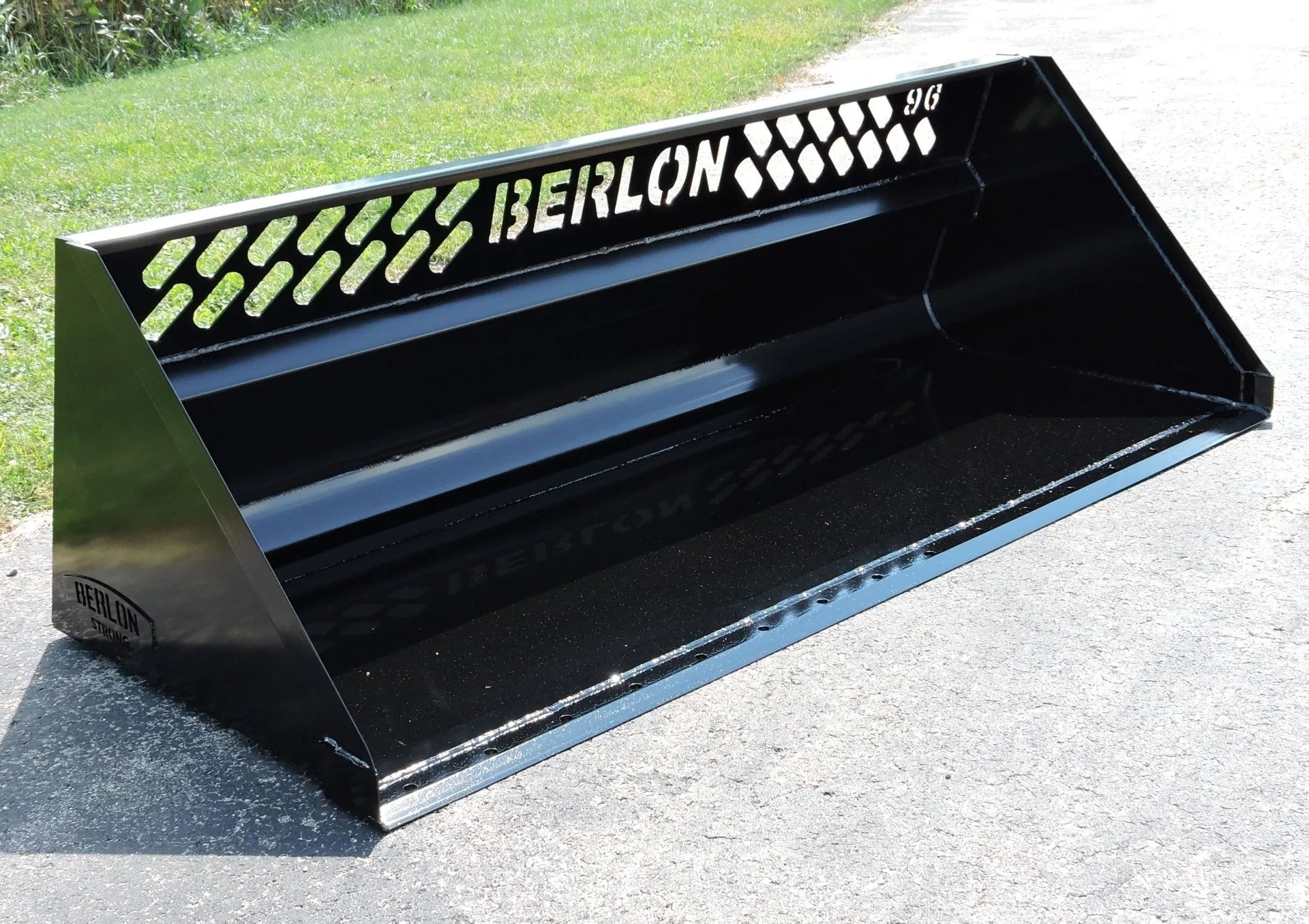

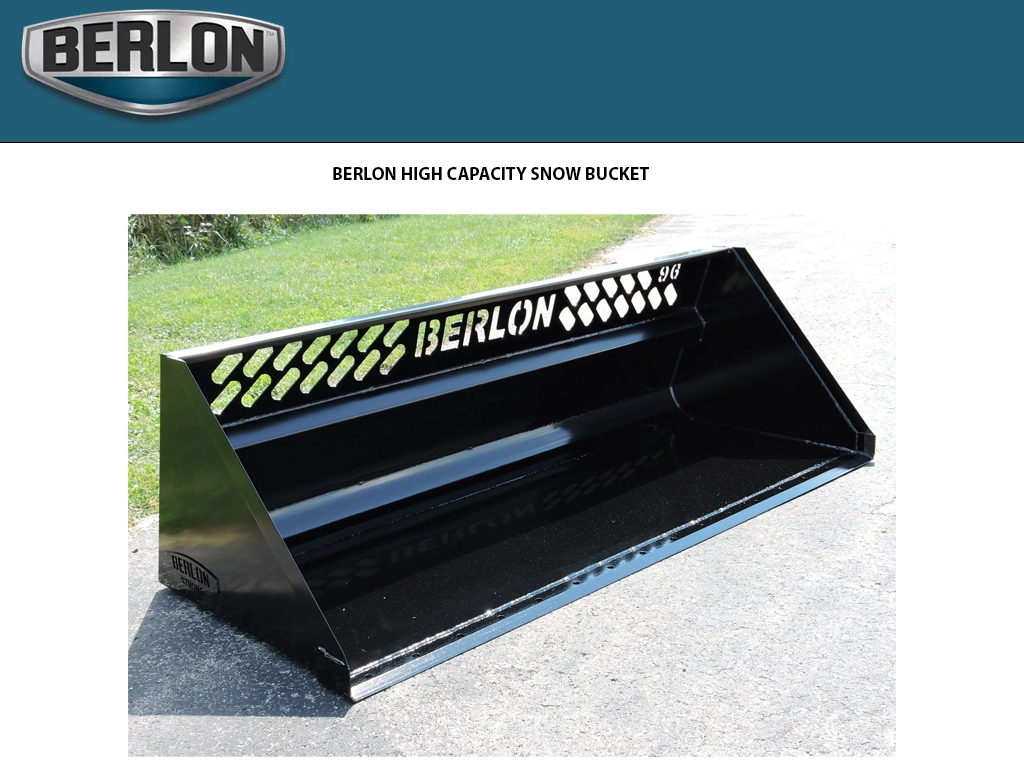

High Capacity Snow Bucket

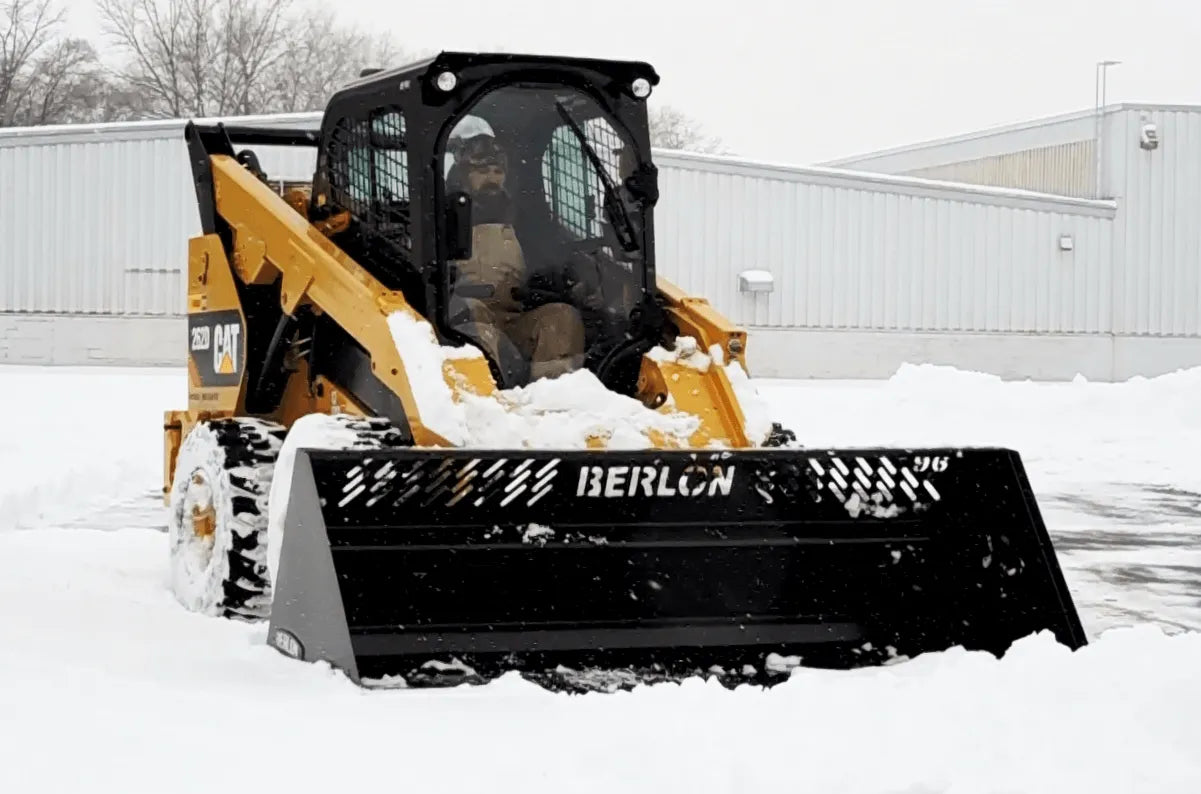

Berlon’s High Capacity Snow bucket is ideal for loading and handling snow and other materials. This bucket offers viewing slots for greater cutting edge visibility.


 Common uses include: Snow and other Material

  • 3/16” thick steel body
  • Radius kick-out plate for added strength and easy clean-out
  • 3/4” x 6” weld-on cutting edge with holes
  • Reinforcement tube across back of bucket for added strength
  • 2” x 4-1/2” viewing slots for greater visibility
    B SERIES INSIDE DIMENSION (IN.) OUTSIDE DIMENSION "A" HEIGHT "B" DEPTH "C" ANGLE LBS
    HCSB-72 72.0" 73.5"
    31.0" 41.0" 70° 592
    HCSB-78
    78.0"
    79.5"
    31.0" 41.0" 70° 641
    HCSB-84
    84.0"
    85.5" 31.0" 41.0" 70° 690
    HCSB-96
    96.0"
    97.5"
    31.0" 41.0" 70° 789
    HCSB-102
    102.0"
    103.5"
    31.0" 41.0" 70° 838



    How to Determine Bucket Capacity

    The amount of material a bucket can carry is determined as struck (level) capacity and heaped capacity. The heaped capacity is the actual cubic feet. The following formulas are used to determine capacities and will help you compare the capacity of various buckets.


    To calculate cubic feet of a bucket:

    1: Measure from the top of the bucket straight down to the bottom in inches = Height

    2: Measure from the front of the floor to the back in inches = Depth

    3: Height x Depth ÷ 2 x Width = Cubic Inches ÷ 1,728 = Struck Capacity (Cubic Feet)


    To calculate heaped capacity of a bucket:

    For B, BEL, BELHD, UT, CCT, BEC, MIB, & MIBEL series buckets: Cubic Feet ÷ 3 = Heaped Amount + Cubic Feet = Heaped Capacity

    For UTHB, FMX, HCSB, HVMB, CAL, & MISLMB series buckets: Cubic Feet ÷ 2.5 = Heaped Amount + Cubic Feet = Heaped Capacity
