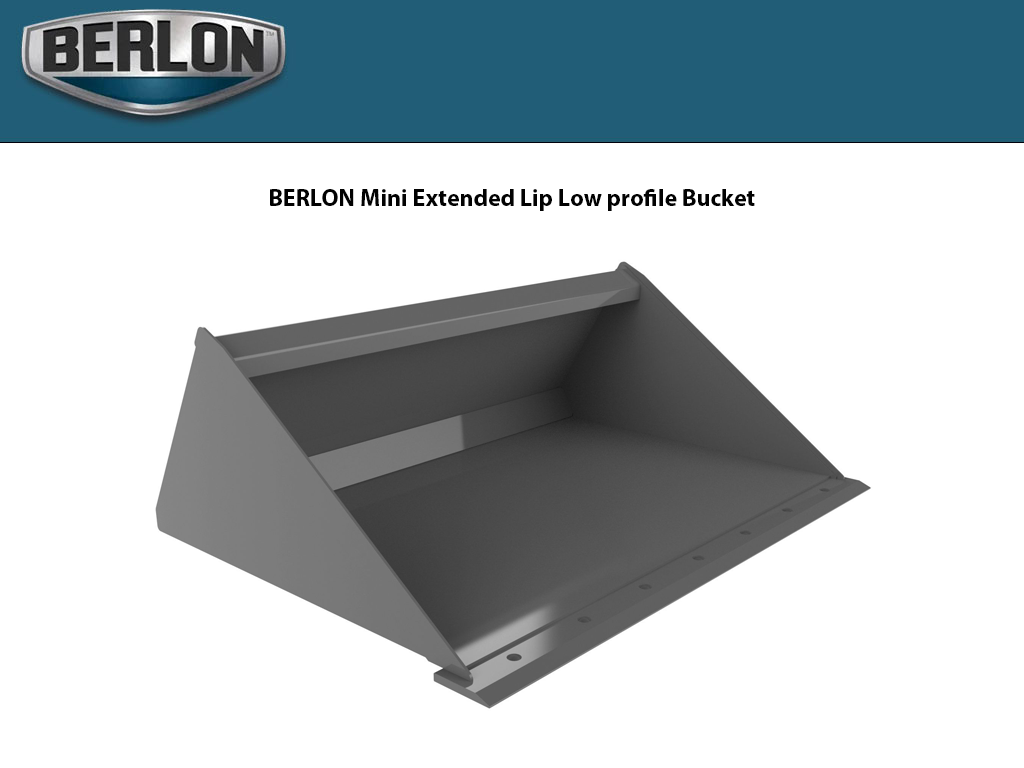

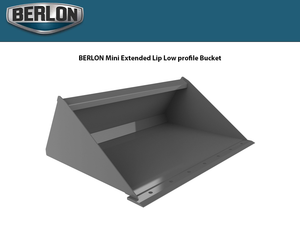

BERLON Extended Lip Low Profile Bucket for Mini Loaders

Size
Edge
Options

Mini Extended Lip Low Pro

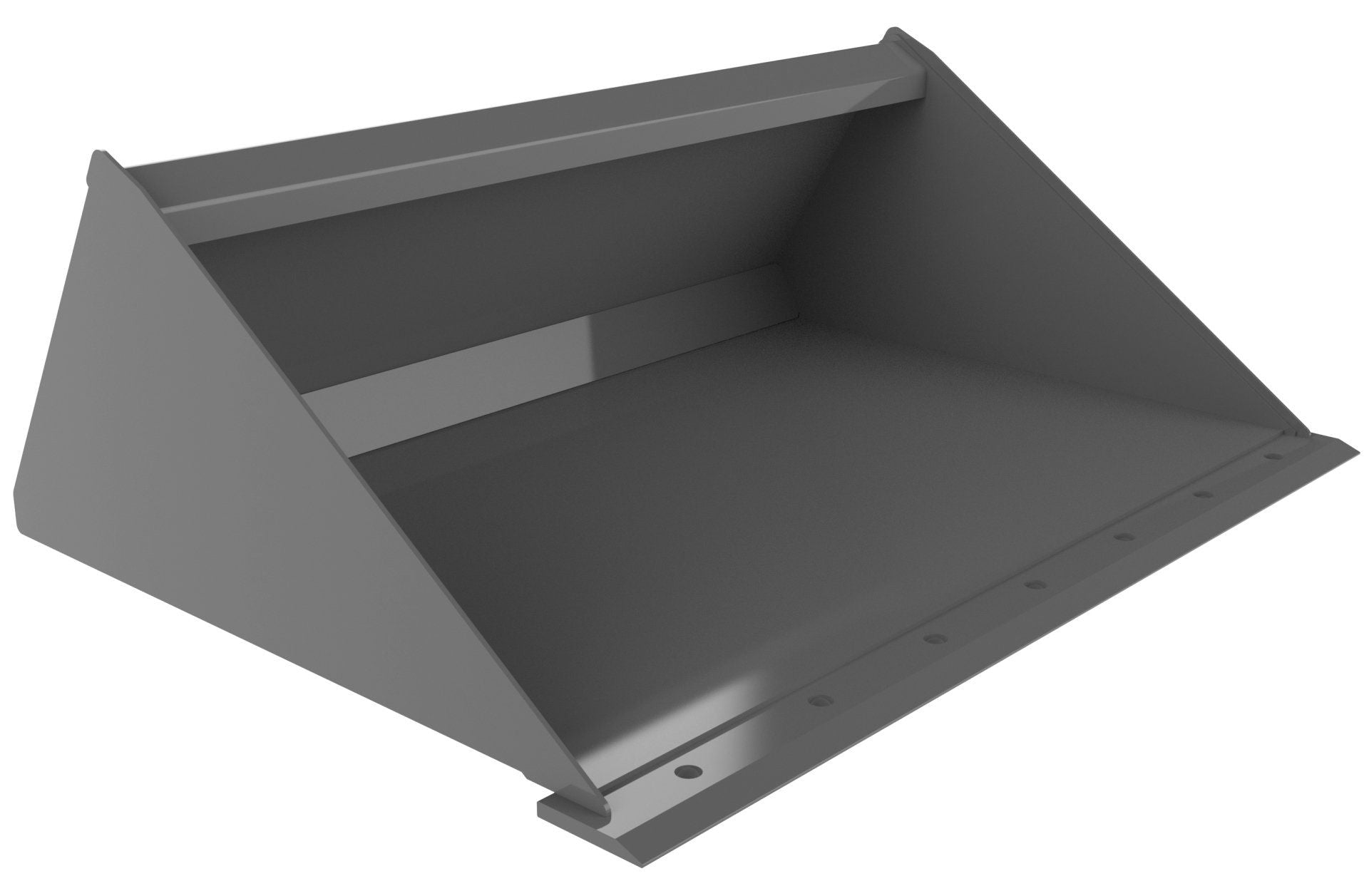

Berlon’s Mini Extended Lip Low Pro Bucket has a lower back height and deeper floor for better visibility.

Common uses include: Landscaping and light construction.

  • 3/16” thick steel body
  • 1/2" x 4" weld-on cutting edge with holes
  • Reinforcement tube across back of bucket for added strength




    B SERIES INSIDE DIMENSION  OUTSIDE DIMENSION "A" HEIGHT "B" DEPTH "C" ANGLE LBS
    MIBEL-36 36.0" 37.5"
    29.0" 39.0" 70° 440
    MIBEL-42
    42.0"
    33.5"
    29.0" 39.0" 70°
    465
    MIBEL-48
    48.0"
    49.5"
    29.0"
    39.0" 70° 490





    How to Determine Bucket Capacity

    The amount of material a bucket can carry is determined as struck (level) capacity and heaped capacity. The heaped capacity is the actual cubic feet. The following formulas are used to determine capacities and will help you compare the capacity of various buckets.


    To calculate cubic feet of a bucket:

    1: Measure from the top of the bucket straight down to the bottom in inches = Height

    2: Measure from the front of the floor to the back in inches = Depth

    3: Height x Depth ÷ 2 x Width = Cubic Inches ÷ 1,728 = Struck Capacity (Cubic Feet)


    To calculate heaped capacity of a bucket:

    For B, BEL, BELHD, UT, CCT, BEC, MIB, & MIBEL series buckets: Cubic Feet ÷ 3 = Heaped Amount + Cubic Feet = Heaped Capacity

    For UTHB, FMX, HCSB, HVMB, CAL, & MISLMB series buckets: Cubic Feet ÷ 2.5 = Heaped Amount + Cubic Feet = Heaped Capacity
