RG-78

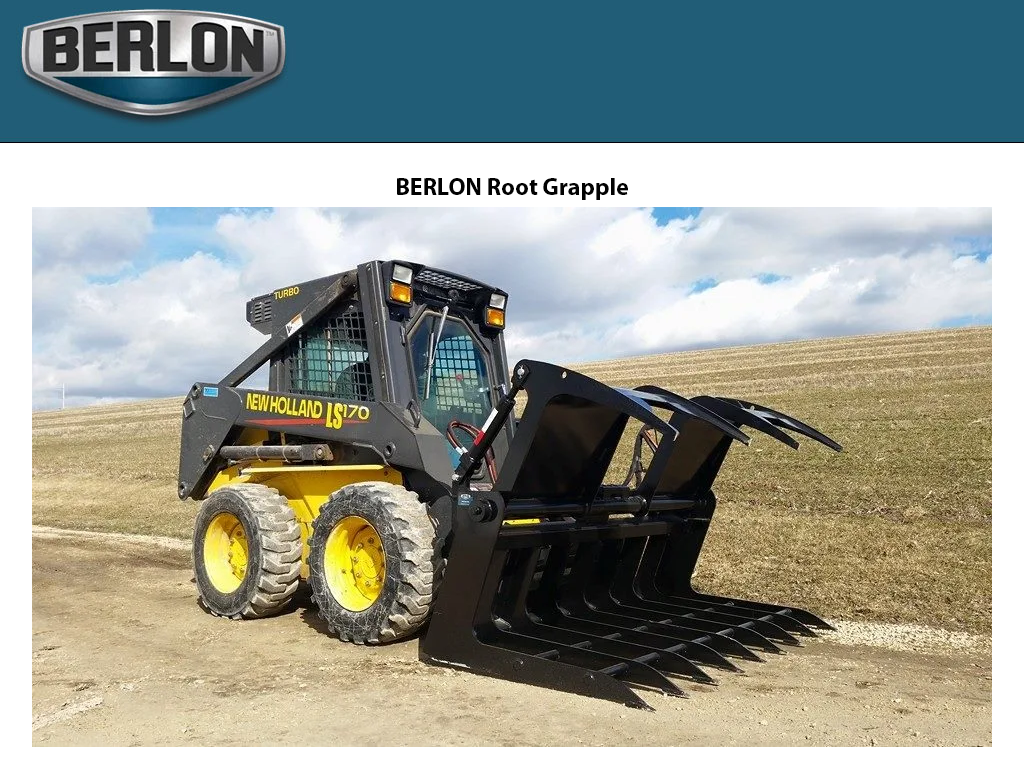

BERLON Root Grapple for skid steers
$6,295.00 - $6,405.00
Revised 1/24
Root Grapple
Berlon’s Root Grapple is designed for a skid steer, wheel loader, or compact tractor. Heavy-duty tines are spaced to allow debris, not intended for removal, to fall through
Common uses include: Clearing fence lines and moving brush, logs, and rocks
- (2) 1-1/4” solid round rods provide superior tine support
- Dual, independent claws
- Cylinders - 3,000 lb., 2.5” bore
- Hoses & couplers, hose saver and needle valve included
- Heavy duty fully welded construction
| B SERIES | INSIDE DIMENSION | OUTSIDE DIMENSION | "A" HEIGHT | "B" DEPTH | "C" ANGLE | "D" GRAPPLE OPENING | LBS |
| RG-78 | 78.0" | 79.5" |
21.0" | 42.0" | 70° | 34.75" | 1153 |
| RG-84 | 84.0" | 85.5" | 21.0" | 42.0" | 70° | 34.75" | 1218 |
