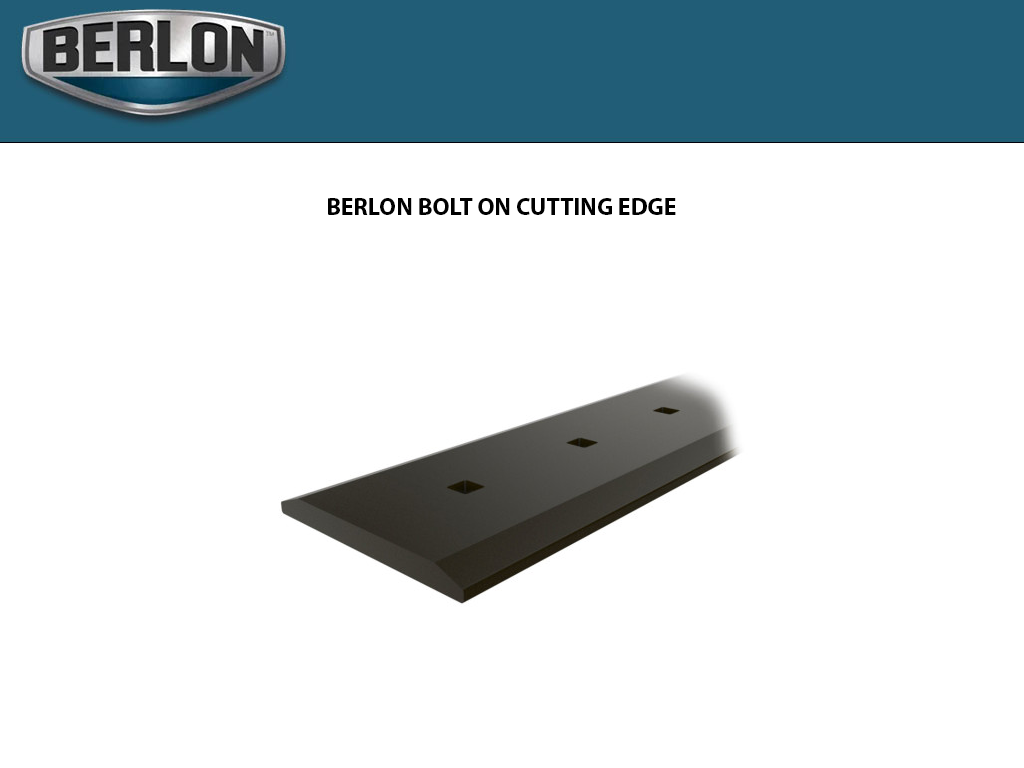

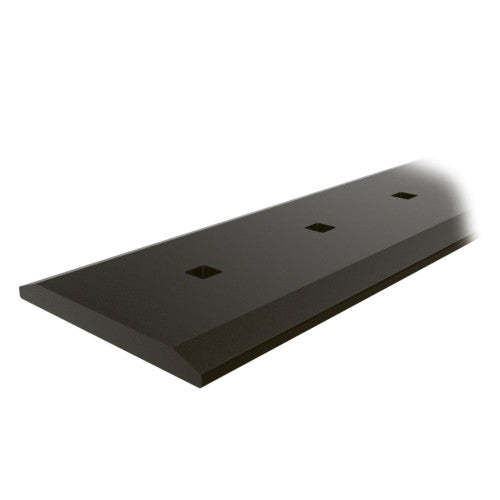

BERLON Bolt on cutting edge

Model #

Bolt-On Cutting Edge

Berlon’s Bolt-On Cutting Edge is bolted to the lead edge end of a skid steer, loader or compact tractor bucket, extending the life of the bucket edge

  • Reversible 3/4” x 8” beveled edge
  • First hole 4” from end and 6” on center
  • C-1080 high-carbon steel
*** BERLON BOLT ON CUTTING EDGE IS MADE SPECIFICALLY FOR BERLON BUCKETS
MODEL # Dimensions (in.)  length (in.) weight # of holes
BOCE-48 3/4" x 8" 50.0" 74 8
BOCE-54 3/4" x 8" 56.0" 84 9
BOCE-60 3/4" x 8" 62.0" 92 10
BOCE-66 3/4" x 8" 68.0" 101 11
BOCE-72 3/4" x 8" 74.0" 116 12
BOCE-78 3/4" x 8" 80.0" 122 13
BOCE-84 3/4" x 8" 86.0" 130 14
BOCE-90 3/4" x 8" 92.0" 140 15
BOCE-96 3/4" x 8" 98.0" 146 16
BOCE-102 3/4" x 8" 104.0" 158 17
BOCE-108 3/4" x 8" 110.0" 168 18
BOCE-120 3/4" x 8" 122.0" 186 20
