RRG-48

BERLON Root Rake Grapple for skid steers

Size
Revised 1/24

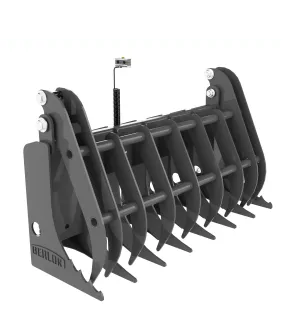

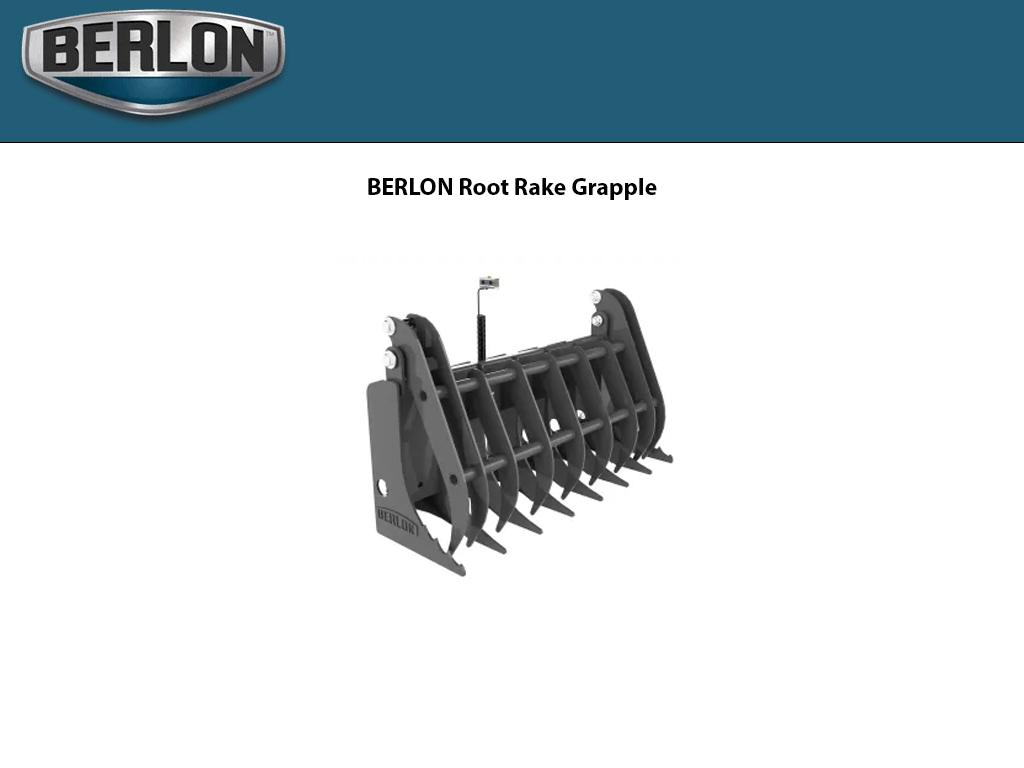

Root Rake Grapple

Berlon’s Root Rake Grapples are a must have for a compact tractor.

Common uses include: picking up brush, logs, debris, etc.

  • 50" Claw Opening
  • Cylinders mounted on back side for protection and to maximize claw opening
  • Cylinders: 2.5" bore, 8" stroke
  • Includes hose saver spring, hoses and couplers
  • Serrated Teeth on end tines

MODEL WIDTH  HEIGHT DEPTH

WORKING

DEPTH

GRAPPLE

OPENING

LBS
RRG-48 48.6" 34.0" 20.5" 12.0" 50.0" 399
RRG-56 56.5"
34.0" 20.5" 12.0" 50.0" 436
RRG-64 64.6" 34.0" 20.5" 12.0" 50.0" 473
RRG-72 72.6" 34.0" 20.5" 12.0" 50.0" 510
