LDGR-54

BERLON Light Duty Grapple for skid steers

Size
Revised 1/24

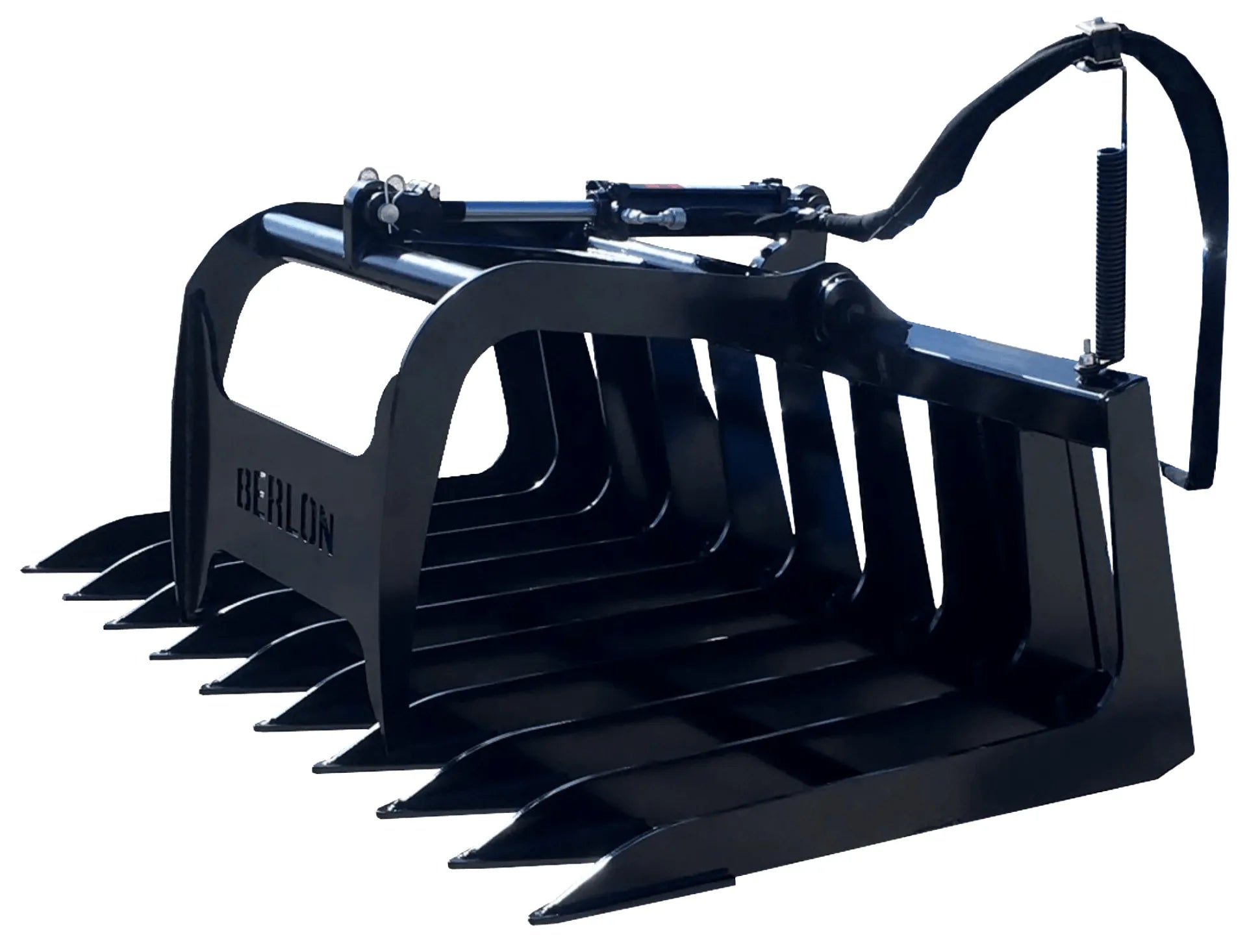

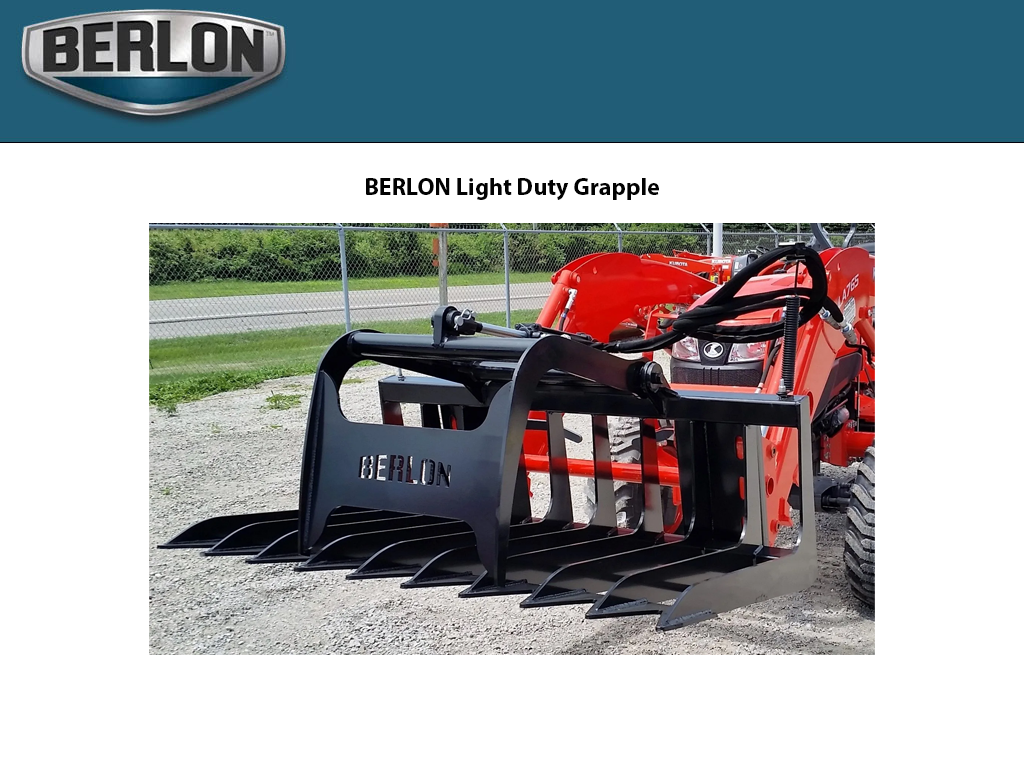

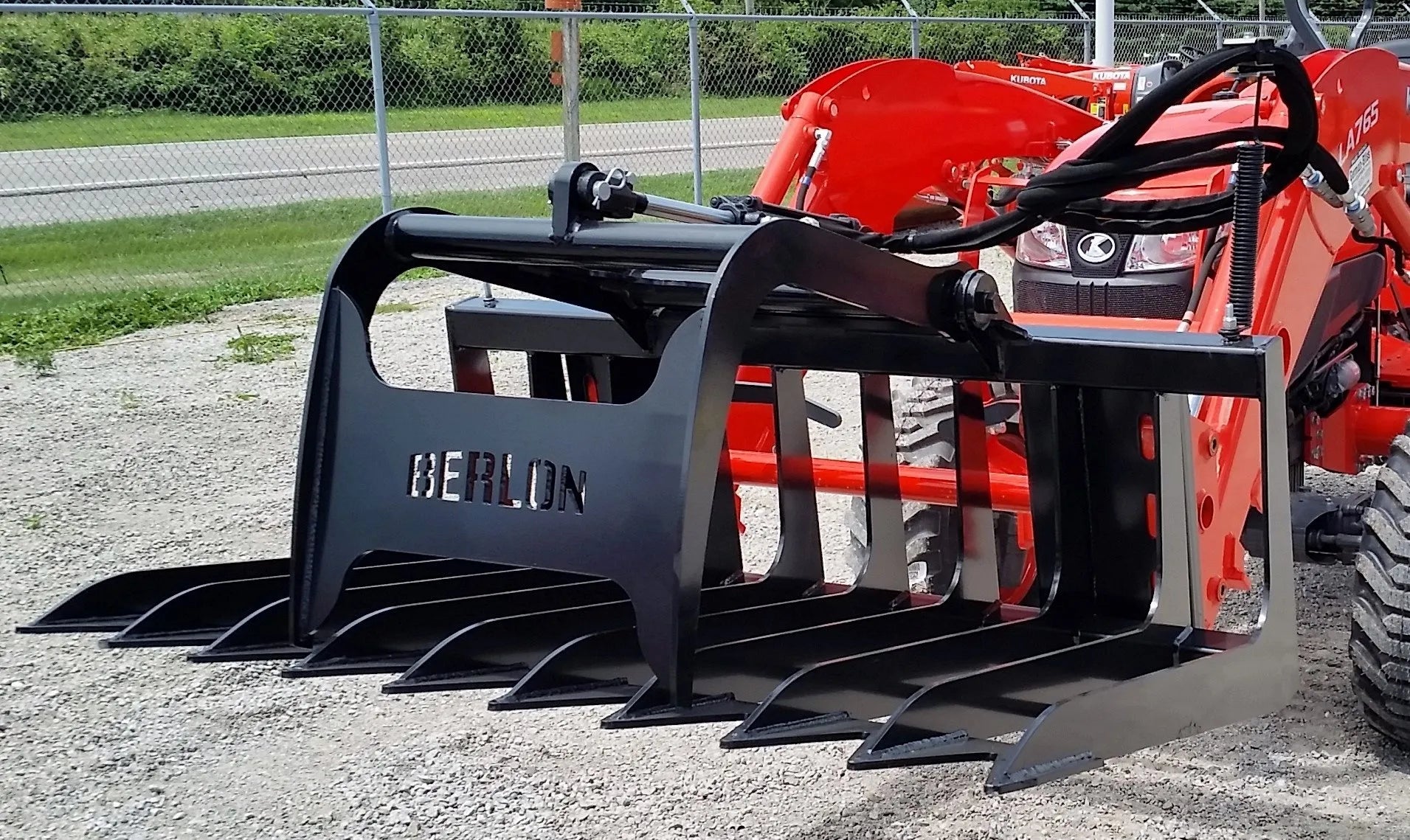

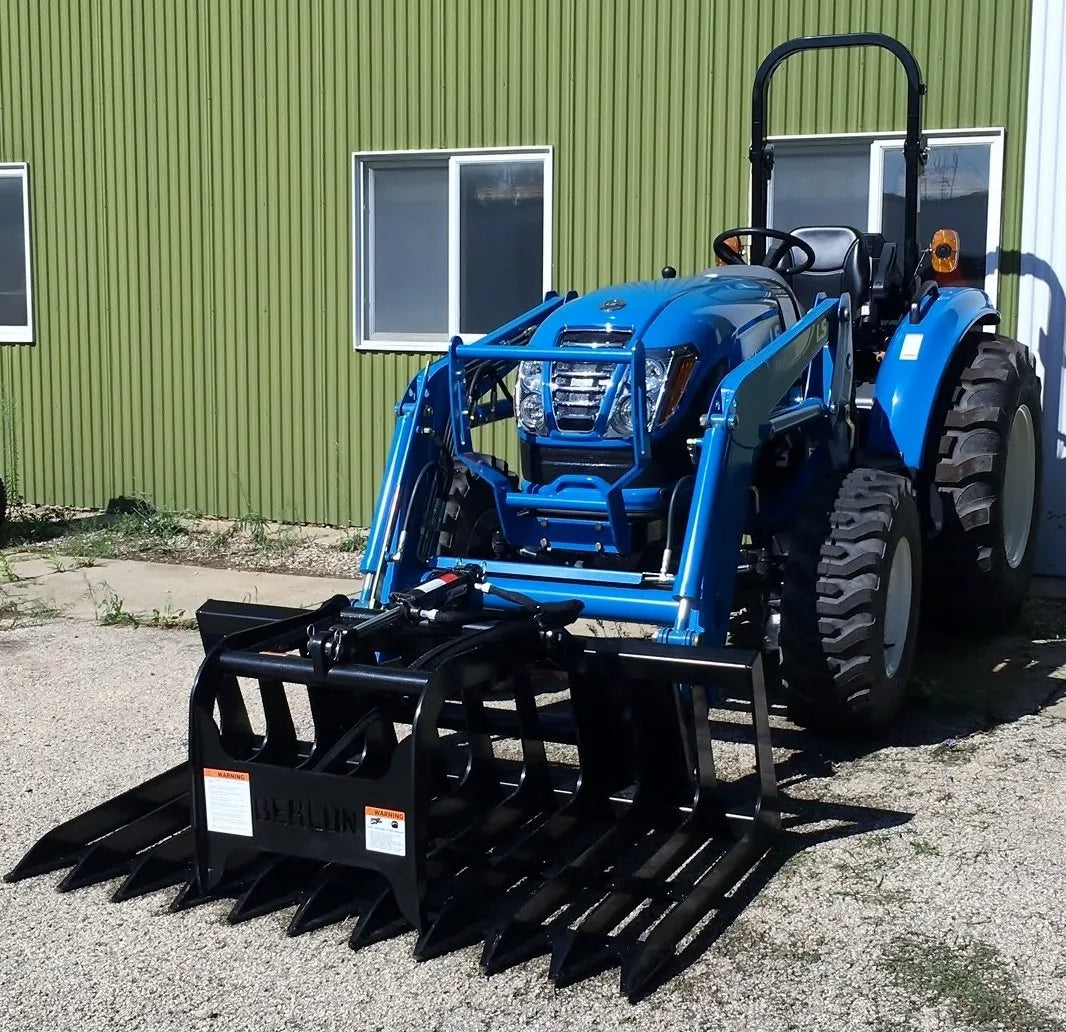

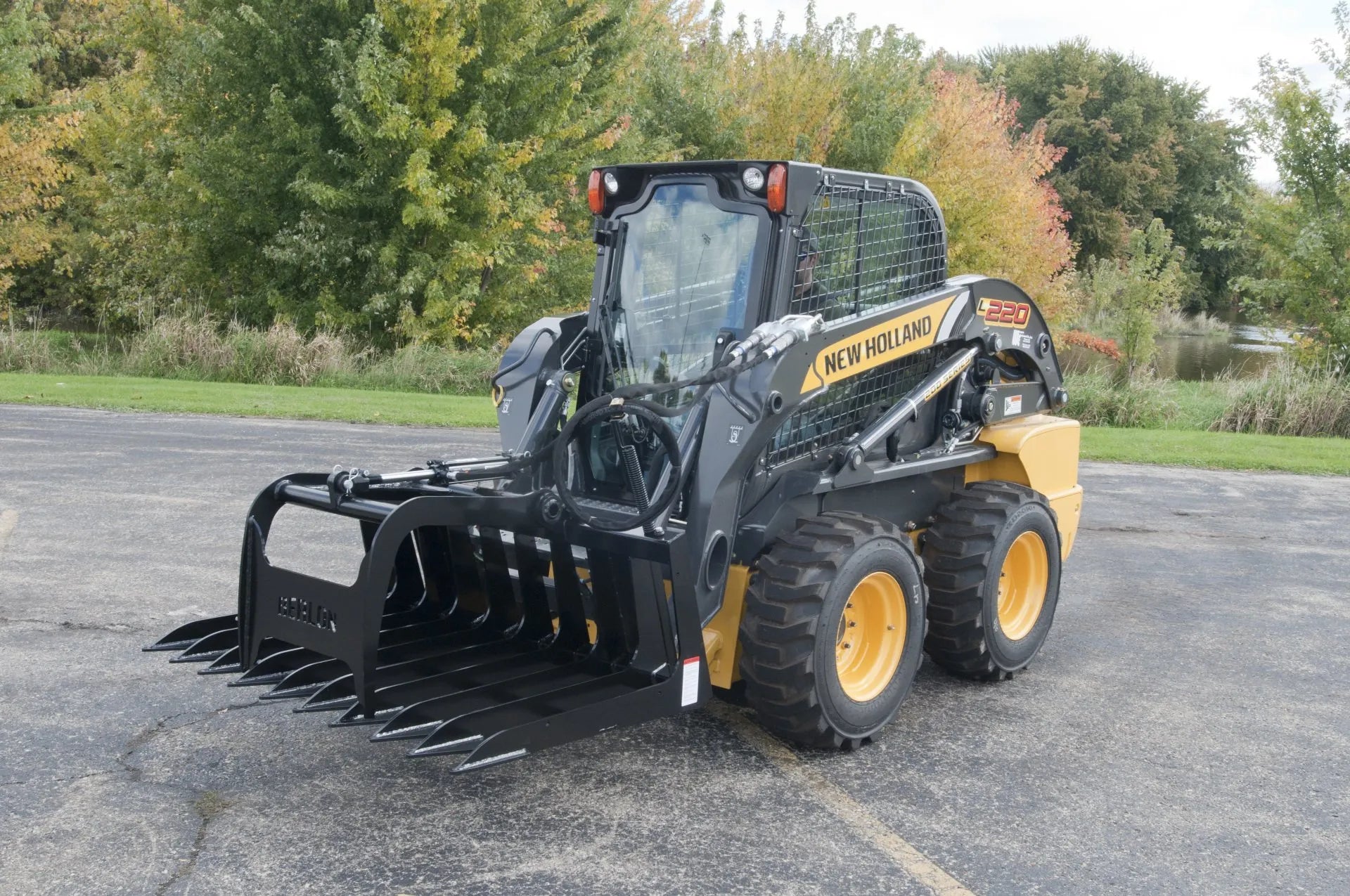

Light Duty Grapple

Berlon’s Light Duty Grapple is ideal for today’s compact tractors and small skid loaders. It is recommended for machines with 50HP or less.

Common uses include: Brush clean up
  • Cylinder - 3,000 lb., 2.5” bore
  • Fully welded leading edge
  • Hydraulics based on single cylinder
  • Scrap ends, hose & couplers, hose saver and needle valve included

B SERIES INSIDE DIMENSION  OUTSIDE DIMENSION "A" HEIGHT "B" DEPTH "C" ANGLE "D" GRAPPLE OPENING LBS
LDGR-54
54.0"
55.5" 21.5" 40.0" 70° 41.0"
491
LDGR-60
60.0" 61.5"
21.5" 40.0" 70°
41.0" 524
LDGR-66 66.0" 67.5"
21.5" 40.0" 70° 41.0" 557
