MIGR-36

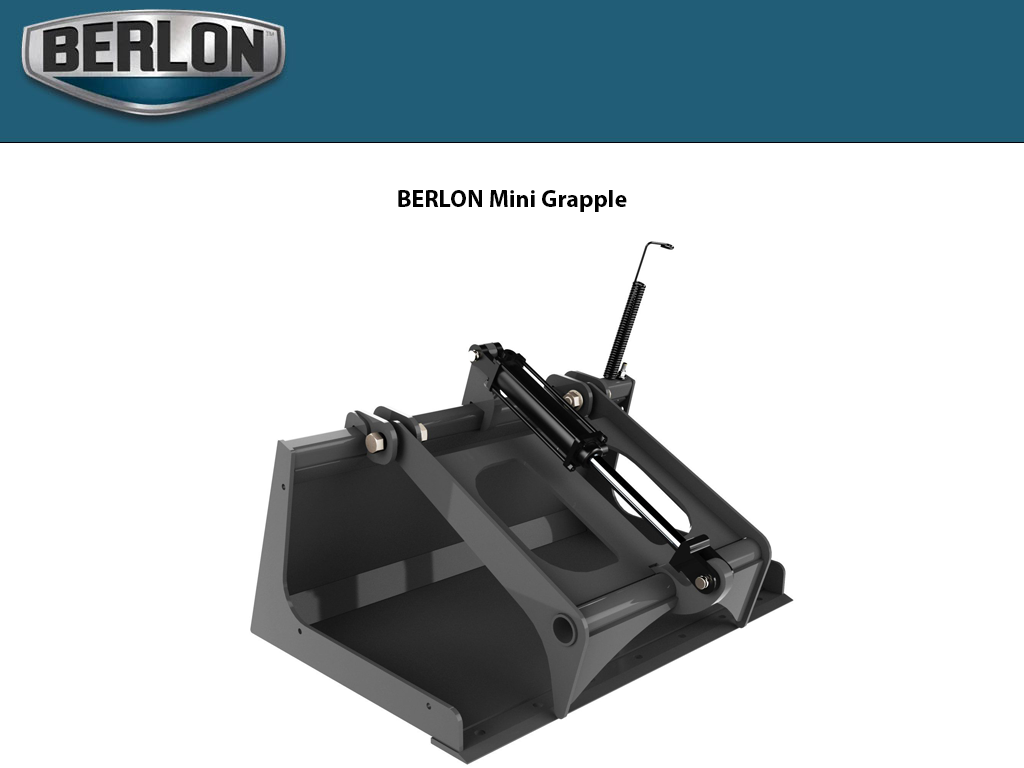

BERLON Mini Grapple for mini loaders
$2,140.00 - $2,370.00
Revised 1/24

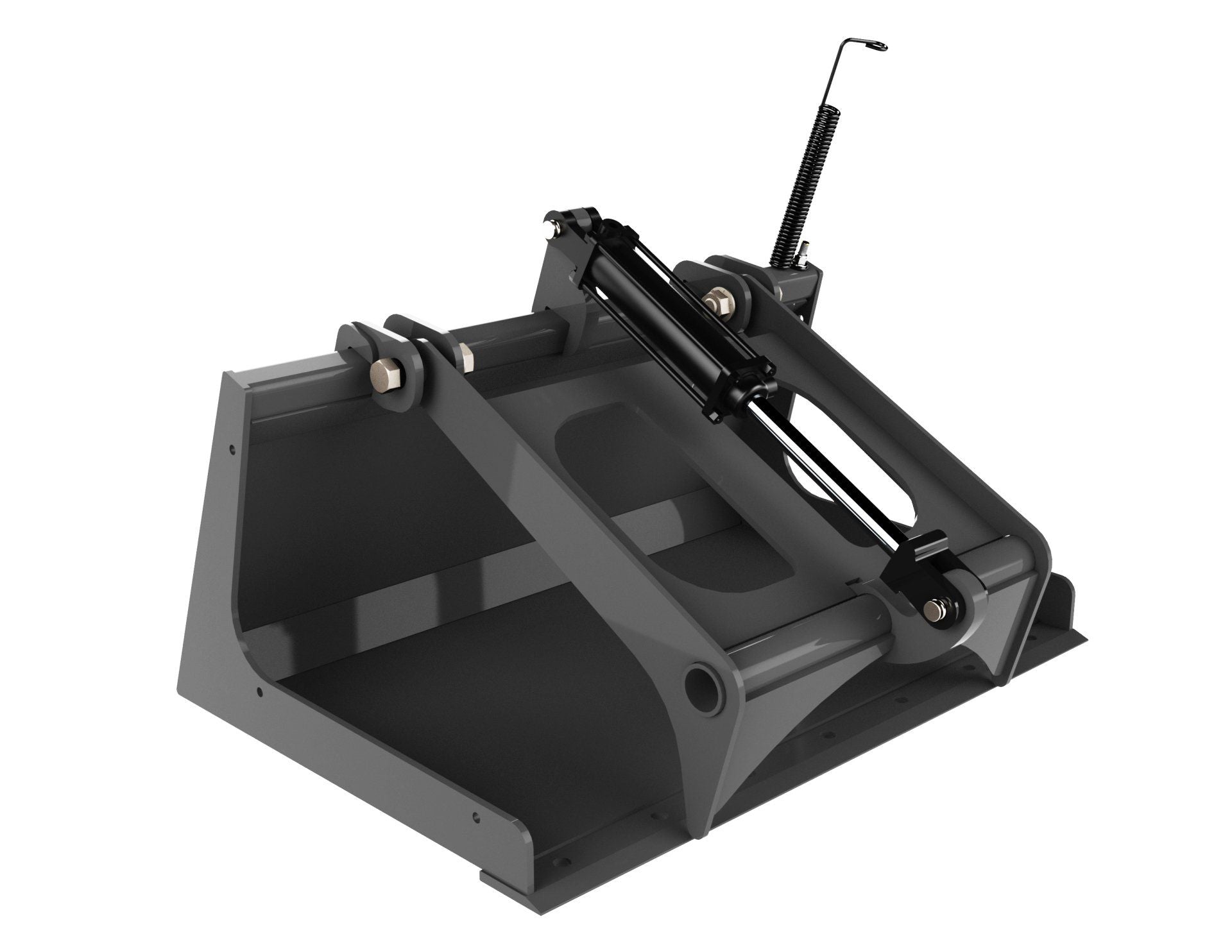

Mini Grapple Bucket
Berlon’s Mini Grapple Bucket is ideal for todays mini loaders. The extended floor is ideal for picking up scrap.
Common uses include: Landscaping
- Includes needle valve, hose saver spring, hoses and couplers
- Optional Bolt-On Cutting Edge
- Optional Bolt-On Ends
| B SERIES | INSIDE DIMENSION | OUTSIDE DIMENSION | "A" HEIGHT | "B" DEPTH | "C" ANGLE | "D" GRAPPLE OPENING | LBS |
| MIGR-36 |
36.0" | 37.5" |
33.0" | 18.0" | 65° | 36.0" |
260 |
| MIGR-42 |
42.0" | 43.5" |
33.0" | 18.0" | 65° | 36.0" | 303 |
| MIGR-48 |
48.0" |
49.5" |
33.0" |
18.0" | 65° | 36.0" | 351 |
