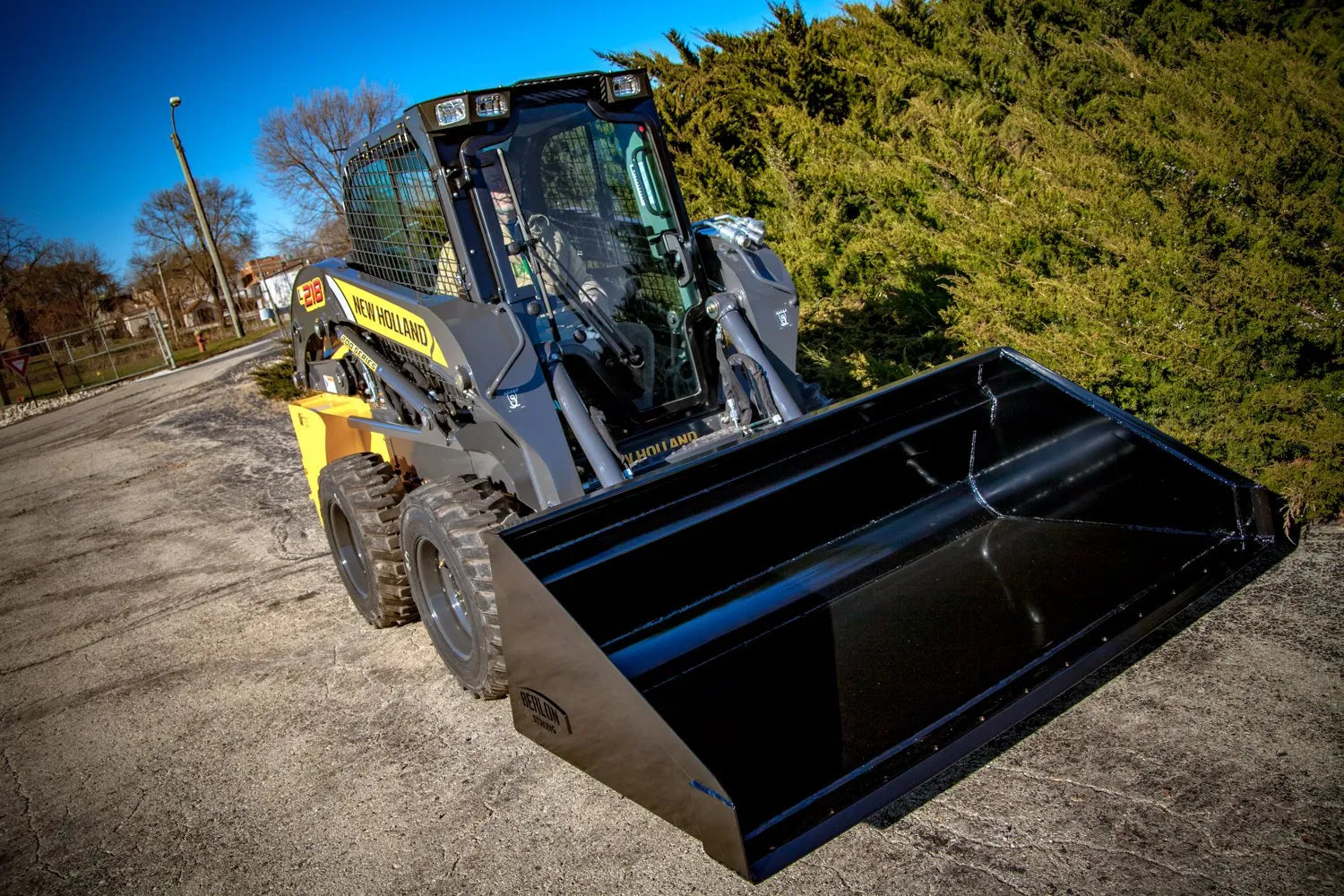

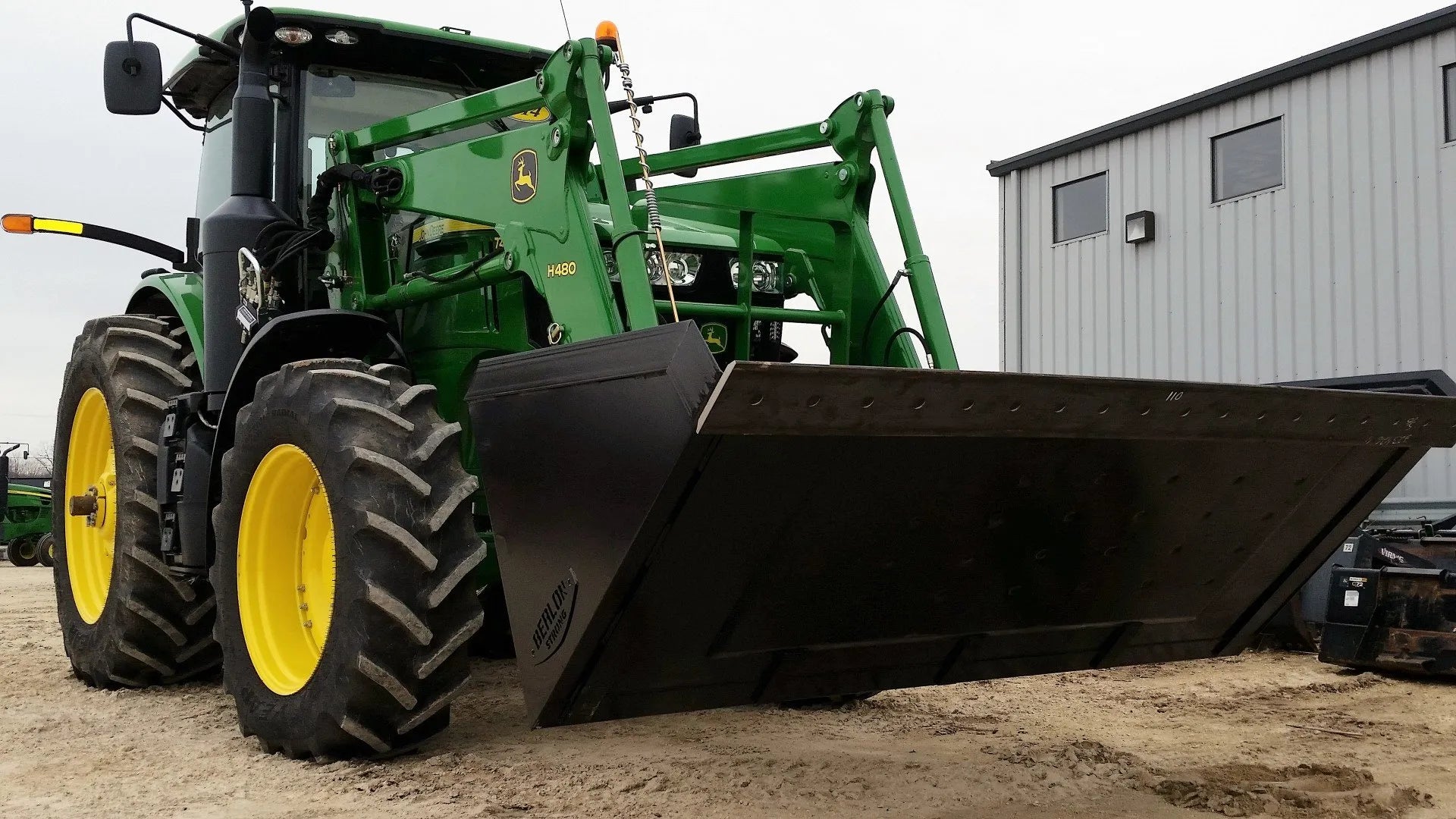

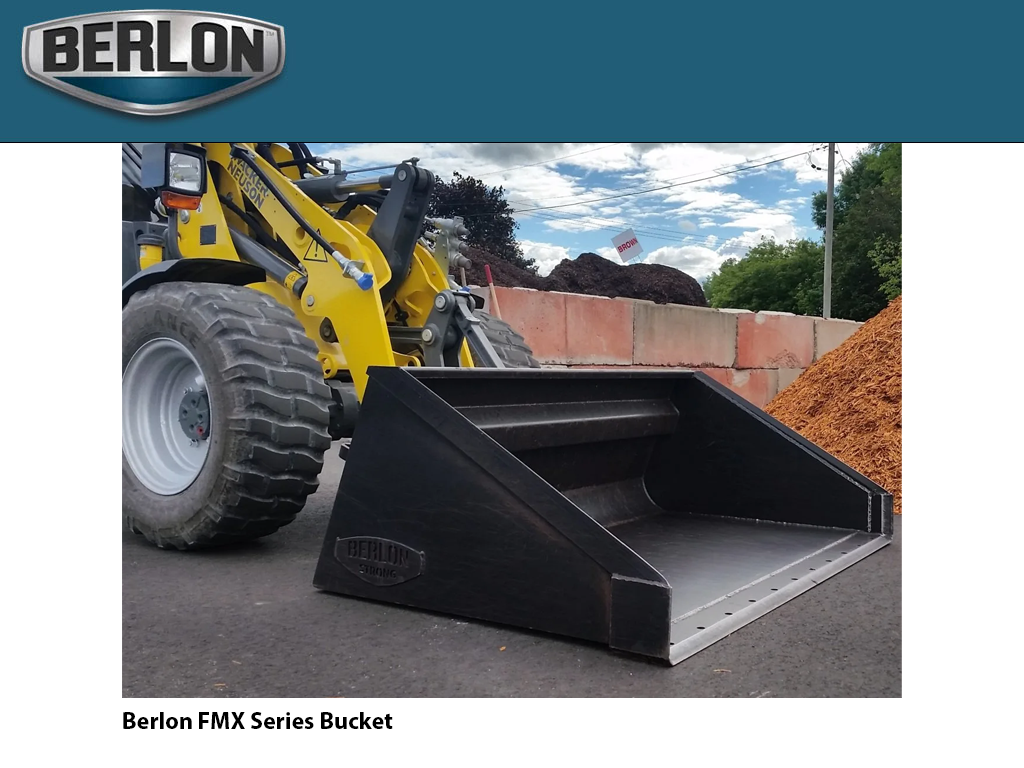

BERLON FMX Series buckets for skid steers

Size
Edge
Options

Utility High-Back Bucket

Berlon’s Utility High-Back bucket is a great choice when

additional capacity is needed.

 Common uses include: Manure, slurry, and bulky material.

  • 3/16” thick steel body
  • Radius kick-out plate for added strength and easy clean-out
  • 3/4” x 6” weld-on cutting edge with holes
  • Reinforcement tube across back of bucket for added strength

      B SERIES INSIDE DIMENSION (IN.) OUTSIDE DIMENSION "A" HEIGHT "B" DEPTH "C" ANGLE LBS
      FMX-72 72.0" 73.5" 25.0" 44.0" 70° 641
      FMX-78 78.0" 79.5" 25.0" 44.0" 70° 671
      FMX-84 84.0" 85.5" 25.0" 44.0" 70° 884
      FMX-90 90.0" 91.5" 25.0" 44.0" 70° 907



      How to Determine Bucket Capacity

      The amount of material a bucket can carry is determined as struck (level) capacity and heaped capacity. The heaped capacity is the actual cubic feet. The following formulas are used to determine capacities and will help you compare the capacity of various buckets.


      To calculate cubic feet of a bucket:

      1: Measure from the top of the bucket straight down to the bottom in inches = Height

      2: Measure from the front of the floor to the back in inches = Depth

      3: Height x Depth ÷ 2 x Width = Cubic Inches ÷ 1,728 = Struck Capacity (Cubic Feet)


      To calculate heaped capacity of a bucket:

      For B, BEL, BELHD, UT, CCT, BEC, MIB, & MIBEL series buckets: Cubic Feet ÷ 3 = Heaped Amount + Cubic Feet = Heaped Capacity

      For UTHB, FMX, HCSB, HVMB, CAL, & MISLMB series buckets: Cubic Feet ÷ 2.5 = Heaped Amount + Cubic Feet = Heaped Capacity
