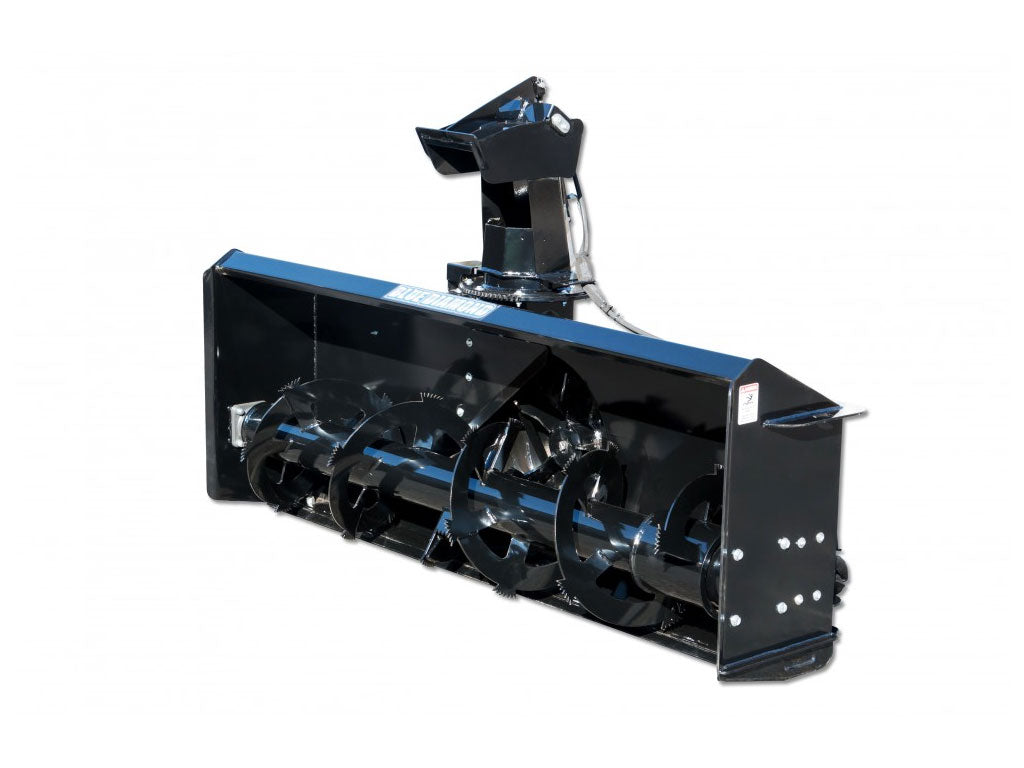

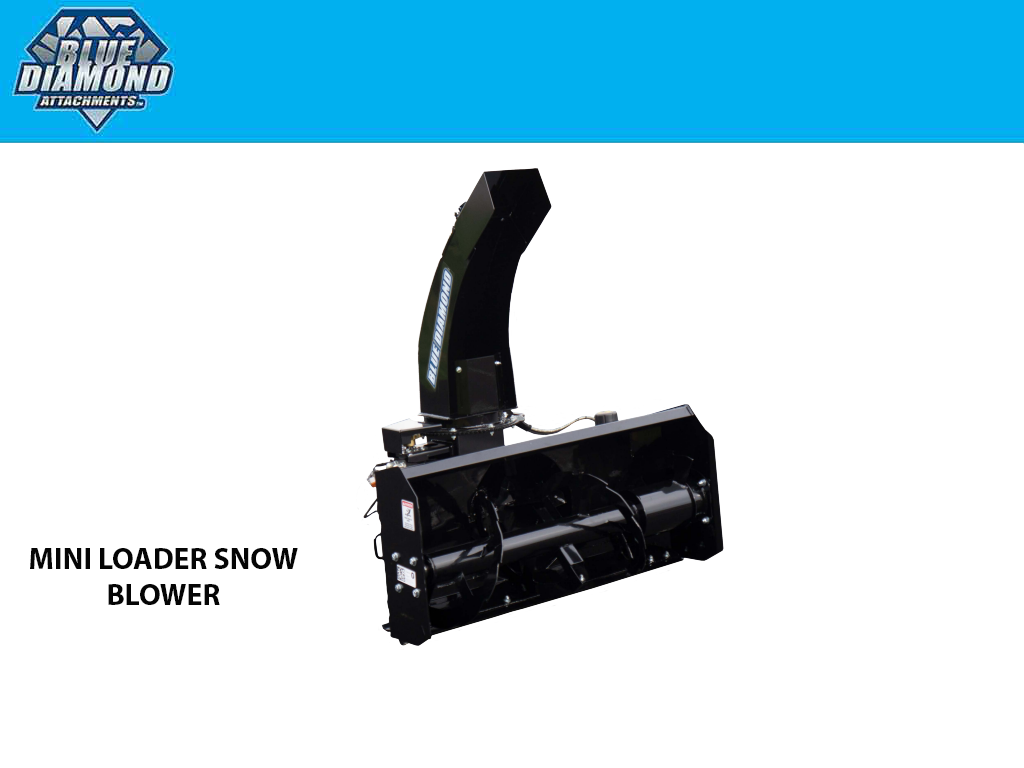

SNOW BLOWER – MINI LOADER

The Blue Diamond® Mini Skid Steer Snow Blower is engineered for years of use. A high pressure bypass relief system eliminates the need for shear pins during sudden stops. With a choice of widths and motor packages, you can find the optimal sized snow blower to match your machine’s capacity.

FEATURES:

• • All hydraulic fan, auger and discharge chute
  • Independent fan and auger high pressure relief, no shear pins
  • Direct drive auger motor, enclosed for long term protection
  • Standard discharge chute with 7” opening, 52” discharge height
  • 270° hydraulic rotary chute with deflector
  • Universal mini or standard skid steer quick attach mounting plate
  • Single 16” auger with 4” center tube and 1-1/2” shaft
  • 7-gauge auger ribbon flighting with aggressive cutting edge
  • Adjustable rear skid shoes
  • Bolt-on and replaceable cutting edge
  • 18” x 6.5” 4-paddle fan, 7 gauge material
  • 14-gauge blower shell with 12-gauge end plates
  • 12-gauge fan housing with 7-gauge motor mount plate
  • Powder coat finish
  • Mounts available for mini universal or full size skid steer
