CBR225 / CBRM-SS

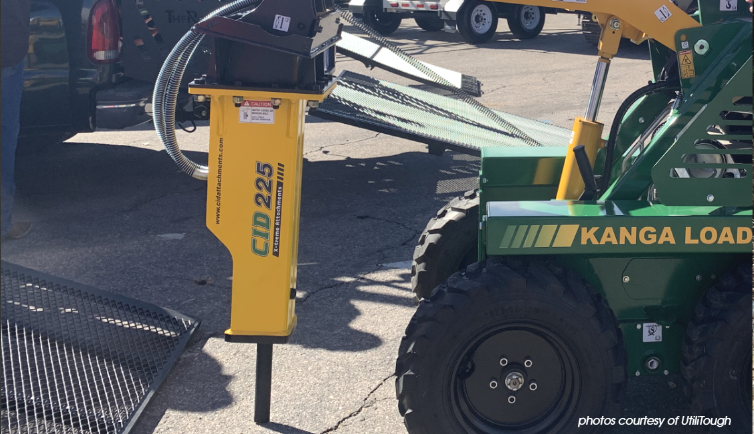

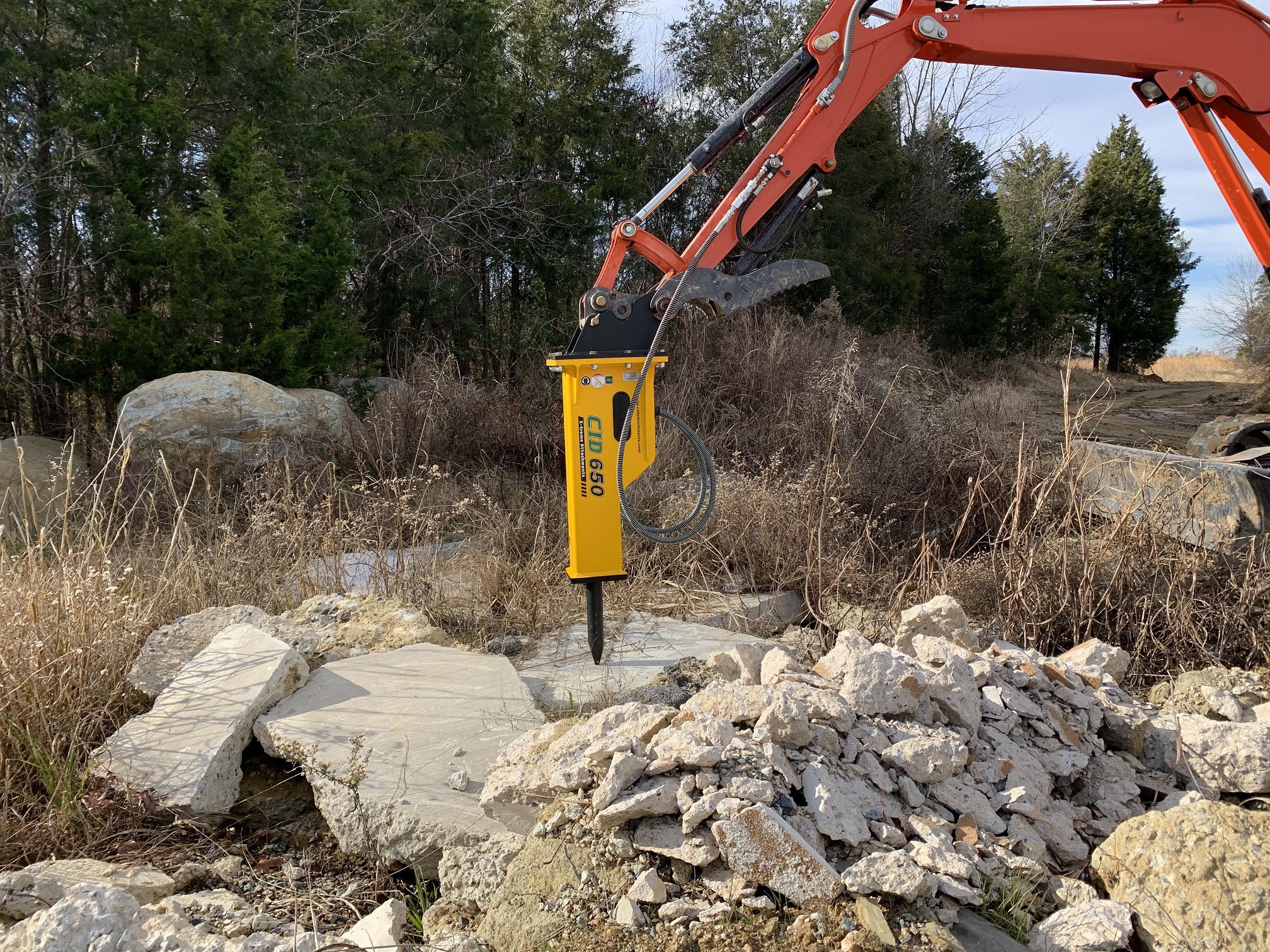

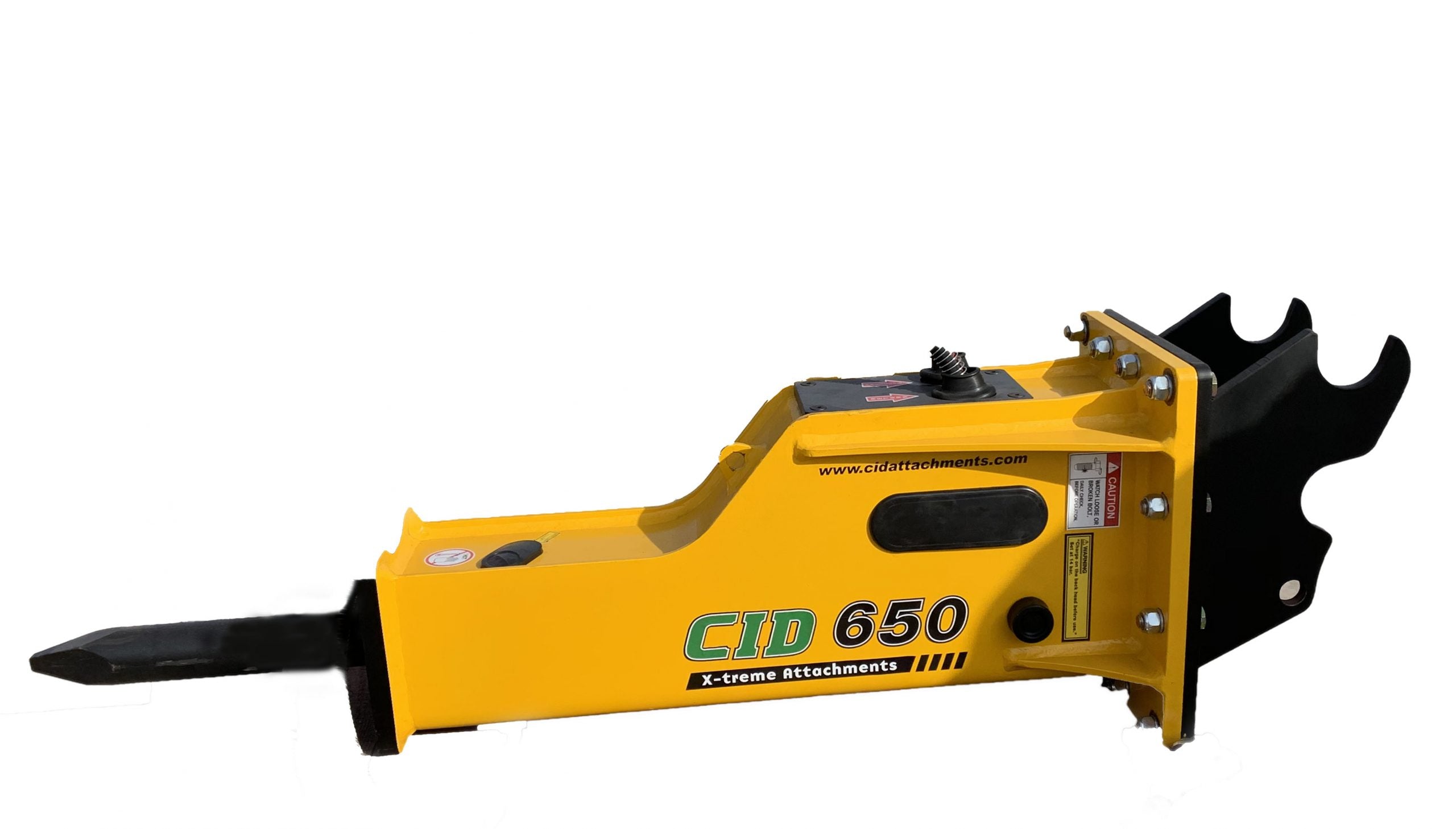

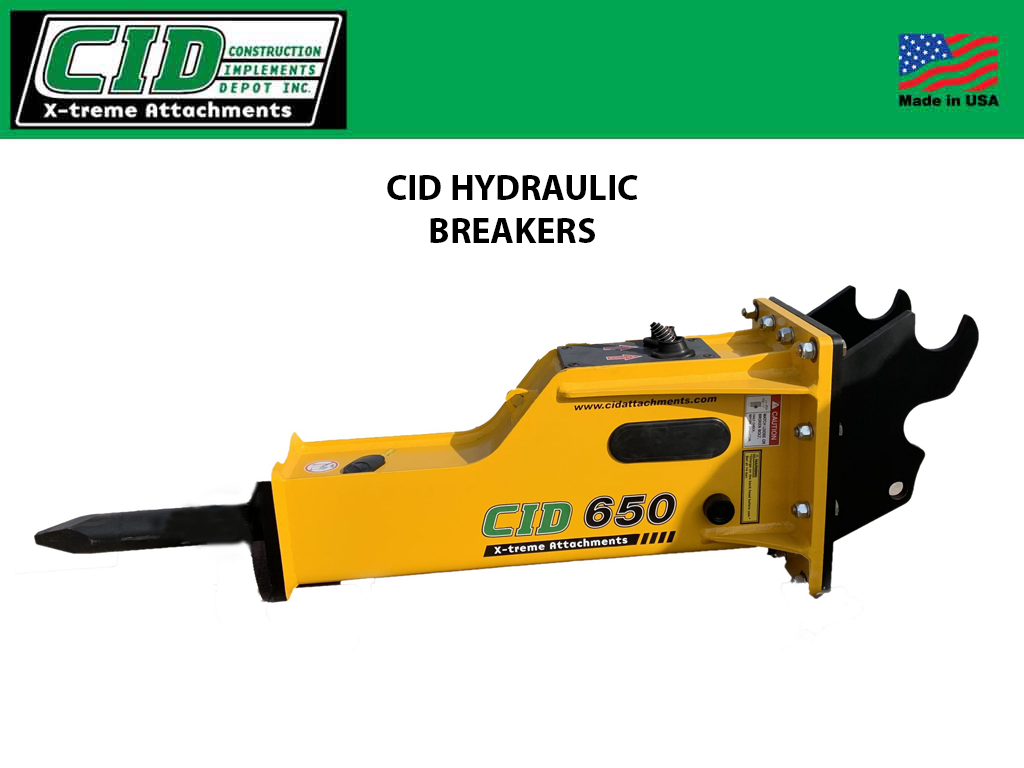

CID Hydraulic Breakers for Skid Steers
$7,022.00 - $17,503.00
6-25
Hydraulic Breaker
The CID Hydraulic Breakers are the perfect attachment for rock, asphalt, or concrete demolition. Our Hydraulic Breakers are available in eight different models suitable for mini-skid steers, skid steers, compact loaders, and mini-excavators. CID also offers a variety of working tools for your Breaker: Cone points, Cross cut asphalt cutters, Inline Asphalt cutters, Asphalt cutters, Tamping tools, and Post drivers.
Model Specifications
- Longer Chisel Point and larger through bolt for added durability
- Stronger impact power, low noise design
- Control valve replaceable with ease and speed
- All Breakers include: Mount, Hoses, Moil Point, Blunt Point, Tool Kit, Nitrogen Gauge, and Operator’s Manual
- Two Year Warranty(Wear parts excluded)
- Auto Lube standard on four models, CBR1000 and above
- Additional Tool Tips available
***PLEASE CALL FOR A FREIGHT QUOTE***
|
Description |
Unit |
CBR225 | CBR500 | CBR650 | CBR850 | CBR1000 |
| Impact Energy Class | ft lb. | 359 | 500 | 650 | 850 | 1000 |
| Operation Weight | lb. | 359 | 551 | 716 | 1069 | 1179 |
| Hose Length | in. | .5" x 90" | .5 " x 110" | .5" x 110" | .75" x 110" | .75" x 110" |
| Blow Rate (Long Stroke) | bpm | 540~1000 | 600~1490 | 550~1300 | 380~1100 | 380~1000 |
| Required Oil Flow | gpm | 3.97~9.25 | 5.28~18.49 | 7.92~18.49 | 10.03~29.05 | 11.88~36.98 |
| Operating Pressure | psi | 1280~1707 | 1280~2702 | 1565~2702 | 1707~2702 | 1991~2702 |
| Tool Diameter | in. | 1.77" | 2.24" | 2.75" | 2.95" | 3.14" |
| Suitable Carrier | ton | .8~2.5 | 1.5~4 | 3~6 | 4.5~8 | 4.5~8.8 |
| Suitable Carrier | lb. | 1600~5000 | 3000~8000 | 6000~12000 | 9000~16000 | 9000~17600 |
