SGB63

CID Grapple Buckets for Skid Steers

Style
Size
5-13

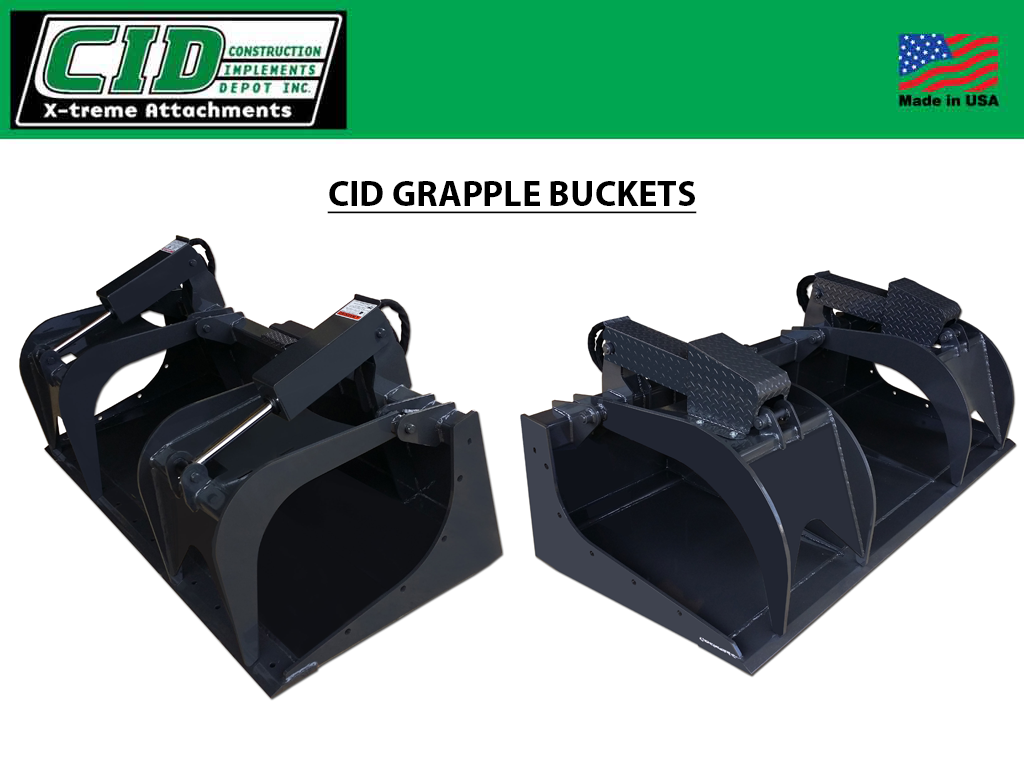

CID Skid Steer Grapple Buckets.

Our CID Skid Steer Grapple Buckets are very versatile attachments. They’re all great choices for anyone that owns a skid steer, compact track loader and compact tractor. Available in a wide range of sizes, they easily pick up logs, rocks, left over building supplies or any other type of debris. It’s just an all around good general use grapple bucket.

CID Skid Steer Grapple Buckets Specs.

All Grapple Buckets have 2” bore and 10” stroke cylinders, with all hydraulic lines routed inside the tubing to prevent tears. Every grapple bucket exceeds the lifting capacity of the skid steer machine it is attached to. It is also built with top quality steel, over sized points and bushings, with grease fittings at every pivot point.

  • 2” bore by 10” stroke cylinders, rated at 4000 PSI.
  • Grease fittings at every pivot point.
  • Optional weld on teeth and bolt on cylinder rod cover kit.

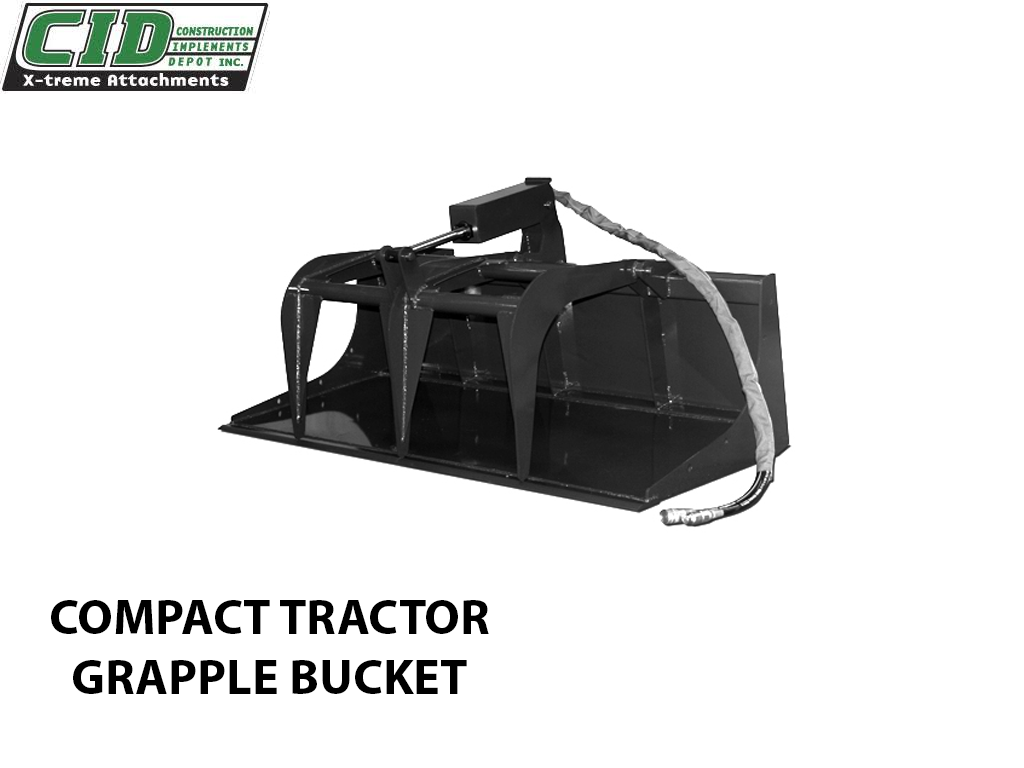

  • Compact Tractor Sizes: 60”, 66”, 72”.
  • Standard Duty Sizes: 63”, 72”.
  • Heavy Duty Sizes: 63”, 66”, 72”, 78”, 81”.
  • Up to 35 HP On Compact Tractor.
  • Up to 45 HP On Standard Duty.
  • Up to 65 HP On Heavy Duty.

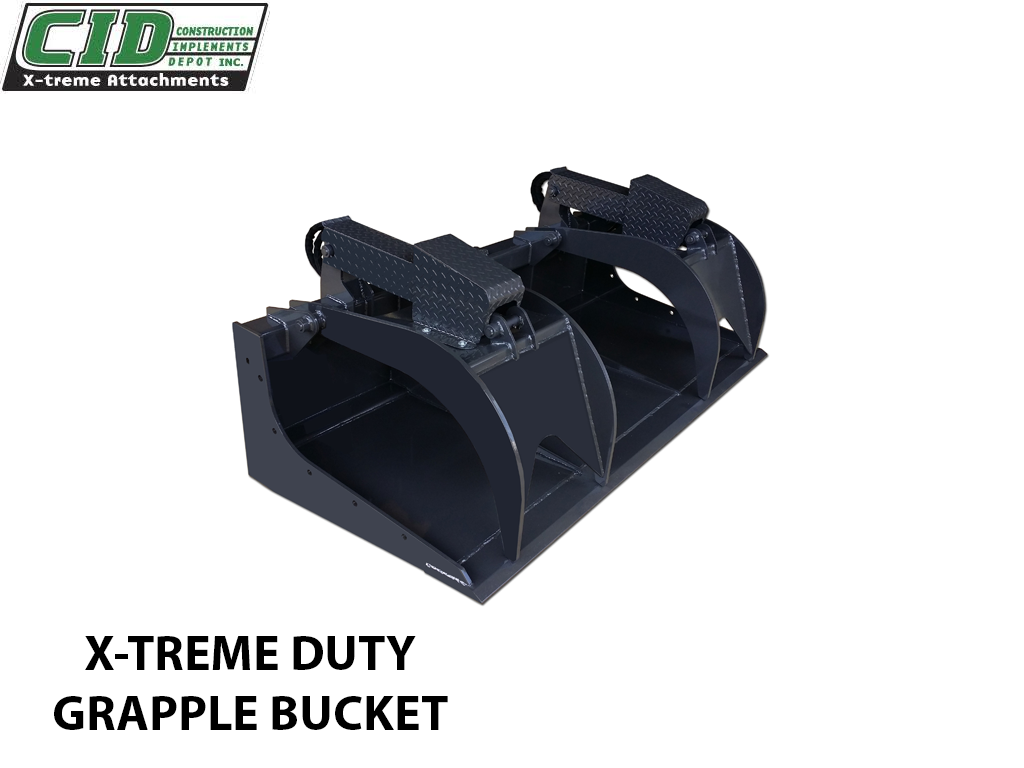

X-treme Skid Steer Grapple Bucket Attachment.

The X-treme Skid Steer Grapple Bucket Attachment is ideal for picking up logs, rocks, and left over building supplies or any other type of debris. It can handle more material and is intended for larger machines (65 HP and Up) than our Heavy Duty Skid Steer Grapple Bucket.

One feature that separates our X-treme Skid Steer Grapple Bucket Attachment from our competitor’s comparable attachment is the enclosed hydraulic cylinder shaft. Most grapple buckets only have the actual cylinder enclosed and not the shaft. We protect both! Anyone that ever had debris fall on the cylinder shaft knows what damage this can cause.

X-treme Skid Steer Grapple Bucket Attachment Specs.

It features 2” bore by 10” stroke cylinders that operate independently to adjust for uneven loads. The hydraulic lines are routed inside the tubing to prevent tears. It is also built with top quality steel, over sized points and bushings. Grease fittings at every pivot point. The X-treme Grapple Bucket Attachment has a 1” x 6” cutting edge. Every unit exceeds the lifting capacity of the skid steer machine it is attached to.

  • 2” bore by 10” stroke cylinders that operate independently, rated at 4000 PSI.
  • 5/8″ top tines.
  • Hydraulic lines on top & routed inside the tubing to prevent tears.
  • Grease fittings at every pivot point.
  • Bucket has a 1” x 8” cutting edge.
  • Bolt on sides included.
  • Optional weld on teeth.
  • Optional bolt on edge.
  • Available Sizes: 66”, 72”, 78”, 81″, 84”, 96”.
  • 65 HP and Up.

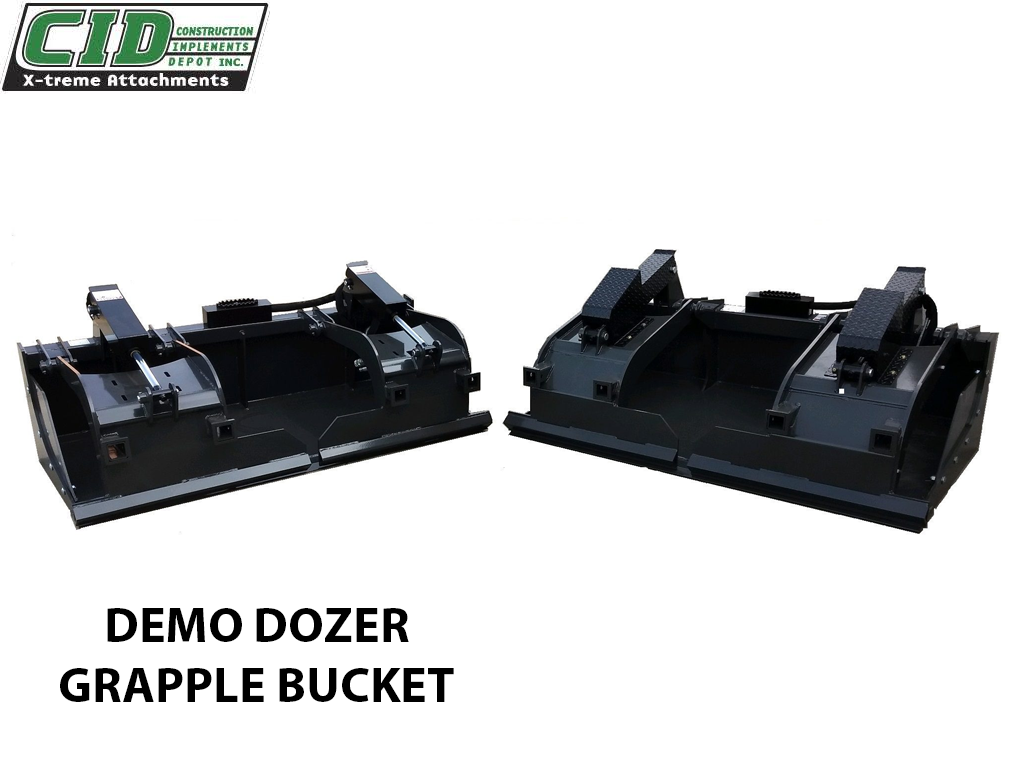

DEMOLITION GRAPPLE BUCKET

The Demolition Grapple Bucket combines multiple functions in one unique attachment.  The Demolition Grapple Bucket replicates the functions of a general purpose bucket, 4-N-1 bucket, dozer blade, grapple bucket, clam shell, log handler, and demolition bucket.  This attachment is also equipped with tool receivers, pre-drilled holes for bolt on edges, chain hooks with pins, and removable sides. It can handle more material and is intended for larger machines (65 HP and Up) than our Heavy Duty Skid Steer Grapple Bucket.

Demolition Grapple Bucket Specs.

  • 2” bore by 10” stroke cylinders that operate independently, rated at 4000 PSI.
  • HD has 1/2″ top tines, XD has 5/8″ top tines
  • Hydraulic lines on top & routed inside the tubing to prevent tears.
  • Rod Covers included with Xtreme, optional on HD
  • Bolt on sides included.
  • Bucket has a 1” x 8” cutting edge.
  • Optional bolt on edge.
  • Available Sizes: 66”, 72”, 78”, 81″, 84”, 96”.
  • Heavy Duty designed for HP of 45-65, Xtreme designed for 65+.

Monster Grapple Bucket

The monster grapple bucket is a perfect match for 100 horsepower track loaders and telescopic loaders (telehandlers). While it functions just like all our other CID grapple buckets. It can handle a lot more volume of brush, material, logs, and debris.

It is a great attachment to use in the clean up industry too. Reinforced with extra tubing and and ribs, enormous opening, deep floor and the largest capacity on the market. This grapple bucket can tackle the toughest jobs.

Monster Grapple Bucket Specs.

  • optional bolt on cutting edge.
  • cylinder and cylinder shaft protection.
  • 2 x 10 hydraulic cylinders.

​​

STYLE / BUCKET SIZE 48" 54" 60" 63" 66" 72" 78" 81" 84" 96"
MONSTER  - - - - - -
STANDARD DUTY - - - - - - -
HEAVY DUTY - - - - -
HEAVY DUTY (W/ TEETH) - - - - -
X-TREME  - - - -
X-TREME (W/ TEETH) - - - -
HEAVY DUTY DEMO DOZER - - - - - - - -
X-TREME DEMO DOZER - - - - - - -

MONSTER

monster grapple bucket

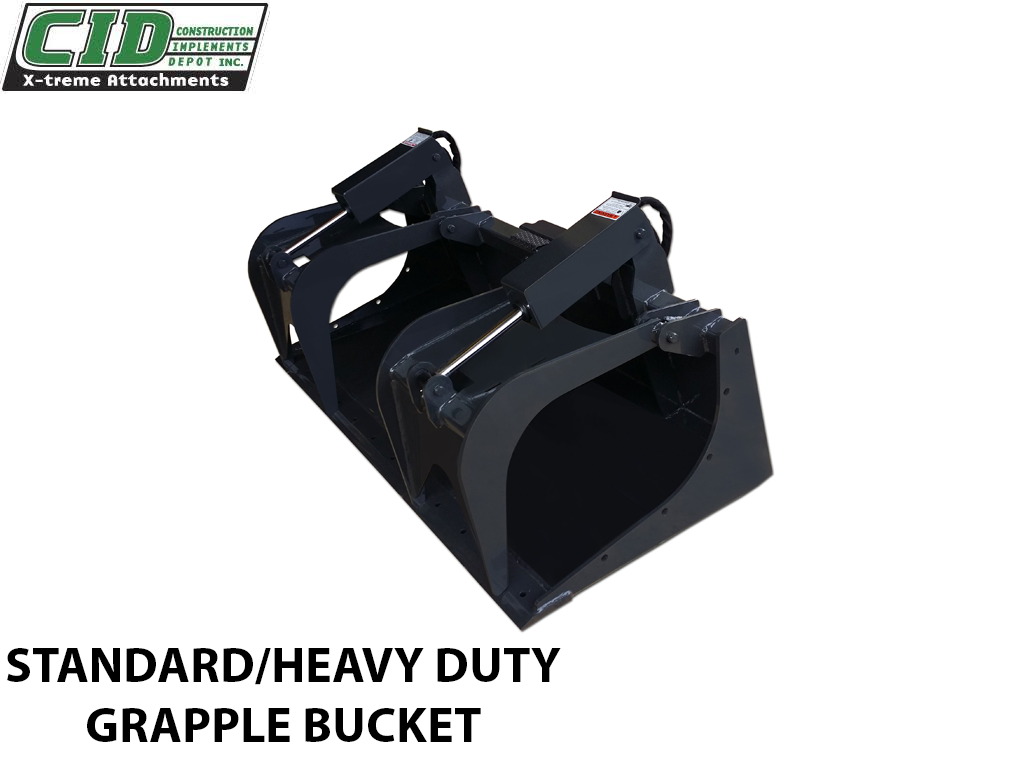

STANDARD/HEAVY DUTY

heavy duty grapple bucket spec

X-TREME

x-treme grapple bucket spec

DEMOLITION GRAPPLE

CID Skid Steer Grapple Buckets Extra Protection.

Our skid steer grapple bucket attachment comes powder coated and all hoses come with protective sleeves to give the attachment the best protection. All CID attachments are warranted to be free from defects in materials and workmanship for a period of 12 months. This warranty starts from the initial sale, lease or rental date.
