SDBAPC72L

CID Severe Duty Bent Axis Piston Cutter for Skid Steers

Flow
Size
12-24

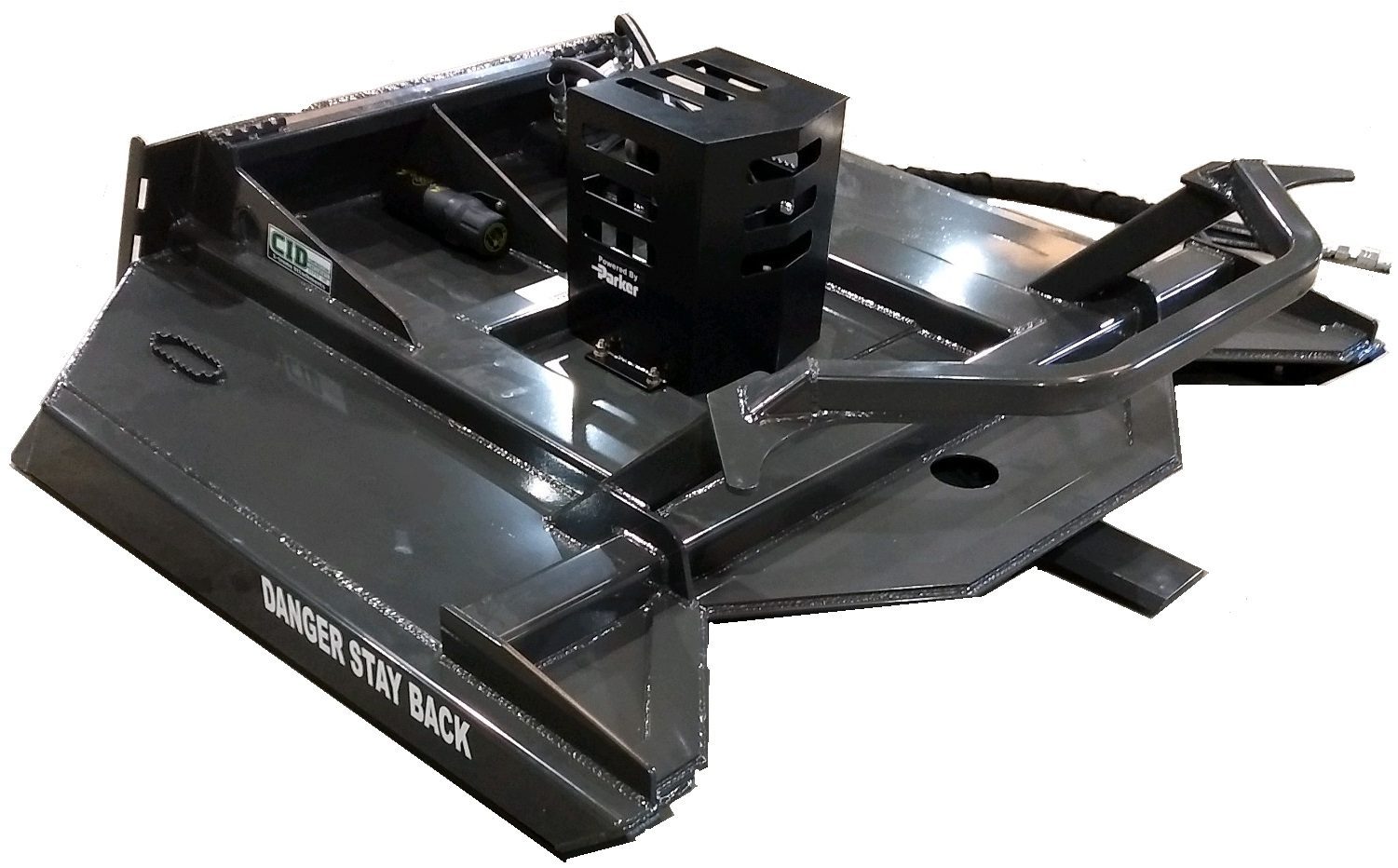

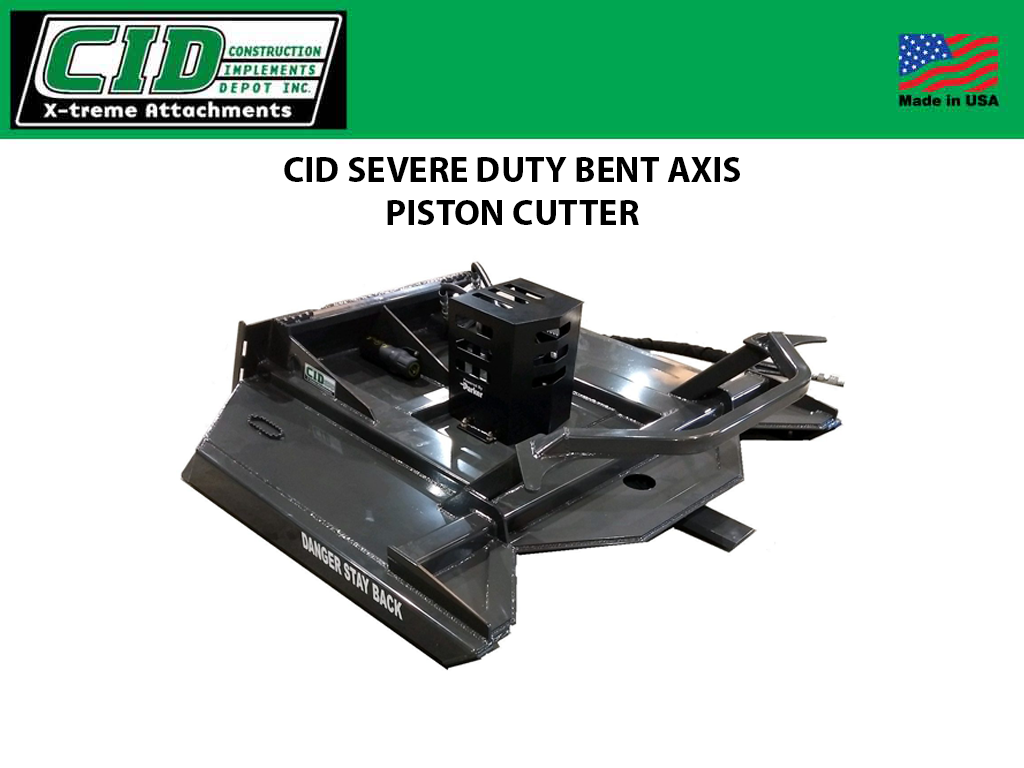

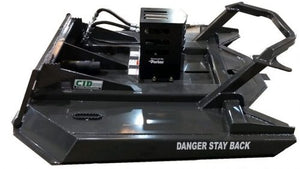

Severe Duty Bent Axis Piston Cutter

Our Severe Duty Bent Axis Piston Cutter is powered by a Parker bent axis piston motor.  With a continuous cutting capacity of 10″, you will be able to make quick work of all brush cutting needs.  The Severe Duty Cutter features a round blade holder, complete with four blades and either 16 or 20 mulching teeth depending on the cutter width. This powerful cutter is offered in a 72″ width and a 78″ width, with GPM flow available in a 20-30 motor or a 30-50 motor.

Brush Cutter Model Specifications

 20-30 and 30-50 GPM

  • 10″ cutting capacity.
  • 1/4’’ deck with sides reinforced with 3/8’’ AR400.
  • Piston Motor direct Drive.
  • 4x bi-directional blades made with 5/8” AR400.
  • Requires a case drain.
  • Available in 72”or  78″ cutting width.
  • 1/2″ Double round blade holder.
  • Mulching Teeth Standard on all Severe Cutters

Durable Brush Cutters Built To Outperform!

All CID’s brush cutters come powder coated and all hoses come with protective sleeves to give the attachment the best protection. All CID attachments are warranted to be free from defects in materials and workmanship for a period of 12 months. This warranty starts from the initial sale, lease or rental date.

    SVBAPC72L

    Product Family Severe Duty Piston Cutter
    Product SVBAPC72L
    Description SEVERE DUTY BENT AXIS PISTON CUTTER 72” 20-30 GPM
    Motor Parker Bent Axis Motor
    Case Drain Required
    Flow Requirement (GPM) 20-30 GPM
    Working Width 72"
    # of Blades 4
    # of Mulching Teeth 16
    Weight (lbs) 1979
    Cutting Capacity 10"
    Deck Thickness 1/4" deck
    Skid Shoes AR400 Replaceable
    Blade Holder 155,000 PSI round carrier
    Blades 3/4" AR400

    SVBAPC72H

    Product Family Severe Duty Piston Cutter
    Product SVBAPC72H
    Description SEVERE DUTY BENT AXIS PISTON CUTTER 72” 30-50 GPM
    Motor Parker Bent Axis Motor
    Case Drain Required
    Flow Requirement (GPM) 30-50 GPM
    Working Width 72"
    # of Blades 4
    # of Mulching Teeth 16
    Weight (lbs) 1328
    Cutting Capacity 10"
    Deck Thickness 1/4" deck
    Skid Shoes AR400 Replaceable
    Blade Holder 155,000 PSI round carrier
    Blades 3/4" AR400

    SVBAPC78H

    Product Family Severe Duty Piston Cutter
    Product SVBAPC78H
    Description SEVERE DUTY BENT AXIS PISTON CUTTER 78” 30-50 GPM
    Motor Parker Bent Axis Motor
    Case Drain Required
    Flow Requirement (GPM) 30-50 GPM
    Working Width 78"
    # of Blades 4
    # of Mulching Teeth 20
    Weight (lbs) 2223
    Cutting Capacity 10"
    Deck Thickness 1/4" deck
    Skid Shoes AR400 Replaceable
    Blade Holder 155,000 PSI round carrier
    Blades 3/4" AR400

    SVBAPC78L

    Product Family Severe Duty Piston Cutter
    Product SVBAPC78L
    Description SEVERE DUTY BENT AXIS PISTON CUTTER 78” 20-30 GPM
    Motor Parker Bent Axis Motor
    Case Drain Required
    Flow Requirement (GPM) 20-30 GPM
    Working Width 78"
    # of Blades 4
    # of Mulching Teeth 20
    Weight (lbs) 2190
    Cutting Capacity 10"
    Deck Thickness 1/4" deck
    Skid Shoes AR400 Replaceable
    Blade Holder 155,000 PSI round carrier
    Blades 3/4" AR400
